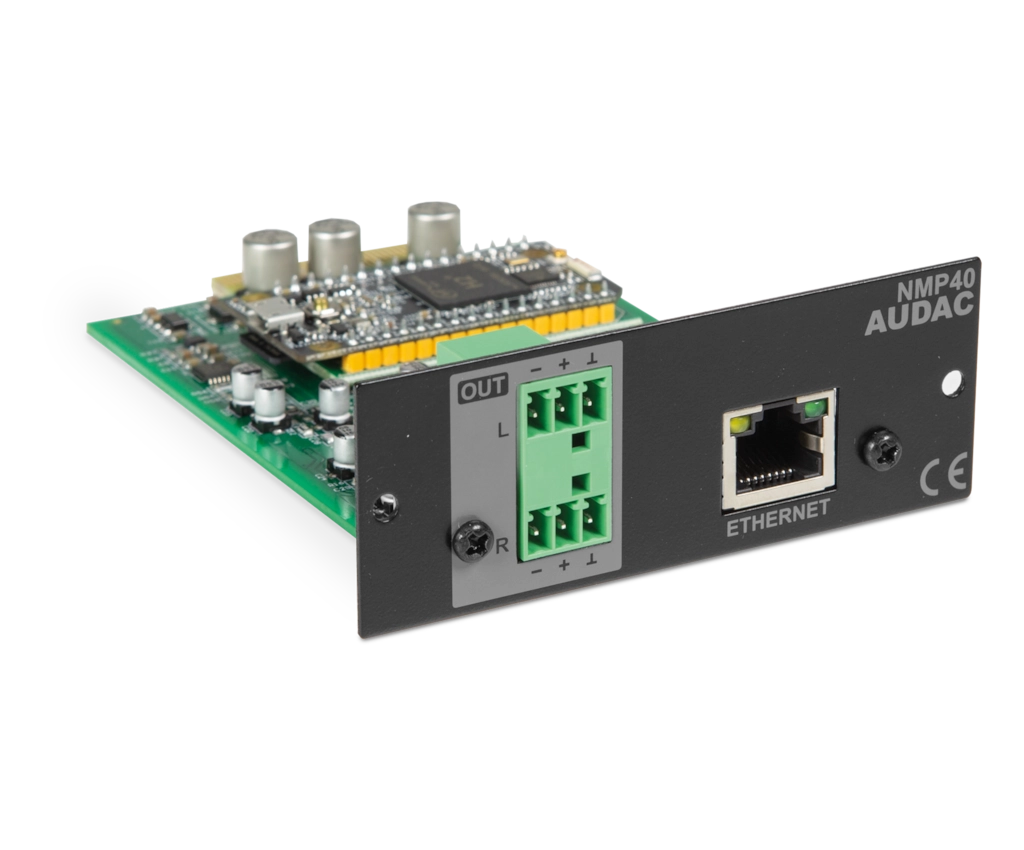

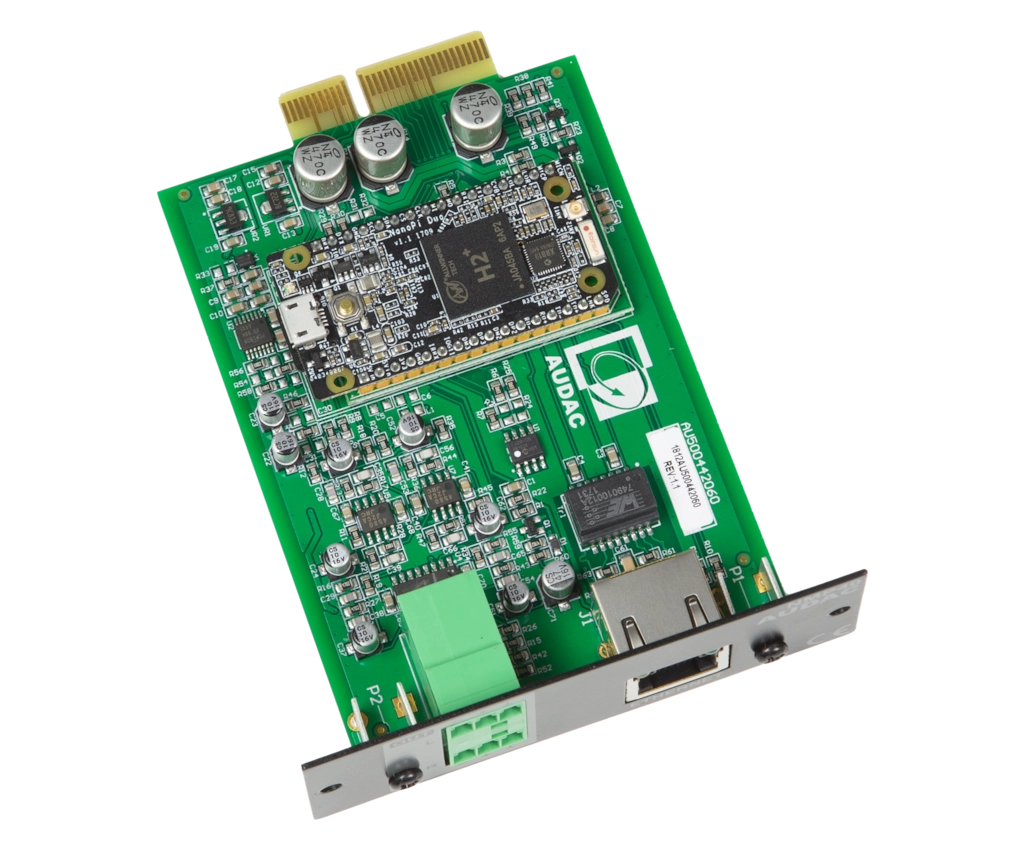

NMP40
Audio Streaming Sourcecon™ Module
- Compatible with AUDAC Touch™
- Spotify™ Connect certified
- Soundtrack Your Brand© certified
- True plug & play solution
- Works with any SourceCon™ enabled device
- Custom audio stream selection
Description
System specifications
| Connection | SourceCon™ interface card slot | |
| Inputs | RJ45 (Ethernet) | |
| Outputs | Type | Balanced stereo line outputs |
| Connector | 3-pin Euro Terminal Block (Pitch – 3.81 mm) | |
| Crosstalk (@ 1 kHz) | > 82 dB | |
| THD+N (@ 1 kHz) | 0.02% | |
| Signal / Noise | 100 dB | |
| Outputs | Level | +7 dB ~ -92 dB |
| Frequency | Response (± 3 dB) | 20 Hz – 20 kHz |
| Power | Consumption | 2.5 W |
Product Features
| Dimensions | 87 x 34.5 x 114 mm (W x H x D) |
| Mounting | SourceCon™ interface card slot |
Recommended applications
|
Bars & Restaurants
|
|
Retail
|
|
Hotels
|
|
Houses of worship
|
