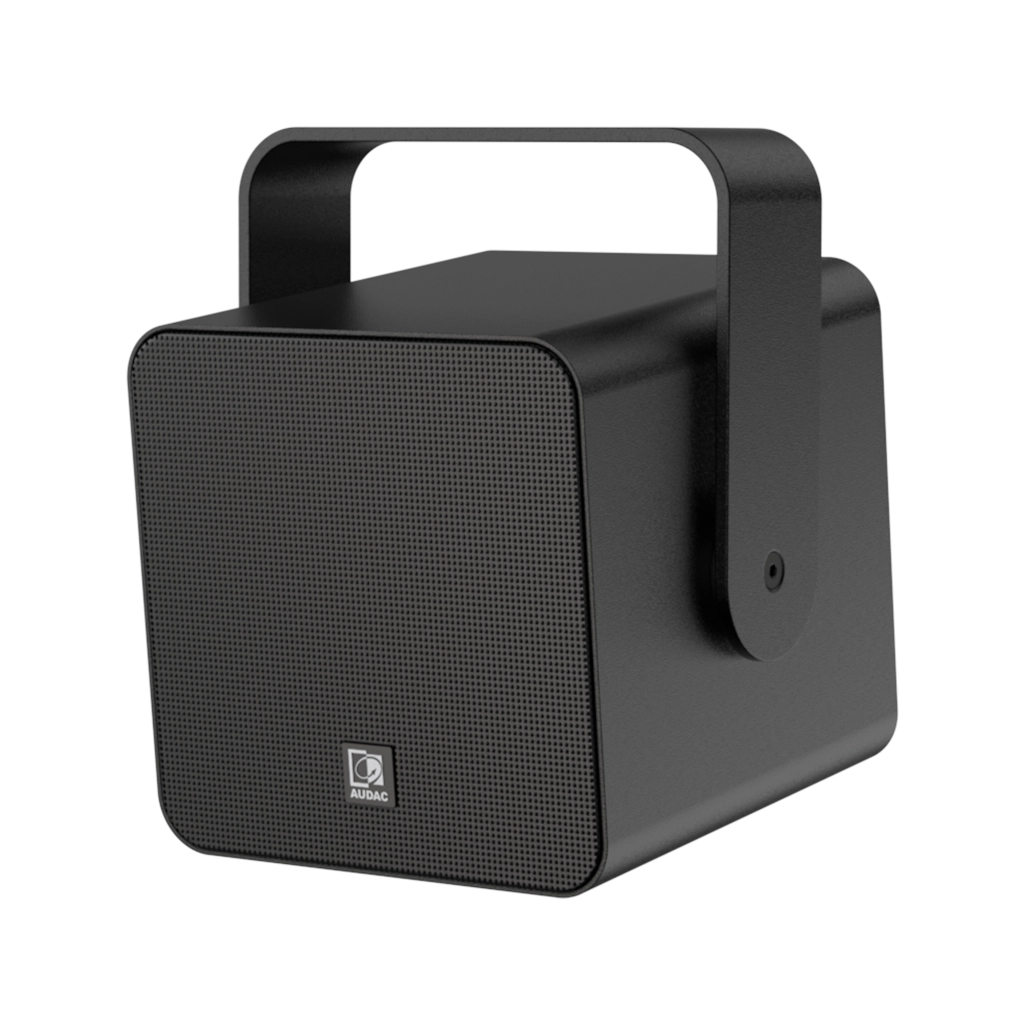

VIRO5
Compact performance loudspeaker
- Warm & true to nature sound
- Weatherproof – IP55 rating

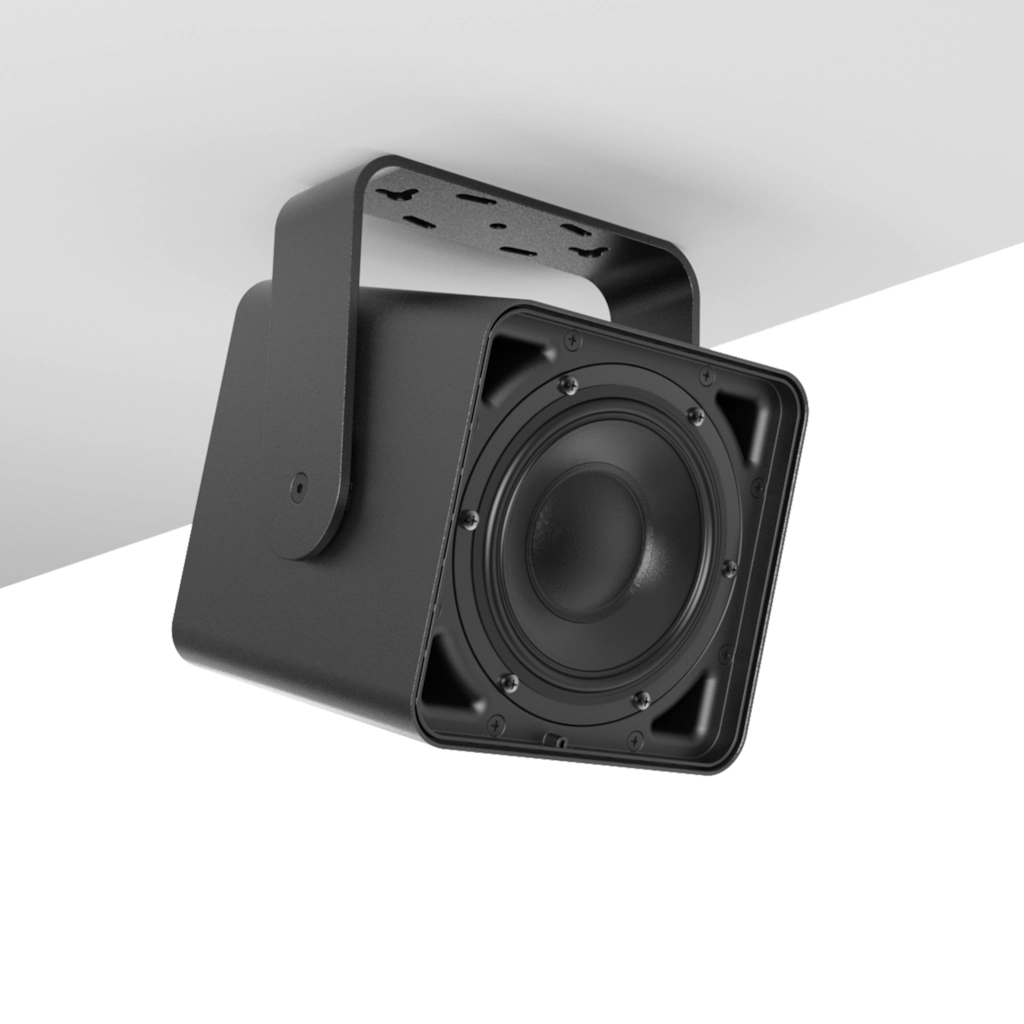

- Countless mounting possibilities

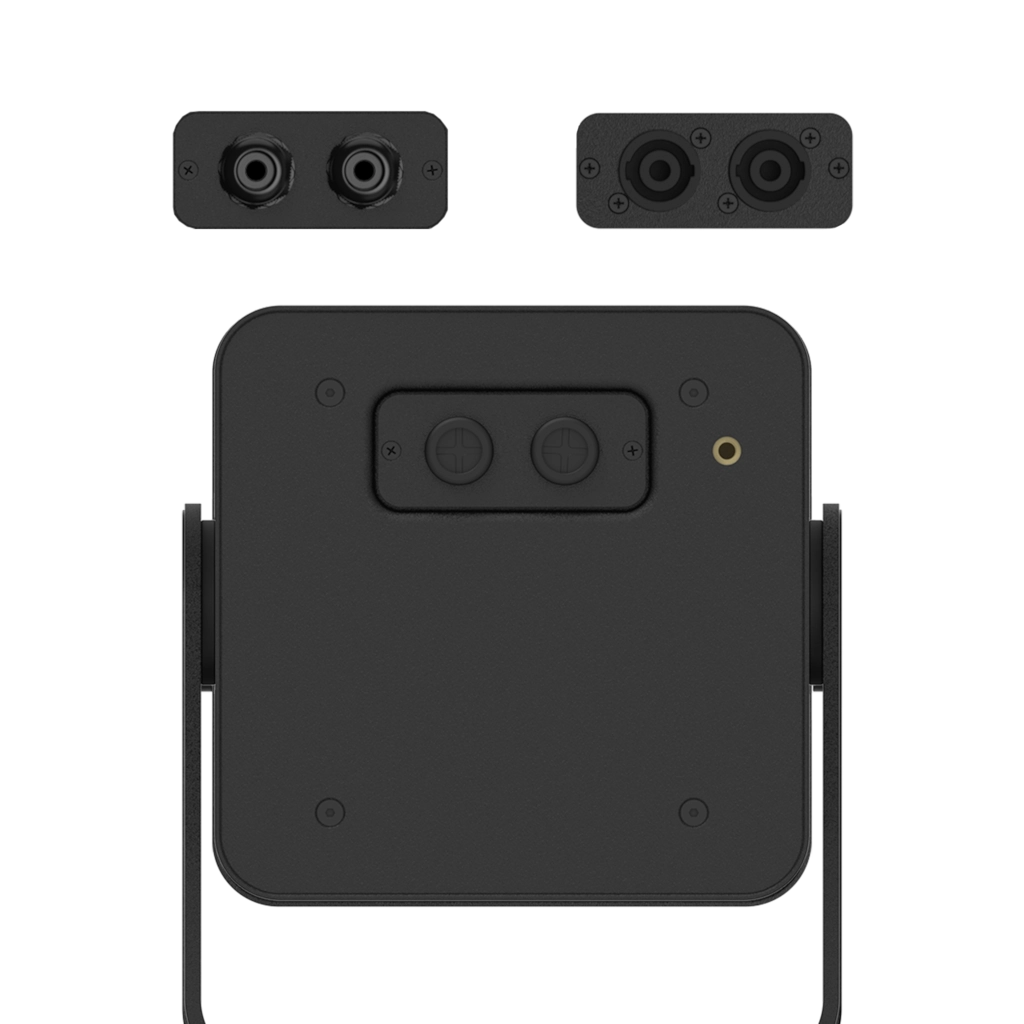

- Diverse connections possibilities
- High grade aluminum construction
- 70V/100V transformer option available
Description

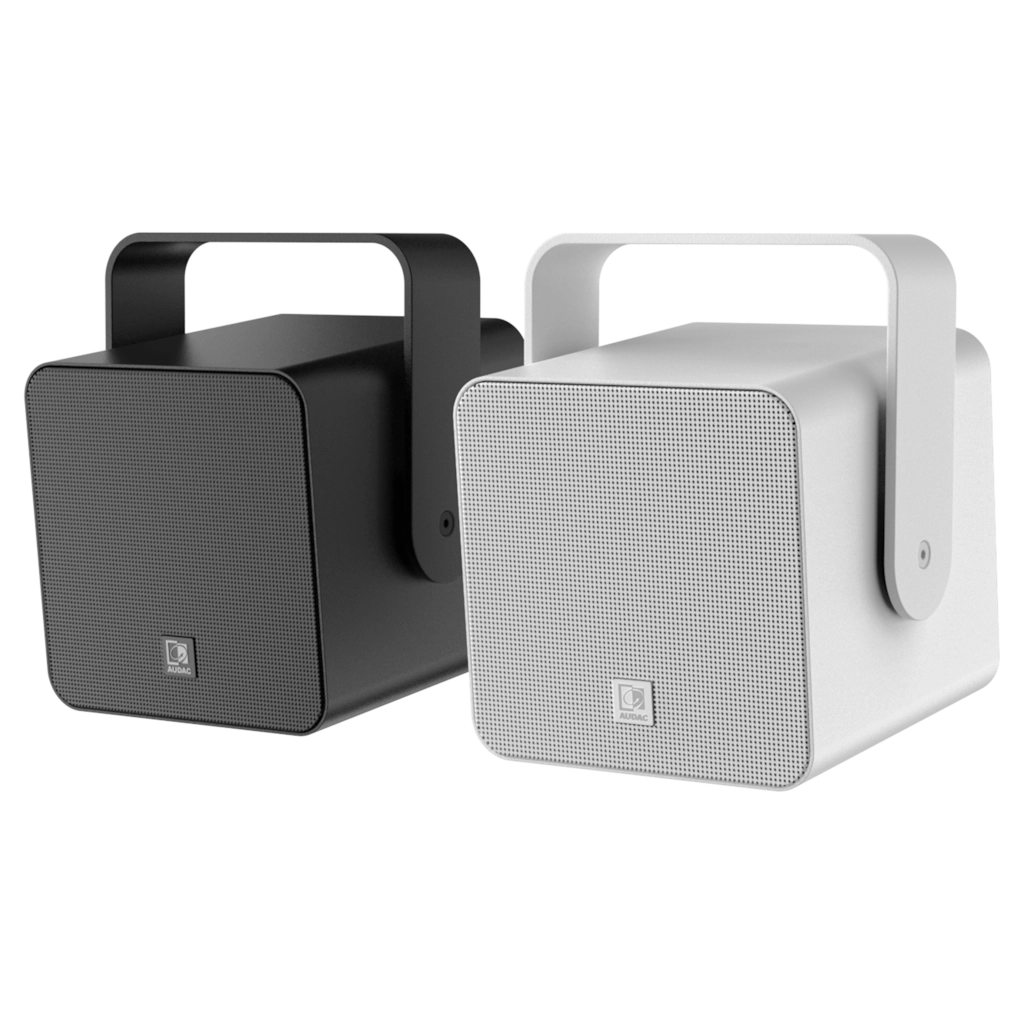

Available models

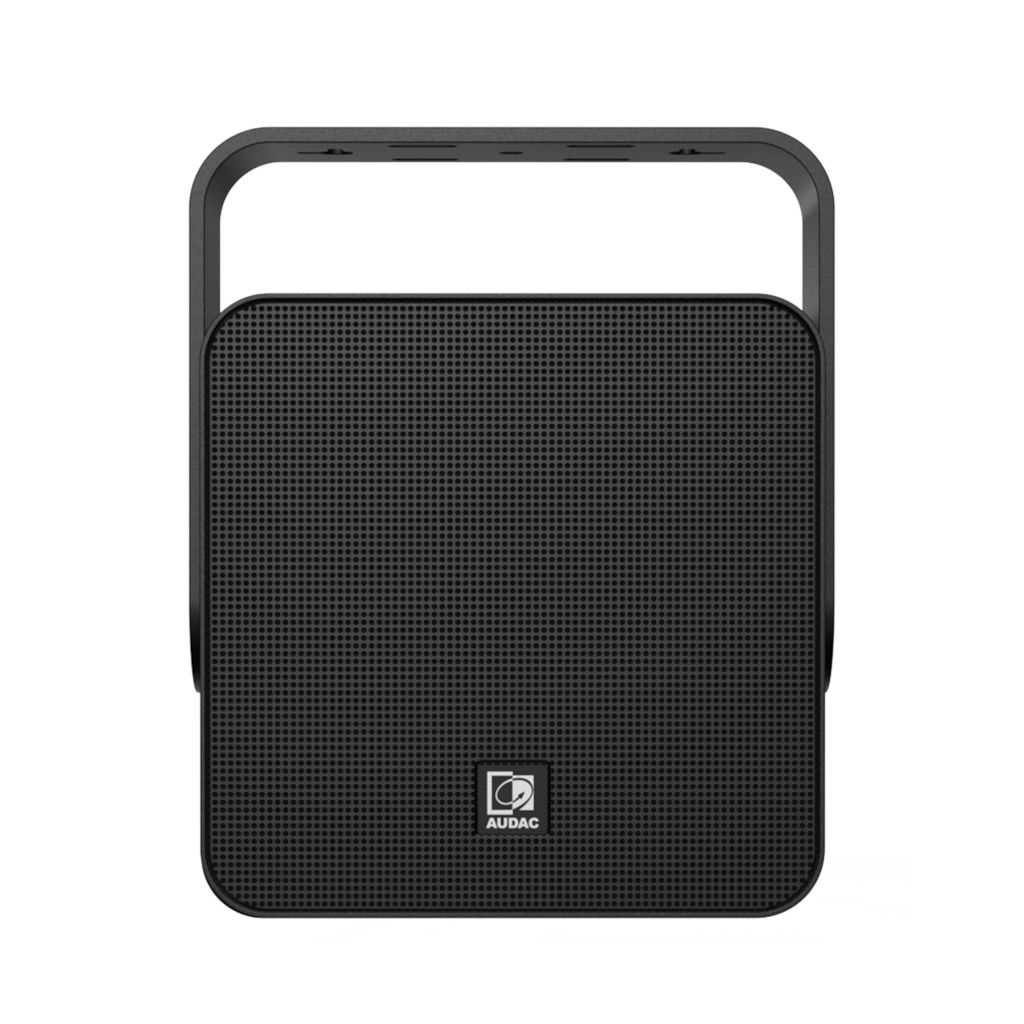

| VIRO5/B | Black version – 8Ω |

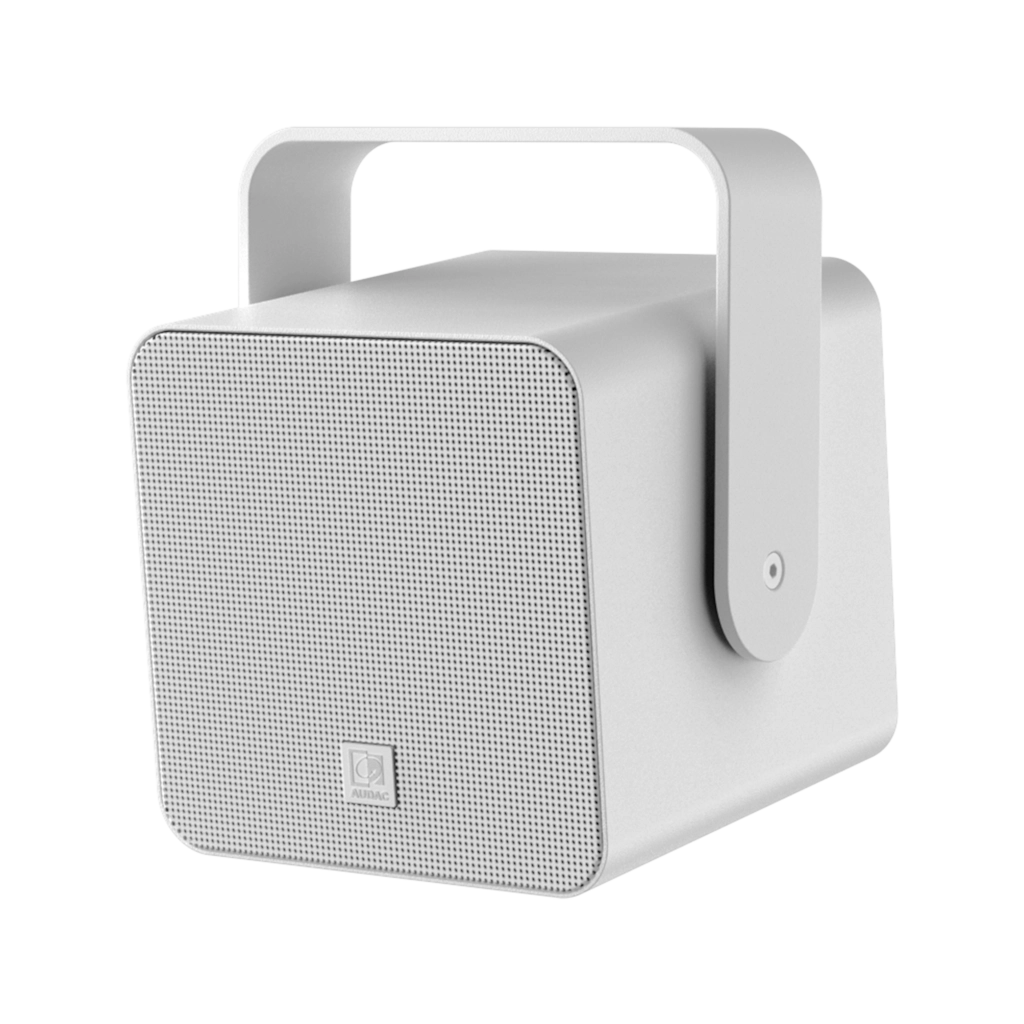

| VIRO5/W | White version – 8Ω |
| VIRO5D/B | Black version – 16Ω |
| VIRO5D/W | White version – 16Ω |
System specifications
| Speaker type | Compact performance 2-way coaxial | |
| Peak power handling | 240 W | |
| Program power handling | 120 W | |
| RMS/AES power handling | 60 W | |
| Impedance | 8 Ω (VIRO5) | |
| 16 Ω (VIRO5D) | ||
| Sensitivity (1W/1m) | 89 dB | |
| Sound Pressure (Max. W/1m) | 110 dB | |
| Frequency | Range (-10 dB) | 50 Hz – 20 kHz |
| Dispersion | Conical | 160° (average 500 Hz to 5 kHz @ -6 dB) |
| Drivers | HF | Soft dome treated silk 1” |
| LF | 5 1/4″ Treated paper | |

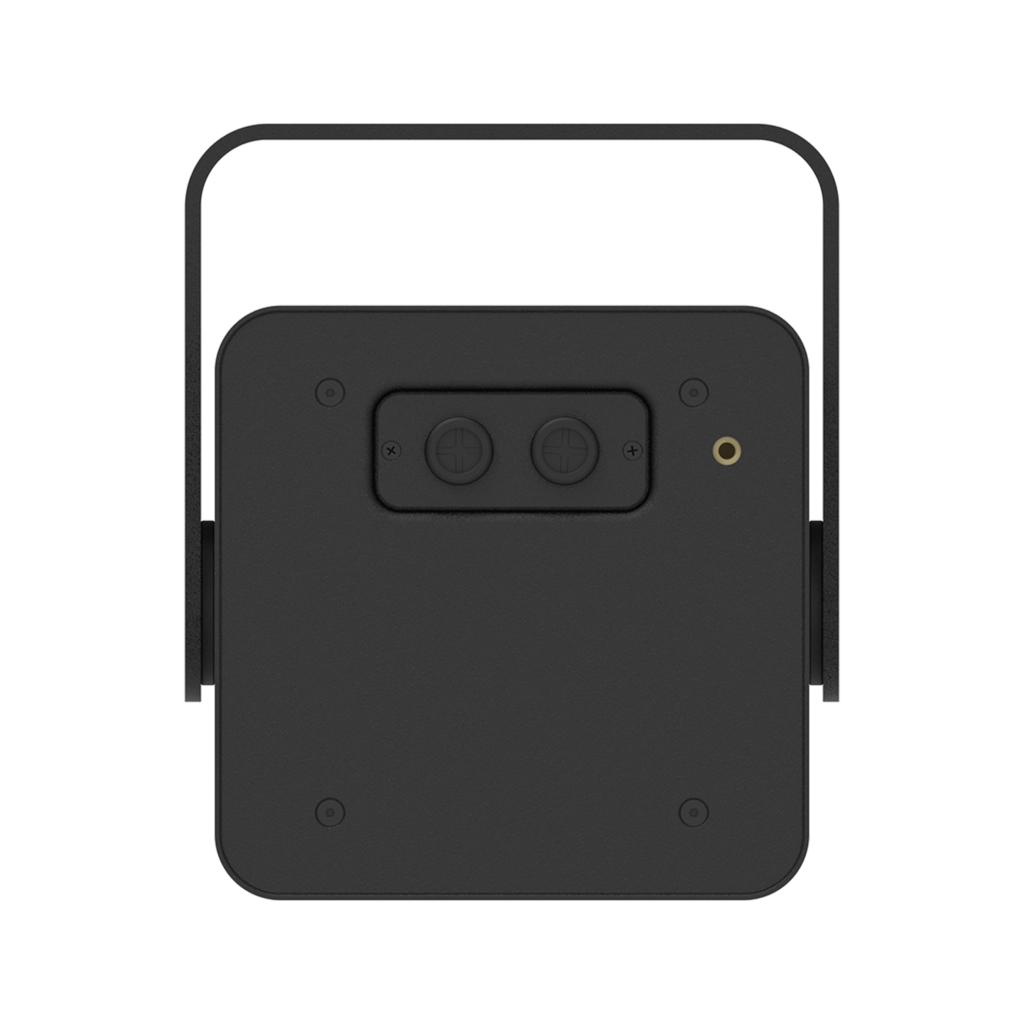

| Connectors | 4-pin Euro Terminal Block | |
| Ingress Protection rating | IP55 | |
| Outdoor resistance | 720 hrs salt spray test | |
Product Features
| Dimensions | 198 x 235 x 191 mm (W x H x D) (Incl. bracket) | |
| 180 x 180 x 191 mm (W x H x D) (Excl. bracket) | ||
| Mounting | Mounting pattern | 40 x 70 mm mounting pattern (e.g. pole or ground pin fitting) |
| Mounting & handling | Stand fitting | 3/8″ stand fitting (microphone stand) |
| Construction | Textured powder coated aluminium 4 mm | |
| Front finish | Aluminium grill with hydrophobic cloth | |
| Colours | White (RAL9003) (VIRO5/W & VIRO5D/W) | |
| Black (RAL9005) (VIRO5/B & VIRO5D/B) | ||
| Weight | 4.2 kg | |
| Accessories | Included | Mounting bracket |
| Optional | TRV106 70-100V transformer module | |
| CVS102 SpeakON connection plate | ||
| MBK523/G Ground pin | ||
| MBK530 Pole mount | ||
| STG601 Steel drop safety wire (gripple) | ||
| MBK465 Table stand | ||
Recommended applications
|
Bars & Restaurants
|
|
Clubs
|
