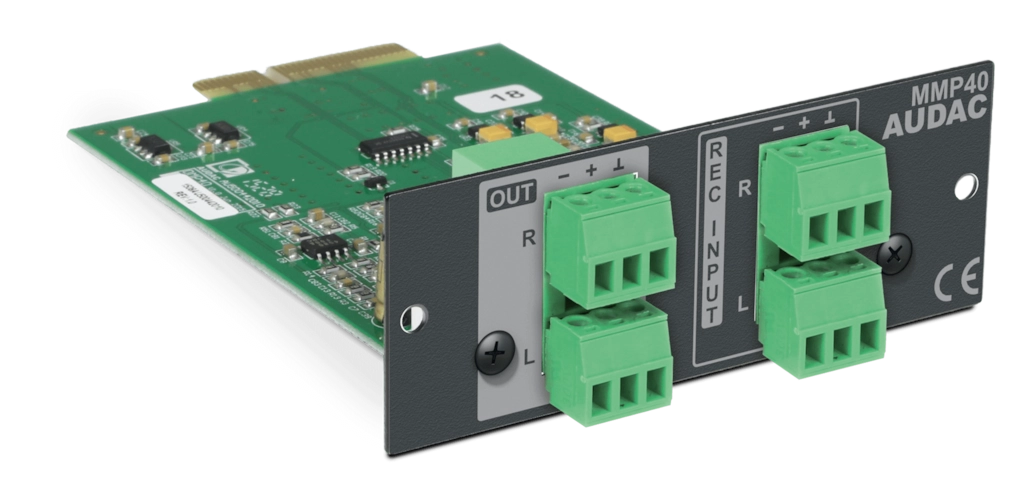

MMP40
SourceCon™ media player & recorder module
- Balanced stereo line output
- Balanced stereo line input
- True plug & play solution
- Works with any SourceCon™ enabled device
- MP3, WMA, WAV, FLAC, OGG & AAC playback
- Media information retrieval
- MP3, WAV & OGG recordings
- Repeat, random, single & continous modes
Description
System specifications
| Connection | SourceCon™ interface card slot | ||
| Inputs | Balanced Stereo | Connector | 3-pin Euro Terminal Block (Pitch – 3.81 mm) |
| Outputs | Balanced Stereo | Connector | 3-pin Euro Terminal Block (Pitch – 3.81 mm) |
| Level | 8 dB ~ -91 dB | ||
| Compatible media | Playback | USB memory | |
| USB HDD | |||
| Compatible filesystems | FAT16 | ||
| FAT32 | |||
| Supported filetypes | Playback | MP3 | |
| Ogg Vorbis | |||
| AAC | |||
| FLAC | |||
| WMA | |||
| WAV | |||
| Recording | MP3 | ||
| Ogg Vorbis | |||
| WAV | |||
| THD+N (@ 1 kHz) | 0.07% | ||
| Crosstalk (@ 1 kHz) | > 80 dB | ||
| Power | Consumption | 1 W | |
Product Features
| Dimensions | 87 x 34.5 x 114 mm (W x H x D) |
| Weight | 0.075 kg |
| Mounting | SourceCon™ interface card slot |
Recommended applications
|
Retail
|
|
Corporate
|
|
Houses of worship
|
|
Clubs
|
