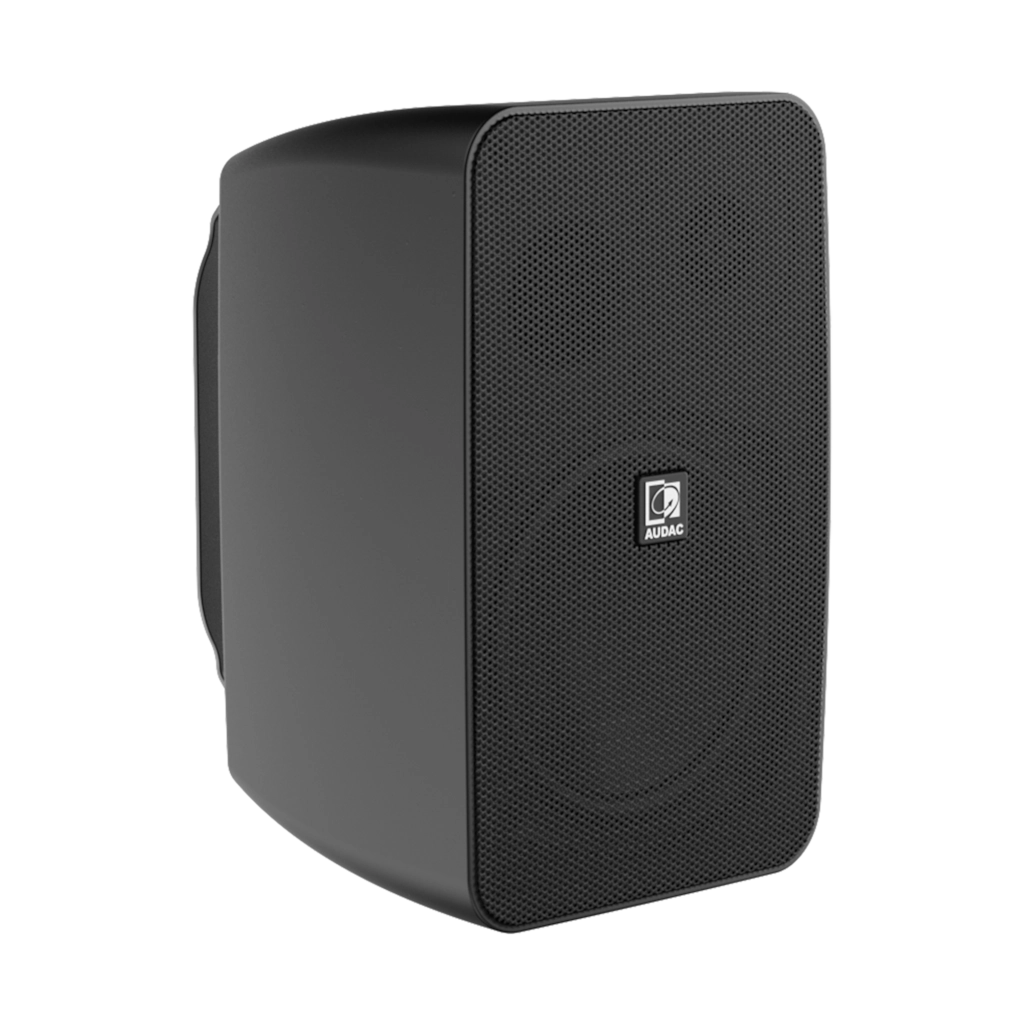

ARES5A
2-Way Stereo active speaker system – 2 x 40W
- Stereo active speaker system (one active & one passive model)
- 2-way 5 ¼” speaker system

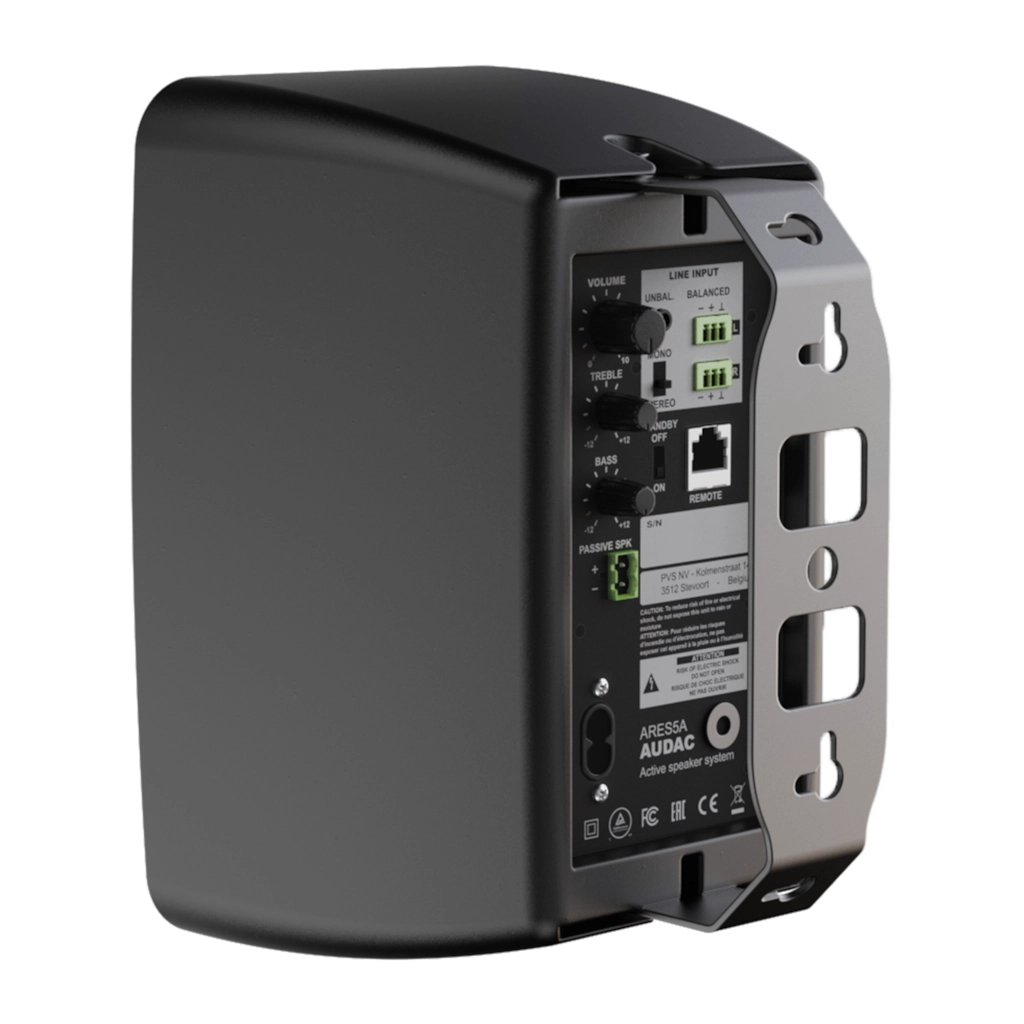

- Recessed mounting bracket
- Remote wall panel input connection (WP2xx series)
- Standby energy saving mode
- Vertical and horizontal mounting
- Stunning designed and elegant looking ABS enclosure
Description
Available models
| ARES5A/B | Black version |
| ARES5A/W | White version |
System specifications
| RMS/AES power handling | 2 x 20 W | ||
| Dynamic power | 2 x 40 W | ||
| Sensitivity (1W/1m) | 89 dB | ||
| Sound Pressure (Max. W/1m) | 105 dB | ||
| Frequency | Response (± 3 dB) | 80 Hz – 20 kHz | |
| Power | Consumption | Nominal (1/8 MUP) | 11.3 W |
| Standby | < 0.35 W | ||

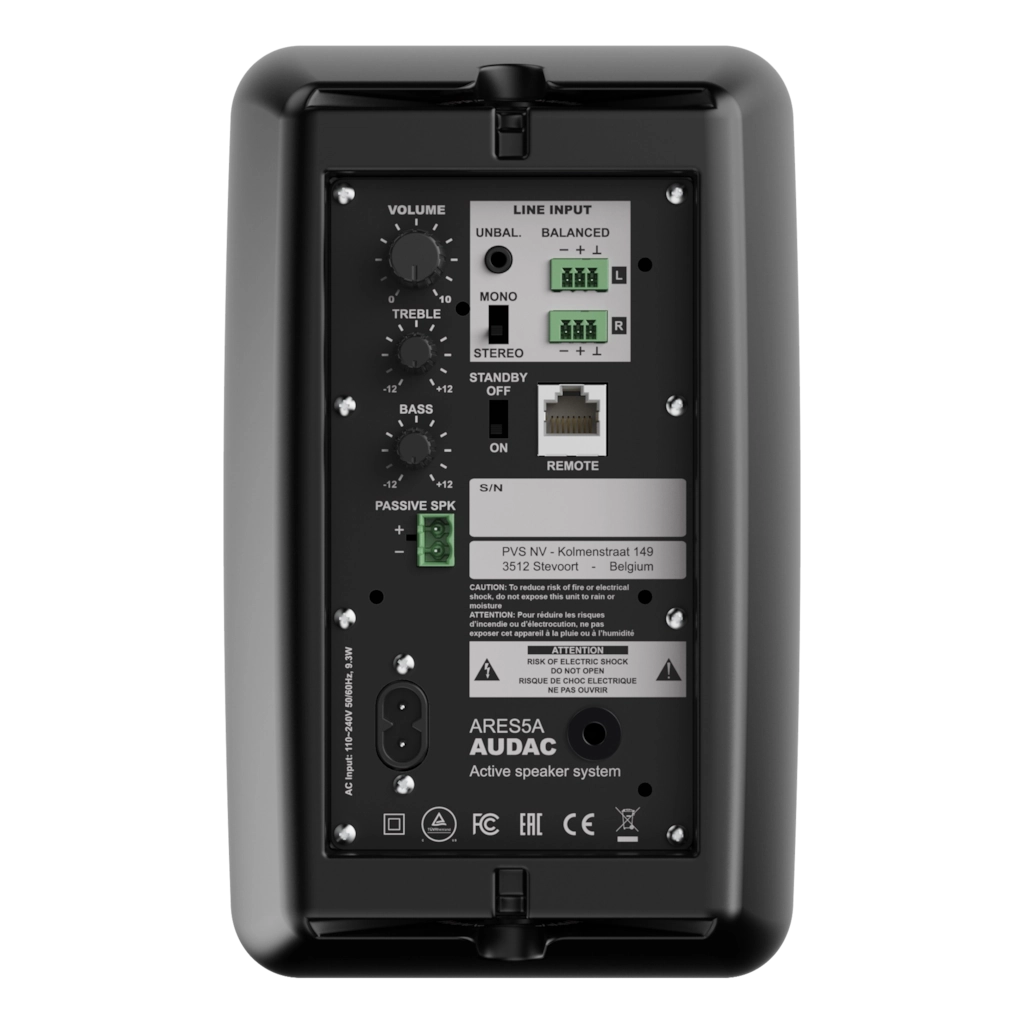

| Inputs | Balanced Stereo | Connector | 2 x 3-pin Euro Terminal Block (Pitch – 3.81 mm) |
| Unbalanced Stereo | Connector | 3.5 mm Jack (2x) | |
| Remote | Connector | RJ45 | |
| Power | Supply | 100 ~ 240 V AC / 50 ~ 60 Hz | |
| Connector | IEC C7/C8 power inlet | ||
| Connectors | Remote control | RJ45 | |
| Outputs | Passive loudspeaker | 2-pin Euro Terminal Block (Pitch – 5.08 mm) | |
| Drivers | HF | 13 mm (PEI tweeter) | |
| LF | 5 1/4″ (Polypropylene) | ||
| Dispersion | Horizontal | 210° (Average -6 dB / 100 Hz – 10 kHz) | |
| Vertical | 205° (Average -6 dB / 100 Hz – 10 kHz) | ||
Product Features
| Dimensions | 150 x 240 x 146 mm (W x H x D) (excl bracket) & 150 x 240 x 194 mm (incl bracket) | |
| Weight | 3.5 kg (pair) | |
| Colours | Black (RAL9003) | |
| White (RAL9005) | ||
| Construction | ABS | |
| Front finish | Powder coated steel grill with lining | |
| Bracket | Powder Coated steel | |
| Construction | Impact & UV resistant ABS | |
| Colours | Black (RAL9005) (ARES5A/B) | |
| White (RAL9003) (ARES5A/W) | ||
| Accessories | Included | Mounting bracket |
| Power cable | ||
| 3.5 m connection cable speaker | ||
| Wall screws and plugs | ||
| Optional | WP205 – ARES5A wall panel | |
Recommended applications
|
Education
|
|
Retail
|
|
Bars & Restaurants
|
|
Corporate
|
