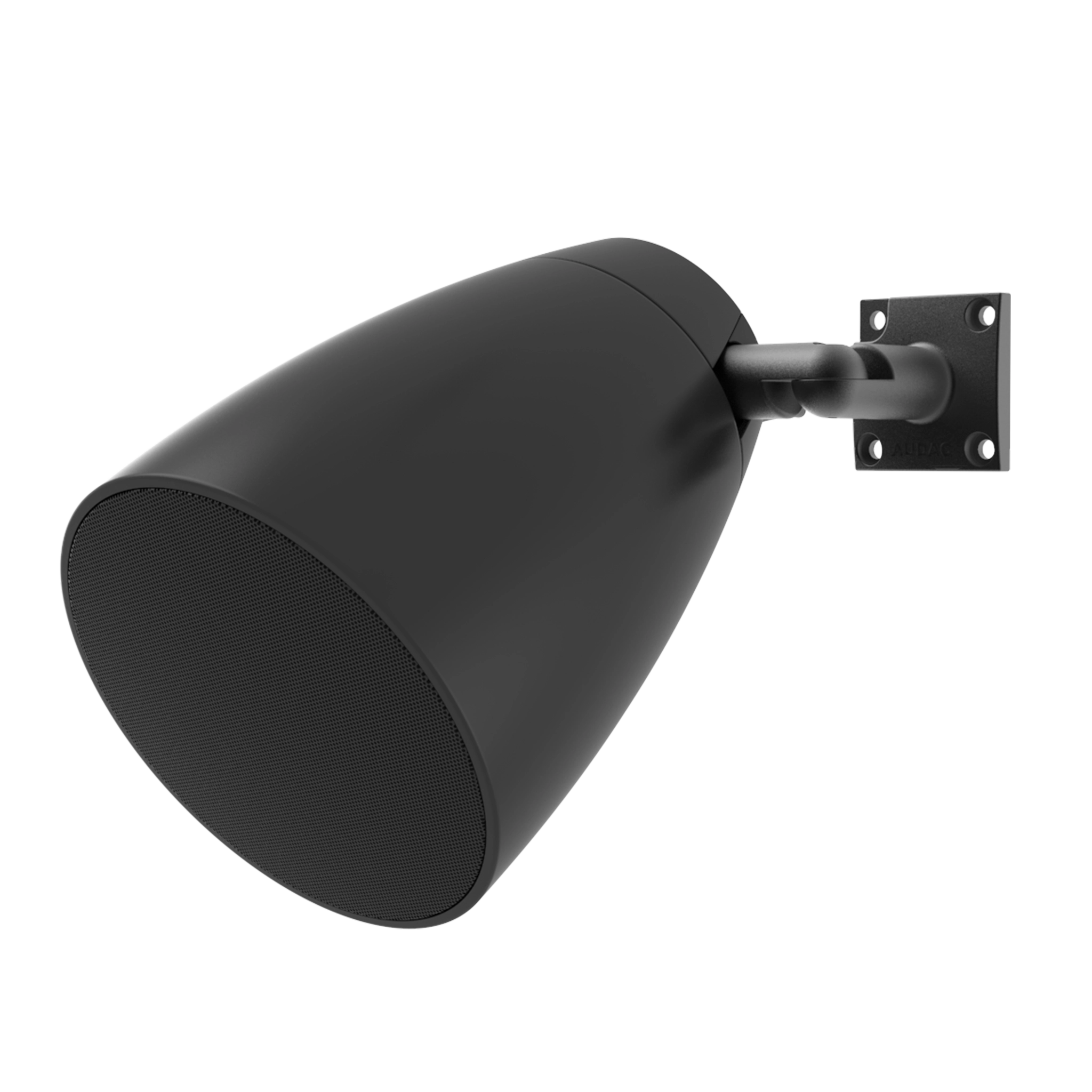

ALTI4M
2-way 4″ design surface mount loudspeakers
- Innovative & unique design
- Wide opening angle
- AWX5™ waterproof connector
- Outdoor rated construction
- Countless mounting possibilities
- Multi-tapping 70V / 100V line transformer
Description
Available models

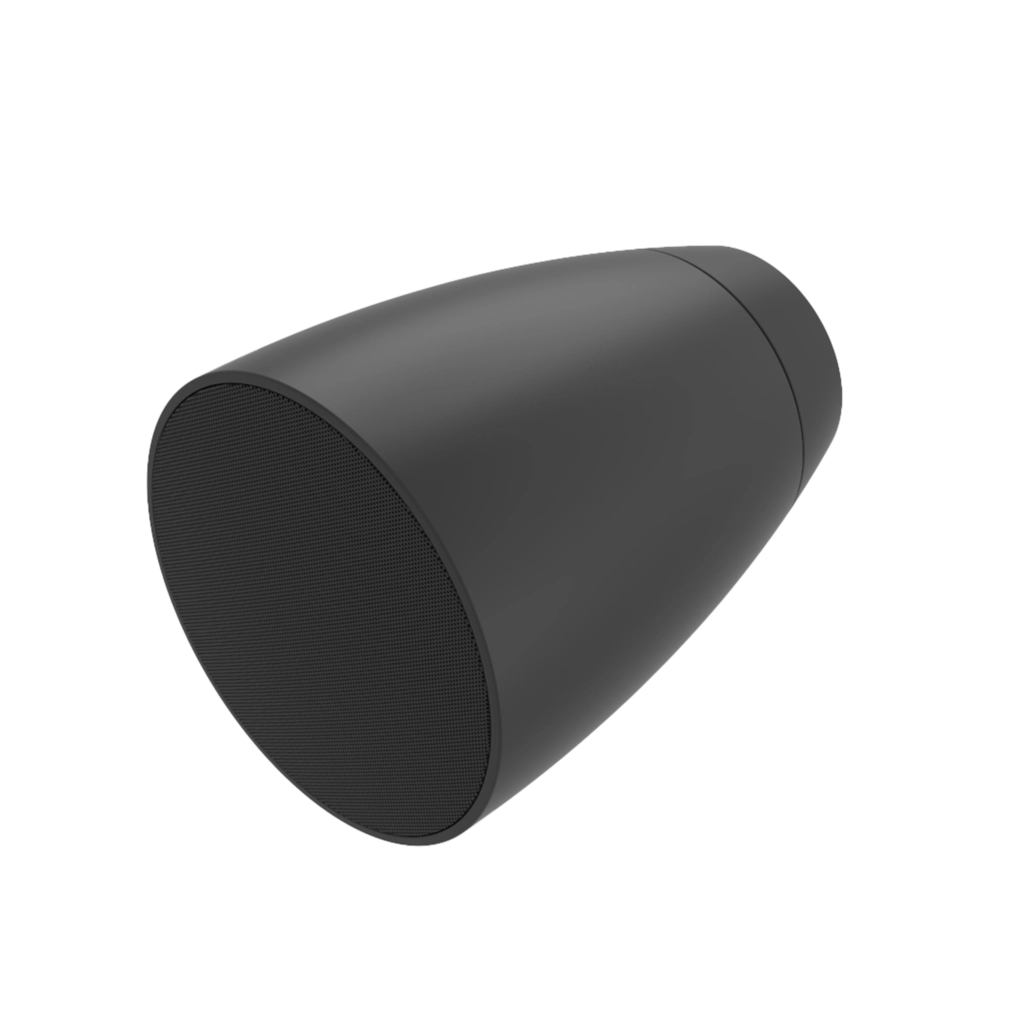

| ALTI4M/B | Black version |

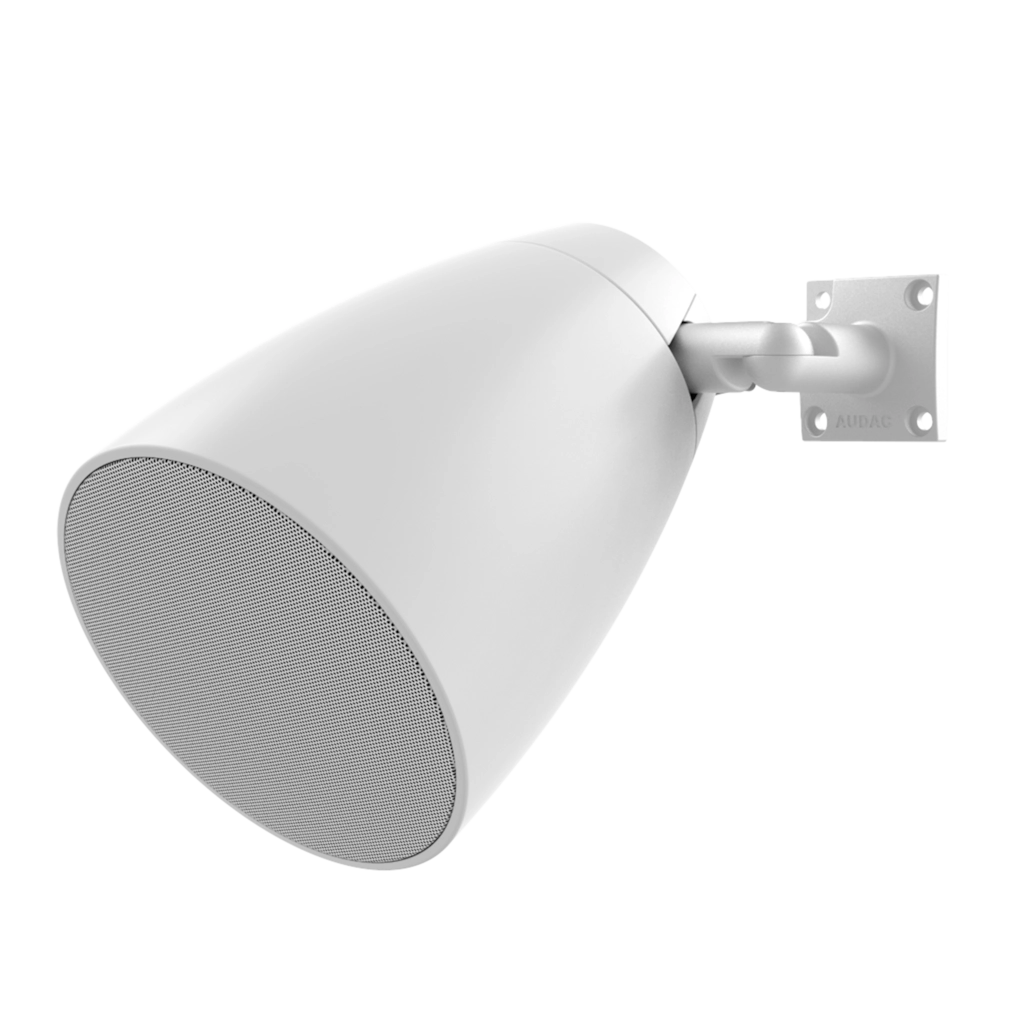

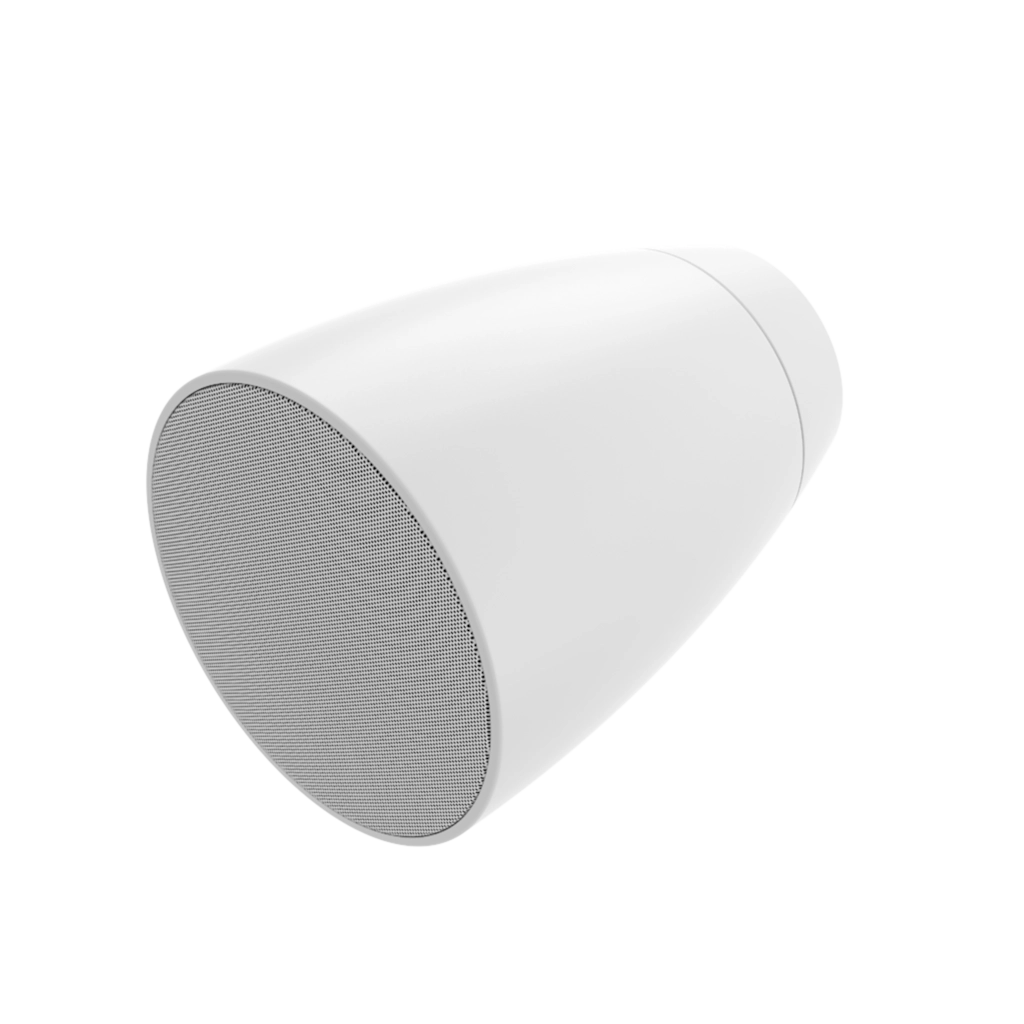

| ALTI4M/W | White version |
System specifications
| Peak power handling | 120 W | |
| Program power handling | 60 W | |
| RMS/AES power handling | 30 W | |
| Speaker type | 2-way coaxial | |
| Drivers | 4” | |
| Impedance | 16 Ω | |

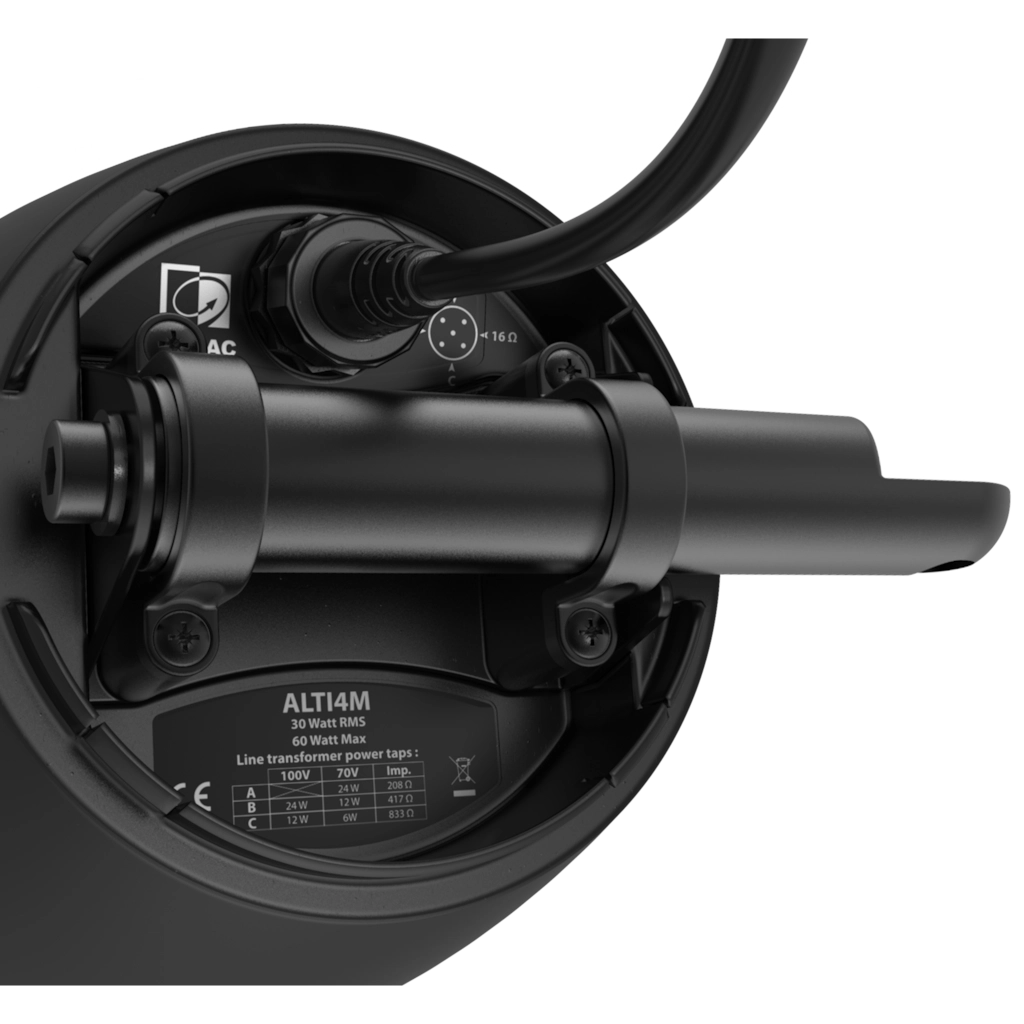

| Line Transformer Tappings | 1 | 208 Ω – 100 V / Not used – 70 V / 24 W |
| 2 | 417 Ω – 100 V / 24 W – 70 V / 12 W | |
| 3 | 833 Ω – 100 V / 12 W – 70 V / 6 W | |
| Dispersion | Conical | 165° (average 500 Hz to 5 kHz @ -6 dB) |
| Connectors | Waterproof AWX-5 connector | |
| Sensitivity (1W/1m) | 80 dB | |
| Sound Pressure (Max. W/1m) | @ 16 Ω | 95.1 dB |
| Frequency | Range (-10 dB) | 65 Hz – 20 kHz |
| Response (± 3 dB) | 85 Hz – 20 kHz | |
| Ingress Protection rating | IP65 | |
Product Features
| Dimensions | 205 x 170 x 258 mm (W x H x D) | |
| Connection cable length | 0.7 m | |
| Construction | Polypropylene | |
| Front finish | Aluminium grill | |

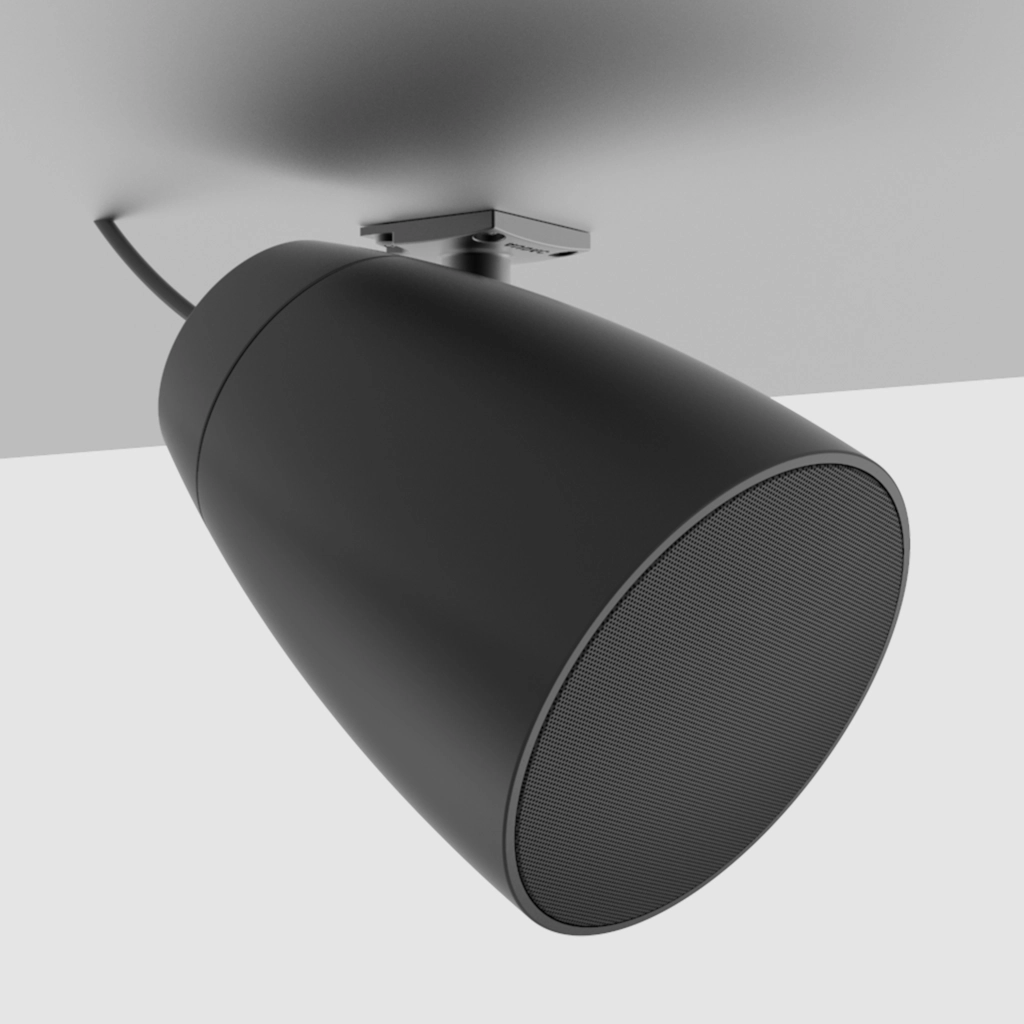

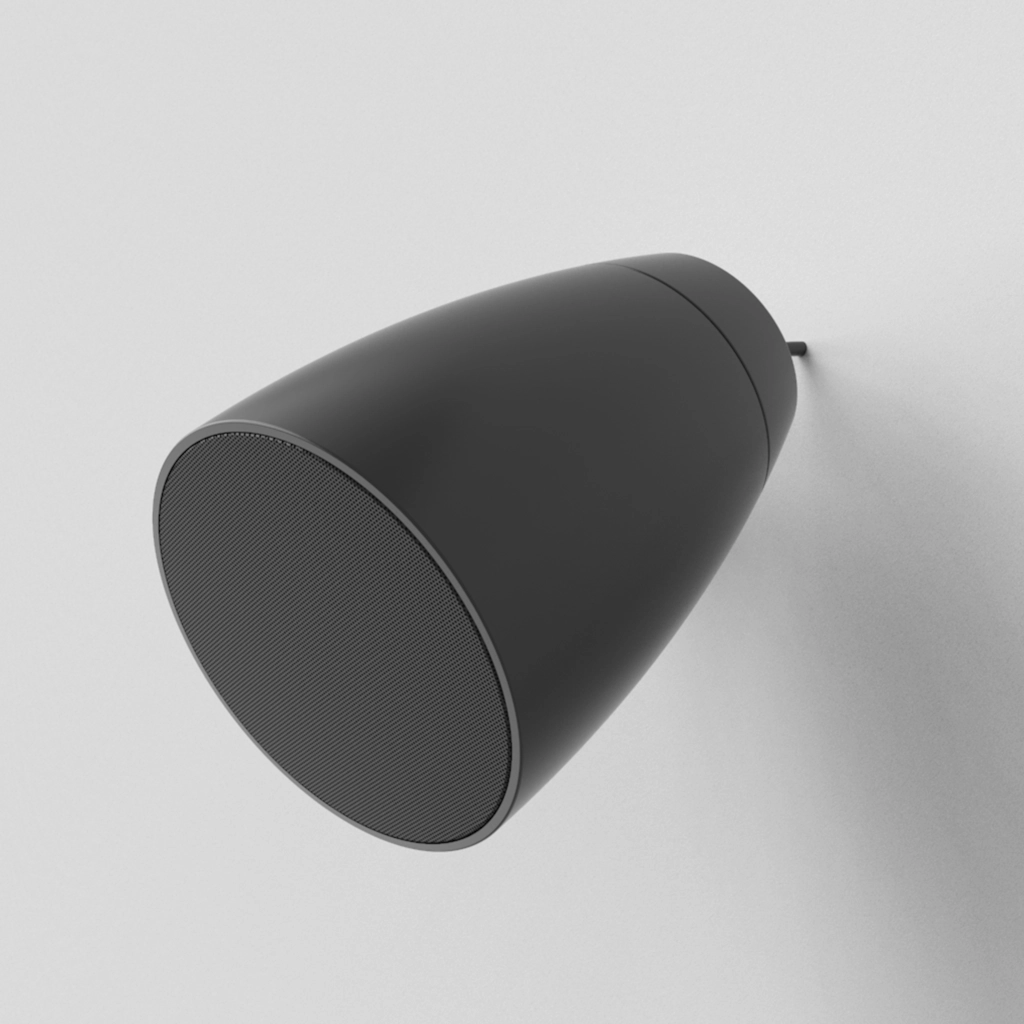

| Mounting & handling | 2-way Revolving mounting bracket | |
| Accessories | Included | 5-pin connection cable (70 cm) – AWC07 |
| 2-way Revolving mounting bracket | ||
| Weight | 2.31 kg | |
Recommended applications
|
Bars & Restaurants
|
|
Corporate
|
|
Sporting facilities
|
