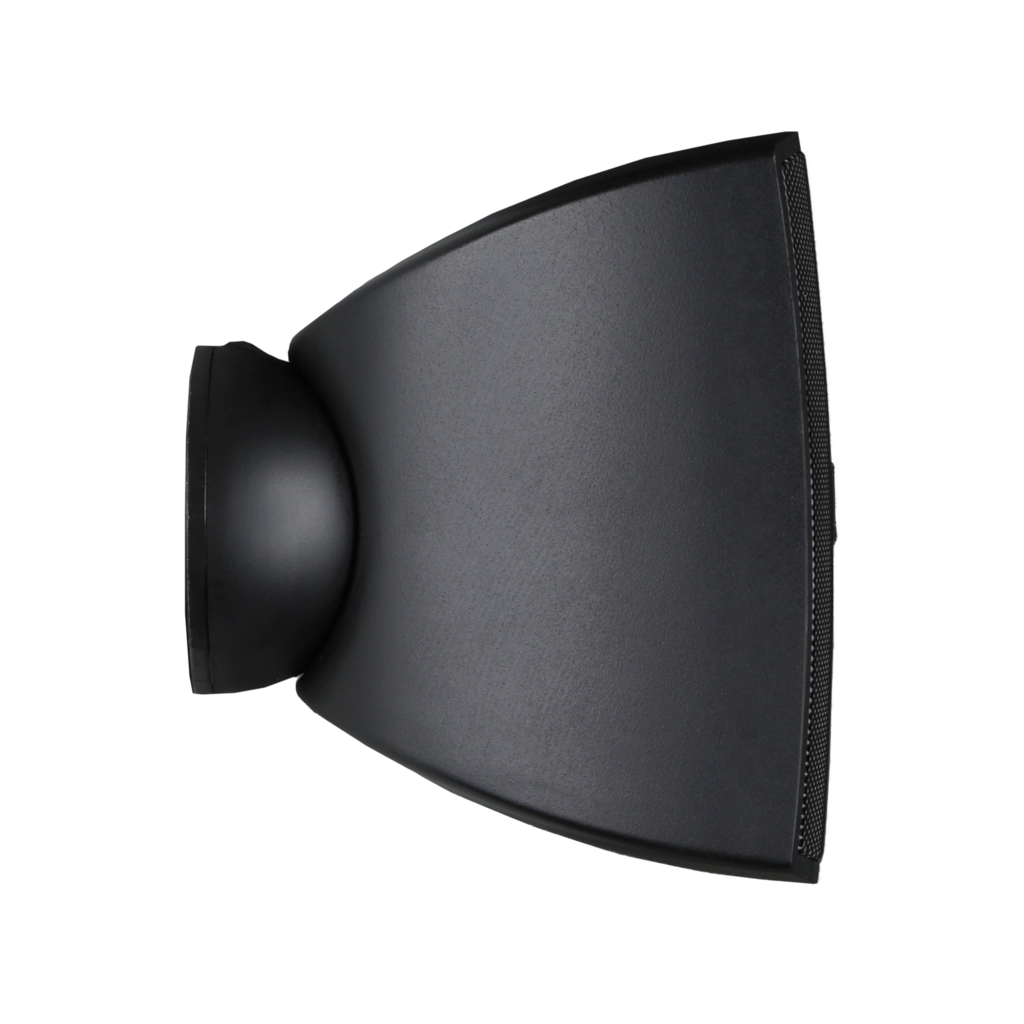

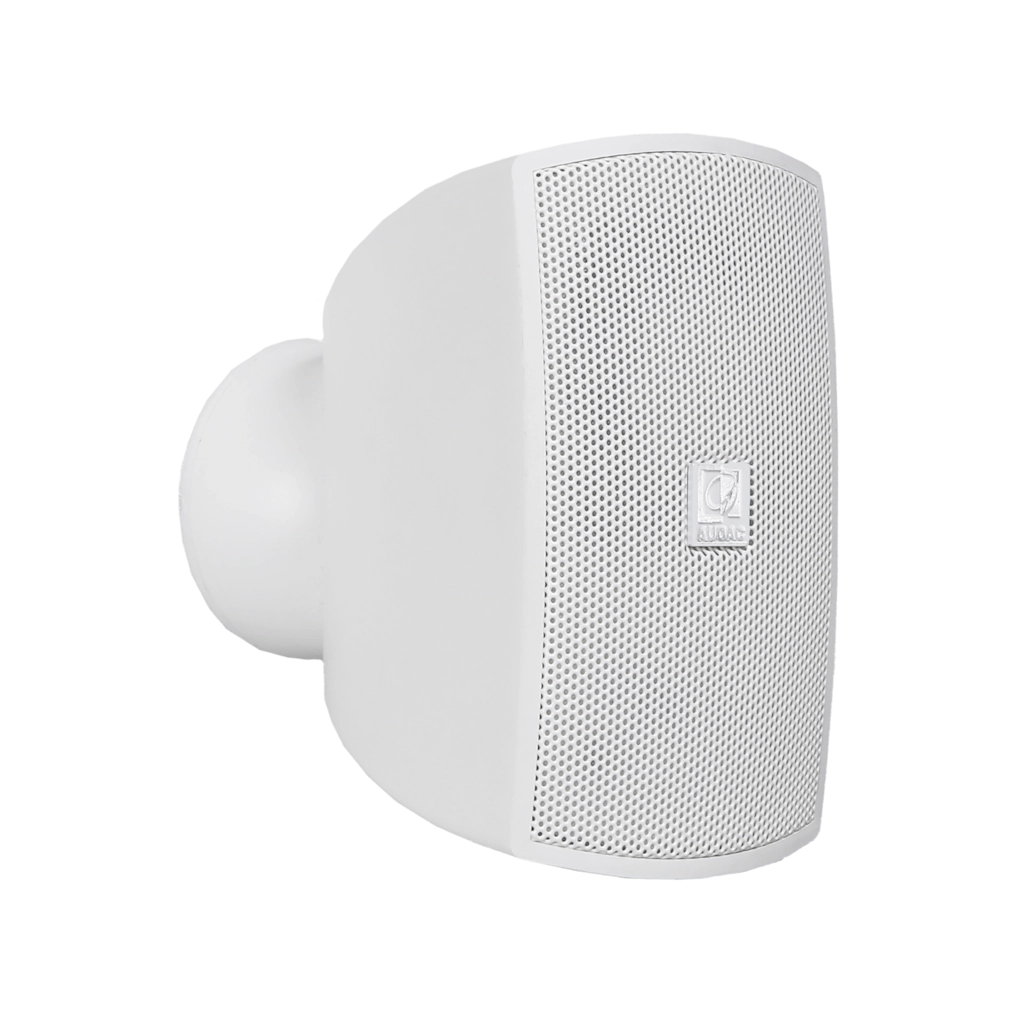

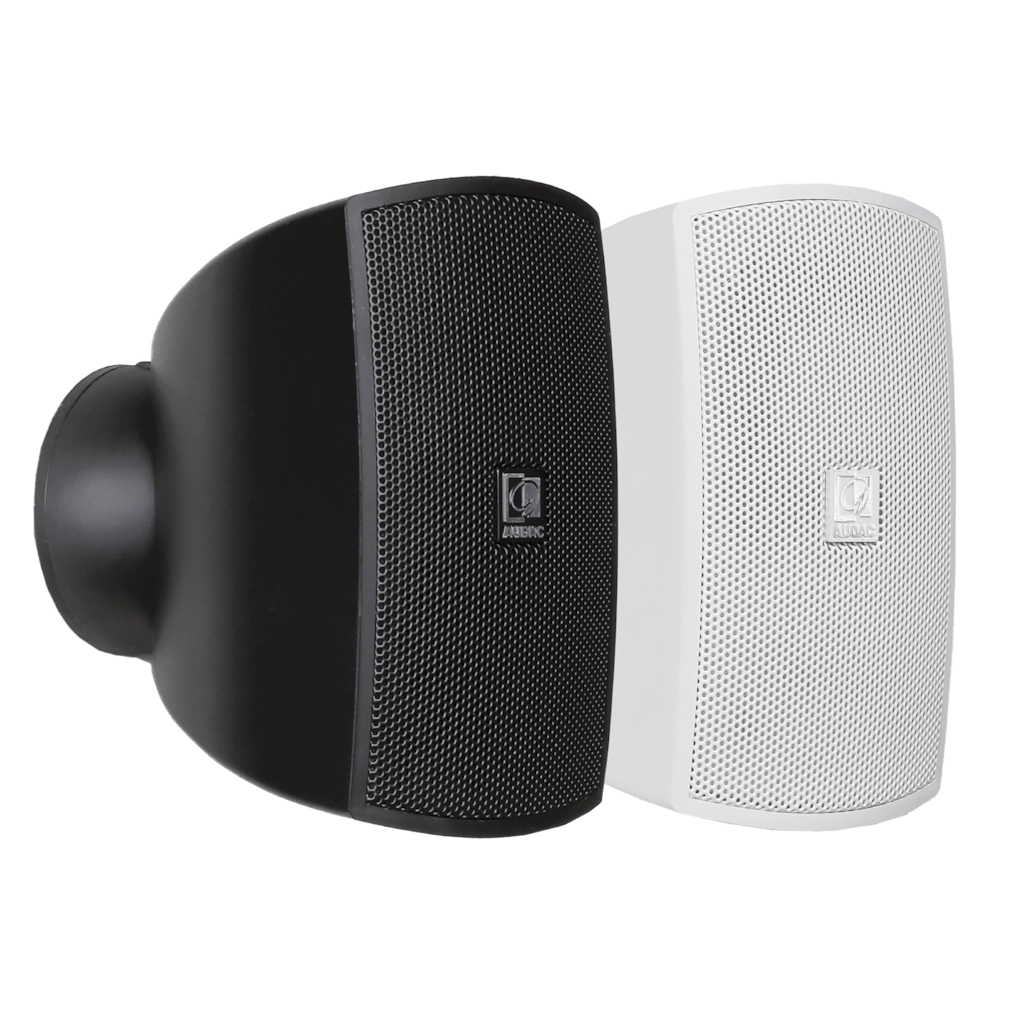

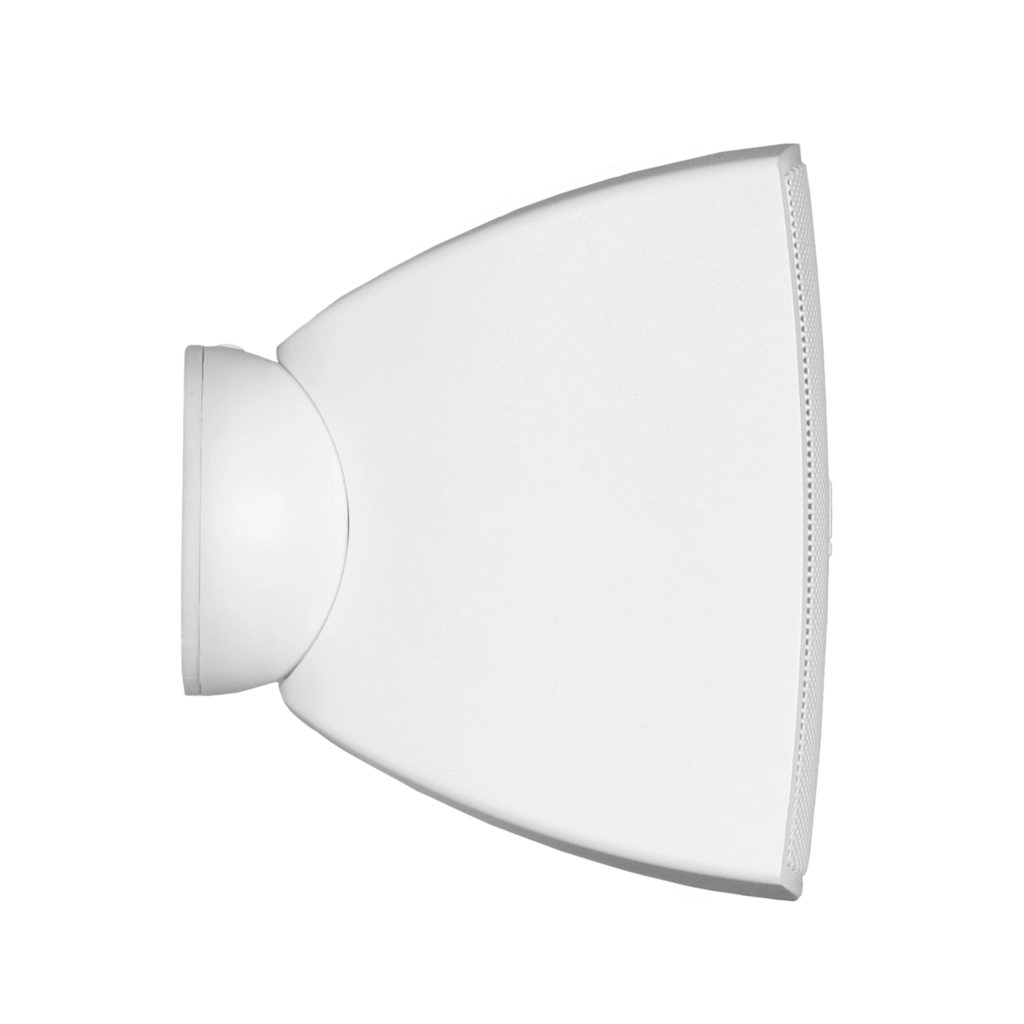

ATEO4
Wall speaker with CleverMount™ 4″
- Vertical and horizontal mounting (rotatable logo)
- 1″ Dome tweeter
- 4″ Low frequency loudspeaker
- 100V and low impedance connection possibility
- Stunning designed and elegant looking ABS enclosure
- Patented CleverMount™ mounting system
- Ultra-flat frequency response
- Multi-tapping 70V / 100V line transformer
Description
Available models
| ATEO4MK2/B | Black version – 8Ω and 100V |
| ATEO4MK2/W | White version – 8Ω and 100V |
| ATEO4D/B | Black version – 16Ω |
| ATEO4D/W | White version – 16Ω |
System specifications
| Speaker type | Full range | |
| Peak power handling | 140 W | |
| Program power handling | 70 W | |
| RMS/AES power handling | 35 W | |
| Impedance | 8 Ω (ATEO4) | |
| 16 Ω (ATEO4D) | ||
| Incline angle | Left | 30° |
| Right | 30° | |
| Bottom | 30° | |
| Top | 5° | |
| Sensitivity (1W/1m) | 86 dB | |
| Sound Pressure (Max. W/1m) | @ 8 Ω | 101 dB |
| @ 100 V | 100 dB | |
| Frequency | Response (± 3 dB) | 100 Hz – 20 kHz |
| Range (-10 dB) | 65 Hz – 20 kHz | |
| Dispersion | Horizontal | 130° |
| Vertical | 130° | |
| Connectors | 6-pin Custom Terminal Block | |

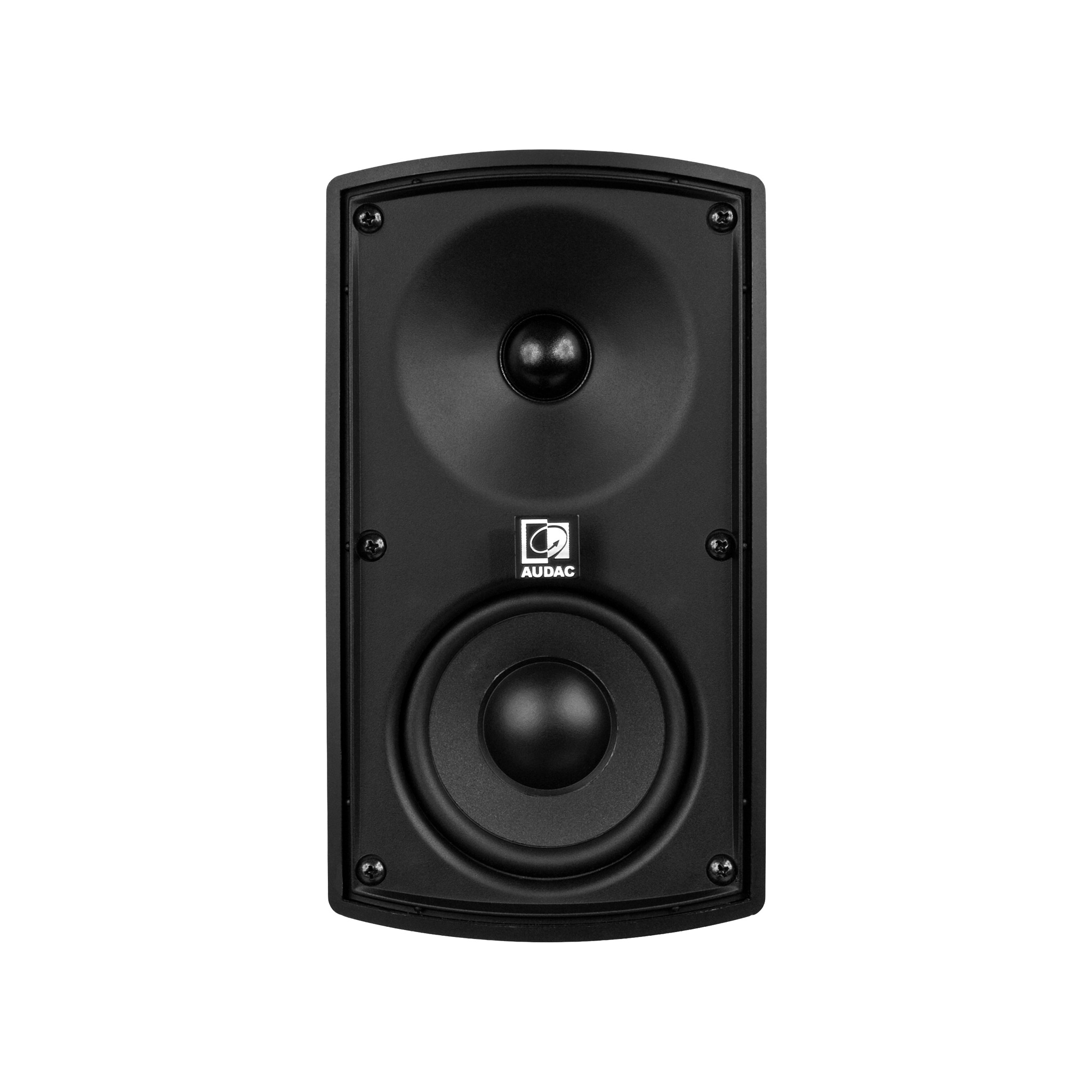

| Drivers | 1” Dome tweeter | |
| 4” MF / LF Woofer | ||
| Line Transformer Tappings | 1 | 208 Ω – 100 V / Not used – 70 V / 24 W |
| 2 | 417 Ω – 100 V / 24 W – 70 V / 12 W | |
| 3 | 833 Ω – 100 V / 12 W – 70 V / 6 W | |
| 4 | 1667 Ω – 100 V / 6 W – 70 V / 3 W | |
Product Features
| Dimensions | 136 x 244 x 153 mm (W x H x D) | |
| Weight | 2.050 kg | |
| Operating temperature | -20 °C ~ 60 °C | |
| Mounting | Clevermount™ | |
| Accessories | Included | Allen-key wrench |
| Construction | ABS | |
| Front finish | Steel grill | |
| Colours | Black (RAL9005) (ATEO4/B, ATEO4D/B) | |
| White (RAL9003) (ATEO4/W, ATEO4D/W) | ||
Recommended applications
|
Bars & Restaurants
|
|
Corporate
|
|
Education
|
|
Hotels
|
|
Retail
|
|
Residential
|
|
Clubs
|
