ALTI6

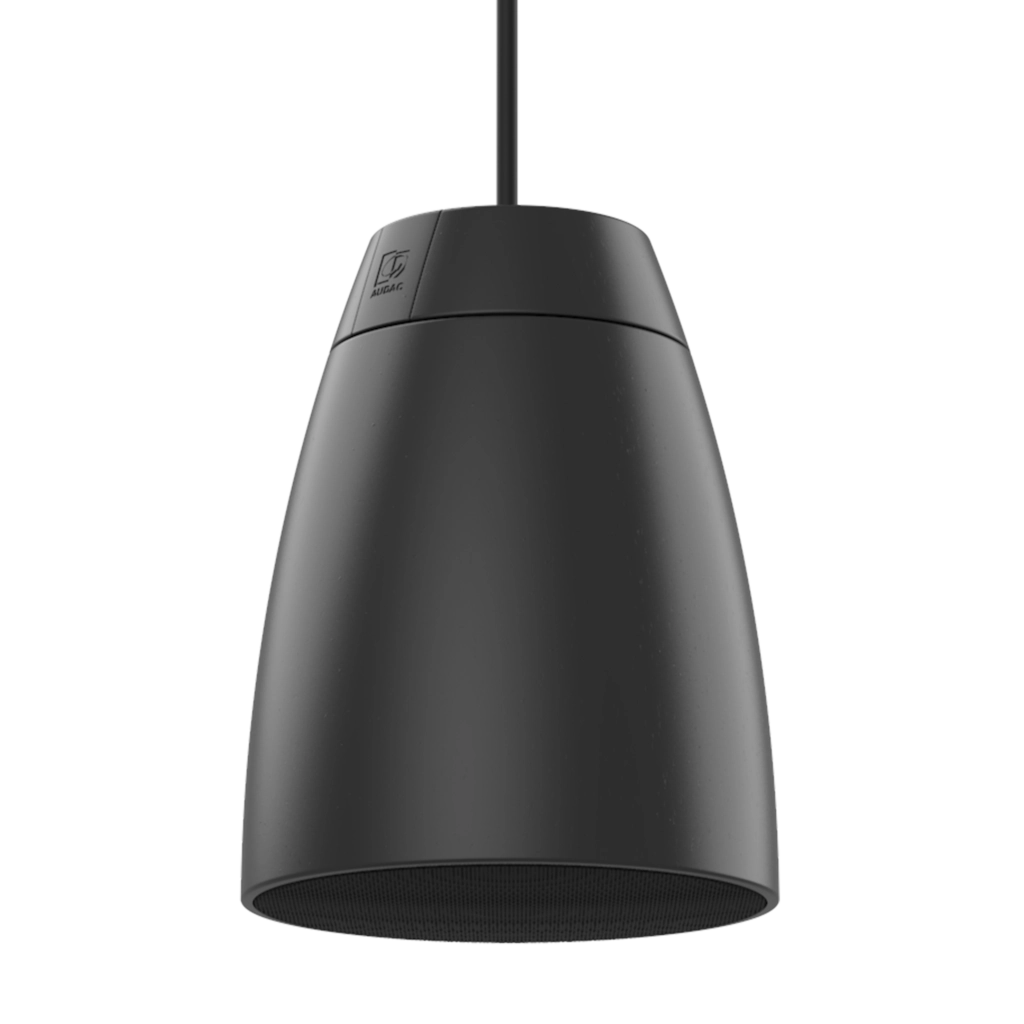

2-way 6″ pendant speaker
- Ceiling suspension
- Innovative & unique design
- Wide opening angle
- Dual Gripple™ locking system
- Suspension cable with dual steel core
- Ceiling cable cover
- Rotary switch for 15W, 30W, 60W and 16 Ohm tappings
Description
Available models

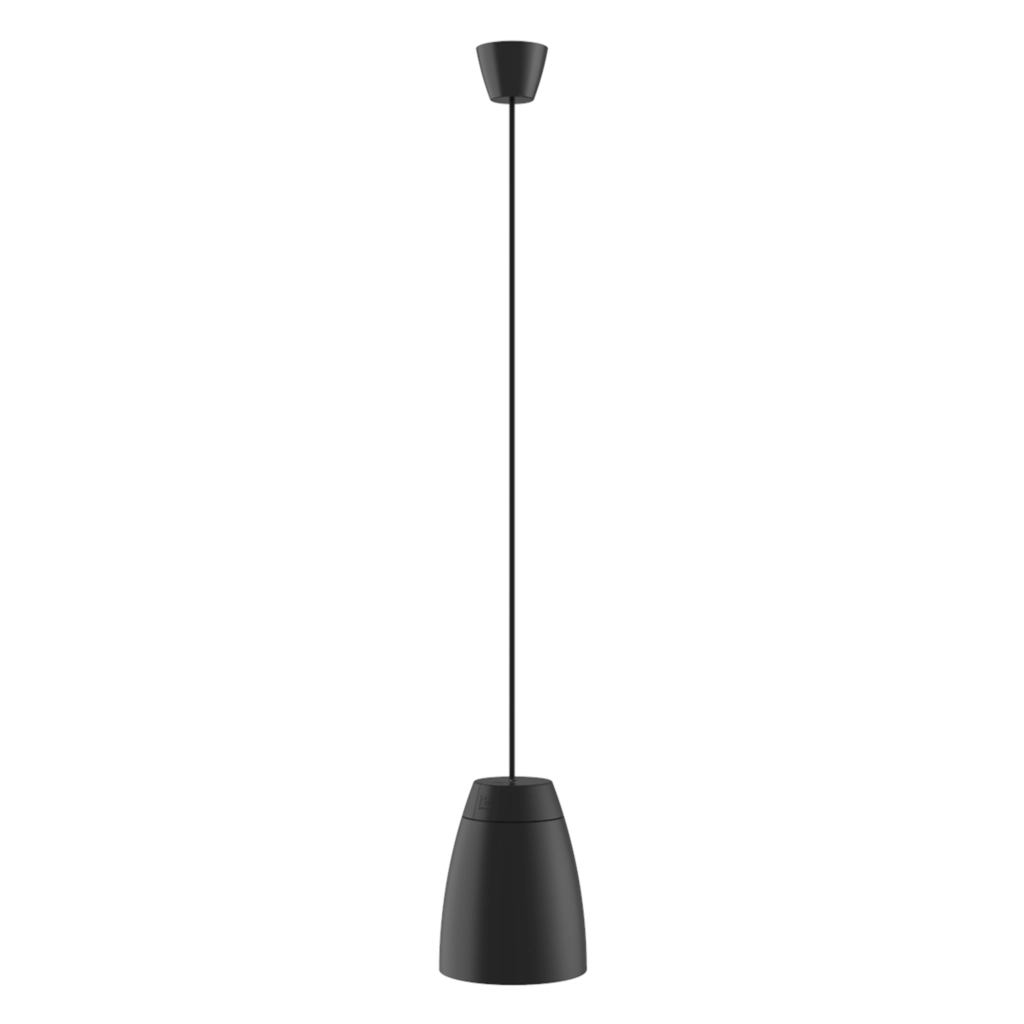

| ALTI6/B | Black version |

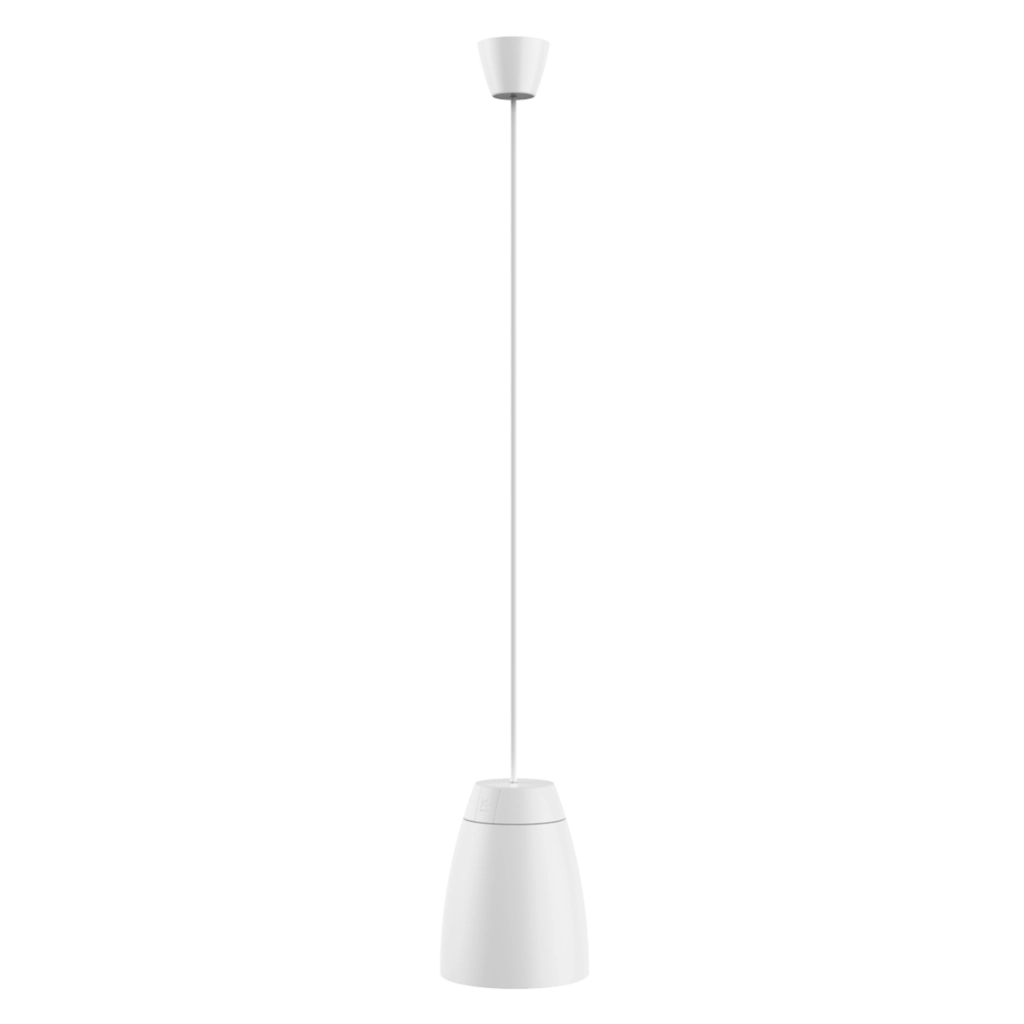

| ALTI6/W | White version |
System specifications
| Speaker type | 2-way coaxial | |
| Peak power handling | 240 W | |
| Program power handling | 120 W | |
| RMS/AES power handling | 60 W | |
| Impedance | 16 Ω | |
| Line Transformer Tappings | 1 | 83 Ω – 100 V / Not used – 70 V / 60 W |
| 2 | 167 Ω – 100 V / 60 W – 70 V / 30 W | |
| 3 | 333 Ω – 100 V / 30 W – 70 V / 15 W | |
| 4 | 667 Ω – 100 V / 15 W – 70 V / 7.5 W | |

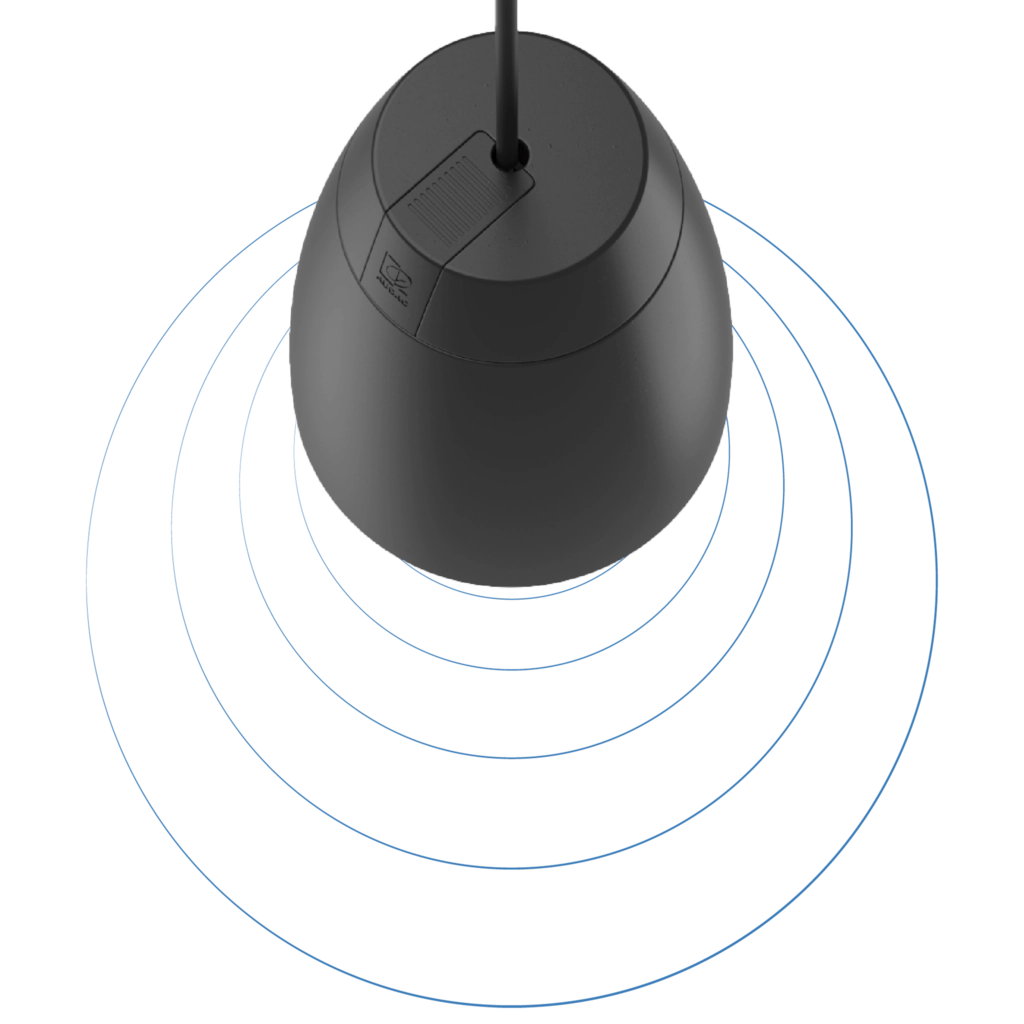

| Dispersion | Conical | 115° (average 500 Hz to 5 kHz @ -6 dB) |

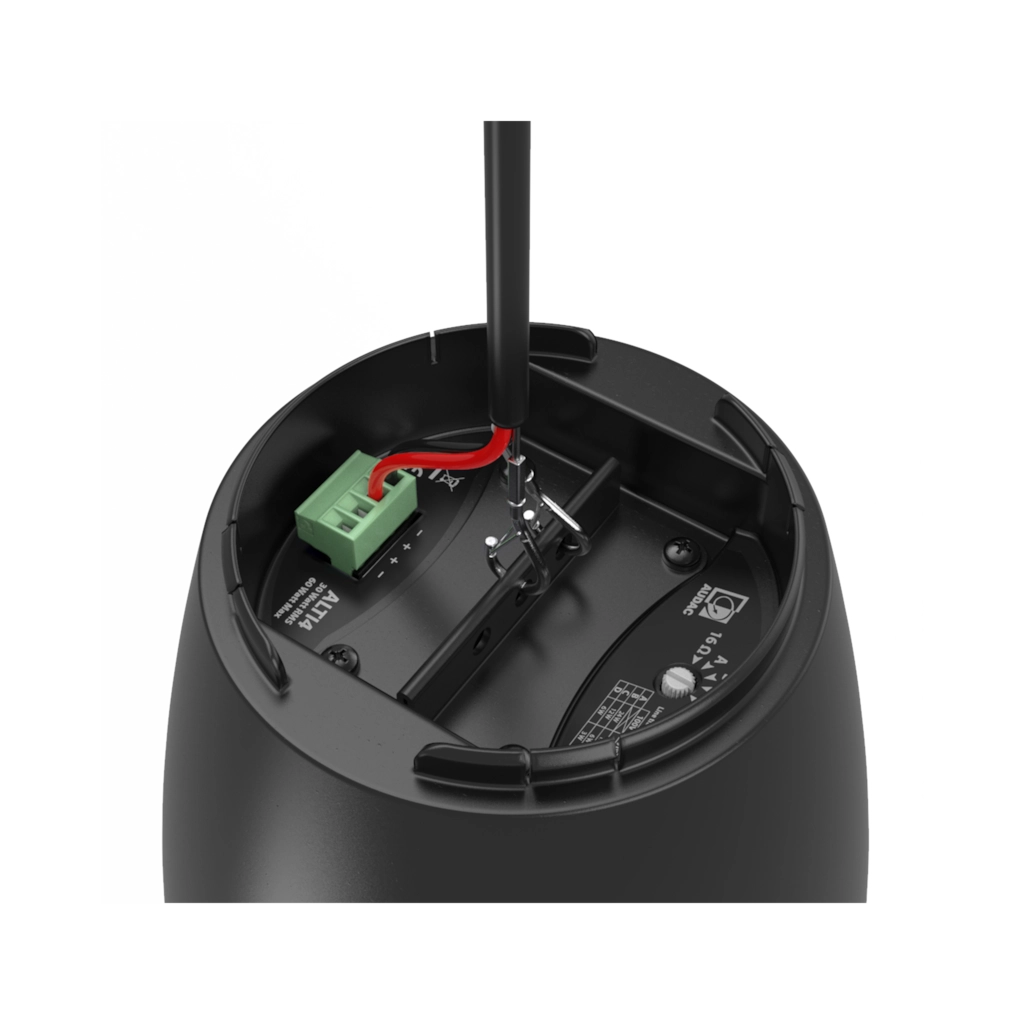

| Connectors | 4-pin Euro Terminal Block | |
| Sensitivity (1W/1m) | 83 dB | |
| Sound Pressure (Max. W/1m) | @ 16 Ω | 101 dB |
| Frequency | Range (-10 dB) | 61.5 Hz – 20 kHz |
| Response (± 3 dB) | 75 Hz – 17 kHz | |
Product Features
| Dimensions | 230 x 302 mm (Ø x H) | |
| Connection cable length | 3.5 m | |
| Construction | Polypropylene | |
| Front finish | Aluminium grill | |
| Mounting & handling | Dual snap hook and dual Gripple™ hanger | |
| Accessories | Included | Connection cable with dual steel core, snap hook & open ends – 3.5 meter |
| 2 Gripple™ hangers | ||
| Weight | 3.39 kg | |
Recommended applications
|
Bars & Restaurants
|
|
Retail
|
|
Education
|
|
Corporate
|
|
Sporting facilities
|
