ATEO4M

In & outdoor surface mount loudspeaker with CleverMount+™

Unmatched sonic brilliance
Ultra-flat frequency response
Weatherproof – IP66 rating
720 Hours salt spray test
Marine grade build quality & UV resistant
Hydrophobic cloth behind aluminum grill
Save up to 50% installation time thanks to CleverMount™+

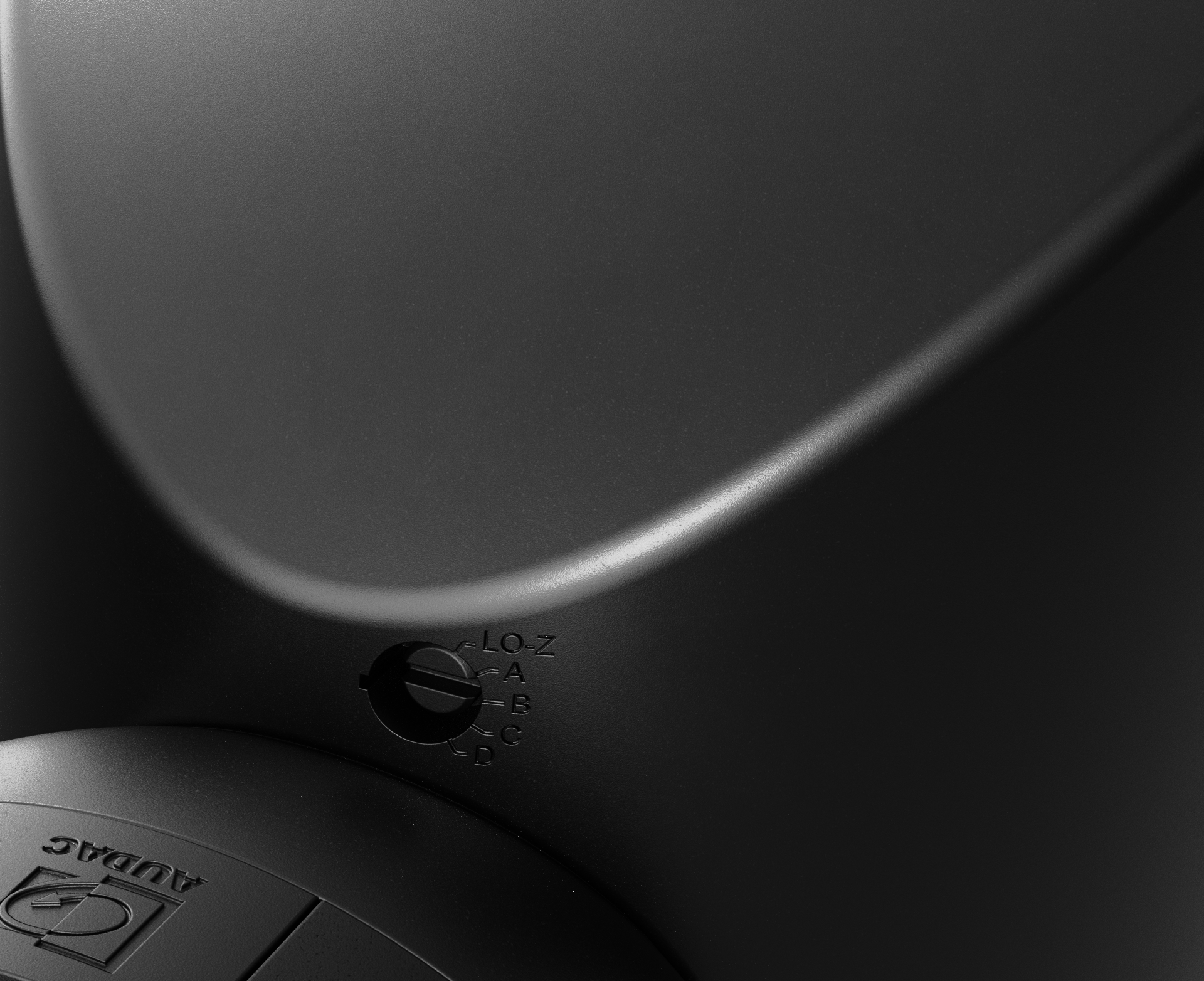

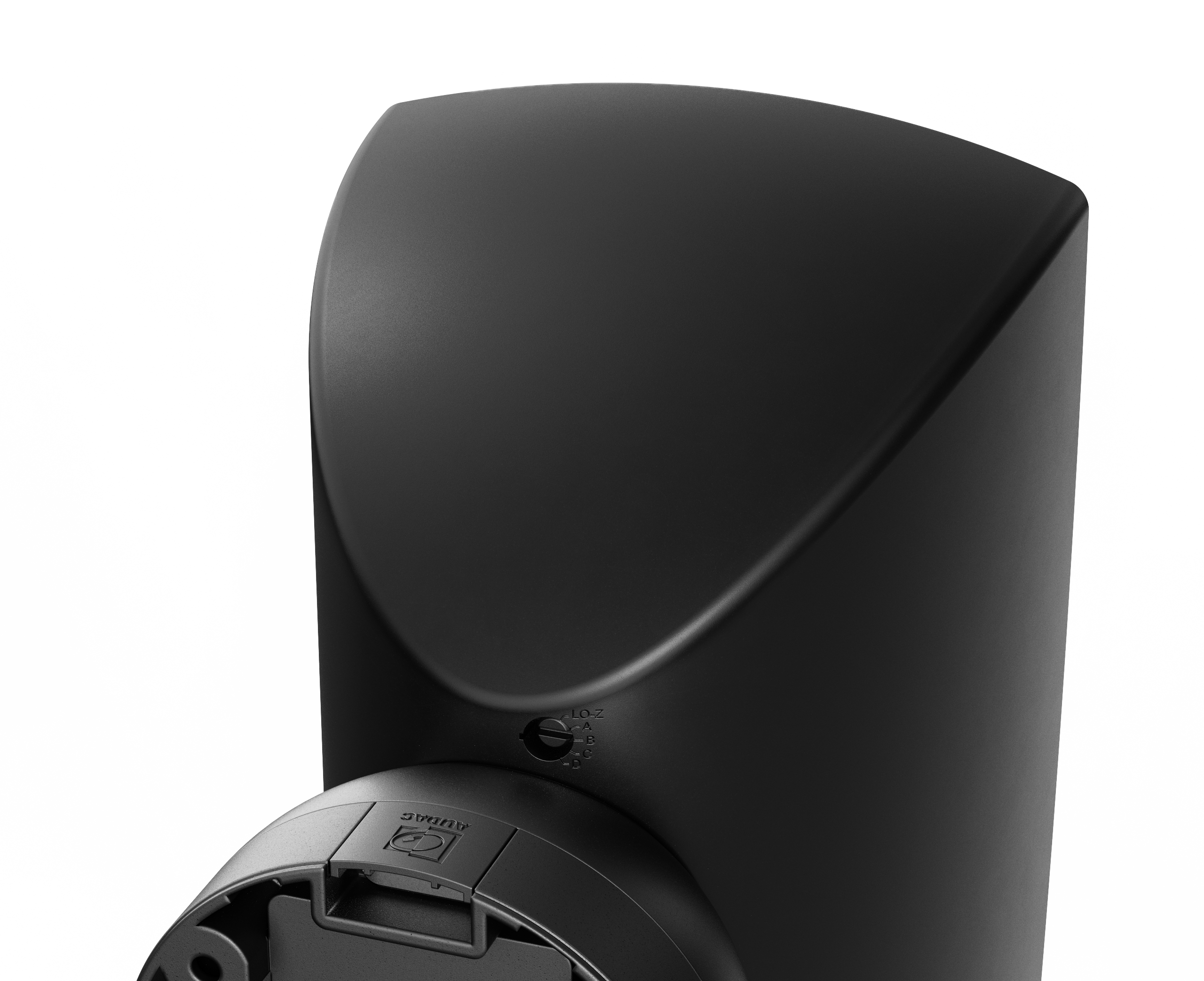

External power tap selection

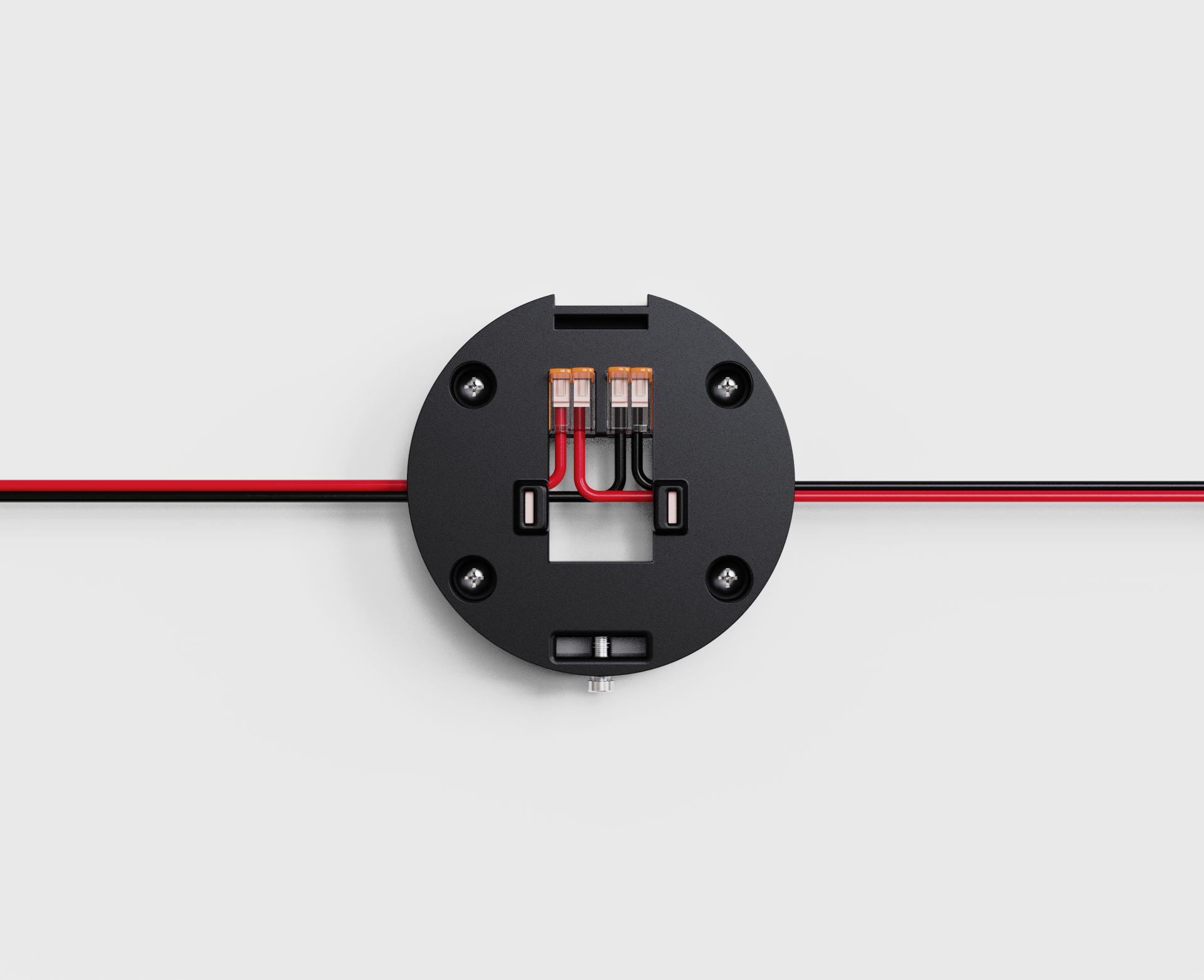

Screwless WAGO connections for quick & safe connection with linktrough up to 4mm²
No wires or bracket visible from the back

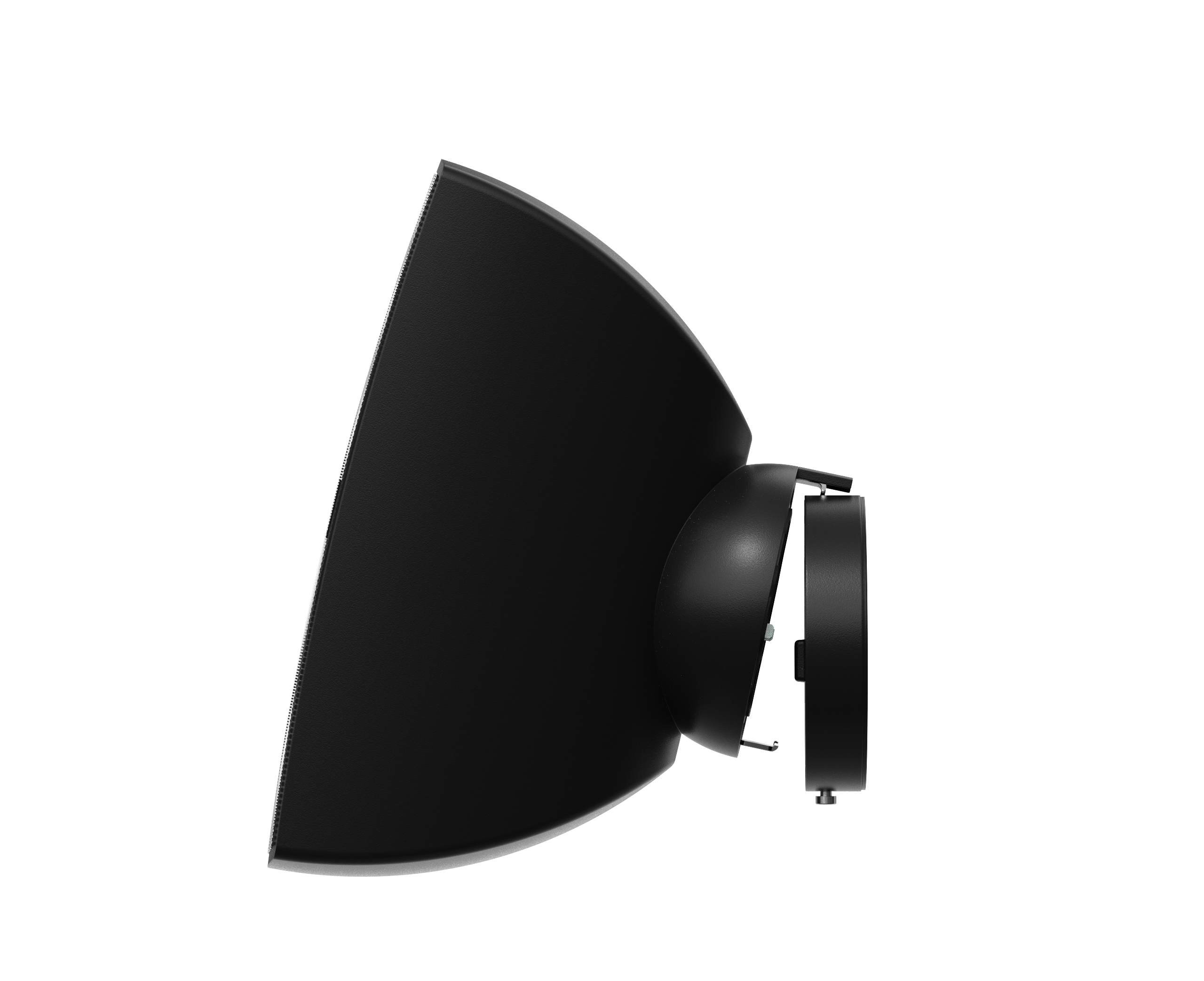

Extremely firm fixation from front, allowing swift and accurate inclination
Optional mounts for inclination angle or light track mounting

Available models

System specifications

Speaker type		Full range
Peak power handling		140 W
Program power handling		70 W
RMS/AES power handling		35 W
Impedance		8 Ω (ATEO4M)
		16 Ω (ATEO4DM)
Incline angle	Left	30°
	Right	30°
	Bottom	30°
	Top	5°
Sensitivity (1W/1m)		86 dB
Sound Pressure (Max. W/1m)	@ 8 Ω	101 dB
	@ 100 V	100 dB
Frequency	Response (± 3 dB)	100 Hz – 20 kHz
	Range (-10 dB)	65 Hz – 20 kHz
Dispersion	Horizontal	130°
	Vertical	130°
Connectors		2 x WAGO terminal block connections
Drivers		1” Dome tweeter
		4” MF / LF Woofer
Line Transformer Tappings	1	208 Ω – 100 V / Not used – 70 V / 24 W
	2	417 Ω – 100 V / 24 W – 70 V / 12 W
	3	833 Ω – 100 V / 12 W – 70 V / 6 W
	4	1667 Ω – 100 V / 6 W – 70 V / 3 W
Ingress Protection rating		IP66

Product Features

Dimensions		136 x 244 x 153 mm (W x H x D)
Weight		2.050 kg
Operating temperature		-20 °C ~ 60 °C
Accessories	Included	Allen-key wrench
Mounting		Weatherproof CleverMount+™
Construction		ABS
Front finish		Aluminium grill with hydrophobic cloth

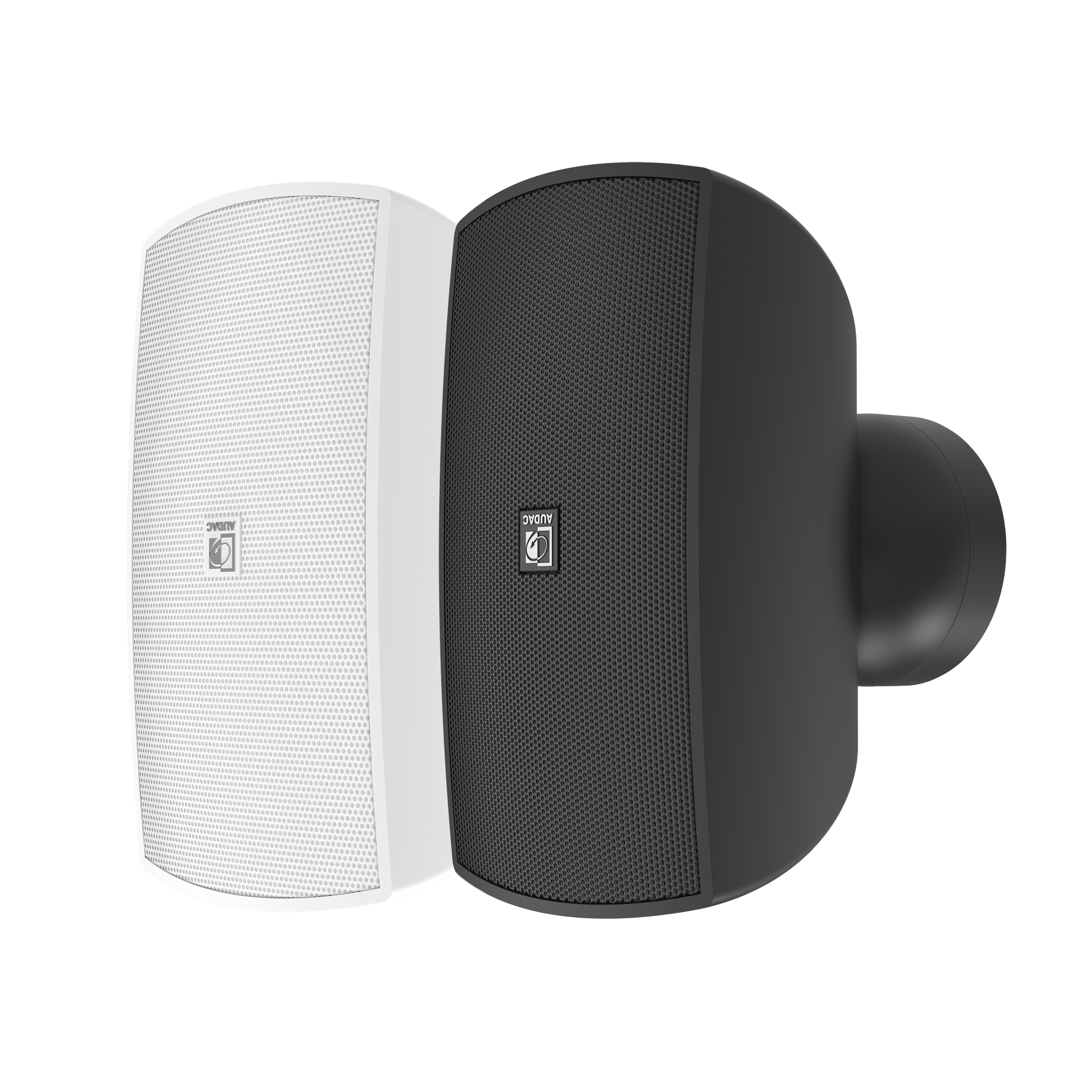

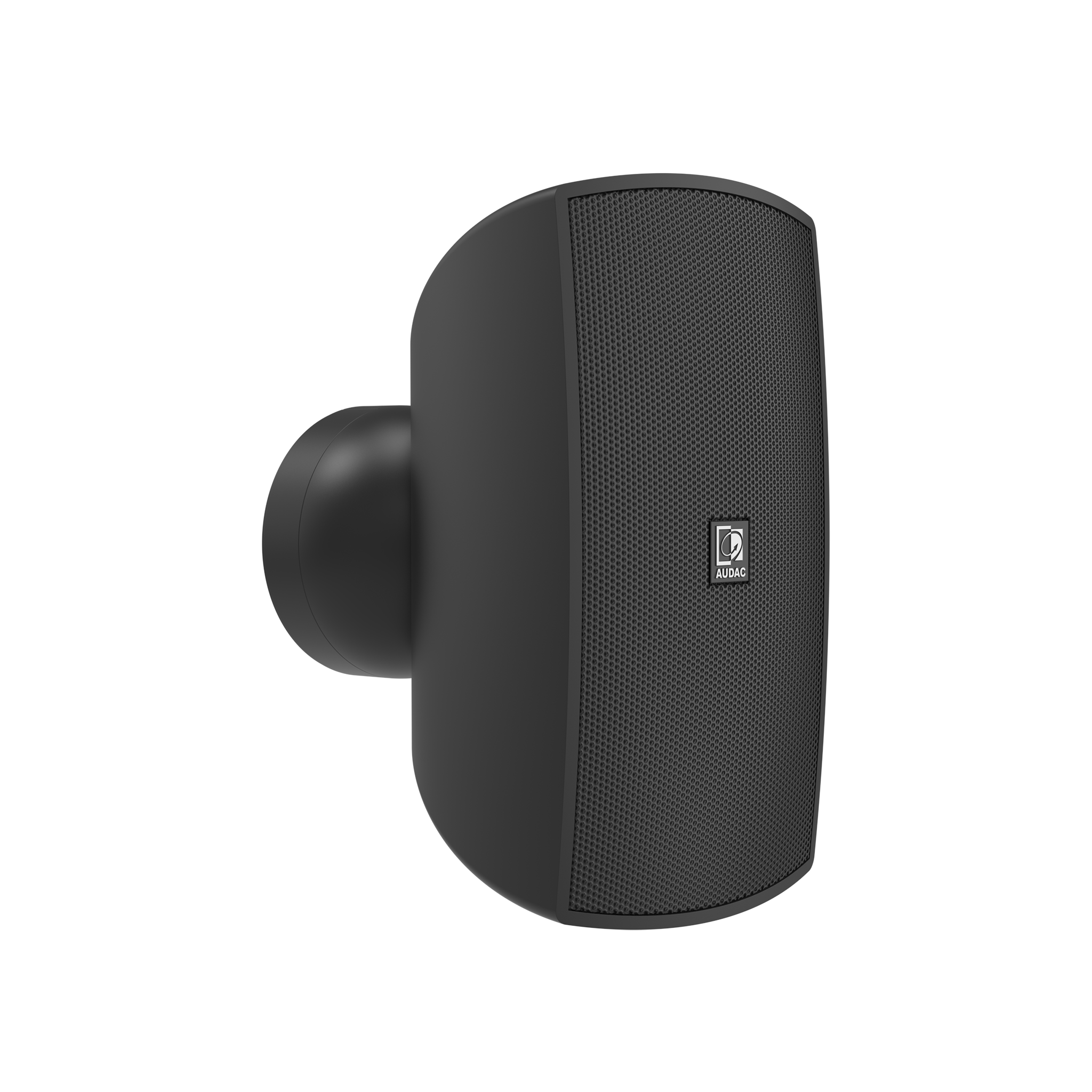

Colours		Black (RAL9005) (ATEO4M/B, ATEO4DM/B)
		White (RAL9003) (ATEO4M/W, ATEO4DM/W)

Recommended applications

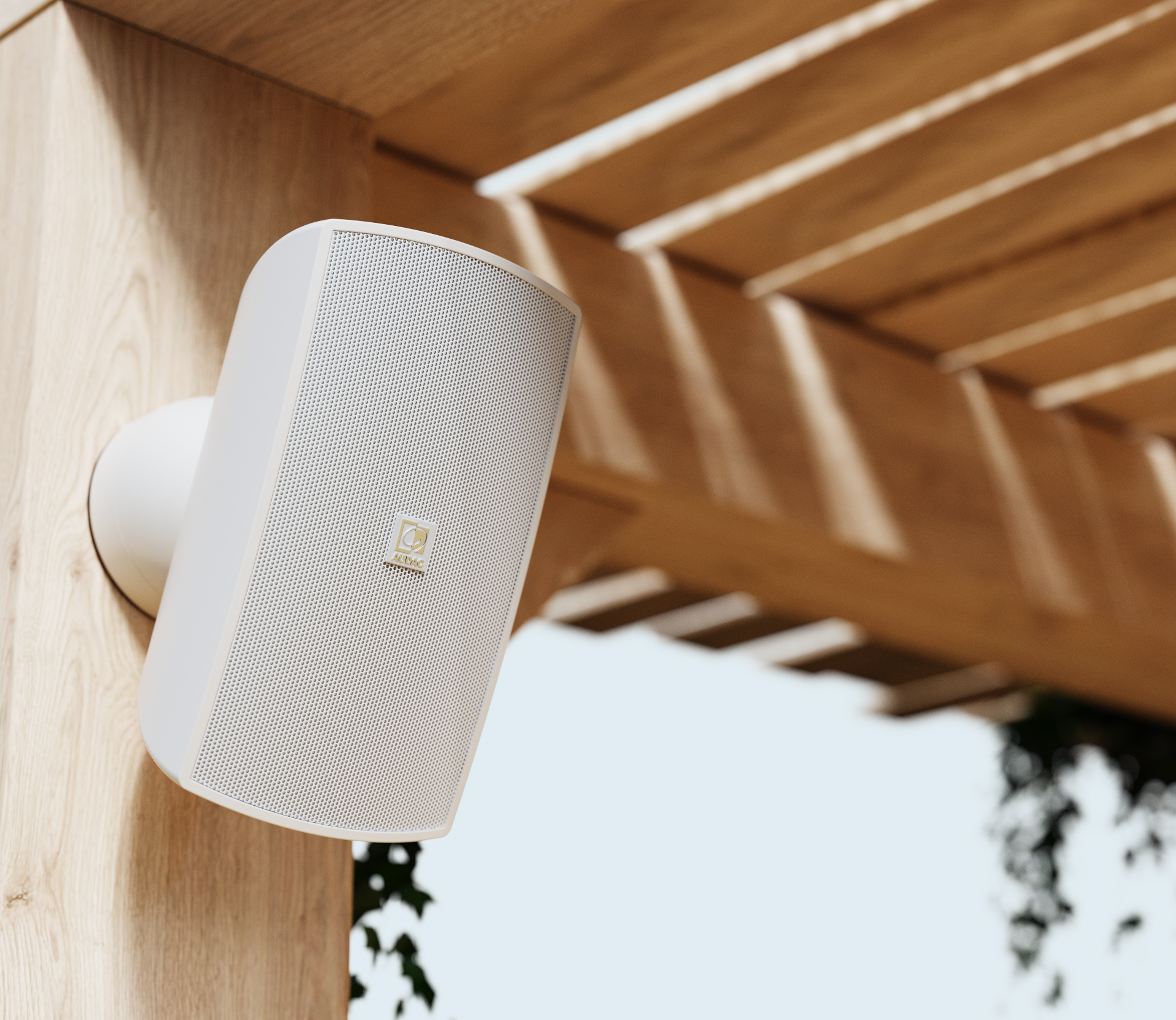

Bars & Restaurants

Corporate

Education

Hotels

Retail

Residential

Clubs
