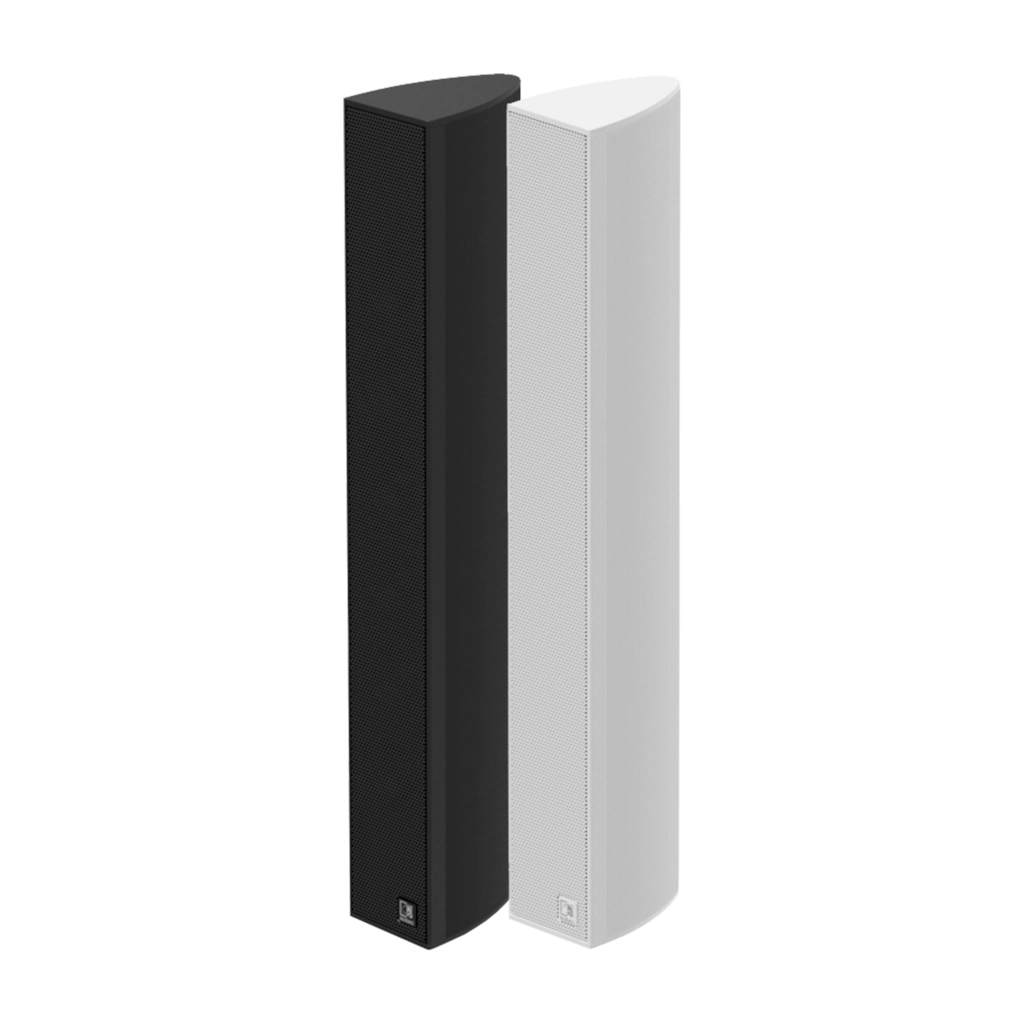

KYRA6
Design column speaker 6 x 2″
- Multi-functional wall bracket allowing swiveling and down-tilting
- Slimline aluminum design
- 6 x 2″ high-quality broadband speakers
- Multi-tapping 70V / 100V line transformer
| KYRA6/B | Black version |
| KYRA6/W | White version |
| Speaker type | Broadband column | |
| Peak power handling | 240 W | |
| Program power handling | 120 W | |
| RMS/AES power handling | 60 W | |
| Impedance | 12 Ω | |
| Sensitivity (1W/1m) | 90 dB | |
| Sound Pressure (Max. W/1m) | 106 dB | |
| Frequency | Range (-10 dB) | 120 Hz – 20 kHz |
| Response (± 3 dB) | 150 Hz – 20 kHz | |
| Drivers | 6 x 2” | |
| Line Transformer Tappings | 1 | 20 W – 250 Ω (70V) |
| 2 | 500 Ω – 100 V / 20 W – 70 V / 10 W | |
| 3 | 1000 Ω – 100 V / 10 W – 70 V / 5 W | |
| 4 | 2000 Ω – 100 V / 5 W – 70 V / 2.5 W | |
| Ingress Protection rating | IP3x | |
| Temperature | Operating | -20 – +50 °C |
| Incline angle | Left | 42° |
| Right | 42° | |
| Bottom | 13° | |
| Dispersion | Horizontal | 174° (-6 dB avg 1 kHz – 4 kHz) |
| Vertical | 28° (-6 dB avg 1 kHz – 4 kHz) | |
| Dimensions | 70 x 546 x 101 mm (W x H x D) | |
| Colours | Black (KYRA6/B – RAL9005) | |
| White (KYRA6/W – RAL9003) | ||
| Front finish | Steel grill | |
| Construction | Aluminium with plastic side covers | |
| Accessories | Included | 1 x 3-pin Euro Terminal Block Input connectors |
| 2-way Revolving mounting bracket | ||
|
Education
|
|
Corporate
|
|
Houses of worship
|
|
Events
|
Only the highest quality materials
The KYRA column speakers are housed in slim and elegantly constructed enclosures made out of aluminum and finished with finely perforated grills.
Advanced mounting possibilities
An included mounting bracket allows easy swivelling and down-tilting. The renewed bracket ensures that the distance from the wall mounting surface to the front of the loudspeaker is only 147mm, which is 22mm less than the previous version, allowing the column loudspeaker to blend even more esthetically into its surroundings
Plug-and-play multi-tapping
The power tapping switch of the KYRA’s indoor versions has been moved to the back of the speaker, allowing you to easily choose the right power tapping for the right 70V/100V application without removing the grill.
Impressive coverage area
The improved 2″ drivers of the KYRA series are repositioned to provide an optimized coverage area
