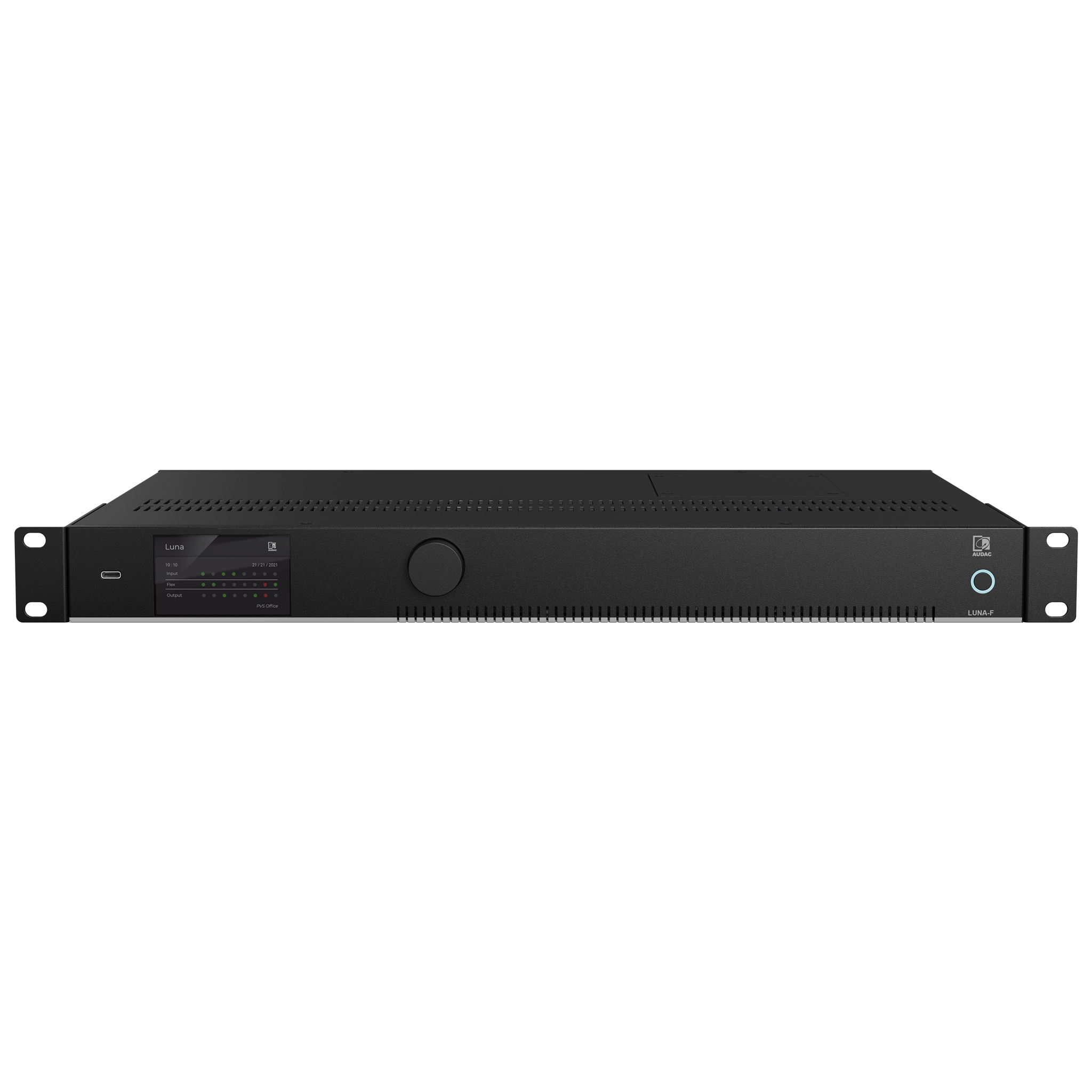

LUNA-F
Flexible network audio matrix processor
- A scalable mixture of analogue and network channels
- 8 Mic/line inputs, 8 flex inputs/outputs and 8 outputs
- 24 fully flexible GPIO in- or outputs
- 16 x 16 included Dante™/AES67 channels (optional expandable up to 64 x 64)
- Compatible with all Dante™/AES67 paging/in & output devices
- 32 mono or 16 stereo flexible zones
- 4 AEC channels (optional)
- Works out of the box thanks to easy scalable architecture
- Single design and control platform – AUDAC Touch™
- AudioBridge for flexible audio transfer for all inputs & outputs
- Auto-update (OTA) feature
Description
System specifications
| Inputs | Mic / Line inputs | 8 |
| Flex inputs / outputs | 8 | |
| GPIO Inputs | 24 (flex) | |
| USB Inputs (Type C) | Front (file transfer) | |
| Rear (file transfer) | ||
| Mass storage for messages | ||
| Outputs | Line outputs | 8 |
| GPIO Outputs | 24 (flex) | |
| Fault | NO & NC relay contact | |
| Network audio I/O | 16×16 Dante™/AES67 I/O Channels (Up to 64×64 Channels with SL-NAC8) | |
| Zones | 32 Mono | |
| 16 Stereo | ||
| Configurable settings | ALC (Automatic Gain control) | Yes |
| AEC (Acoustic Echo cancellation) | Yes (optional) | |
| Integrated event scheduler | Yes | |
| Phantom power on inputs | +48 V DC | |
| WaveTune (input & zone) | 7-band EQ | |
| WavePreset (output) | 12xBiquad +LP+HP | |
| Delay (output) | 2000 ms (target) | |
| Mono / stereo zones (configurable) | Yes | |
| Mixing | Yes | |
| Talkover | Yes | |
| Paging | Yes | |
| Priorities | 4 each zone | |
| Integrated generator | Sine or Pnoise or Wnoise | |
| Output Volume offset | Yes | |
| Others | Antiphase, bass & treble, input volume, … | |
| DSP Processor | Dual core SHARC | |
| ARM Linux core | ||
| 2 Dedicated co-DSP | ||
| Configuration | Audac Touch™ | |

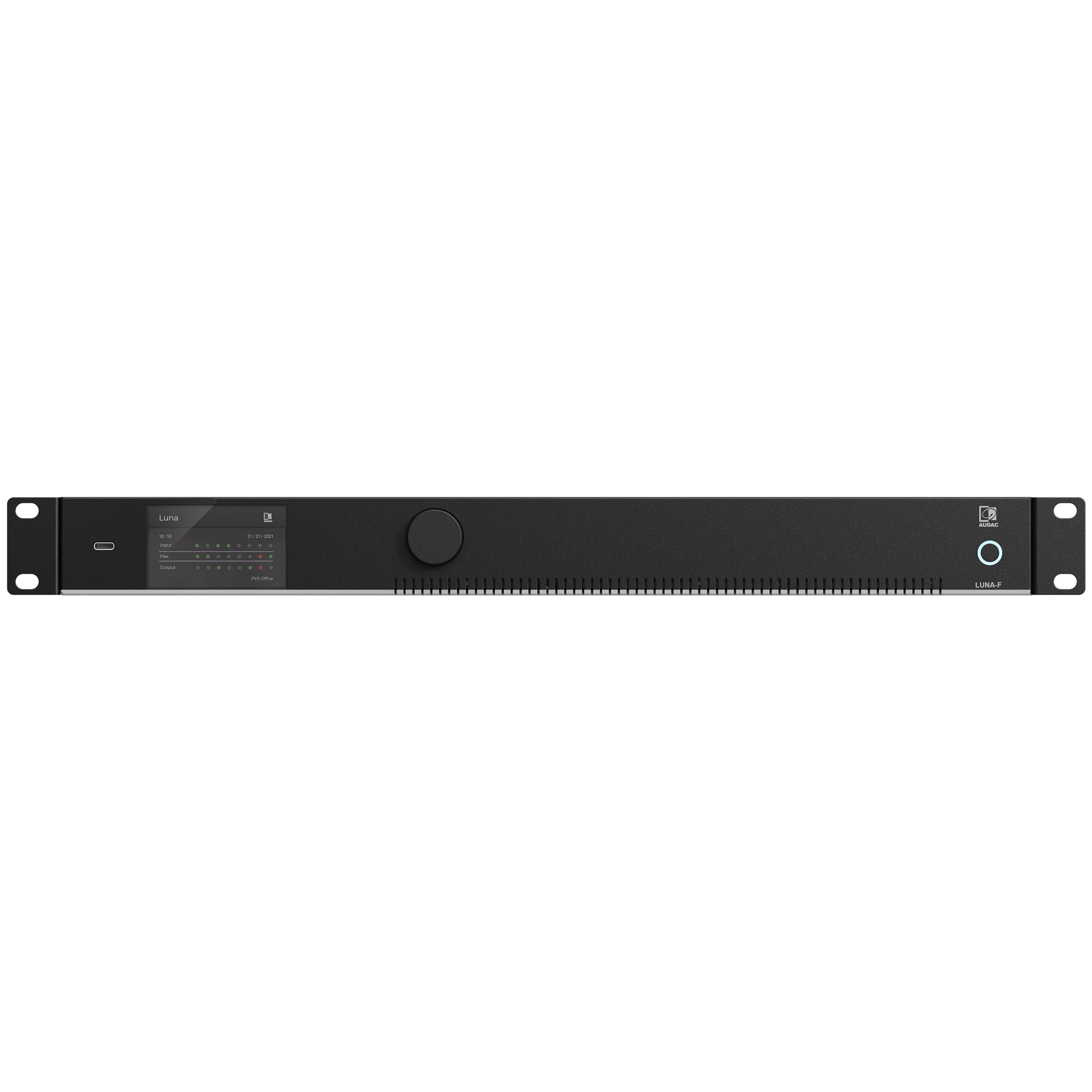

| Controls & indicators | Front panel | 2.8” LCD Display with rotary encoder |

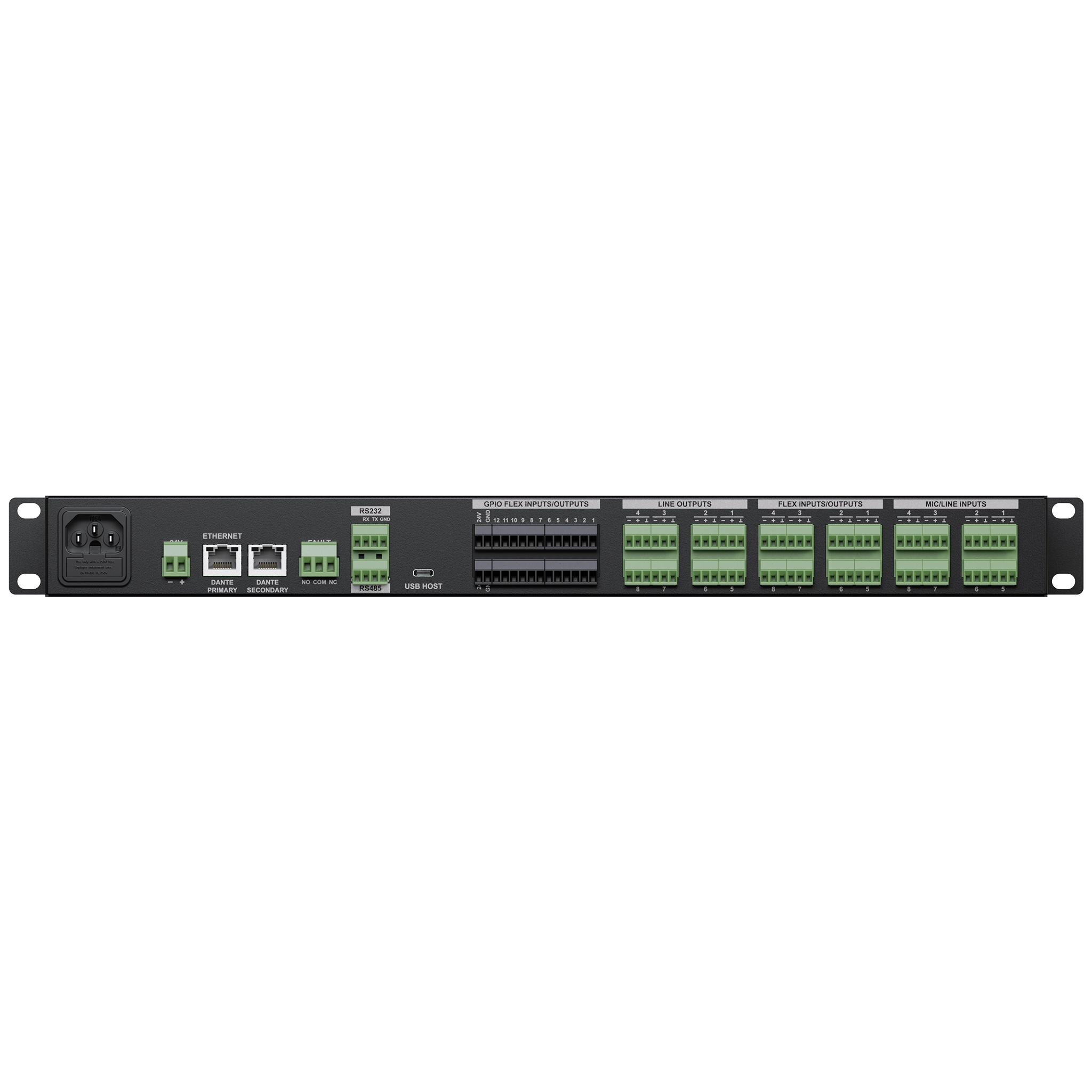

| Interface ports | RS-232 | |
| RS-485 | ||
| 2 x Gigabit Ethernet (RJ45 primary & secondary) | ||
| Power | Supply | 100 ~ 240 V AC / 50 ~ 60 Hz |
| 24 V DC | ||
Product Features
| Dimensions | 482 x 44 x 335 mm (W x H x D) |
| Mounting | 19” |
| Unit height | 1 HE |
| Construction | Steel |
| Colours | Black (RAL9005) |
Recommended applications
|
Government facilities
|
|
Education
|
|
Hotels
|
|
Corporate
|
|
Sporting facilities
|
