BASO12
Compact 12″ bass reflex cabinet
- High quality 18 mm plywood
- 2 x Speakon compatible connector in recessed connector dish (linkthrough)
- 12″ high-performance woofer
- Impact resistant die-cast frame
Description
Available models
| BASO12/B | Black version |
| BASO12/W | White version |
System specifications
| Speaker type | 12” Bass reflex cabinet | |
| Peak power handling | 2000 W | |
| Program power handling | 1000 W | |
| RMS/AES power handling | 500 W | |
| Impedance | 8 Ω | |
| Sound Pressure (Max. W/1m) | 125 dB | |
| Sensitivity (1W/1m) | 98 dB | |
| Frequency | Response (± 3 dB) | 40 Hz – 300 Hz |
| Range (-10 dB) | 35 Hz – 600 Hz | |
| Bass reflex tuning frequency | 45 Hz | |
| Connectors | 2 x Speakon compatible connector in recessed connector dish (linkthrough) | |
| Drivers | 12” Ferrite with low-loss suspension and 1.5” 4-layer wounded voice coil | |
Product Features
| Dimensions | 380 x 449 x 460 mm (W x H x D) | |
| Weight | 22 kg | |
| Operating temperature | -20 °C ~ 60 °C | |
| Construction | 18 mm plywood with structured coating | |
| Front finish | Steel grill (18 gauge) | |
| Mounting & handling | Rigging points | 3 x M6 mounting bracket installation holes on both sides |
| Colours | Black (RAL9004) (BASO12/B) | |
| White (RAL9003) (BASO12/W) | ||
Recommended applications
|
Clubs
|
|
Museums & Themeparks
|
|
Sporting facilities
|
|
Concert venues
|
|
Bars & Restaurants
|
|
Retail
|
Reviews (0)
Shipping & Delivery
Related products

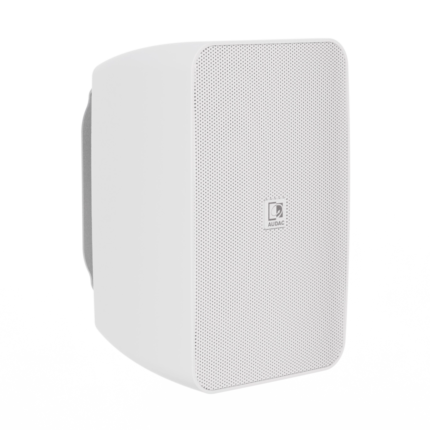

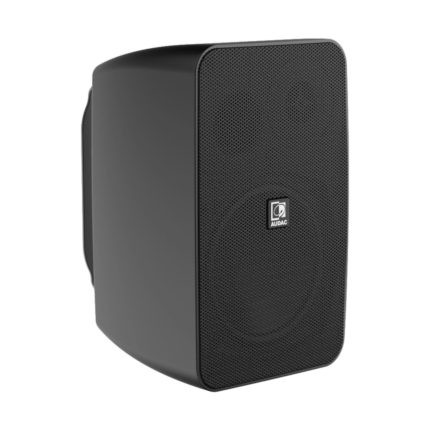

ARES5A
