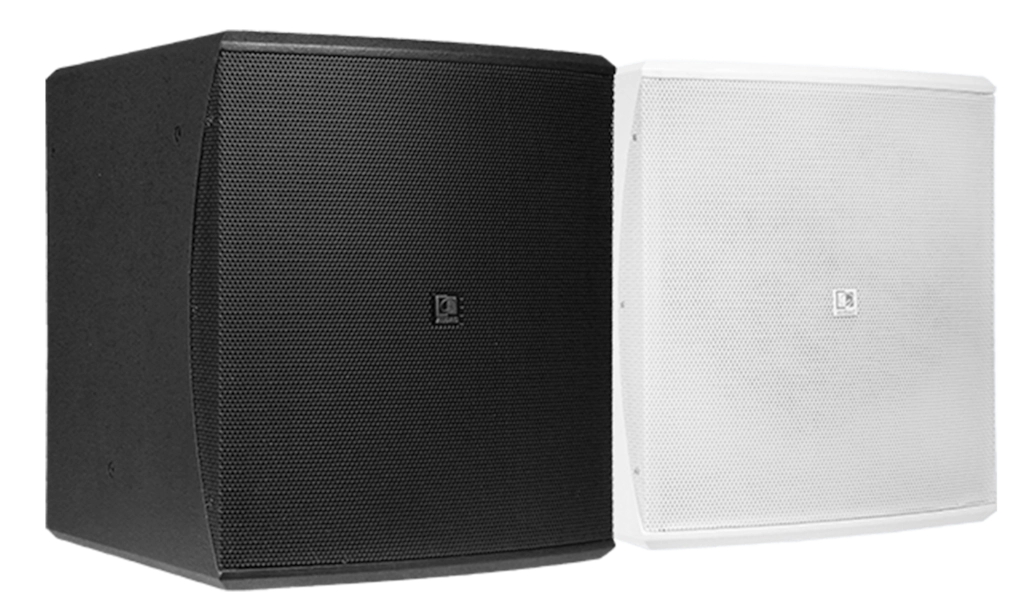

BASO10
Compact 10″ bass reflex cabinet
- High quality 15 mm plywood
- Compact design
- 2 x Speakon compatible connector in recessed connector dish (linkthrough)
- Flat & wide frequency range
- 10″ high-performance woofer
Description
Available models
| BASO10/B | Black version |
| BASO10/W | White version |
System specifications
| Speaker type | 10” Bass reflex cabinet | |
| Peak power handling | 900 W | |
| Program power handling | 450 W | |
| RMS/AES power handling | 225 W | |
| Impedance | 8 Ω | |
| Sensitivity (1W/1m) | 96 dB | |
| Sound Pressure (Max. W/1m) | 120 dB | |
| Frequency | Response (± 3 dB) | 54 Hz – 1.2 kHz |
| Range (-10 dB) | 38 Hz – 2 kHz | |
| Bass reflex tuning frequency | 50 Hz | |
| Connectors | 2 x Speakon compatible connector in recessed connector dish (linkthrough) | |
| Drivers | 10” Ferrite with low-loss suspension and 1.5” 4-layer wounded voice coil | |
Product Features
| Dimensions | 320 x 380 x 380 mm (W x H x D) | |
| Weight | 10 kg | |
| Operating temperature | -20 °C ~ 60 °C | |
| Construction | 15 mm plywood with structured coating | |
| Front finish | Steel grill (18 gauge) | |
| Mounting & handling | Rigging points | 3 x M6 mounting bracket installation holes on both sides |
| Colours | Black (RAL9004) (BASO10/B) | |
| White (RAL9003) (BASO10/W) | ||
Recommended applications
|
Bars & Restaurants
|
|
Museums & Themeparks
|
|
Sporting facilities
|
|
Retail
|
|
Corporate
|
|
Clubs
|
