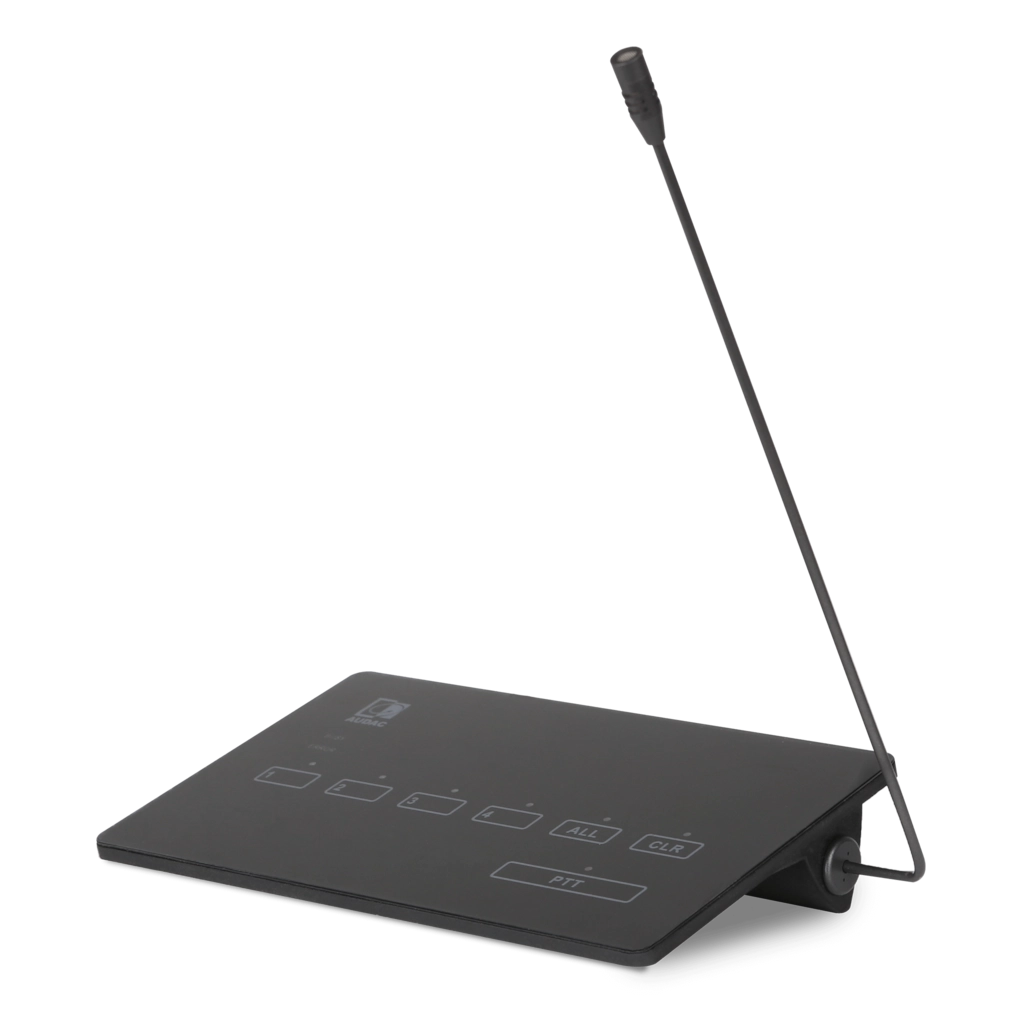

MPX48
SurfaceTouch™ paging microphone 4 zones
- High quality back electret condenser capsule with cardioid pickup pattern
- Level & status indication LED’s

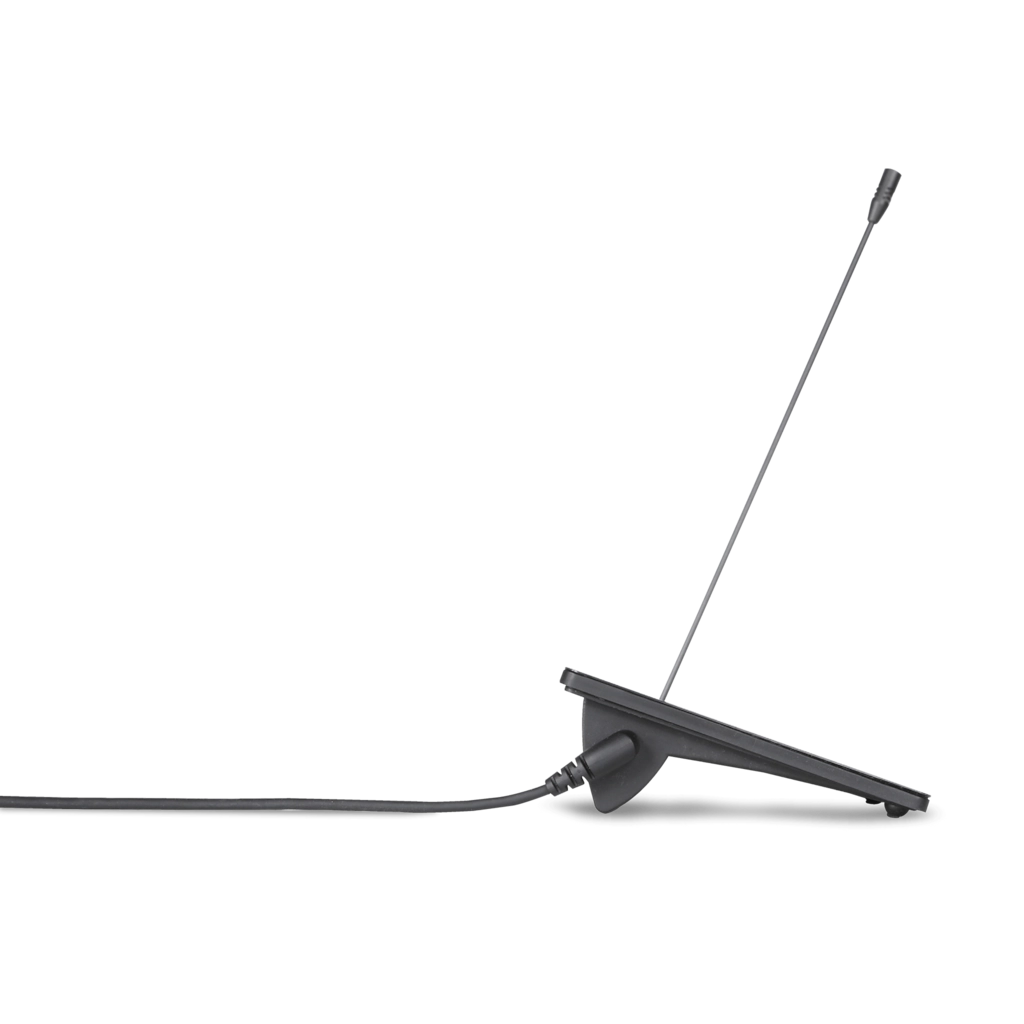

- Tiltable pipe-neck microphone
- SurfaceTouch™ front panel
- Capacitive & illuminated selection buttons (4x)
Description
System specifications
| Microphone | Type | Back electret condenser |
| Length | 250 mm | |
| Frequency | Response (± 3 dB) | 50 Hz – 16 kHz |
| Sensitivity (1W/1m) | 45 dB | |
| Sound Pressure (Max. W/1m) | 130 dB | |
| Power | Consumption | 1.5 W |
| Supply | 24 V DC (from MTX) | |
| Connectors | RJ45 (Fixed 2 m cable) | |
| Polar Pattern | Cardioid | |
Product Features
| Dimensions | 221.5 x 43 x 111.6 mm (W x H x D) | |
| Weight | 0.330 kg | |
| Construction | ABS | |
| Databus | Control | RS-485 |
| Audio | Differential analogue | |
| Colours | Black (RAL9004) | |
| Paging Zones | 4 Zones (use with MTX48) | |
| Accessories | Included | Windscreen |
| Connection cable 2 meter(fixed) | ||
Recommended applications
|
Corporate
|
|
Sporting facilities
|
