CIRA5

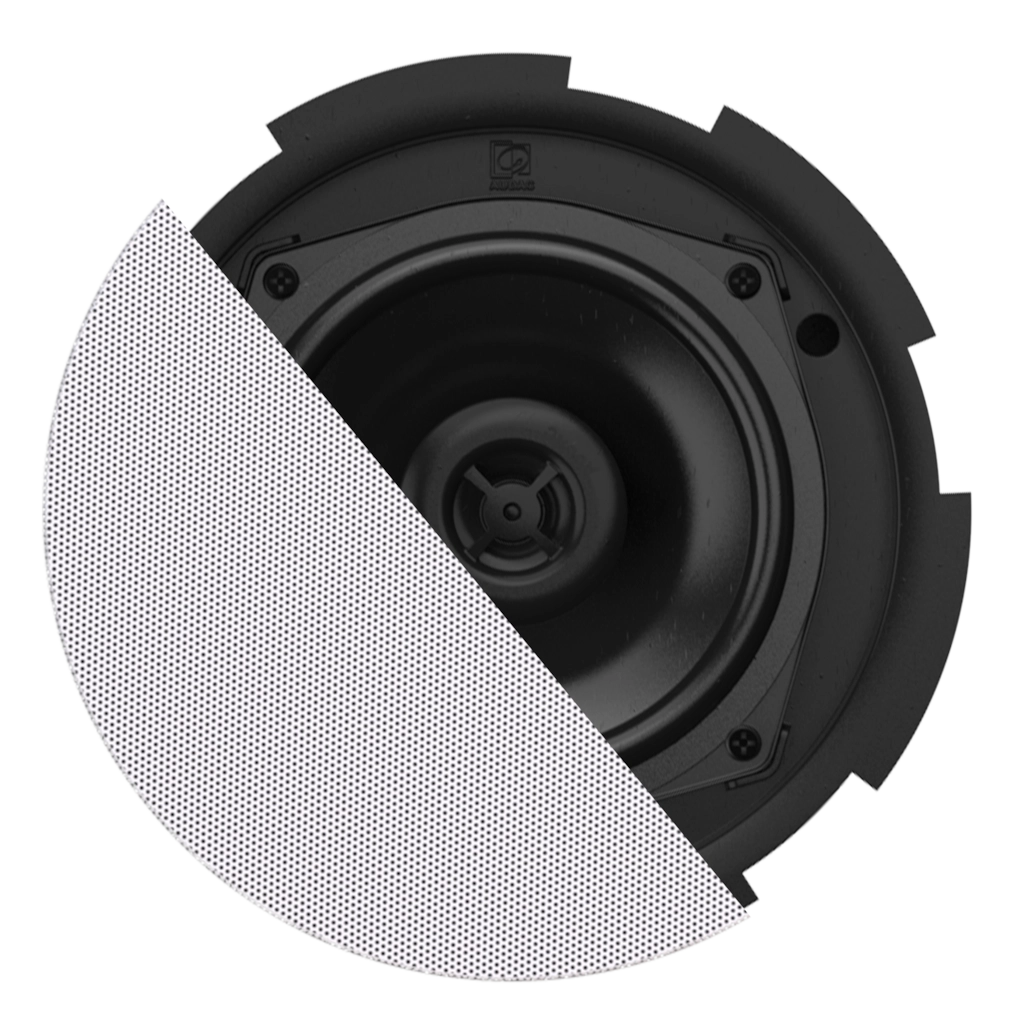

QuickFit™ 2-way 5 1/4″ ceiling speaker with TwistFix™ grill
- Excellent off-axis performance (up to 155°)
- Exceptional intelligibility and musical performance

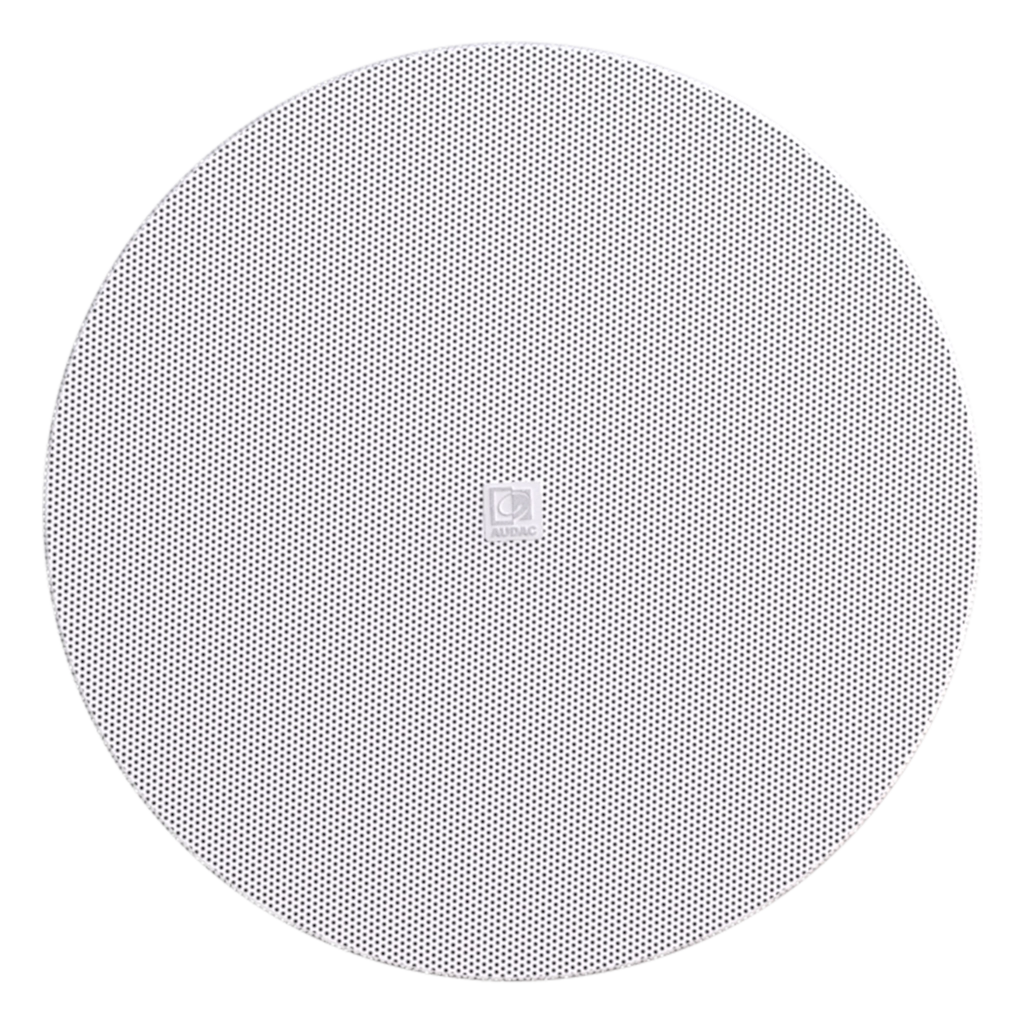

- TwistFix™ borderless grill design
- Flat frequency response
- Consistent sound profile throughout complete family

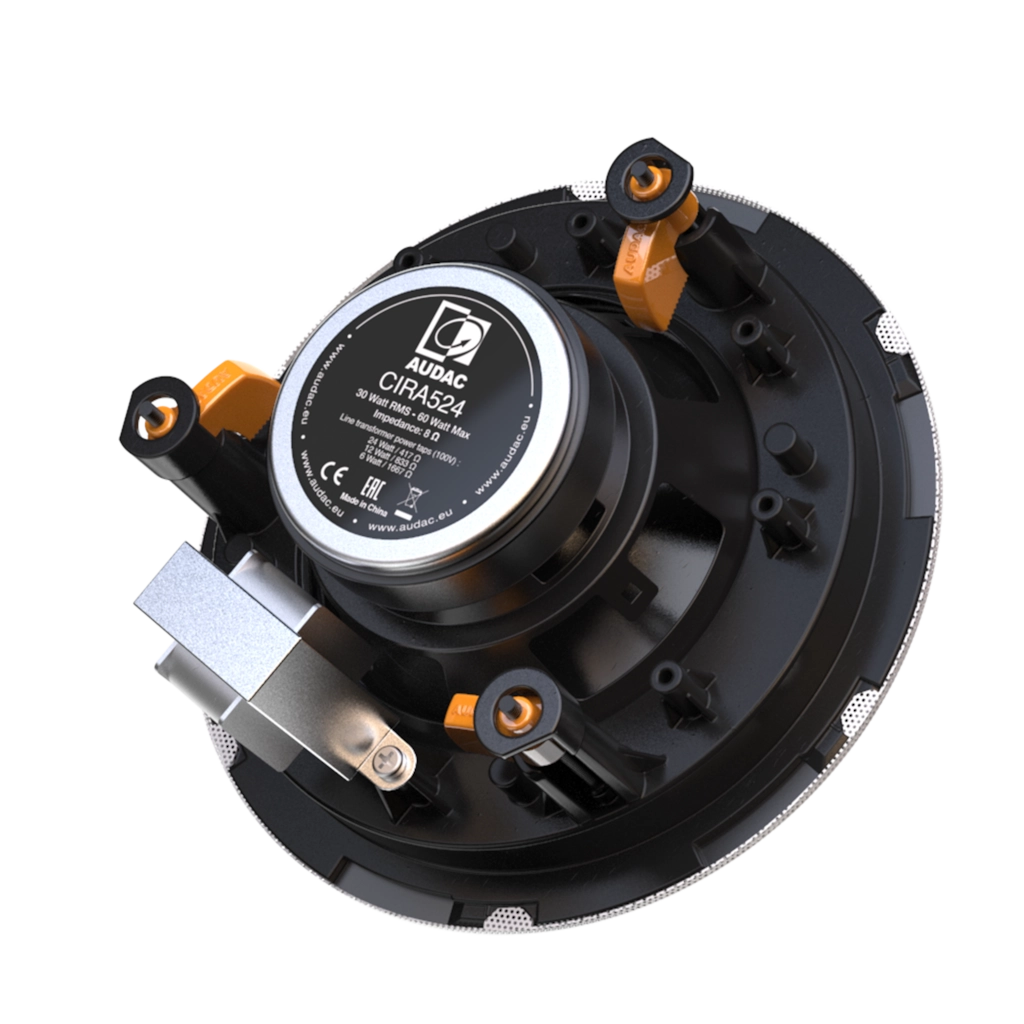

- Lifetime stability and toolfree installation with unique Quickfit™ innovation
Description
Available models
| CIRA506I/W | White version, 8Ω & 6 Watt @ 100V (RAL9016) |
| CIRA524I/W | White version, 8Ω & 24 Watt @ 100V (RAL9016) |
| CIRA530D/W | White version, 16 Ω |
| CIRA530DI/W | White version, 16 Ω (RAL9016) |
System specifications
| Peak power handling | 120 W | |
| Program power handling | 60 W | |
| RMS/AES power handling | 30 W | |
| Sound Pressure (Max. W/1m) | @ 100 V | 102 dB |
| Sensitivity (1W/1m) | 87 dB | |
| Frequency | Response (± 3 dB) | 60 Hz – 20 kHz |
| Speaker type | 2-way coaxial | |
| Impedance | 16 Ω (CIRA530D) | |
| 8 Ω (CIRA506 & CIRA524) | ||
| Frequency | Range (-10 dB) | 45 Hz – 20 kHz |
| Dispersion | Conical | 145° |
| Connectors | Multi-tap Fast-con™ connections | |
| Drivers | HF | 1” |
| LF | 5 ¼” Woofer | |
| Line Transformer Tappings | 1 | 6 W – 1667 Ω (CIRA506) |
| 24 W – 417 Ω (CIRA524) | ||
| 2 | 3 W – 3333 Ω (CIRA506) | |
| 12 W – 833 Ω (CIRA524) | ||
| 3 | 1.5 W – 6667 Ω (CIRA506) | |
| 6 W – 1667 Ω (CIRA524) | ||
Product Features
| Cut-out measurement | 170 mm (Ø) |
| Dimensions | 193 x 83 mm (Ø x D) |
| Weight | 1.10 kg (CIRA506) |
| 1.15 kg (CIRA524) | |
| 1.05 kg (CIRA530D) | |
| Operating temperature | -20 °C ~ 60 °C |
| Construction | ABS |
| Front finish | TwistFix™ borderless finely perforated steel grill |

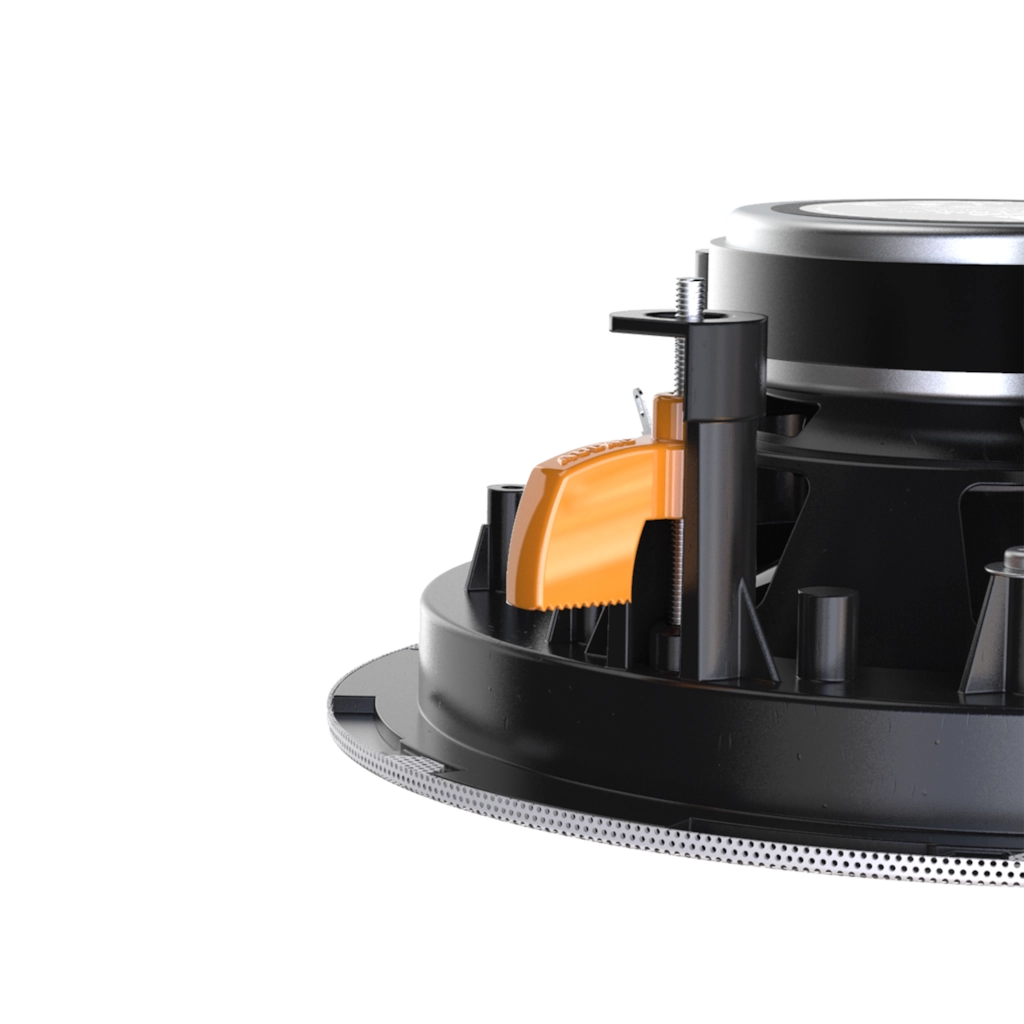

| Mounting | QuickFit™ mounting system |
| Colours | White (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W) |
| Built-in depth | 83 mm (CIRA524) |
| 75 mm (CIRA506 & CIRA530D) | |
| Dimensions | 193 mm (Ø) |
Recommended applications
|
Corporate
|
|
Retail
|
|
Bars & Restaurants
|
