ATEO2

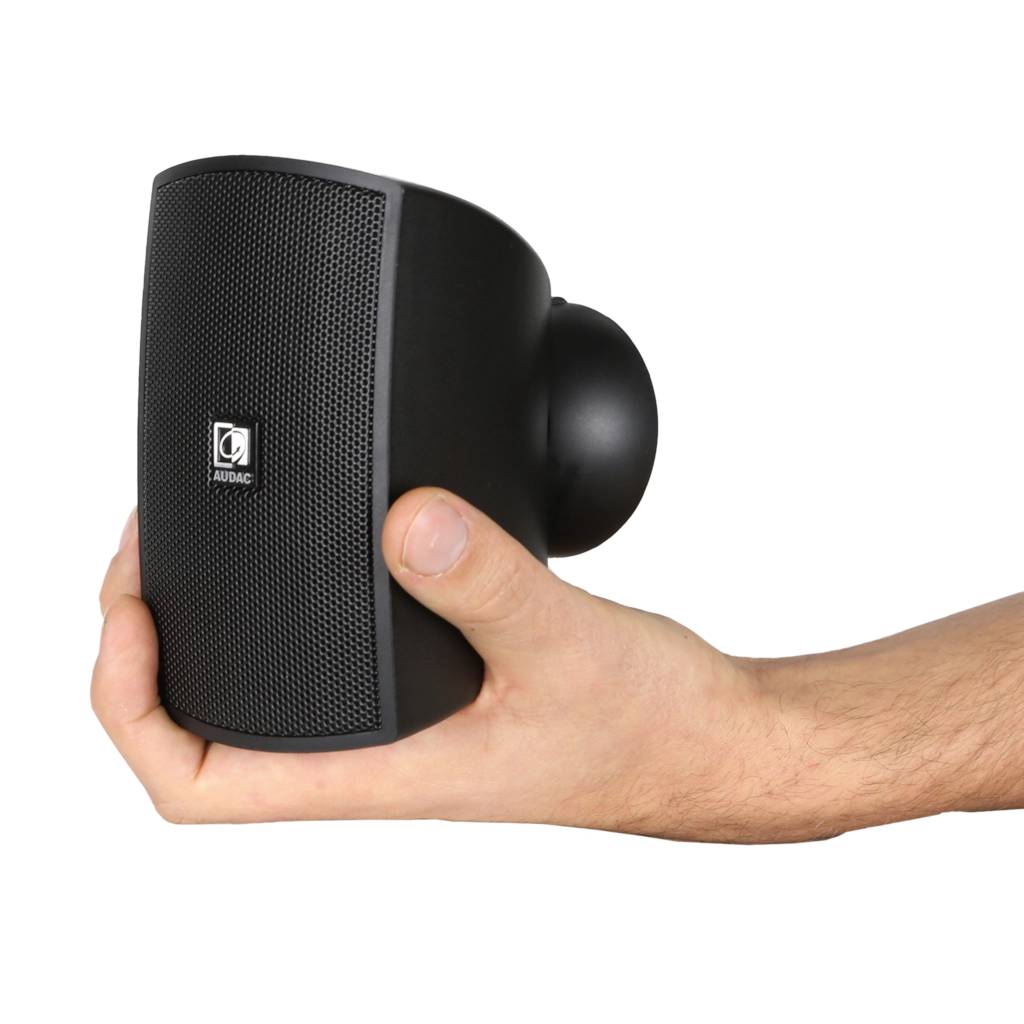

Compact wall speaker with CleverMount™ 2″
- Vertical and horizontal mounting
- 2″ full range aluminum driver
- Stunning designed and elegant looking ABS enclosure
- Patented CleverMount™ mounting system
Description
Available models

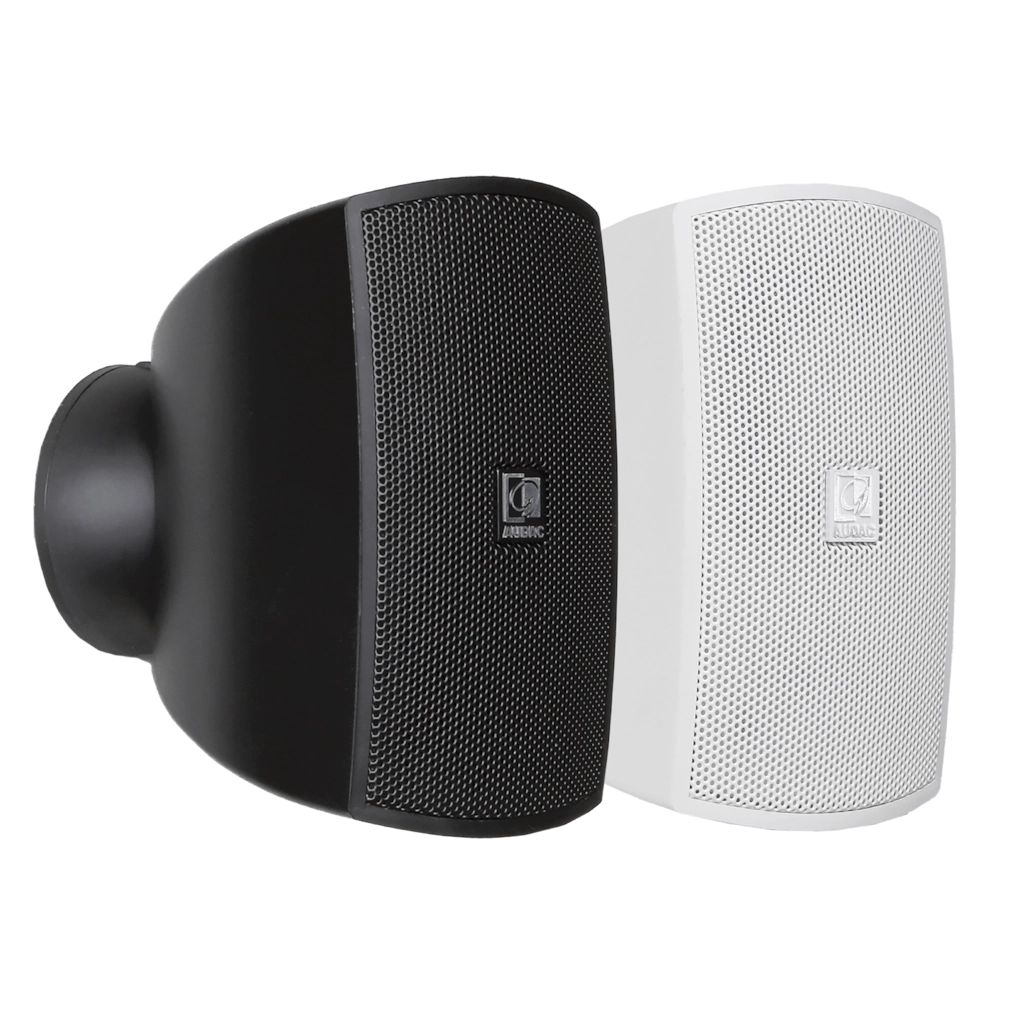

| ATEO2/B | Black version – 8Ω |
| ATEO2/W | White version – 8Ω |
| ATEO2D/B | Black version – 16Ω |
| ATEO2D/W | White version – 16Ω |
System specifications
| Peak power handling | 40 W | |
| Program power handling | 20 W | |
| Speaker type | Full range | |
| RMS/AES power handling | 10 W | |
| Impedance | 8 Ω (ATEO2) | |
| 16 Ω (ATEO2D) | ||
| Incline angle | Left | 25° |
| Right | 25° | |
| Bottom | 25° | |
| Top | 15° | |
| Sensitivity (1W/1m) | 83 dB | |
| Sound Pressure (Max. W/1m) | 93 dB | |
| Frequency | Response (± 3 dB) | 120 Hz – 20 kHz |
| Range (-10 dB) | 100 Hz – 20 kHz | |
| Dispersion | Horizontal | 145° |
| Vertical | 170° | |
| Ingress Protection rating | IP40 | |
| Connectors | 2-pin Euro Terminal Block | |
| Drivers | 2” Aluminium full range | |
Product Features
| Dimensions | 80 x 136 x 115 mm (W x H x D) | |
| Weight | 0.390 kg | |
| Operating temperature | -20 °C ~ 60 °C | |
| Mounting | Clevermount™ | |
| Construction | ABS | |
| Front finish | Steel grill | |
| Colours | Black (RAL9005) (ATEO2/B, ATEO2D/B) | |
| White (RAL9003) (ATEO2/W, ATEO2D/W) | ||
| Accessories | Optional | WTR06 – 6W 100V line transformer |
Recommended applications
|
Bars & Restaurants
|
|
Corporate
|
|
Education
|
|
Hotels
|
|
Retail
|
|
Residential
|
|
Clubs
|
