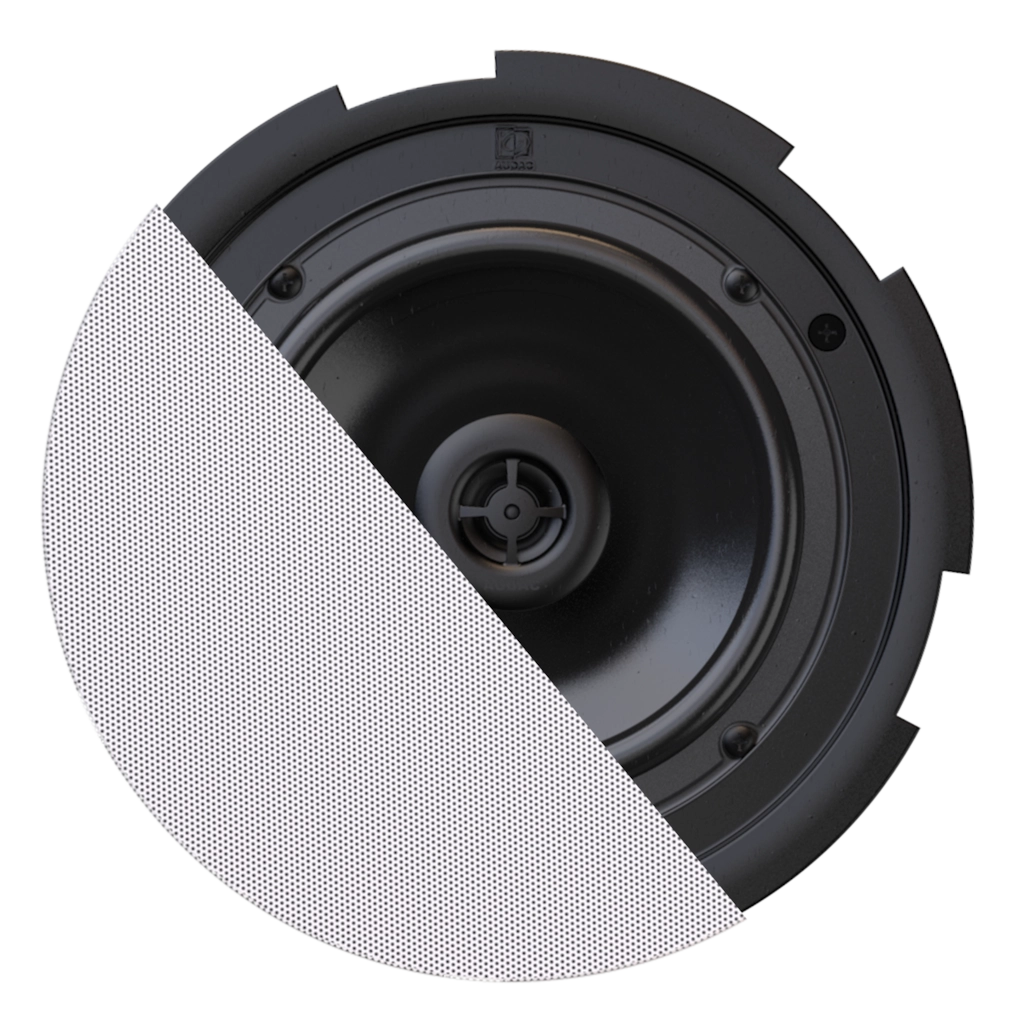

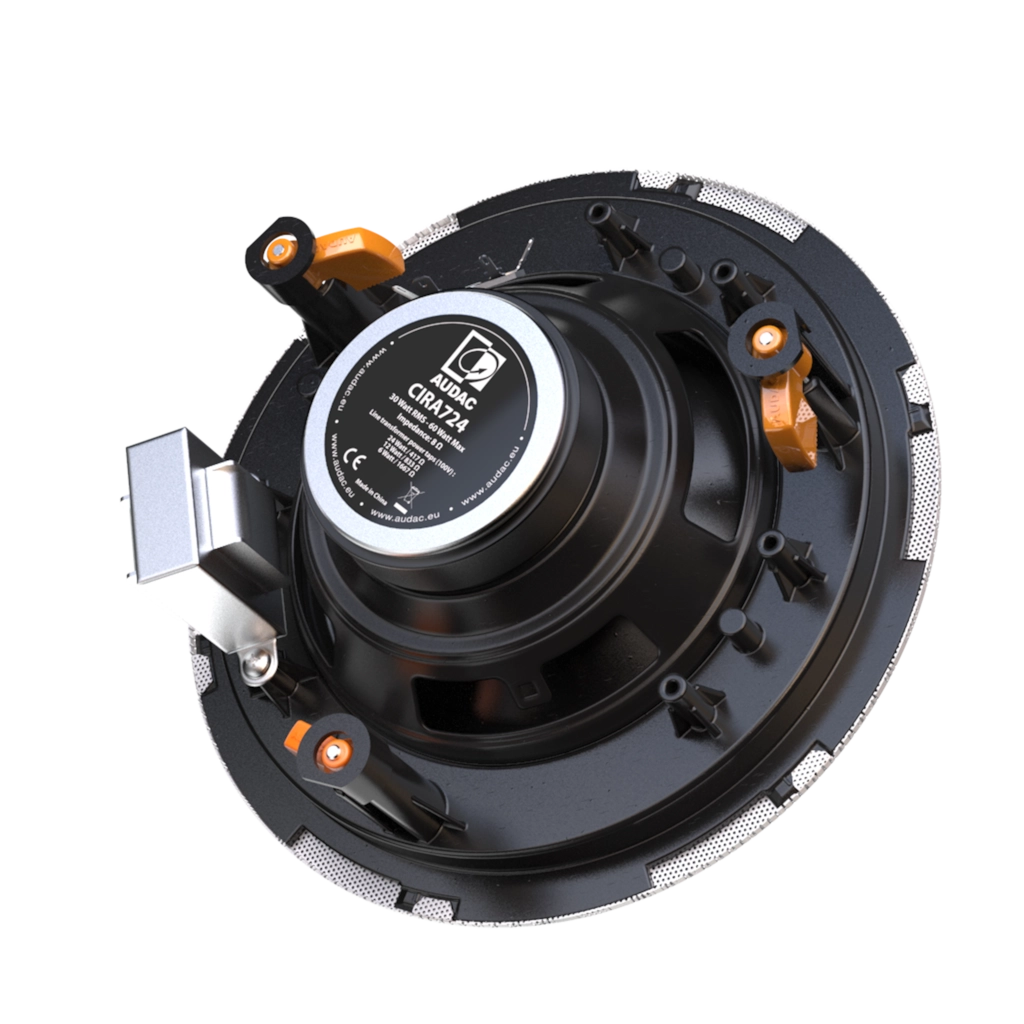

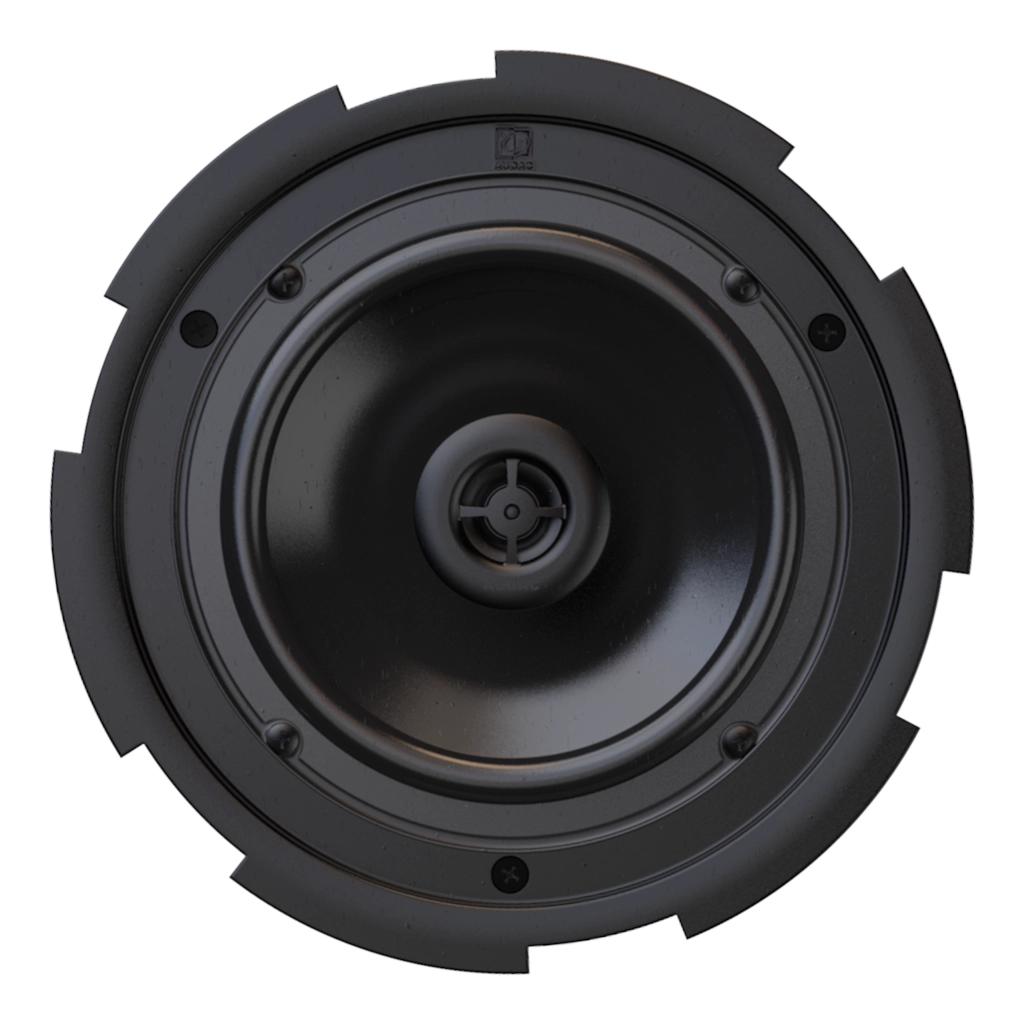

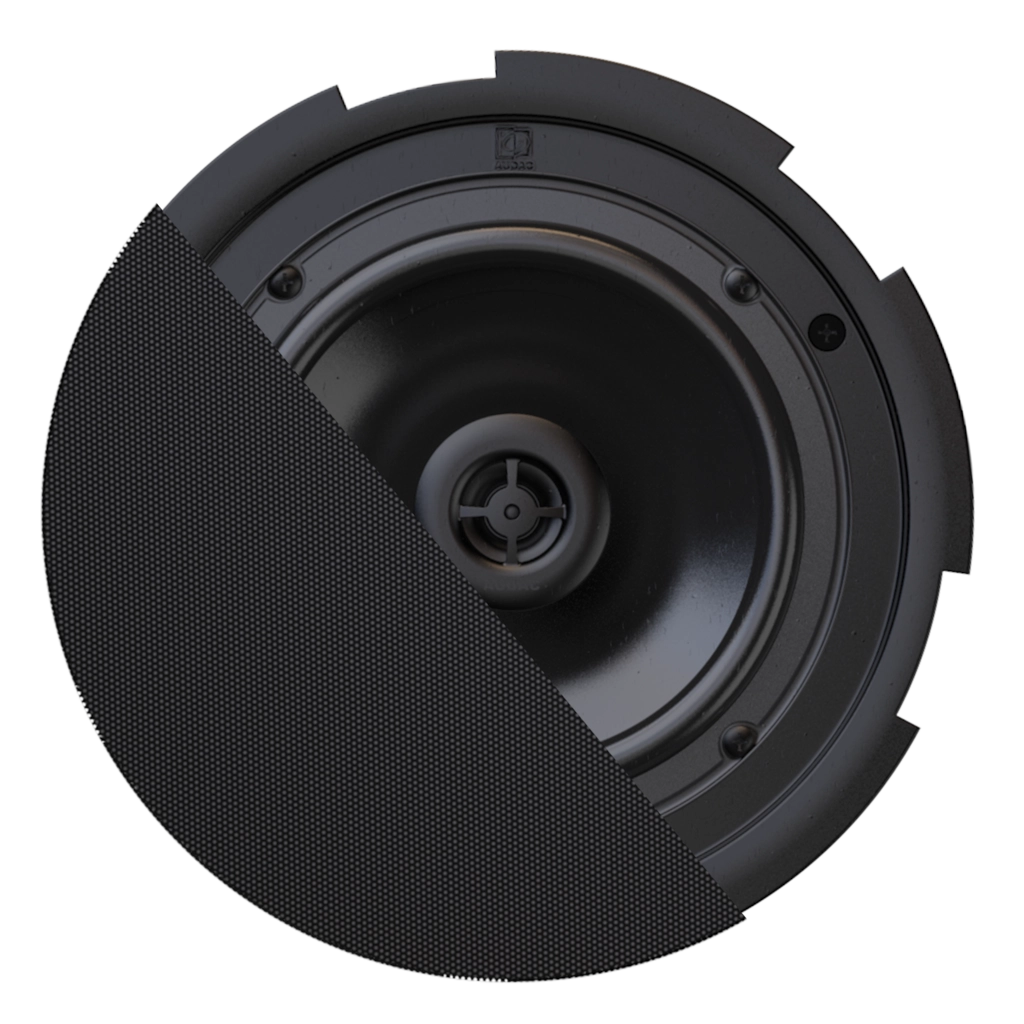

CIRA7

QuickFit™ 2-way 6.5″ ceiling speaker with TwistFix™ grill

Available models

CIRA724I/W	White version, 8Ω & 100V (RAL9016)
CIRA730DI/W	White version, 16 Ω (RAL9016)

System specifications

Peak power handling		120 W
Program power handling		60 W
RMS/AES power handling		30 W
Sound Pressure (Max. W/1m)	@ 100 V	103 dB
Sensitivity (1W/1m)		88 dB
Frequency	Response (± 3 dB)	55 Hz – 20 kHz
Speaker type		2-way coaxial
Impedance		8 Ω (CIRA724)
		16 Ω (CIRA730D)
Frequency	Range (-10 dB)	45 Hz – 20 kHz
Dispersion	Conical	150°
Connectors		Multi-tap Fast-con™ connections
Drivers	HF	1”
	LF	6.5¼”
Line Transformer Tappings	1	24 W – 417 Ω (CIRA724)
	2	12 W – 833 Ω (CIRA724)
	3	6 W – 1667 Ω (CIRA724)

Product Features

Cut-out measurement	200 mm (Ø)
Weight	1.45 kg (CIRA724)
	1.35 kg (CIRA730D)
Operating temperature	-20 °C ~ 60 °C
Construction	ABS

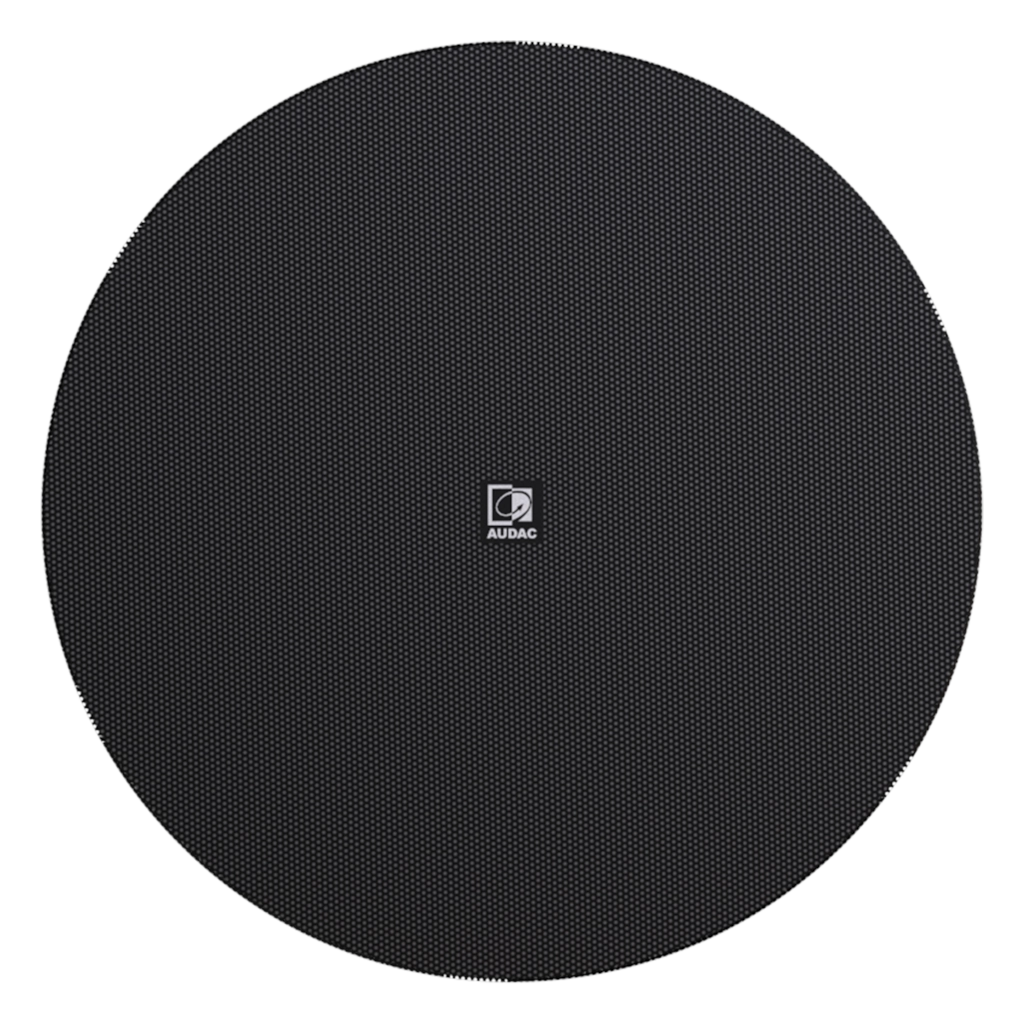

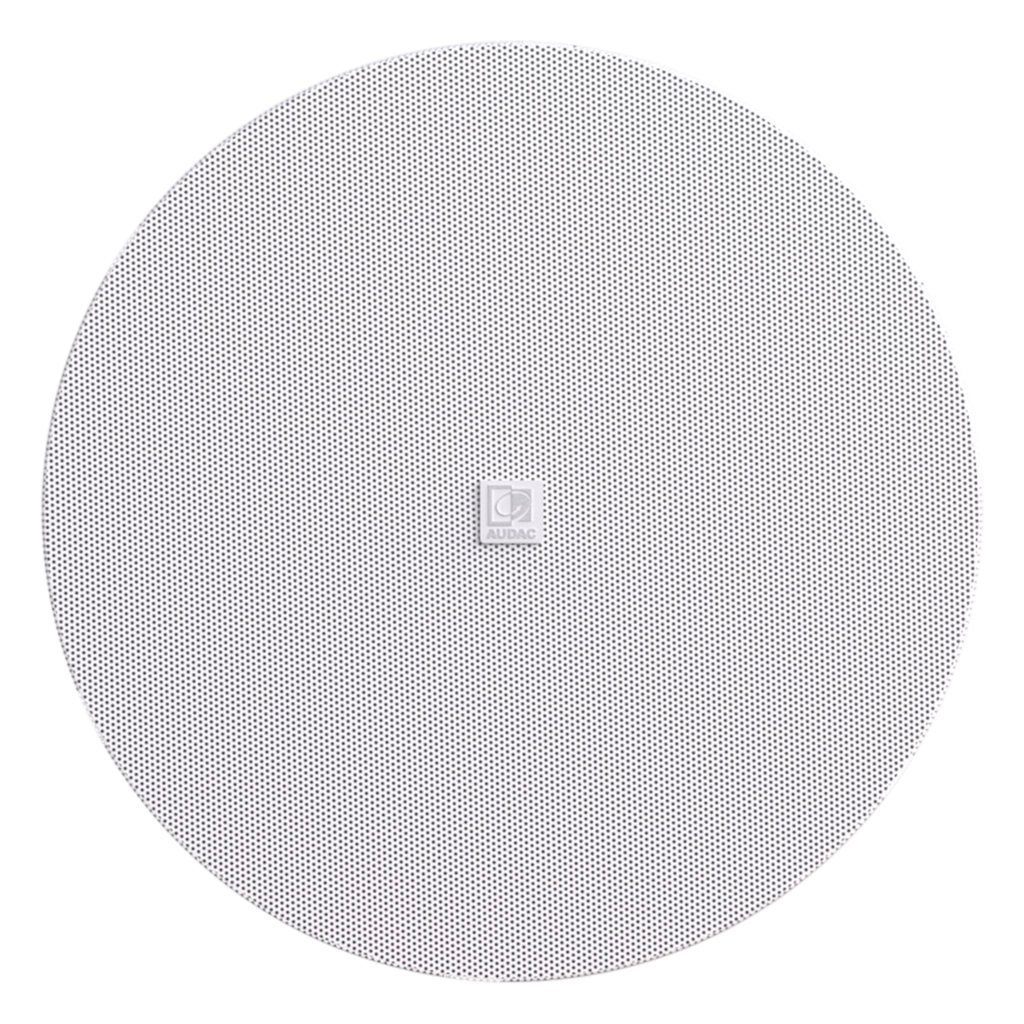

Front finish	TwistFix™ borderless finely perforated steel grill
Built-in depth	78 mm (CIRA724)
	75 mm (CIRA730D)
Mounting	QuickFit™ mounting system
	Fixture point for safety cable
Colours	White (RAL9003) (CIRA724/W& CIRA730D/W)
Dimensions	224 mm (Ø)

Recommended applications

Corporate

Retail

Bars & Restaurants
