CALI660
Safelatch™ 2-way 6.5″ ceiling speaker with Twist-Fix™ grill

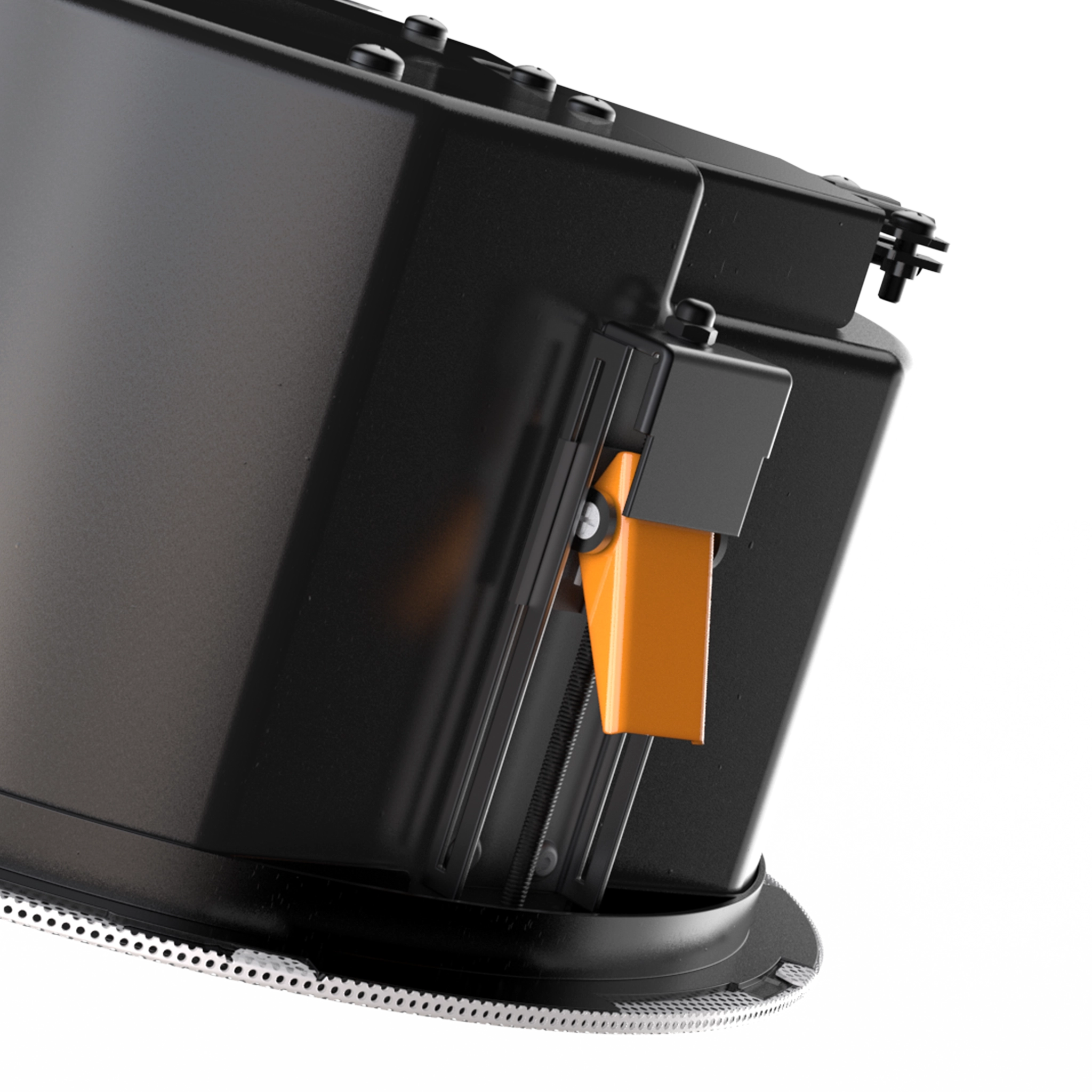

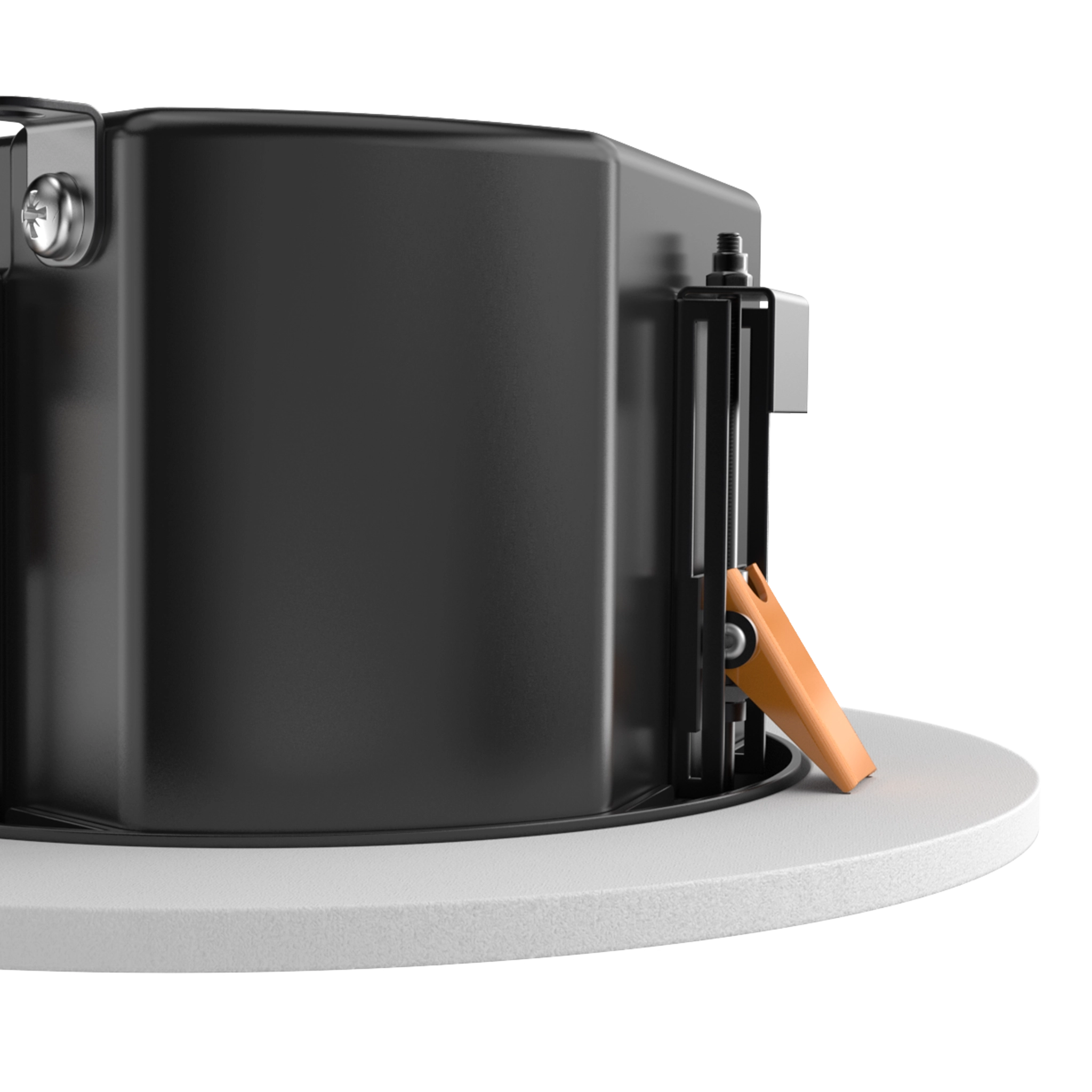

- Secure SafeLatch™ system
- Excellent off-axis performance (up to 145°)

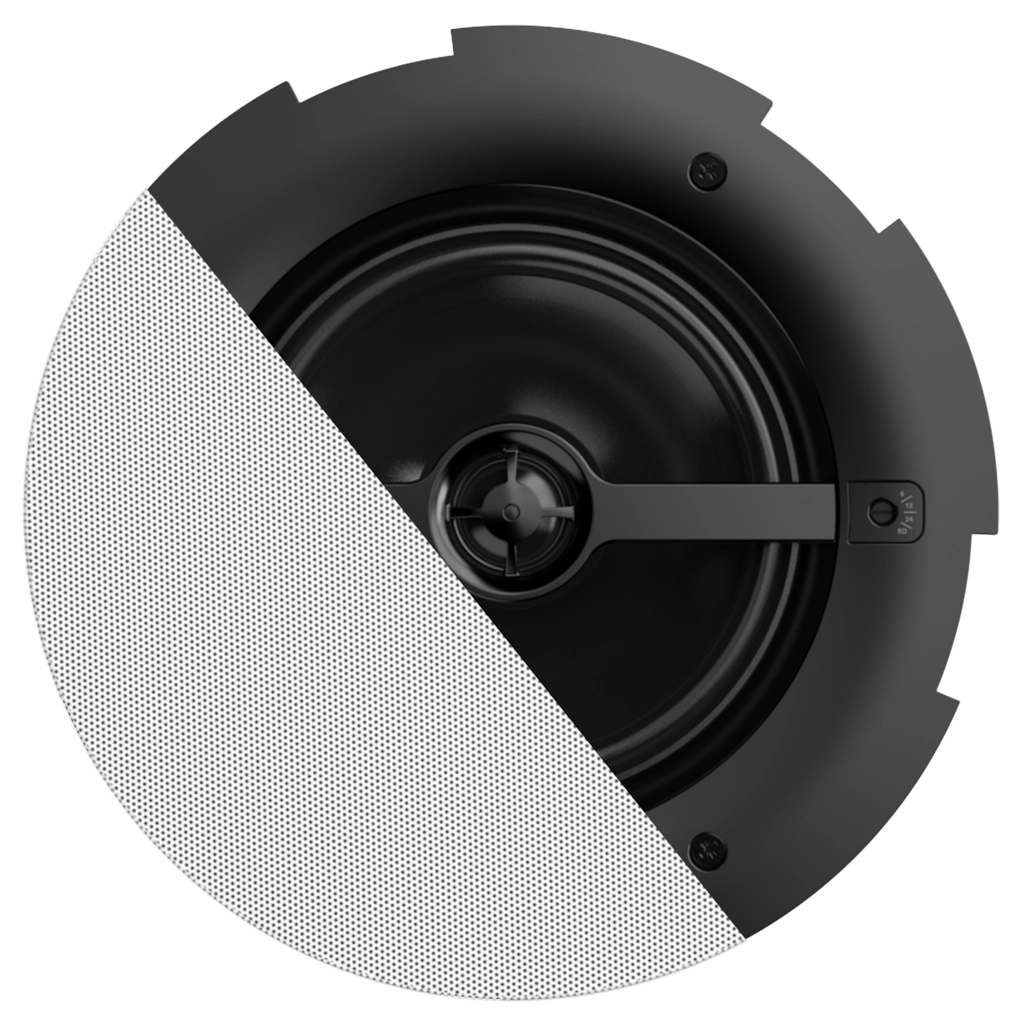

- Unique TwistFix™ grill design
- Borderless grill design
- Rotary switch for 16W, 32W, 64W and an 8 Ohm tappings

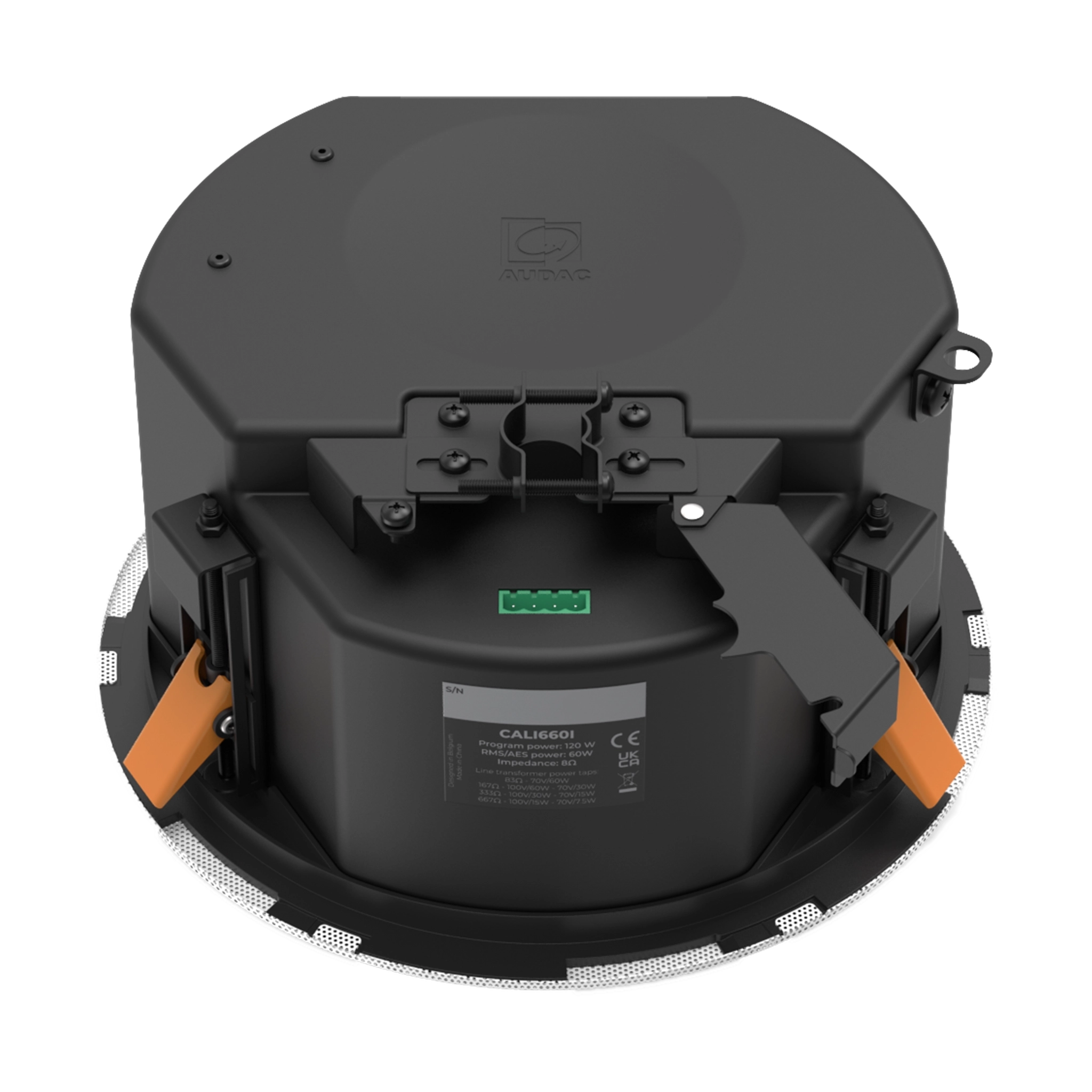

- Terminal block connection
- Shallow built-in depth (132 mm)
- Multi-tapping 70V / 100V line transformer
Description
Available models
| CALI660I/W | White version (RAL9016) |
System specifications
| Peak power handling | 240 W | |
| Program power handling | 120 W | |
| RMS/AES power handling | 60 W | |
| Sound Pressure (Max. W/1m) | @ 100 V | (CALI660) 106 dB |
| (CALI660I) 108 dB | ||
| @ 8 Ω | (CALI660I) 108 dB | |
| Sensitivity (1W/1m) | (CALI660) 87 dB | |
| (CALI660I) 90 dB | ||
| Dispersion | Conical | 145° |
| Frequency | Response (± 3 dB) | 90 Hz – 20 kHz |
| Range (-10 dB) | 70 Hz – 20 kHz | |
| Speaker type | 2-way coaxial | |
| Connection | Ceramic screw terminal with link through (CALI660) | |
| Pluggable terminal block connector with link-through (CALI660I) | ||
| Line Transformer Tappings | 1 | 83 Ω – 100 V / Not used – 70 V / 60 W |
| 2 | 167 Ω – 100 V / 60 W – 70 V / 30 W | |
| 3 | 333 Ω – 100 V / 30 W – 70 V / 15 W | |
| 4 | 667 Ω – 100 V / 15 W – 70 V / 7.5 W | |
Product Features
| Cut-out measurement | 220 mm (Ø) |
| Dimensions | (CALI660) 242 x 120 mm (Ø x D) |
| (CALI660I) 242 x 138 mm (Ø x D) | |
| Built-in depth | (CALI660) 120 mm |
| (CALI660I) 132 mm | |
| Operating temperature | -20 °C ~ 60 °C |
| Construction | ABS and powder coated steel |
| Mounting | SafeLatch™ mounting system |
| Weight | 3.42 kg |
Recommended applications
|
Corporate
|
|
Retail
|
|
Bars & Restaurants
|
