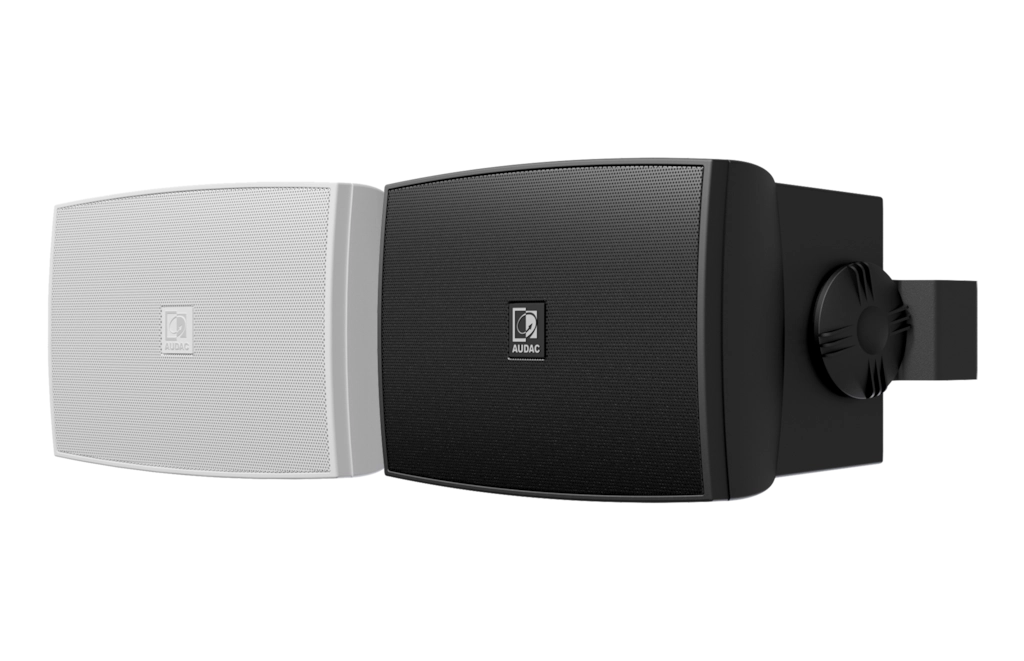

WX502_O
Outdoor universal wall speaker 5 1/4″
- 1″ Dome tweeter
- 5 1/4″ Low frequency loudspeaker
- Vertical and horizontal mounting
- Aluminum grill
- Aluminum mounting bracket (MK2 version)
- AWX5™ waterproof connector
- Multi-tapping 70V / 100V line transformer
Description
Available models
| WX502MK2/OB | Outdoor black version |

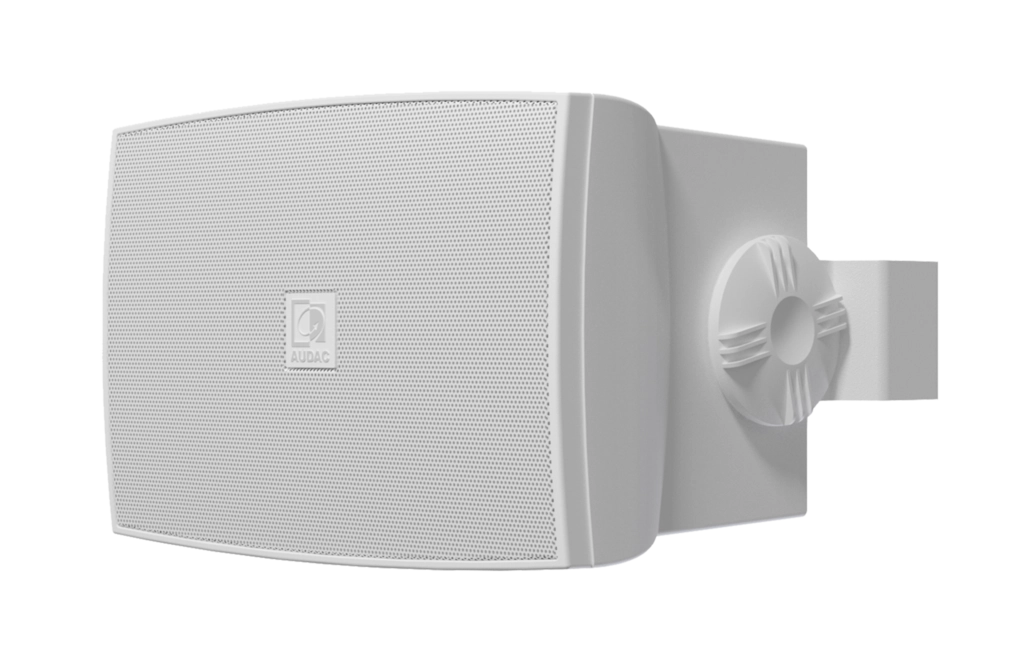

| WX502MK2/OW | Outdoor white version |
System specifications
| Connectors | Waterproof AWX-5 connector | |
| Crossover | Frequency | 2.5 kHz |
| Type | Passive built-in | |
| Drivers | HF | 1” |
| LF | 5” | |
| Frequency | Range (-10 dB) | 55 Hz – 20 kHz |
| Response (± 3 dB) | 70 Hz – 18 kHz | |
| Impedance | 8 Ω | |
| Ingress Protection rating | IP55 | |
| Peak power handling | 200 W | |
| Program power handling | 100 W | |
| Sensitivity (1W/1m) | 87 dB | |
| Sound Pressure (Max. W/1m) | @ 100 V | 102 dB |
| @ 8 Ω | 104 dB | |
| Speaker type | 2-way | |
| Dispersion | Horizontal | 110° |
| RMS/AES power handling | 50 W | |
| Dispersion | Vertical | 110° |
| Line Transformer Tappings | 1 | 125 Ω – 100 V / Not used – 70 V / 40 W |
| 2 | 250 Ω – 100 V / 40 W – 70 V / 20 W | |
| 3 | 500 Ω – 100 V / 20 W – 70 V / 10 W | |
Product Features
| Dimensions | 212 x 147 x 136 mm (W x H x D) | |
| Weight | 2.540 kg | |
| Operating temperature | -25 °C ~ 70 °C | |
| Construction | ABS | |
| Mounting & handling | Mounting bracket | |
| Front finish | Aluminium grill | |
| Colours | Black (RAL9005) (WX502MK2/OB) | |
| White (RAL9003) (WX502MK2/OW) | ||
| Accessories | Included | Mounting bracket |
| 5-pin connection cable (70 cm) AWC07 | ||
| Optional | AWC07 – AWX5 cable 0.7 m | |
| AWC25 – AWX25 cable 2.5 m | ||
| AWC50 – AWX50 cable 5 m | ||
Recommended applications
|
Corporate
|
|
Retail
|
|
Museums & Themeparks
|
|
Sporting facilities
|
|
Bars & Restaurants
|
