CENA8

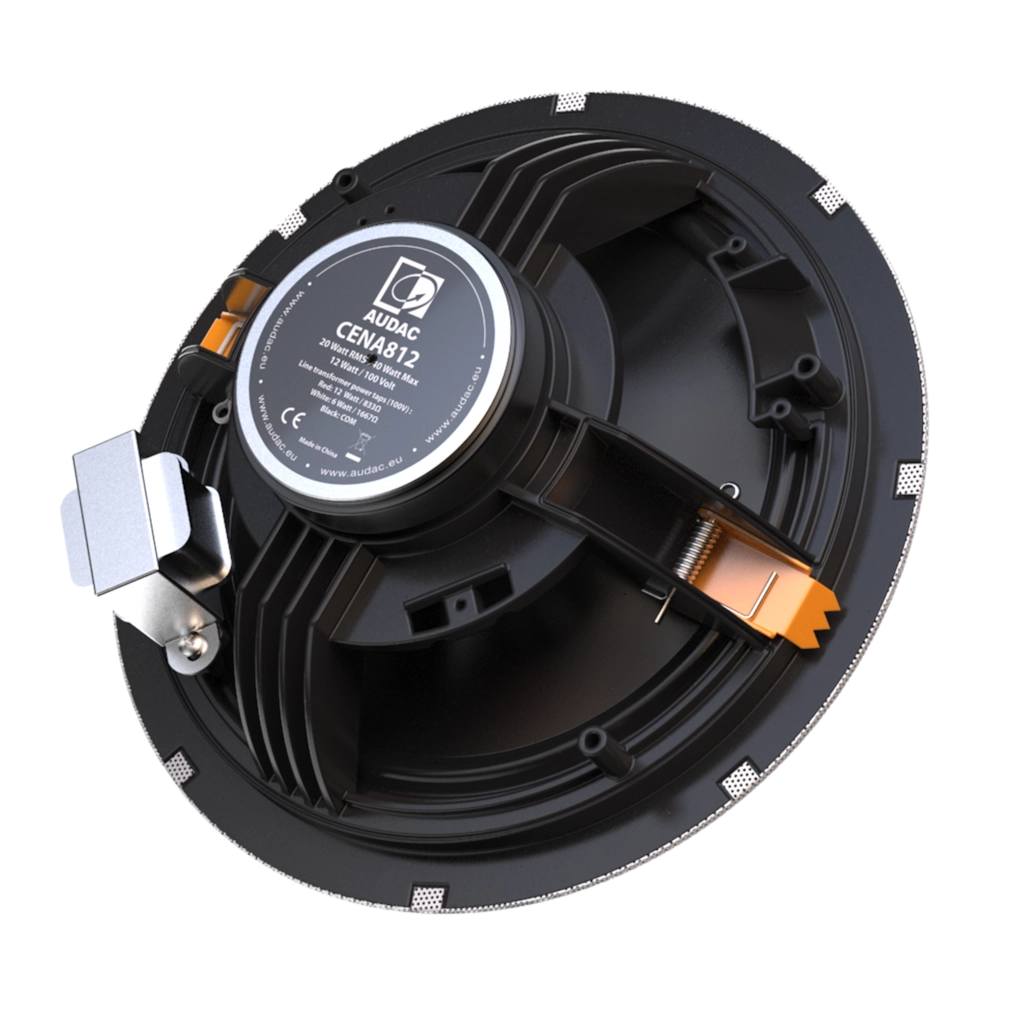

SpringFit™ 8″ ceiling speaker
- Eye catching complete family

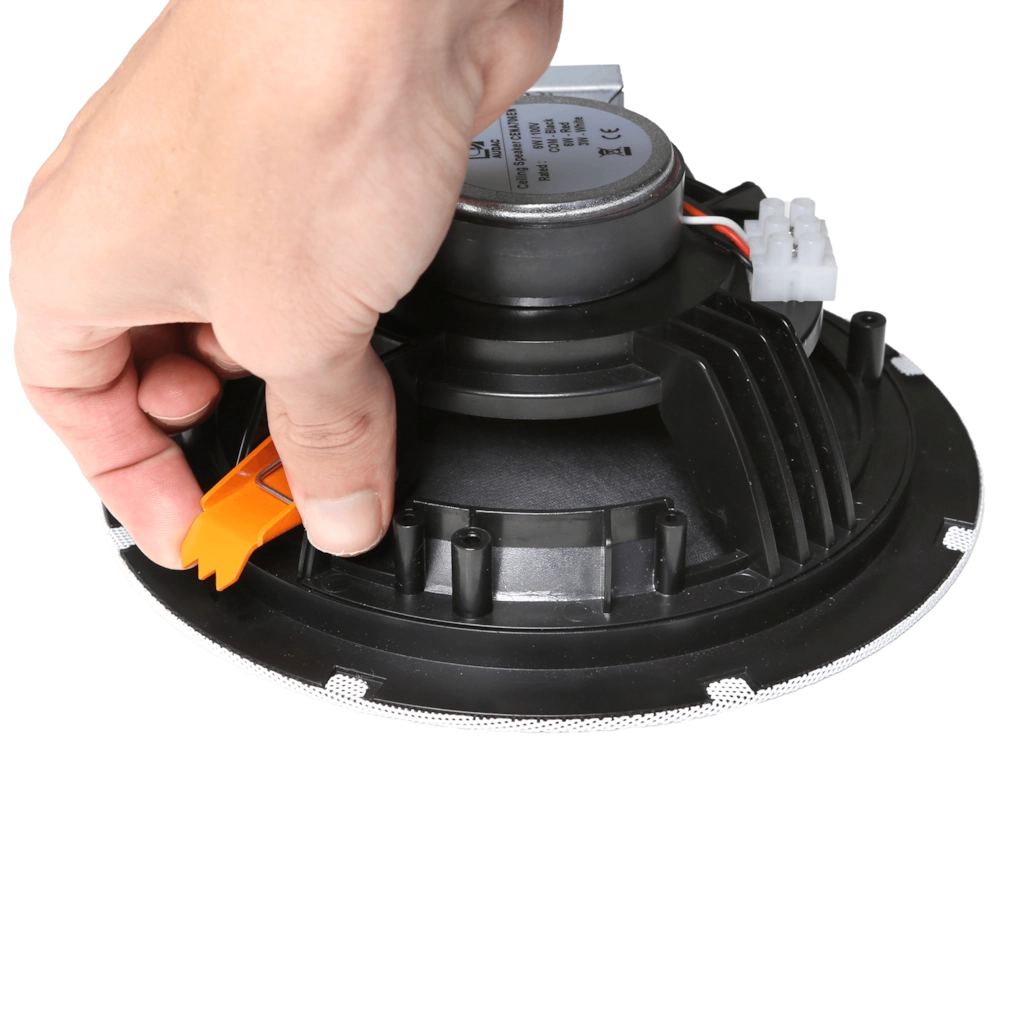

- Fastest possible installation time with unique Springfit™ innovation
- High intelligibility and sound accuracy
- Snapconnect™ enabling a fast and reliable connection
Description
Available models
| CENA820DI/W | White version – 16Ω (RAL9016) |
| CENA812/W | White version – 100V |
| CENA812I/W | White version – 100V (RAL9016) |
| CENA812/B | Black version – 100V |
| CENA820D/W | White version – 16Ω |
System specifications
| Peak power handling | 80 W | |
| Program power handling | 40 W | |
| RMS/AES power handling | 20 W | |
| Sensitivity (1W/1m) | 99 dB | |
| Speaker type | Broadband | |
| Impedance | 8 Ω (CENA812) | |
| 16 Ω (CENA820D) | ||
| Connection | Screw terminal | |
| SnapConnect™ | ||
| Drivers | Dual cone | |
| 8” | ||
| Sound Pressure (Max. W/1m) | @ 100 V | 112 dB |
| Frequency | Response (± 3 dB) | 100 Hz – 15 kHz |
| Range (-10 dB) | 60 Hz – 18 kHz | |
| Line Transformer Tappings | 1 | 12 W / 833 Ω |
| 2 | 6 W / 1667 Ω | |
| Dispersion | Conical | 130° |
Product Features
| Cut-out measurement | 207 mm (Ø) |
| Dimensions | 232 x 81 mm (Ø x D) |
| Construction | ABS |

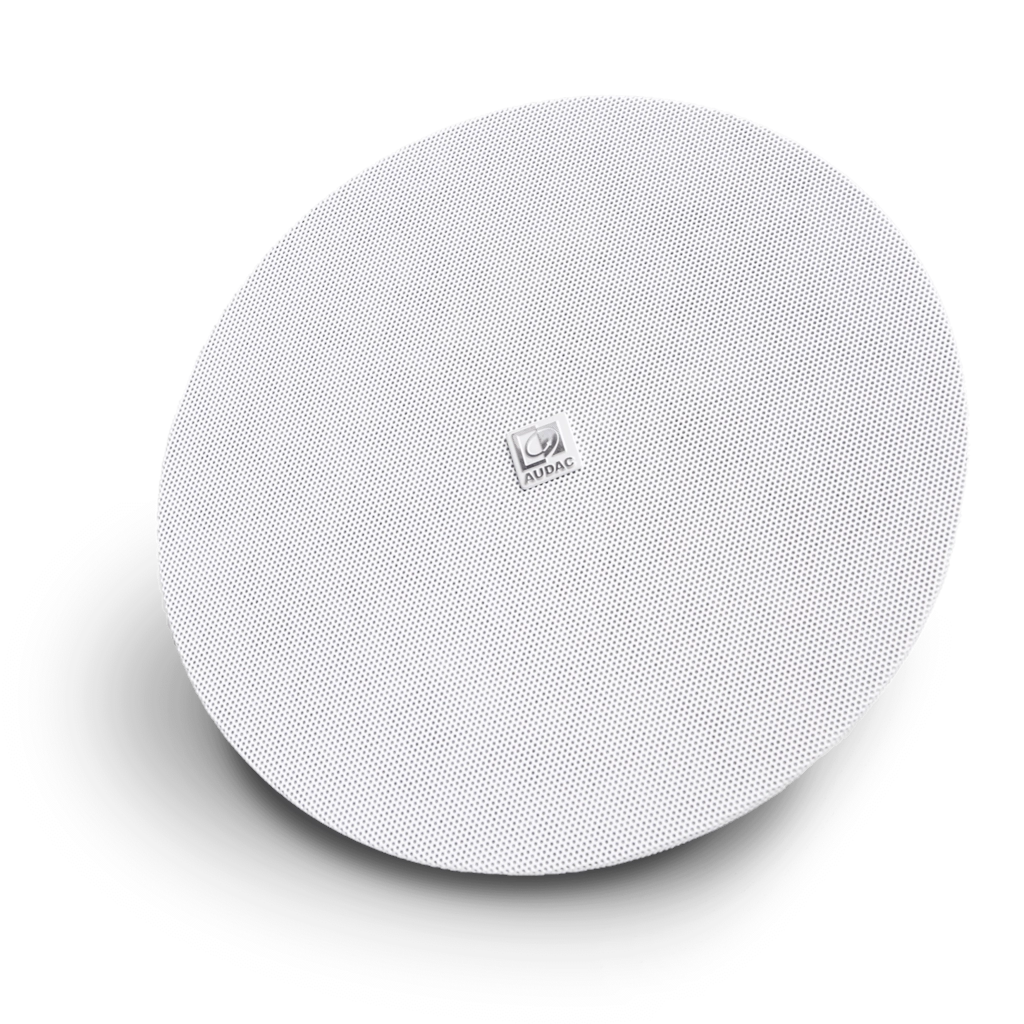

| Front finish | borderless finely perforated steel grill |
| Built-in depth | 77 mm |
| Mounting | SpringFit™ mounting system |
| Colours | White (RAL9003) (CENA812/W) |
| Black (RAL9005) (CENA812/B) | |
| Operating temperature | -15 °C ~ 55 °C |
| Weight | 1.06 kg |
Recommended applications
|
Corporate
|
|
Retail
|
|
Bars & Restaurants
|
