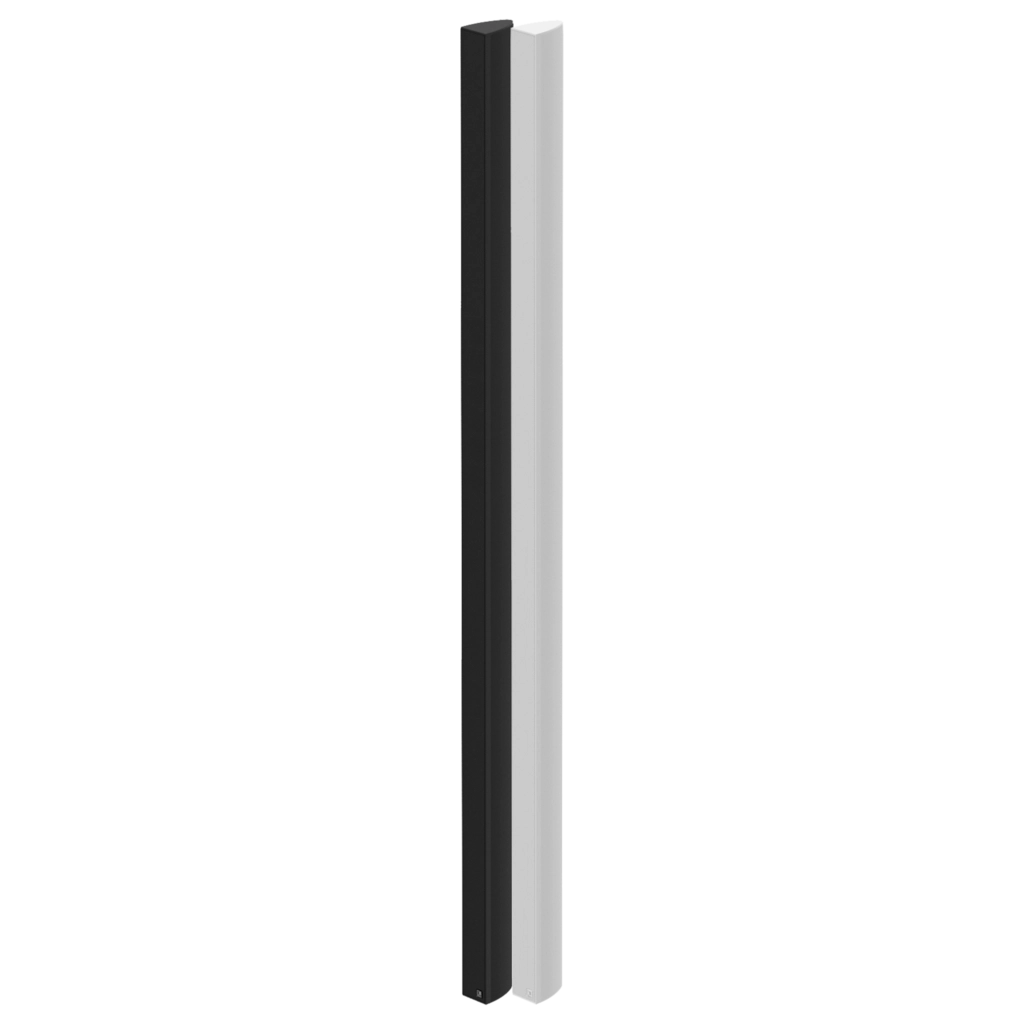

KYRA24

Design column speaker 24 x 2″

Multi-functional wall bracket allowing swiveling and down-tilting
Slimline aluminum design
24 x 2″ high-quality broadband speakers

Available models

KYRA24/B	Black version
KYRA24/W	White version

System specifications

Speaker type		Broadband column
Peak power handling		960 W
Program power handling		480 W
RMS/AES power handling		240 W
Impedance		4 Ω
Sensitivity (1W/1m)		92 dB
Sound Pressure (Max. W/1m)		113 dB
Frequency	Range (-10 dB)	120 Hz – 20 kHz
	Response (± 3 dB)	150 Hz – 20 kHz
Drivers		24 x 2”
Ingress Protection rating		IP3x
Dispersion	Horizontal	174° (-6 dB avg 1 kHz – 4 kHz)
	Vertical	7° (-6 dB avg 1 kHz – 4 kHz)
Incline angle	Bottom	13°
	Left	42°
	Right	42°
Temperature	Operating	-20 – +50 °C

Product Features

Front finish		Steel grill
Construction		Aluminium with plastic side covers
Dimensions		70 x 2006 x 101 mm (W x H x D)
Colours		Black (KYRA24/B – RAL9005)
		White (KYRA24/W – RAL9003)
Accessories	Included	2-way Revolving mounting bracket
		1 x 3-pin Euro Terminal Block Input connectors

Recommended applications

Education

Corporate

Houses of worship

Events

GREAT DURABILITY

Only the highest quality materials

The KYRA column speakers are housed in slim and elegantly constructed enclosures made out of aluminum and finished with finely perforated grills.

EASY SWIVELLING AND DOWN-TILTING

Advanced mounting possibilities

An included mounting bracket allows easy swivelling and down-tilting. The renewed bracket ensures that the distance from the wall mounting surface to the front of the loudspeaker is only 147mm, which is 22mm less than the previous version, allowing the column loudspeaker to blend even more esthetically into its surroundings.
