NELO706

Surface mount speaker

Available models

NELO706/B	Black version without volume controller
NELO706I/W	White version (RAL9016) without volume controller
NELO706V/B	Black version with volume controller
NELO706V/W	White version with volume controller
NELO706VI/W	White version (RAL9016) with volume controller

System specifications

Peak power handling		40 W
Program power handling		20 W
RMS/AES power handling		10 W
Sensitivity (1W/1m)		96 dB
Sound Pressure (Max. W/1m)	@ 100 V	106 dB
Speaker type		Broadband
Connection		SnapConnect™
Drivers		6.5” Full Range
Volume control		Integrated rotary volume controller (only NELO706V)
Frequency	Response (± 3 dB)	100 Hz – 15 kHz
	Range (-10 dB)	70 Hz – 18 kHz
Line Transformer Tappings	1	833 Ω – 100 V / Not used – 70 V / 6 W
	2	1667 Ω – 100 V / 6 W – 70 V / 3 W
	3	3333 Ω – 100 V / 3 W – 70 V / 1.5 W
Dispersion	Conical	140°

Product Features

Colours	Black & White
Front finish	Steel grill
Construction	ABS
Mounting	Wall/Ceiling mounting (two screw holes)

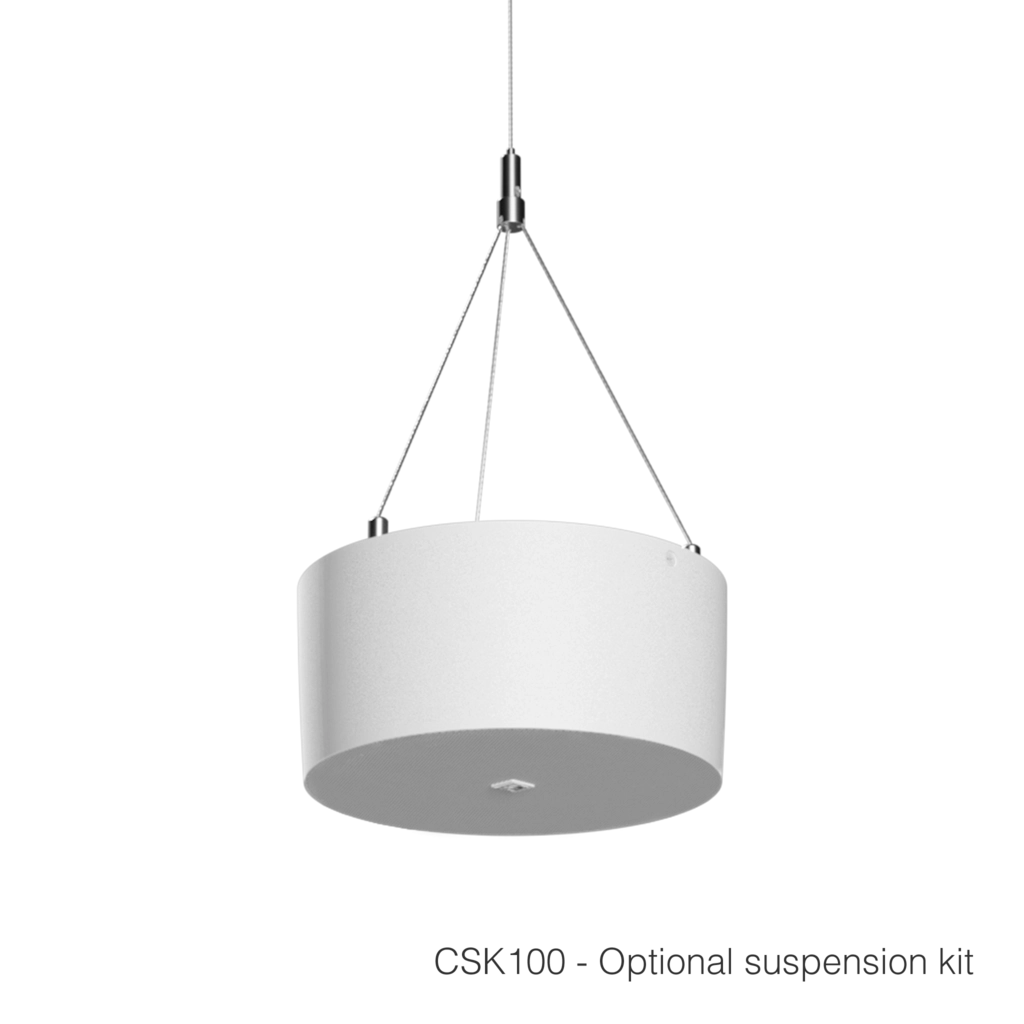

	CSK100 ceiling suspension kit (optional)
Colours	White (RAL9003) (NELO706/W)
	Black (RAL9005) (NELO706/B)
Dimensions	206.5 x 95 mm (Ø x D)
Operating temperature	-25 °C ~ 70 °C

Recommended applications

Residential

Retail

Hotels

Corporate
