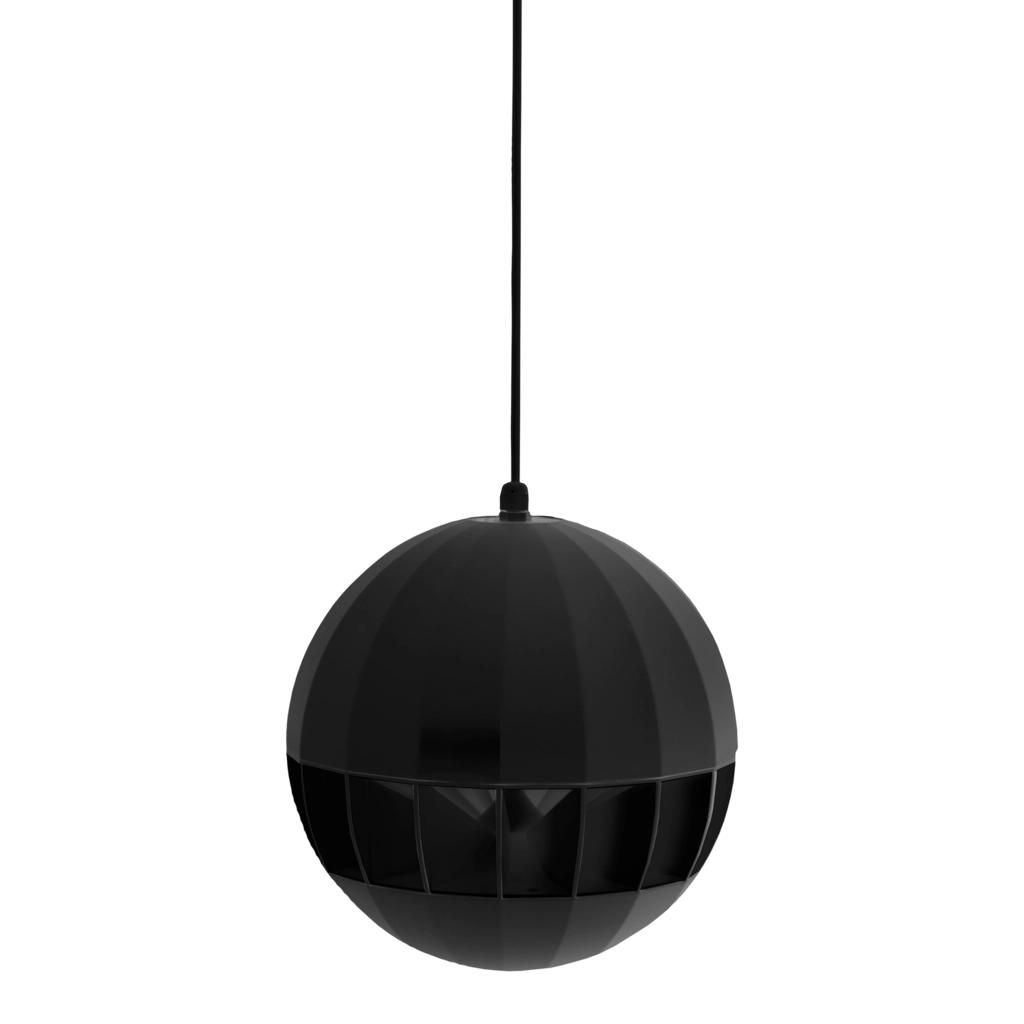

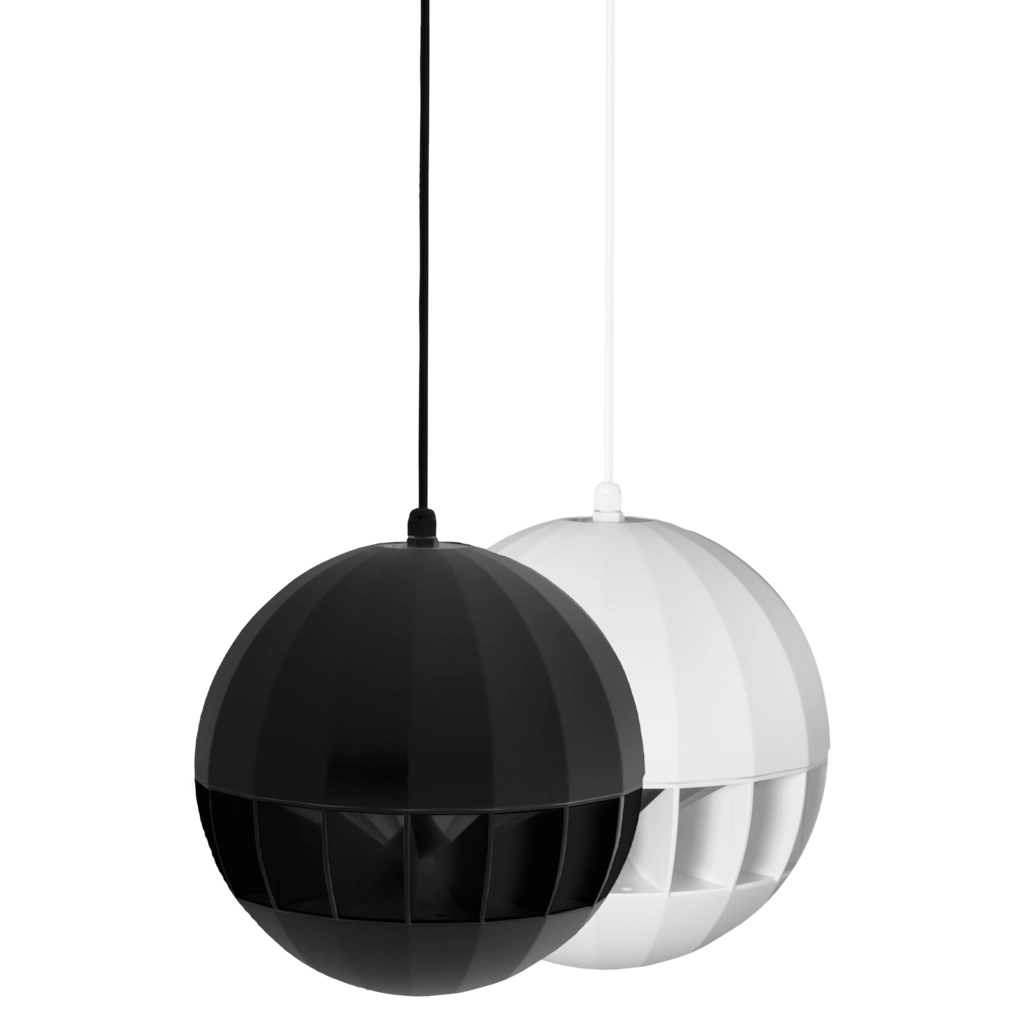

ASP20
Spherical hanging sound projector
- IP56 Ingress protection
- Weatherproof ABS sealed construction
- Multi-tapping 70V / 100V line transformer
Description
Available models
| ASP20/W | White version – 70/100V |
| ASP20/B | Black version – 70/100V |
System specifications
| Speaker type | Broadband | |
| Drivers | 8” | |
| Peak power handling | 80 W | |
| Program power handling | 40 W | |
| RMS/AES power handling | 20 W | |
| Line Transformer Tappings | 1 | 250 Ω – 100 V / Not used – 70 V / 20 W |
| 2 | 500 Ω – 100 V / 20 W – 70 V / 10 W | |
| 3 | 1000 Ω – 100 V / 10 W – 70 V / 5 W | |
| 4 | 2000 Ω – 100 V / 5 W – 70 V / 2.5 W | |
| Frequency | Response (± 3 dB) | 80 Hz – 18 kHz |
| Sensitivity (1W/1m) | 92 dB | |
| Sound Pressure (Max. W/1m) | 103 dB | |
| Dispersion | Horizontal | 360° |
| Connection | 3.5 m multi-core connection cable with steel safety core (ASP20) | |
Product Features
| Dimensions | 254 mm (Ø) | |
| Weight | 2.950 kg | |
| Operating temperature | -20 °C ~ 60 °C | |
| Construction | ABS | |
| Accessories | Included | Plastic wire clamp |
| Metal screw cable clamp | ||
| Snap hook | ||
| Colours | White (RAL9003) (ASP20/W) | |
| Black (RAL9005) (ASP20/B) | ||
| Accessories | Included | 3.5 m connection cable |
Recommended applications
|
Retail
|
|
Corporate
|
