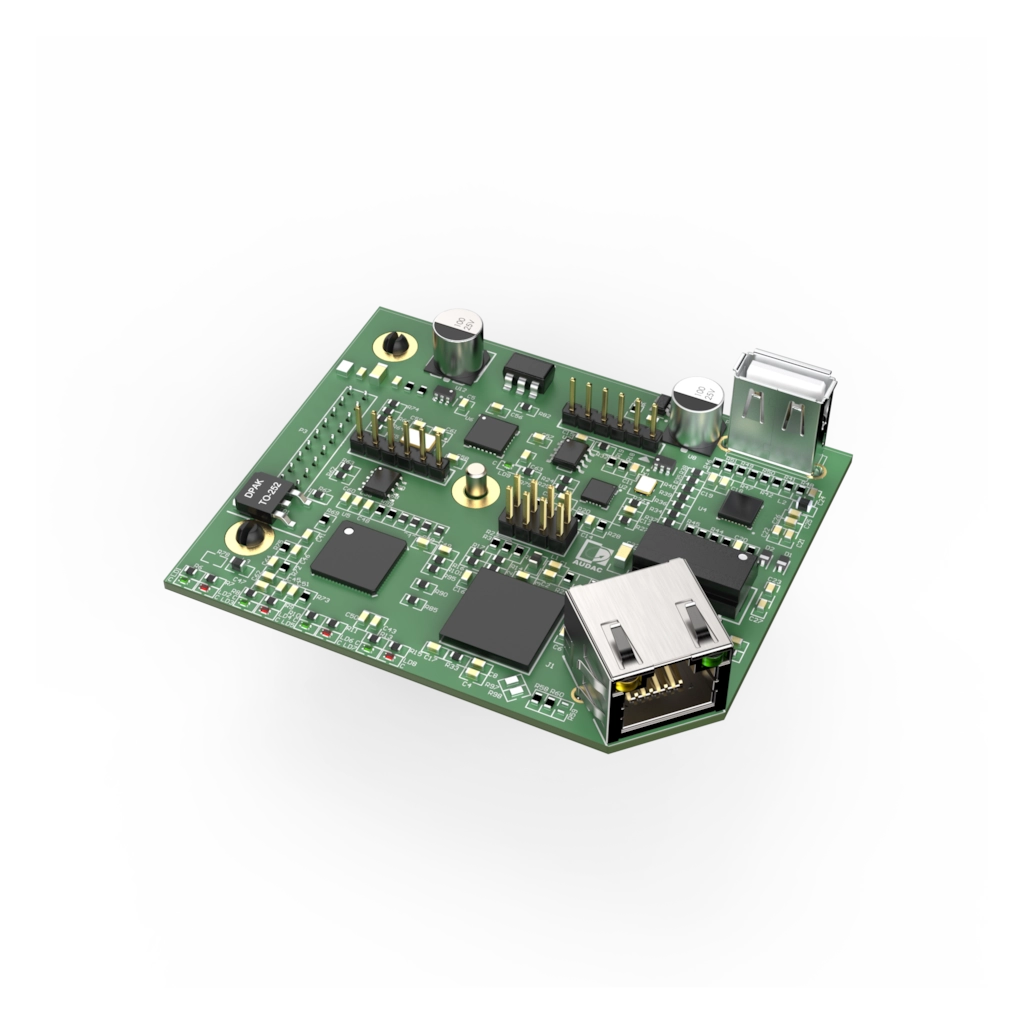

ANI44XT
Dante™ audio network interface 4 in / 4 out
- Compatible with TouchLink™ (ANI44XT)
- Supports AES67 protocol (ANI44XT)
- 48 kHz / 24 bit digital audio transfer
- Incredible low latency (2 / 5 ms)
- Works with standard 100Mbit or 1Gbit networking equipment
- Compatible with any Dante™/AES67 enabled device available on the market
- True plug & play solution
- Self-explanatory graphical routing
Description
Available models
| ANI44XT | XT version |
System specifications
| Inputs | Quantity | 4 | |
| Other | Type | Dante™/AES67 (ANI44XT) | |
| Outputs | Quantity | 4 | |
| Communication protocol | Audinate Dante™ | ||
| Sampling frequency | 48 kHz | ||
| Sampling bit depth | 24-bit | ||
| Connectors | RJ45 (Ethernet) | ||
| Network specification | Standard 100 Mbit or 1 Gbit | ||
| Power | Consumption | 1.5 W | |
Product Features
| Weight | 0.090 kg |

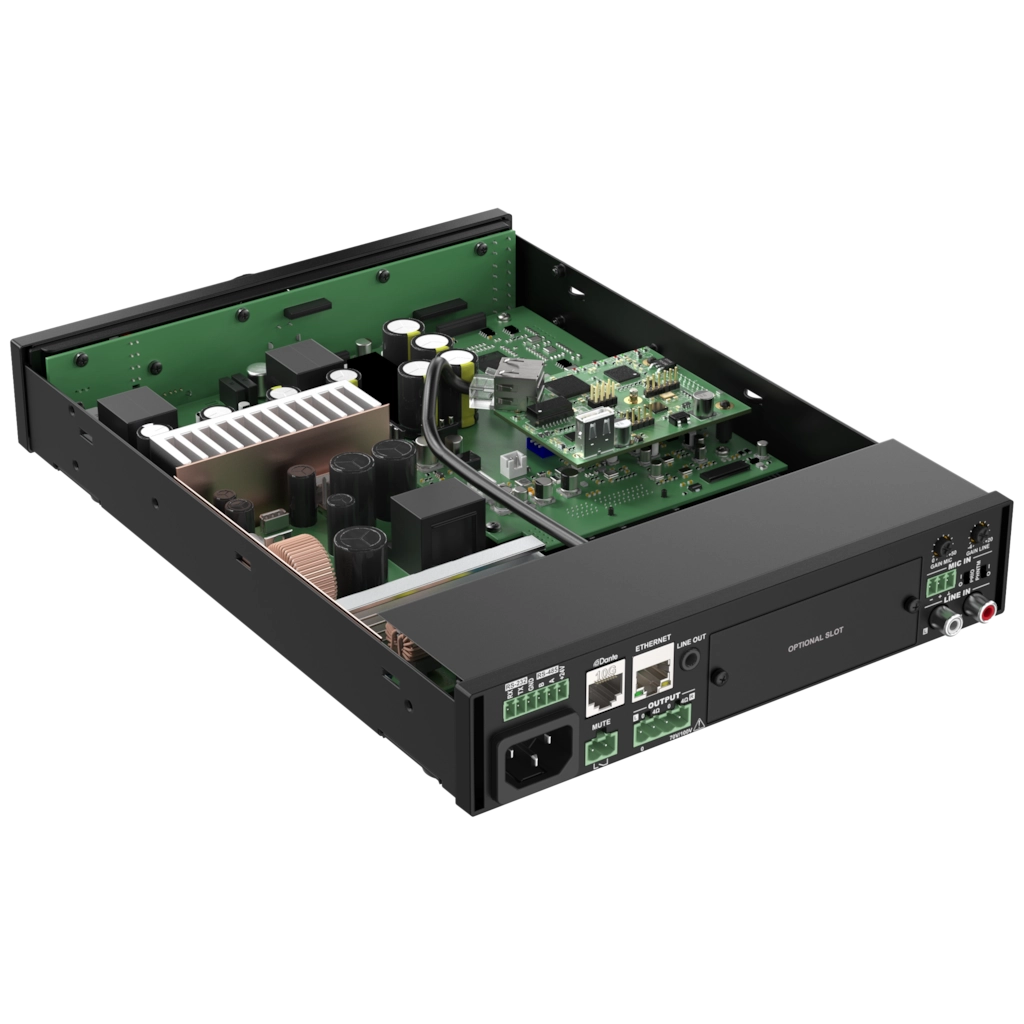

| Mounting | Integration in amplifier chassis |
Recommended applications
|
Bars & Restaurants
|
|
Retail
|
|
Corporate
|
|
Houses of worship
|
|
Clubs
|
