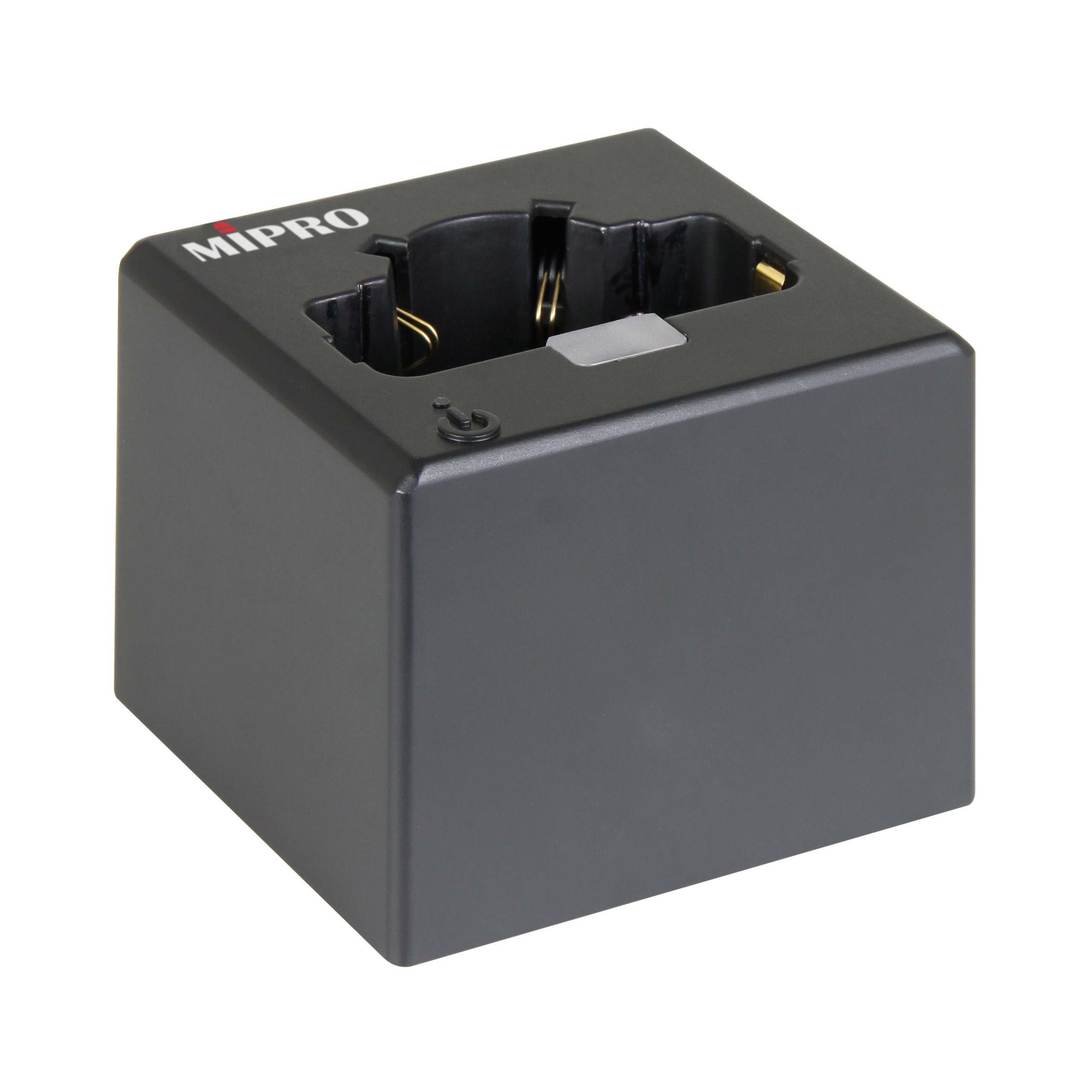

MP-8
Single-slot Charging Station
- Designed exclusively for MI-58R, MI-24R, ACT-24R and ACT-HC/TC series transmitters.
- An intelligent single-slot charger that provides efficient and safe charging. Comes with constant voltage and current limiting capabilities, and a reverse polarity protection circuit to prevent charging errors.
- A red/green LED indicator shows the charging status.
Description
| Model | MP-8 |
|---|---|
| Name | Single-slot Charging Station |
| Input Voltage | DC 12 – 15 V / 1 A |
| Battery Type | One 18500 Li-ion battery 3.7 V |
| Charge Current | Approx. 500 mA by the regulation current. Termination by 20% regulation current |
| Current Consumption | Max. 600 mA / 12 V |
| Dimensions | 87 × 75 × 92 mm (W × H × D) |
| Weight | Approx. 240 g |
