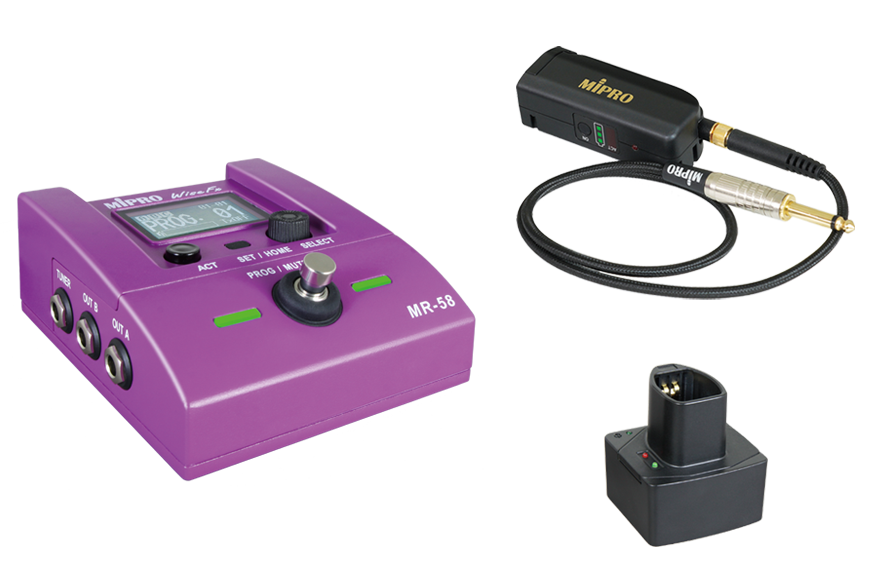

MR-58GE
Wireless Electric Guitar / Electric Bass Set
- MR-58GE Wireless Electric Guitar / Electric Bass Set includes MR-58 wireless pedal receiver and MT-58GE transmitter set (MT-58 + MP-24).
Description

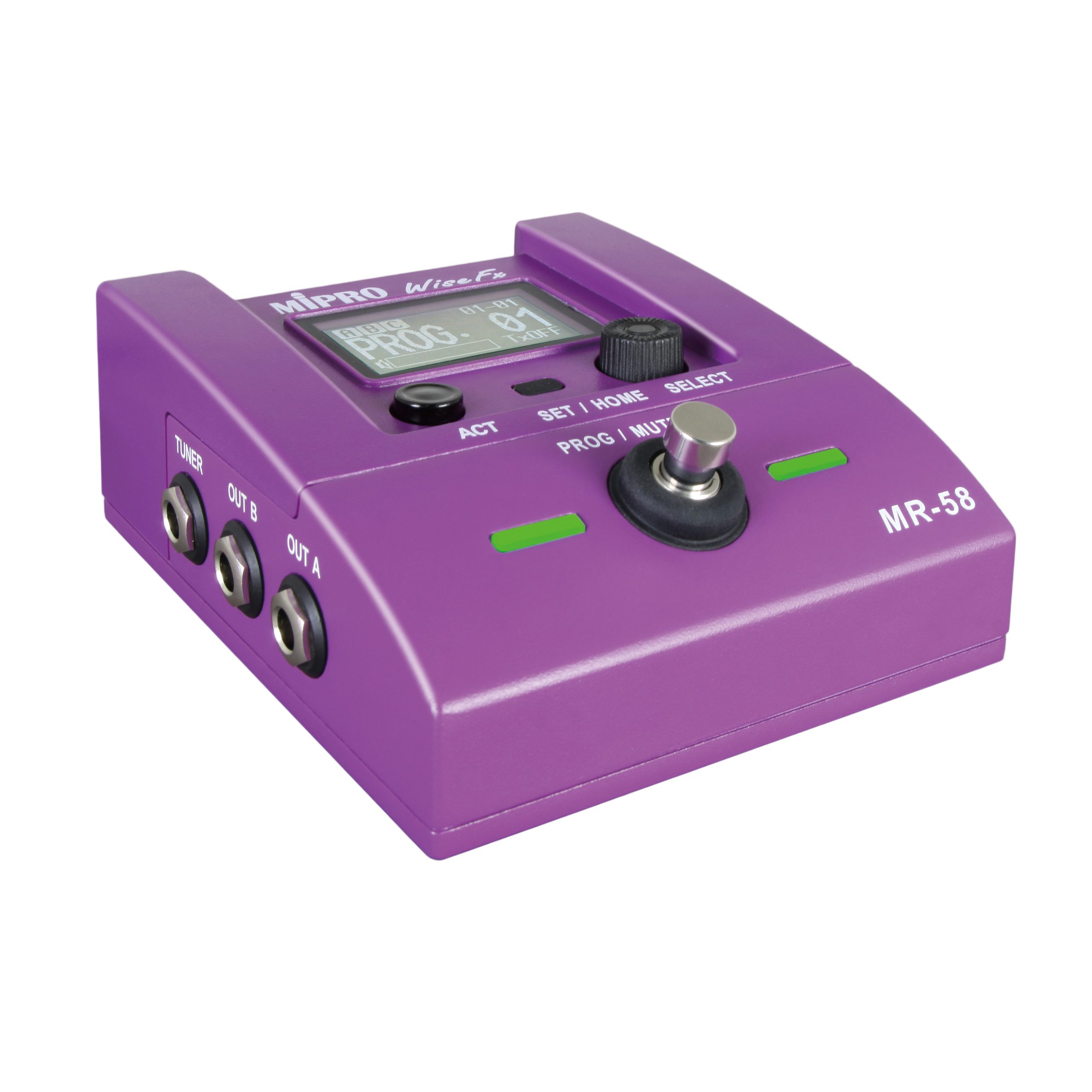

| Model | MR-58 |
|---|---|
| Name | 5 GHz Digital Wireless Pedal Receiver |
| Frequency Band | ISM 5.8 GHz |
| Frequency Response | 18 Hz – 23 kHz |
| Latency | < 1.7 ms |
| S/N Ratio | > 120 dBA |
| THD | 0.04 % @ 1 kHz |
| Sensitivity | -95 dBm |
| Channel Setting | ACT™ sync |
| Sample Rate | 48 kHz / 24-bit |
| Modulation | Digital modulation |
| Receiving Mode | True diversity |
| Display | Graphic LCD, 2 × color LED |
| Audio Output | 3 × 6.3 mm TRS, 1 × XLR |
| Interface | microSD slot |
| Power Supply | DC 9 V – 12 V / 0.3 A |
| Dimensions | 110 × 50 × 130 mm (W × H × D) |
| Weight | Approx. 840 g |

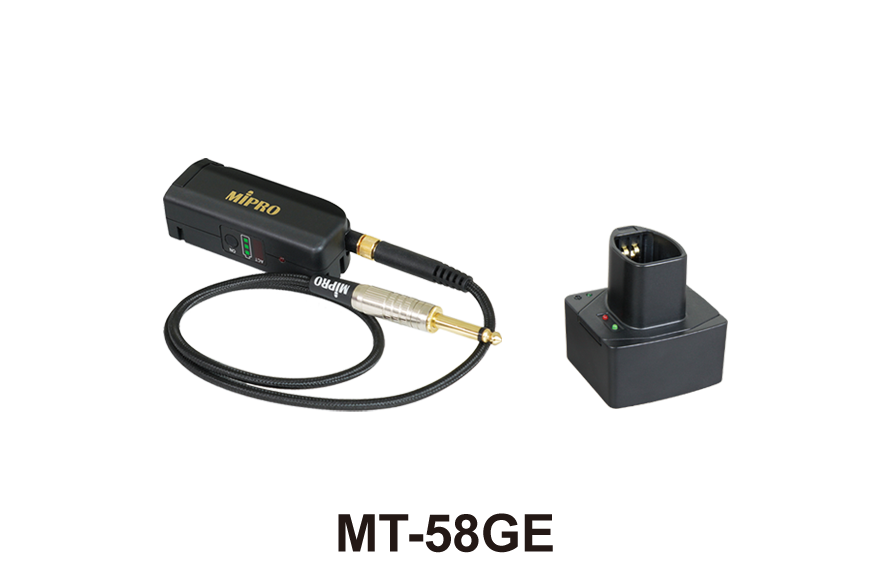

| Model | MT-58GE |
|---|---|
| Name | Electric Guitar / Electric Bass Transmitter Set |
| Frequency Range | ISM 5.8 GHz (5,725~5,850 MHz) |
| RF Power Output | 20 mW (country dependent) |
| Max. Audio Input | 6.5 dBV |
| Battery Meter | 4-level green/red LED display |
| Impedance | Approx. 1 M Ω |
| Transmitter Dimensions | 84 × 35 × 29 mm (W×H×D) |
| Transmitter Weight | Approx. 61 g, excluding battery |
| Battery | ICR 18500 lithium-ion battery |
| Note | Refer to the actual product in the event of product discrepancy. |
| Model | MT-58 |
|---|---|
| Name | 5 GHz Digital Transmitter |
| Frequency Band | ISM 5.8 GHz |
| RF Power Output | 20 mW (country dependent) |
| Max. Audio Input | 6.5 dBV |
| Battery Meter | 4-level green/red LED display |
| Impedance | Approx.1 M Ω |
| Connector | 3.5 mm. Another 3.5 mm to 6.3 mm threaded adapter is included. |
| Battery Type | One 18500 Li-ion battery |
| Battery Charging | MP-24 charging station |
| Dimensions | 35 × 84 × 29 mm (W × H × D) |
| Weight | Approx. 61 g |
