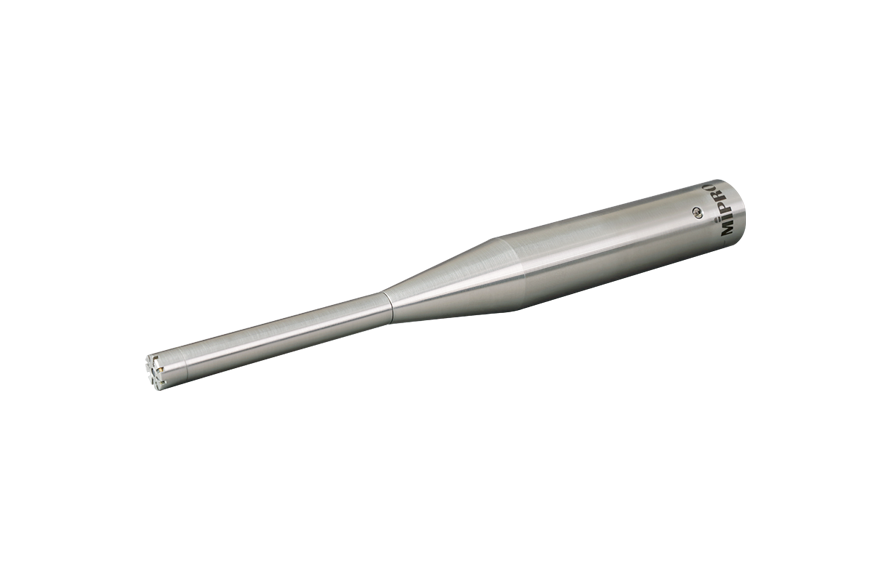

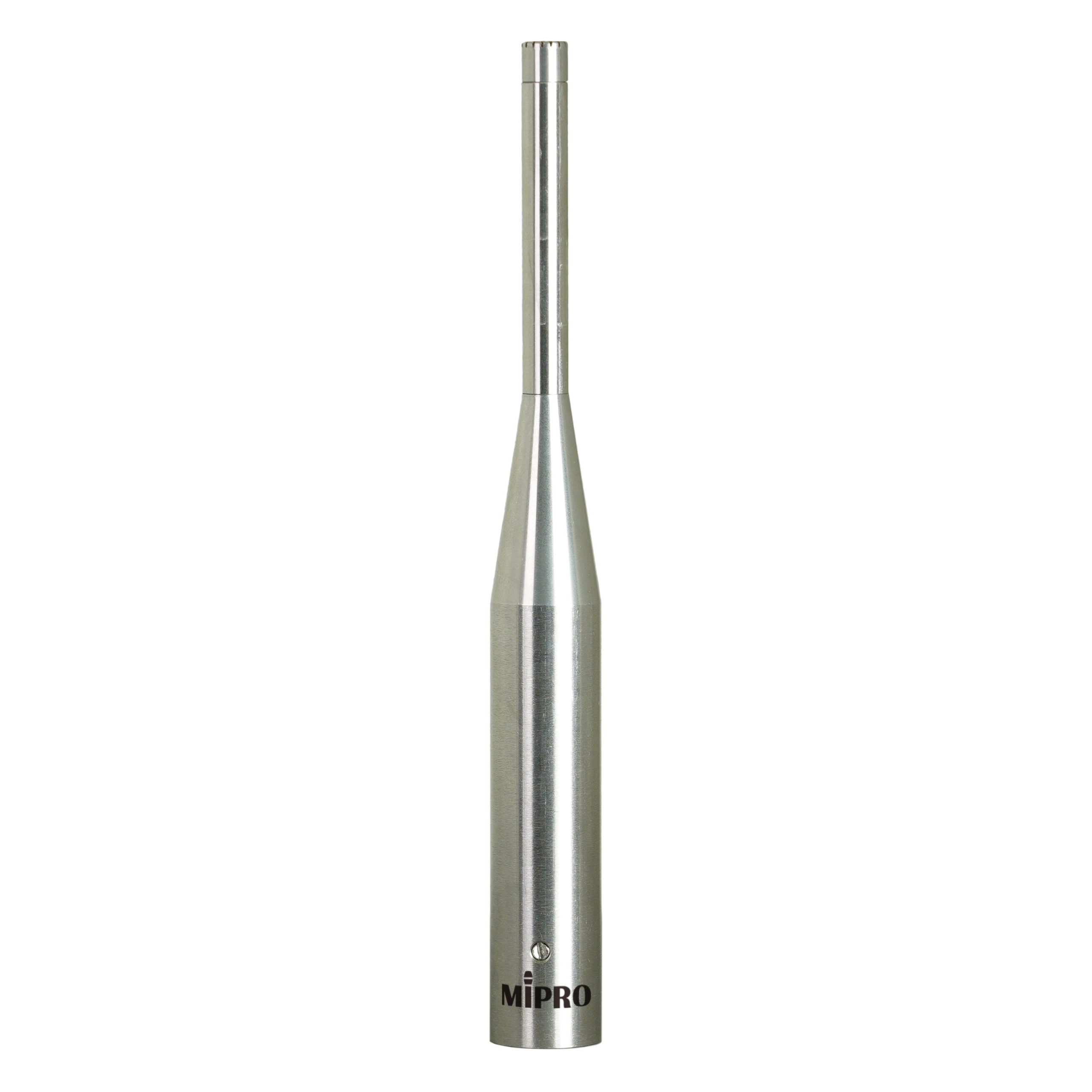

MM-100
Omnidirectional Measurement Microphone
- MM-100 equips a precise omnidirectional capsule, featuring flat and wide frequency response, high sensitivity and ultra-low noise.
- Ideal for sound field measurement and pick-up of various musical instruments.
Description
| Model | MM-100 |
|---|---|
| Name | Omnidirectional Measurement Microphone |
| Capsule Module | Fixed capsule unit |
| Polar Pattern | Omnidirectional |
| Type | Condenser |
| Housing | Stainless steel |
| Sensitivity | -36 dBV / Pa |
| Frequency Response | 20 Hz – 20 kHz |
| Max. SPL | 125 dB |
| Power Supply | Phantom power DC 12 – 48 V |
| Current Drain | Approx. 2.0 mA |
| Output Impedance | 200 Ω |
| Dimensions | 19 × 168 mm (Ø × L) |
| Weight | Approx. 110 g |
