| Model | MI-58R |
|---|---|
| Name | 5 GHz Digital Stereo Bodypack Receiver |
| Housing | Glass-fiber reinforced plastic |
| Display | Backlit LCD |
| Frequency Band | ISM 5.8 GHz |
| Modulation Type | Digital modulation |
| Channel Setting | ACT™ sync |
| Receiving Mode | True diversity |
| Latency | < 1.8 ms |
| Frequency Response | 20 Hz – 23 kHz (stereo) |
| Stereo Separation | > 100 dB |
| S/N Ratio | 109 dBA |
| THD | 0.03% @ 1 kHz |
| Sensitivity | 5 μV input level, S/N > 100 dB |
| Earphone Jack | 3.5 mm TRS |
| Battery Type | One 18500 Li-ion battery |
| Battery Charging | MP-8 single-slot charging station |
| Dimensions | 63 × 85 × 26 mm (W × H × D) |
| Weight | Approx. 75 g |
| Optional Accessories | E-8S or E-8P earphones |

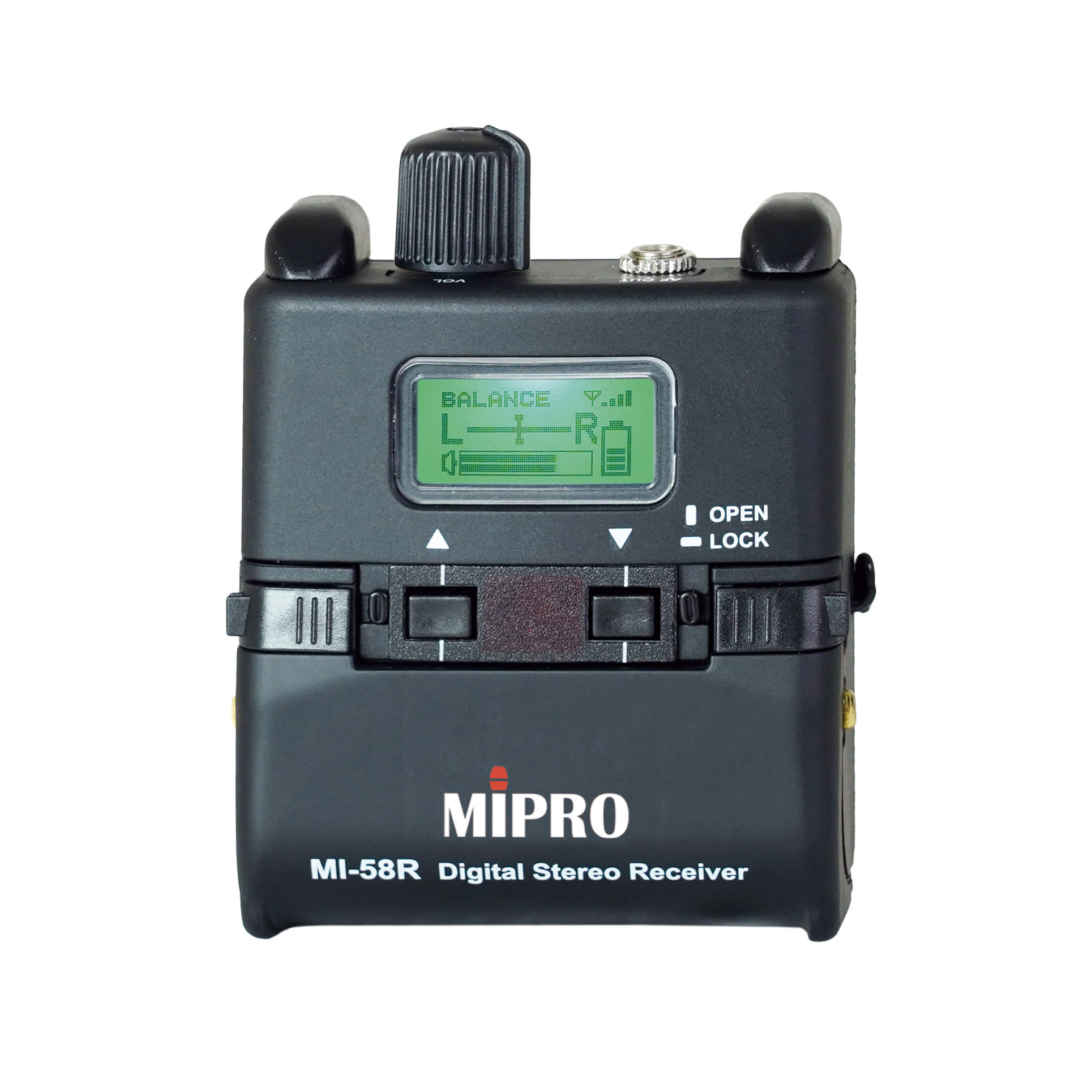

MI-58R
5 GHz Digital Stereo Bodypack Receiver
- Stereo / Mono / Mixed output modes.
- EQ settings to suit the users’ preferences.
- A Ø 3.5 mm TRS jack provides left/right 100 mW @16 Ω output for earphones. Optional standard or professional Ø 3.5 mm TRS noise-isolating earphones are available.
- The system offers Engineer Mode (ENG MODE) so the sound engineers have full control in any live performance.
