CSF506
Ceiling speaker with fire dome 100V
- Multi-tapping 100V line transformer
- 5″ full range driver

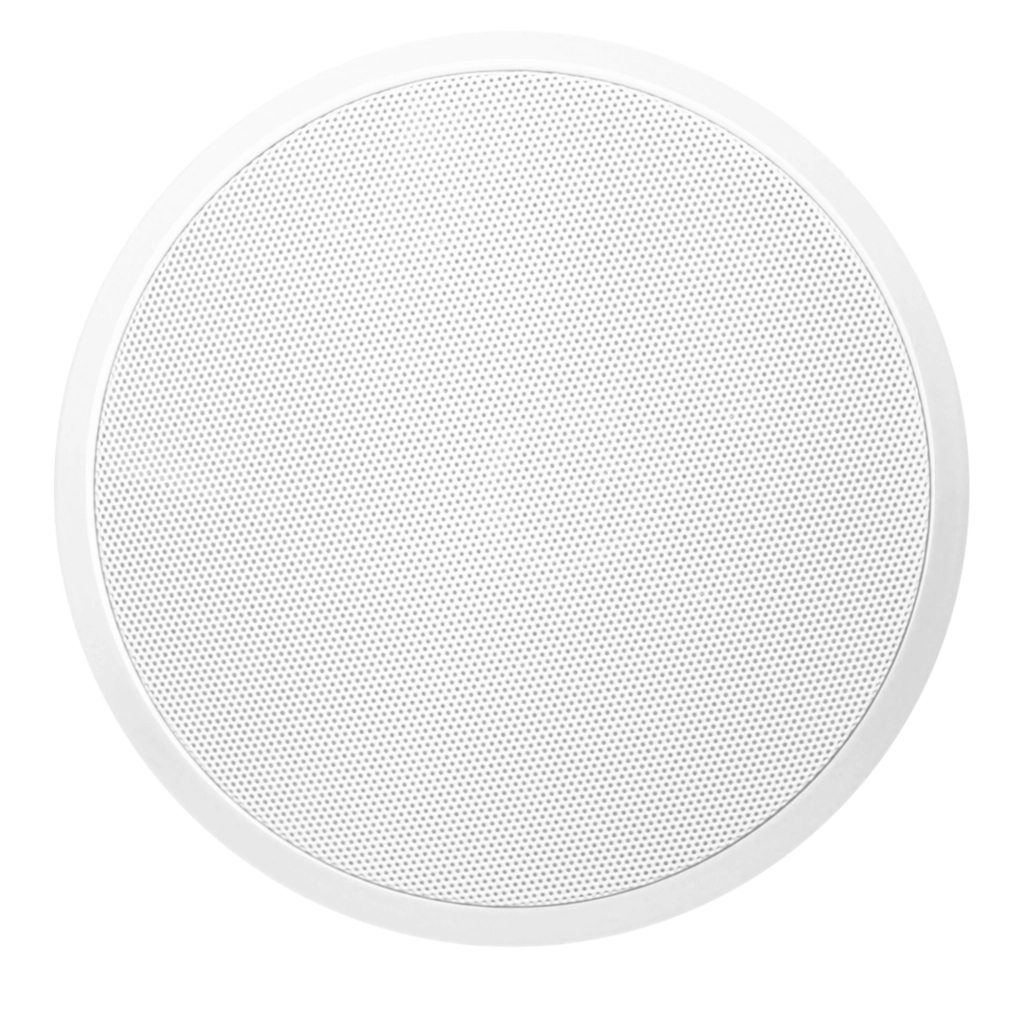

- Steel front grill with flame retardant materials

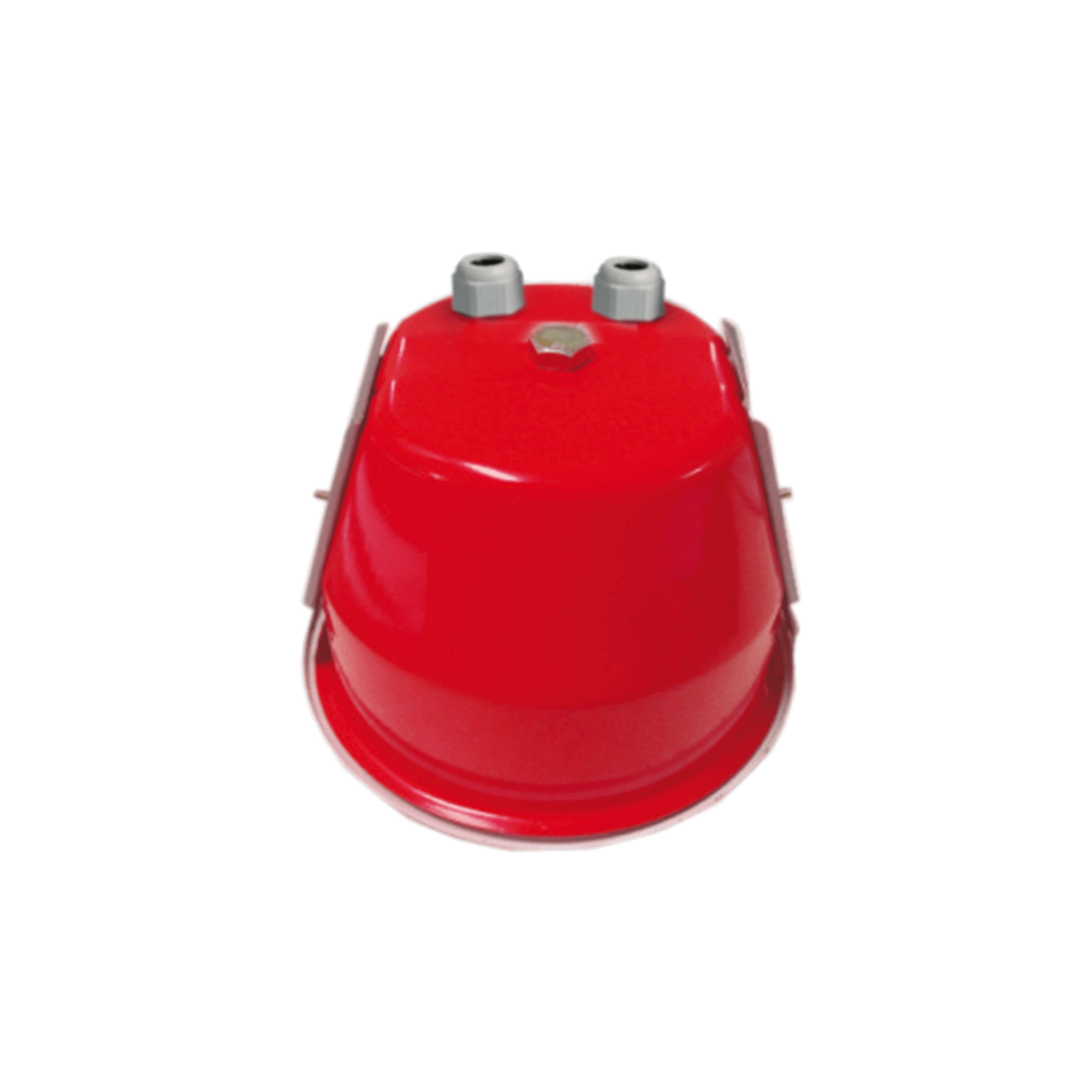

- Steel fire protection dome
Description
Available models
| CSF506/W | White version – RAL9010 |
System specifications
| Speaker type | Broadband | |
| Peak power handling | 20 W | |
| Program power handling | 10 W | |
| RMS/AES power handling | 6 W | |
| Line Transformer Tappings | 1 | 6 W / 1666 Ω |
| 2 | 3 W / 3333 Ω | |
| Impedance | 8 Ω | |
| Frequency | Response (± 3 dB) | 90 Hz – 18 kHz |
| Sound Pressure (Max. W/1m) | 90 dB | |
| Drivers | 5” | |
Product Features
| Dimensions | 180 x 127 mm (Ø x D) |
| Cut-out measurement | 160 mm (Ø) |
| Weight | 1.300 kg |
| Construction | Steel fire protection dome |
| Front finish | Steel with flame retardant materials |
Recommended applications
|
Bars & Restaurants
|
|
Retail
|
|
Hotels
|
|
Corporate
|
