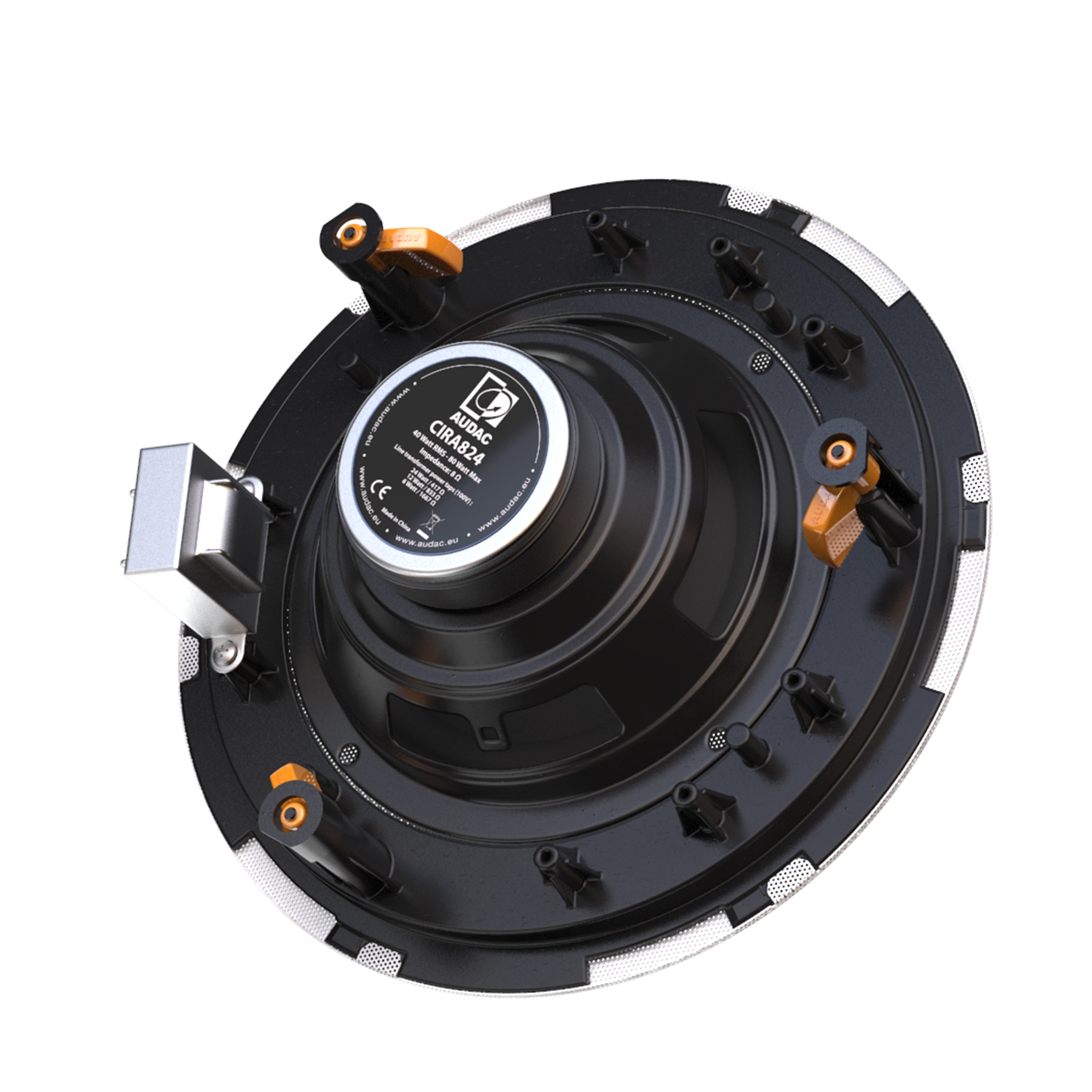

CIRA8
QuickFit™ 2-way 8″ ceiling speaker with TwistFix™ grill
- TwistFix™ borderless grill design
- Excellent off axis performance
- Flat frequency response
- Consistent sound profile throughout complete family
- Exceptional intelligbillity and musical performance
- Lifetime stability and toolfree installation with unique Quickfit™ innovation
Description
Available models
| CIRA840DI/W | White version, 16 Ω (RAL9016) |
| CIRA824I/W | White version, 8Ω & 24 Watt @ 100V (RAL9016) |
System specifications
| Peak power handling | 160 W | |
| Program power handling | 80 W | |
| RMS/AES power handling | 40 W | |
| Sound Pressure (Max. W/1m) | @ 100 V | 105 dB |
| Sensitivity (1W/1m) | 89 dB | |
| Frequency | Response (± 3 dB) | 40 Hz – 20 kHz |
| Speaker type | 2-way coaxial | |
| Impedance | 8 Ω (CIRA824) | |
| 16 Ω (CIRA840D) | ||
| Frequency | Range (-10 dB) | 33 Hz – 20 kHz |
| Dispersion | Conical | 140° |
| Connectors | Multi-tap Fast-con™ connections | |
| Drivers | HF | 1” |
| LF | 8” | |
| Line Transformer Tappings | 1 | 24 W – 417 Ω (CIRA824) |
| 2 | 12 W – 833 Ω (CIRA824) | |
| 3 | 6 W – 1667 Ω (CIRA824) | |
Product Features
| Cut-out measurement | 243 mm (Ø) |
| Dimensions | 270 x 82 mm (Ø x D) |
| Weight | 1.65 kg (CIRA840D) |
| 1.75 kg (CIRA824) | |
| Operating temperature | -20 °C ~ 60 °C |
| Construction | ABS |
| Front finish | Twist-Fix™ borderless finely perforated steel grill |
| Built-in depth | 82 mm |

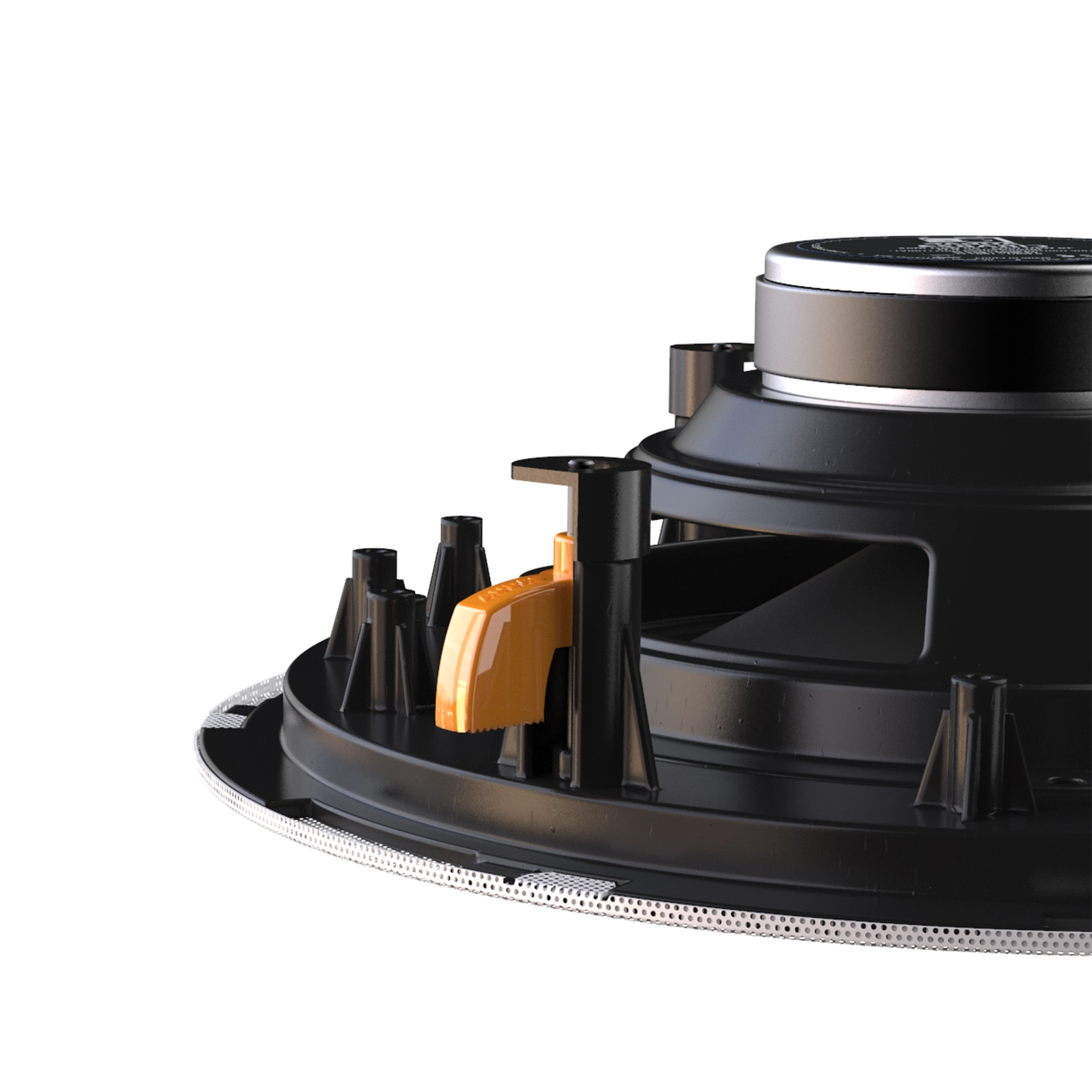

| Mounting | QuickFit™ mounting system |
| Colours | White (RAL9003) (CIRA824/W & CIRA840D/W) |
Recommended applications
|
Corporate
|
|
Retail
|
|
Bars & Restaurants
|
