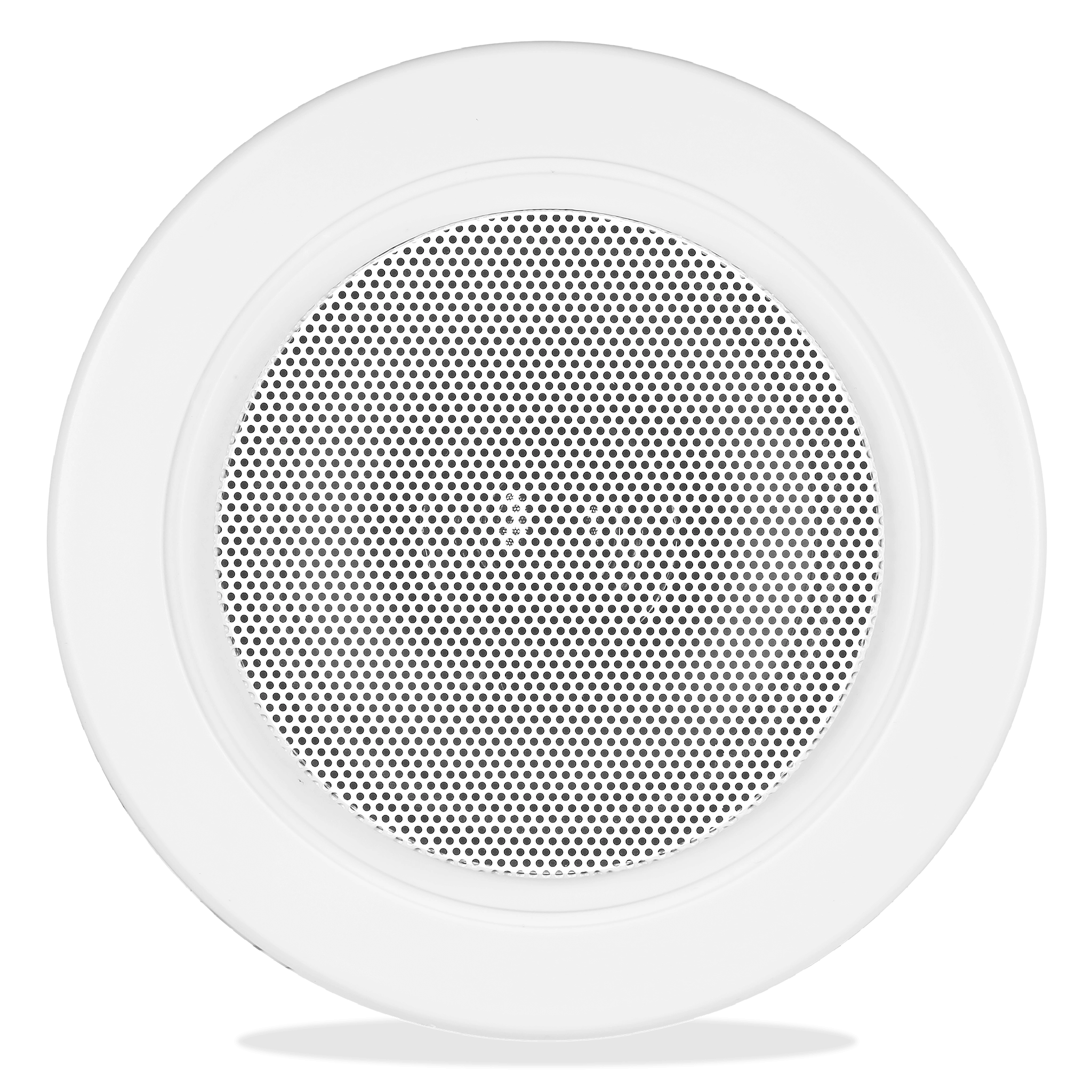

AWP06
SpringFit™ waterproof ceiling speaker 8Ω and 100V
- IP65 Ingress protection
- Aluminum grill
- Multi-tapping 100V line transformer
- 4″dual cone driver
- Spring-clamp mounting mechanism
- plastic enclosure
Description
Available models
| AWP06/W | White version |
System specifications
| Program power handling | 10 W | |
| RMS/AES power handling | 6 W | |
| Frequency | Response (± 3 dB) | 100 Hz – 15 kHz |
| Sound Pressure (Max. W/1m) | 95 dB | |
| Line Transformer Tappings | 1 | 6 W / 1666 Ω |
| 2 | 3 W / 3333 Ω | |
| 3 | 1.5 W / 6666 Ω | |
| Impedance | 8 Ω | |
| Ingress Protection rating | IP65 | |
| Drivers | 4” | |
| Peak power handling | 20 W | |
Product Features
| Dimensions | 140 x 148.5 mm (Ø x H) |
| Built-in depth | 148.5 mm |
| Cut-out measurement | 125 mm (Ø) |
| Weight | 0.79 kg |
| Operating temperature | -20 °C ~ 60 °C |
| Construction | ABS |
| Colours | White (RAL9010) |
Recommended applications
|
Corporate
|
|
Sporting facilities
|
