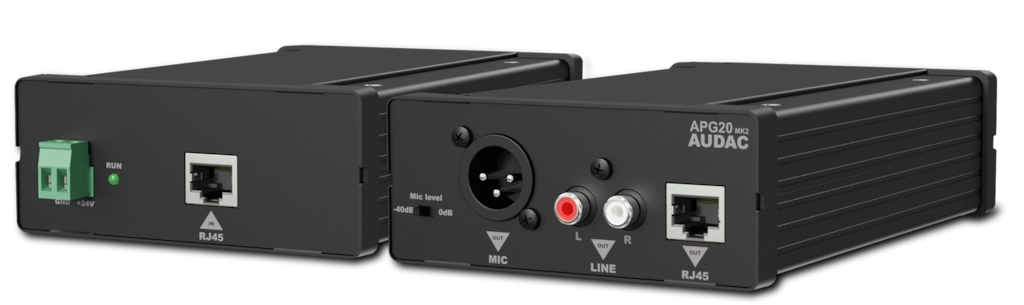

APG20
Active audio transceivers RCA
- S-box™ modular multifunctional enclosure
- Up to 300 meters over standard UTP CAT5E (or better)
- Up to 600 meters with additional power supplies
- Two channel audio transmission (line & microphone)
- High quality audio reproduction
Description
Available models
| APG20MK2 | MK2 version |
System specifications
| Inputs | Type | Audio / RS-485 / 24V DC Bus | |
| Connector | RJ45 | ||
| Outputs | Microphone | Type | 1 x Microphone outputs (Level switchable 0 dB ~ -40 dB) |
| Connector | XLR male | ||
| Line | Type | 1 x Line output | |
| Connector | Dual RCA | ||
| Data link | Type | 1 x RS-485 data link outputs | |
| Connector | RJ45 | ||
| Power | Consumption | 0.8 W (PSD241 included) | |
| Supply | 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz) | ||
| Max. cable length | Without external PSU | 300 m | |
| With external PSU | 600 m | ||
| Connection standard | TIA/EIA T568B | ||
| Cabling | UTP CAT5E (or better) | ||
Product Features
| Dimensions | 108 x 44 x 165 mm (W x H x D) | |
| Weight | 0.760 kg | |
| Colours | Black | |
| Construction | Aluminum | |
| Accessories | Included | PSD241 – Power supply 24V / 1.67 A (Efficiency Level V) |
| Optional | ARJ03P junction box | |
| PSD24x external Power supply | ||
| MBS1xx Wall mounting brackets | ||
| WLI18 Wall line input unit | ||
| WMI18 Wall microphone input unit | ||
| WP2xx Universal wall panel | ||
Recommended applications
|
Education
|
|
Corporate
|
|
Residential
|
