Description
Available models

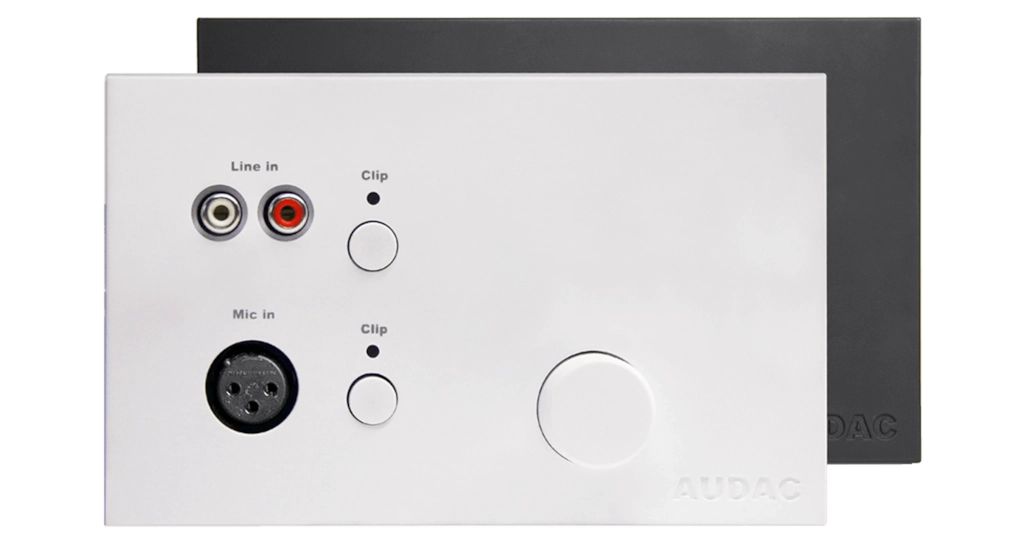

| WP523/B | Black version |
System specifications
| Inputs | Balanced Stereo | Type | 1 x Stereo RCA input |
| Connector | RCA | ||
| Sensitivity | +12 dB ~ -6 dB | ||
| Signal / Noise | > 95 dB | ||
| THD+N (@1kHz) | < 0.02 % | ||
| Balanced Microphone | Type | 1 x Balanced XLR input | |
| Connector | XLR female | ||
| Sensitivity | -20 dB ~ -64 dB | ||
| Signal / Noise | > 85 dB | ||
| THD+N (@ 1 kHz) | < 0.05% | ||
| Phantom Power | 12 V DC | ||
| Mixing controls | Push-Lock potentiometers | ||
| Volume control | Potentiometer | ||
| Indicators | Clip LED indicator | ||
Product Features
| Dimensions | 153 x 94 x 55 mm (W x H x D) | |
| Weight | 0.175 kg (2 pcs) | |
| Construction | ABS | |
| Colours | Black (WP523/B) | |
| White (WP523/W) | ||
| Built-in depth | 37 mm | |
| Installation standard | BS4662 – 2 gang | |
| Accessories | Optional | Flush mount installation box Gypsum Wall – WB5065/FG |
| Flush mount installation box Steel – WB5065/FS | ||
Recommended applications
|
Education
|
|
Corporate
|
