WP220
Universal wall panel – Bluetooth receiver input – 80 x 80 mm
- Elegant design to blend in with any environment
- Compatible with EU (80×80 mm) installation materials
- Signal transmission over twisted pair (CAT5E) or better cabling
- Signal transmission insensitive for interference and noise
Description

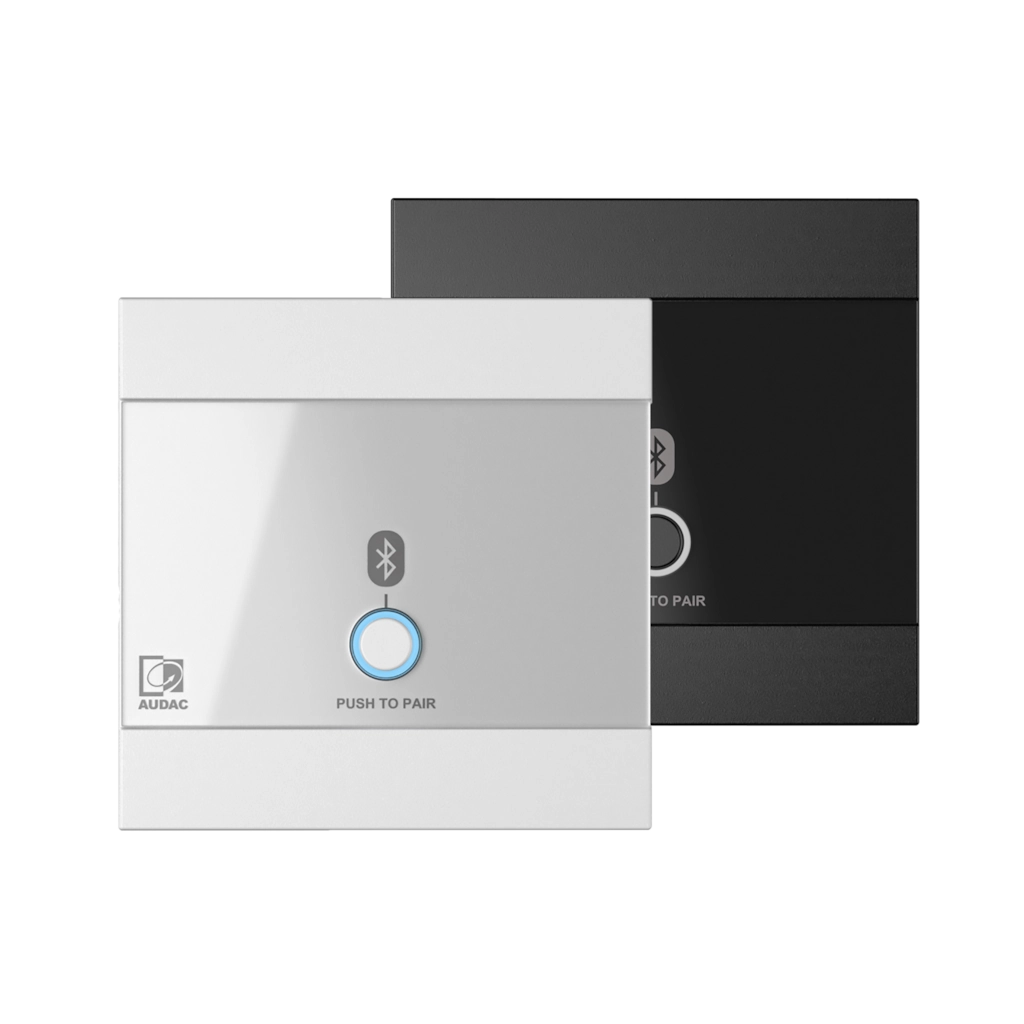

Available models
| WP220/B | Black version |
| WP220/W | White version |
System specifications

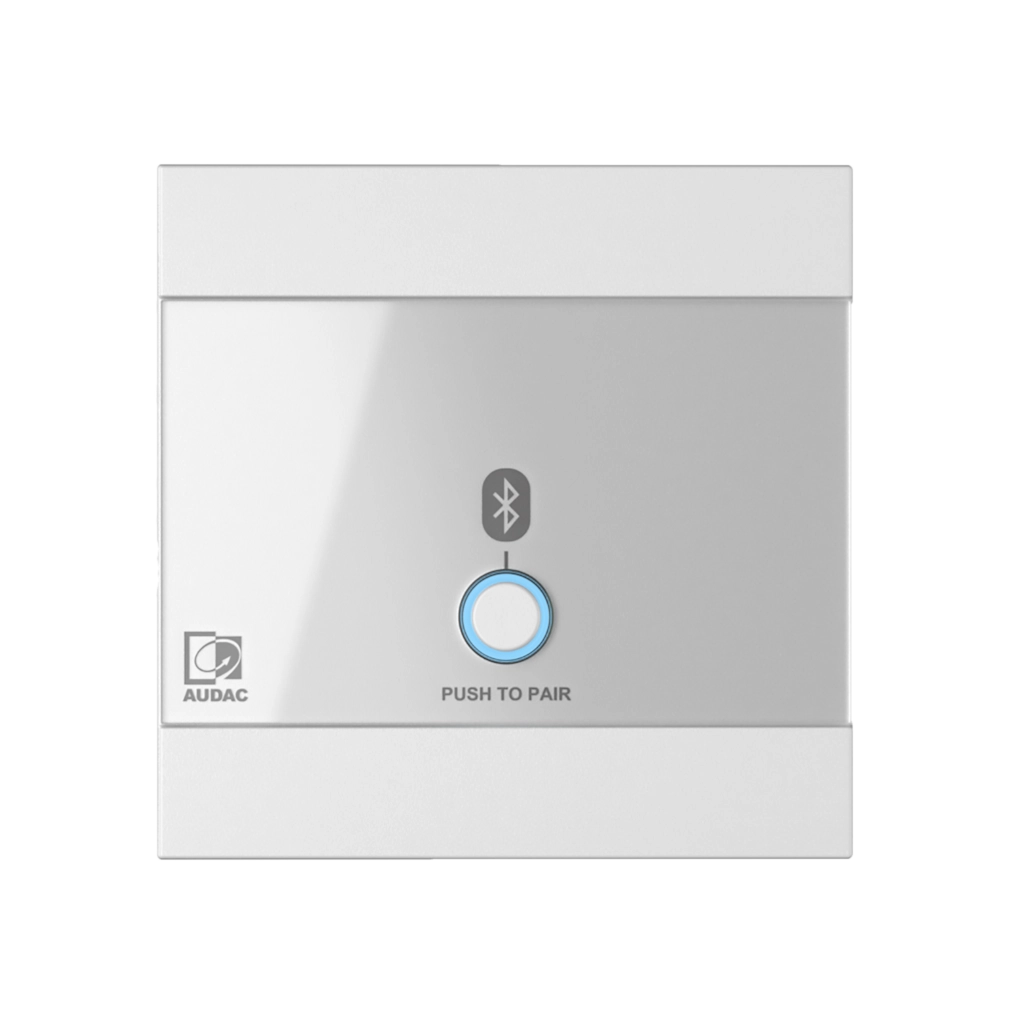

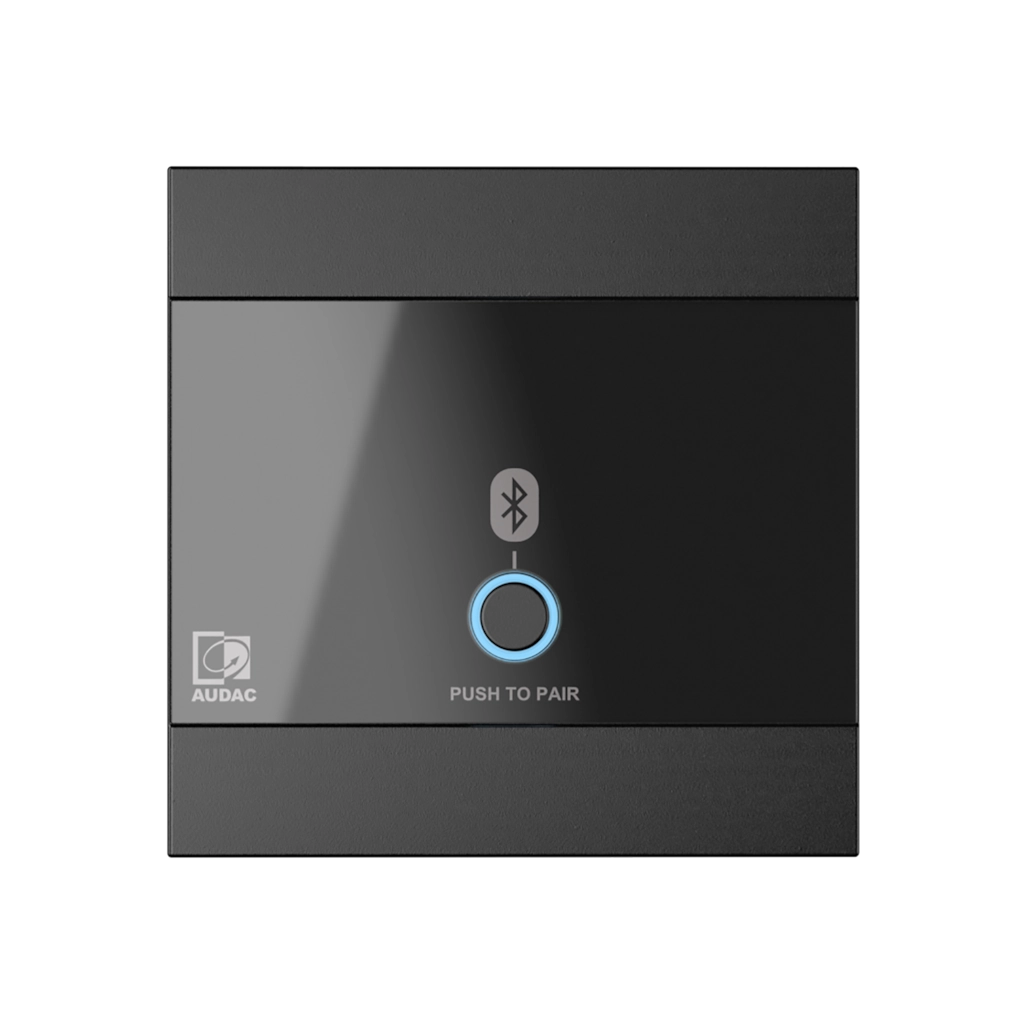

| Control | Bluetooth pairing button with LED | ||

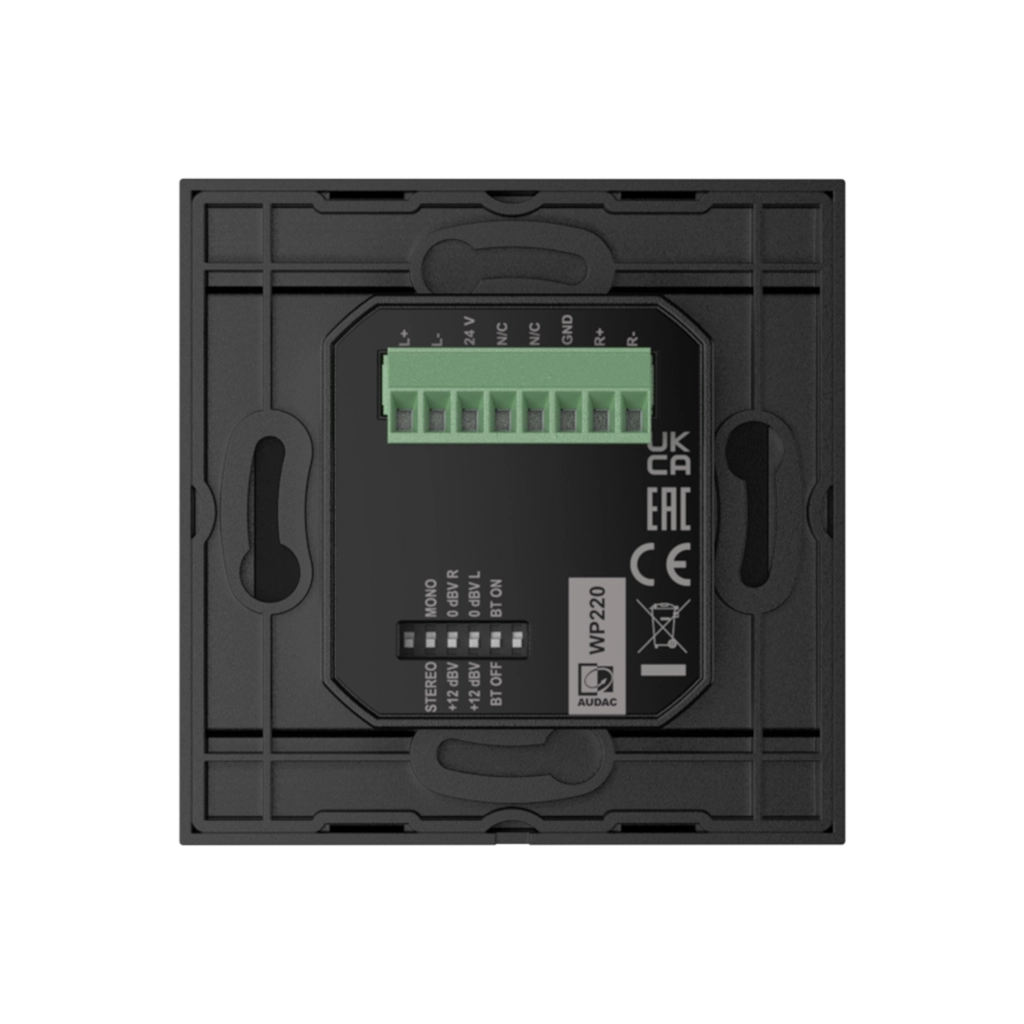

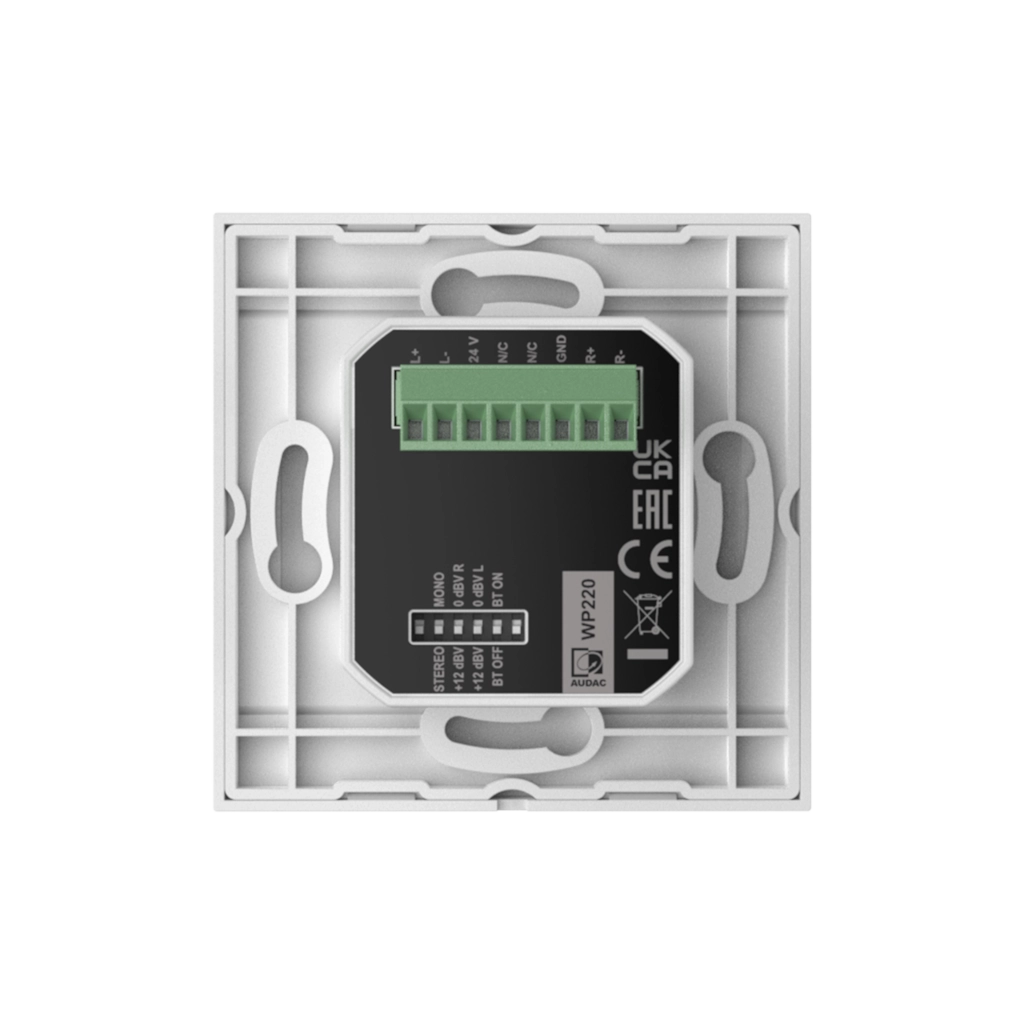

| Output level +12 dBV enable / disable (DIP switch on rear) | |||
| Bluetooth enable / disable (DIP switch on rear) | |||
| Mono / Stereo (DIP switch on rear) | |||
| Inputs | Wall Panel | Type | Bluetooth receiver (Version 5.0) |
| Outputs | Level | +12 dB | |
| 0 dB | |||
| Connection | 8-pin terminal block (3.81 mm pitch) output connection | ||
Product Features
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) | ||

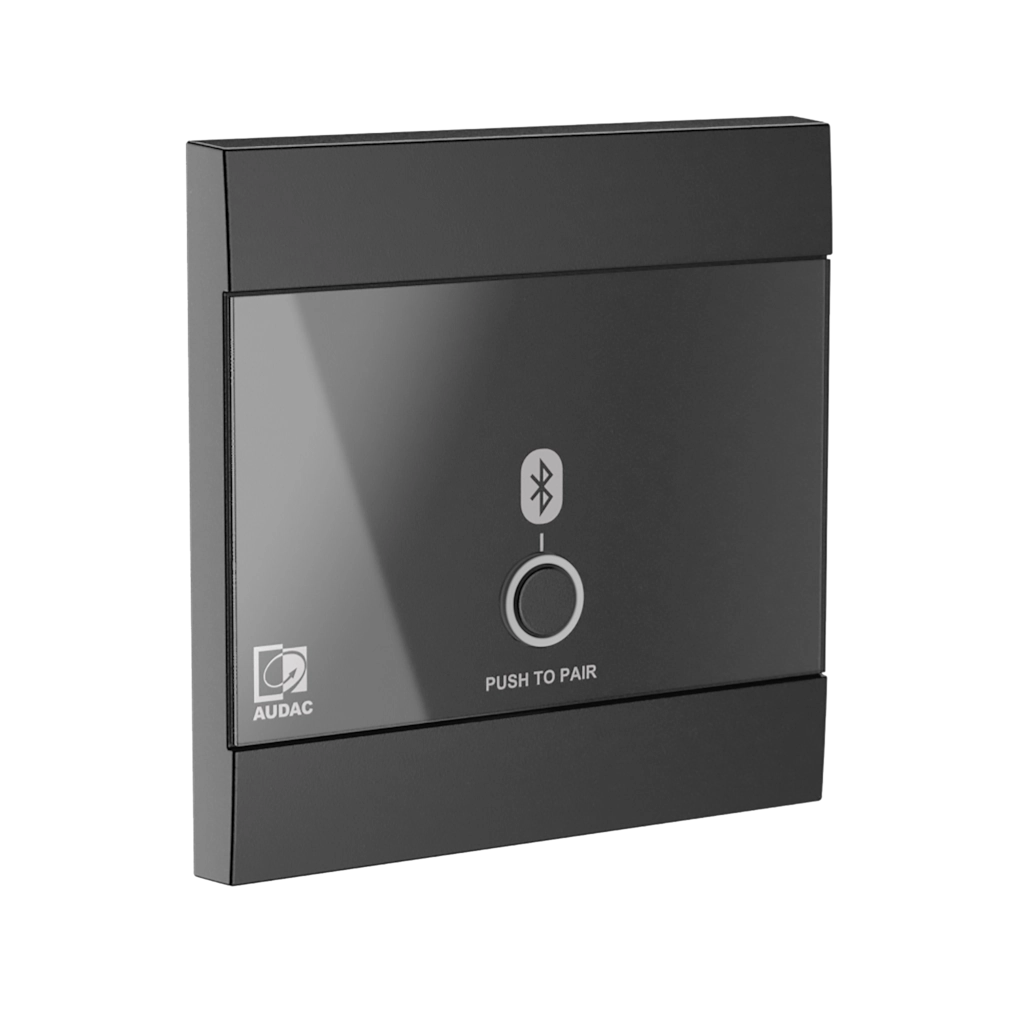

| Colours | Black (RAL9005) (WP220/B) | ||

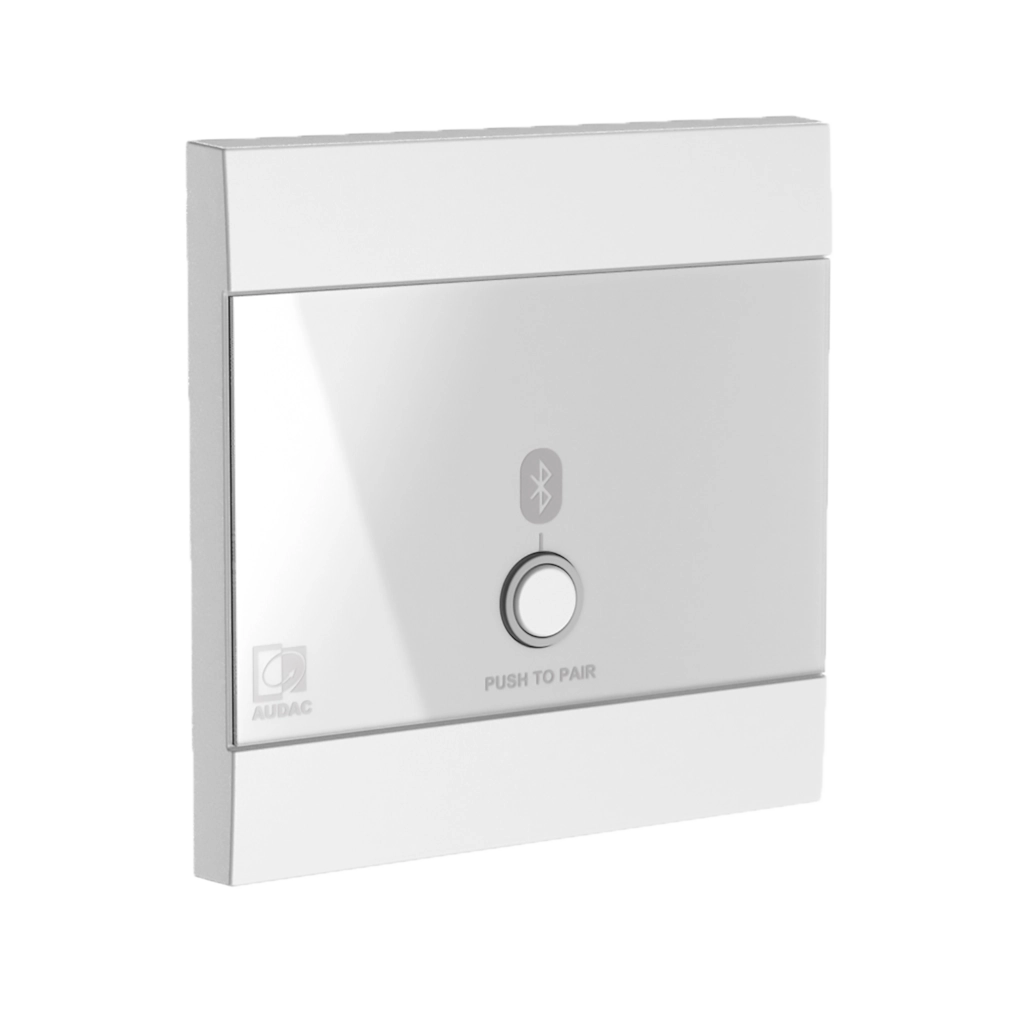

| White (RAL9003) (WP220/W) | |||
| Front finish | Elegant ABS front panel with glass | ||
| Accessories | Optional | Surface mount Installation boxes | WB200 – Surface mount wall box for WP & DWP series |
| Flush mount Installation boxes | Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45S/FS | ||
| Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG | |||
Recommended applications
|
Education
|
|
Retail
|
|
Bars & Restaurants
|
|
Corporate
|
