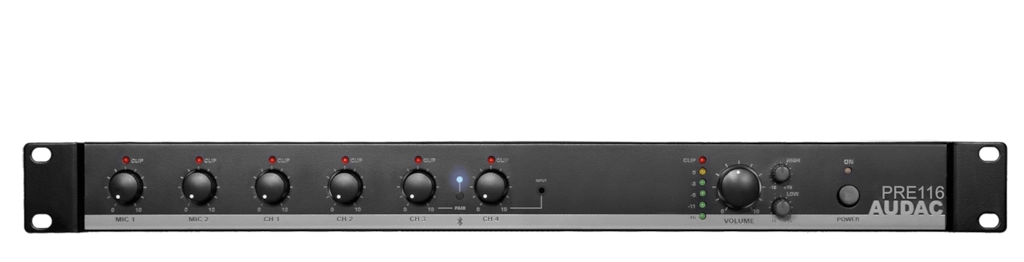

PRE116
6 Channel stereo preamplifier
- Balanced stereo line output
- 3 unbalanced stereo line inputs
- Balanced stereo line input
- Priority audio inputs with phantom power
- 1 x priority mute contact
- Front 3.5mm Jack (mixed with Ch 4)
- Integrated Bluetooth receiver
Description
System specifications
| Inputs | Balanced Microphone | Type | 2 x Balanced Microphone | |
| Balanced Stereo | Type | 1 x Stereo Balanced Line | ||
| Unbalanced Stereo | Type | 3 x Stereo Unbalanced Line | ||
| Bluetooth receiver (mixed with Ch 3) | ||||
| Front 3.5mm Jack (mixed with Ch ) | ||||
| Priority mute contact | ||||
| Outputs | Balanced Stereo | Type | 1 x Balanced Stereo outputs | |
| Inputs | Microphone | Sensitivity | -6 dB ~ -50 dB | |
| Line | Sensitivity | -20 dB ~ +4 dB | ||
| Balanced Microphone | EQ | High | 15 dB (12.5 kHz) | |
| Mid | 15 dB (2.5 kHz) | |||
| Low | 15 dB (80 Hz) | |||
| Phantom Power | 15 V DC | |||
| Outputs | EQ | Treble | 15 dB (2.5~20 kHz) | |
| Bass | 15 dB (100 Hz) | |||
| Frequency | Response (± 3 dB) | 20 Hz – 20 kHz | ||
| Signal / Noise | > 90 dB | |||
| THD+N (@ 1 kHz) | < 0.05% | |||
| Crosstalk (@ 1 kHz) | > 70 dB | |||
| Power | Supply | 100 ~ 240 V AC / 50 ~ 60 Hz | ||
| Consumption | 12 W | |||
Product Features
| Dimensions | 482 x 44 x 335 mm (W x H x D) |
| Weight | 4,10 kg |
| Unit height | 1 HE |
Recommended applications
|
Education
|
|
Hotels
|
|
Corporate
|
|
Bars & Restaurants
|
|
Retail
|
