Model | MPB-30 |
---|---|
Name | UHF Gain-Controllable Antenna Booster |
Frequency Band | UHF 470 – 960 MHz |
Gain | Variable 0 – 14 dB ± 1 dB |
Input Connector | 1 × TNC |
Output Connector | 1 × TNC |
System Impedance | 50 Ω |
Input Power | DC 12 – 24 V / 350 mA |
Regulated Power Output | DC 8 V / 250 mA |
Dimensions | 55 × 90 × 25 mm (W × H × D) |
Weight | Approx. 110 g |

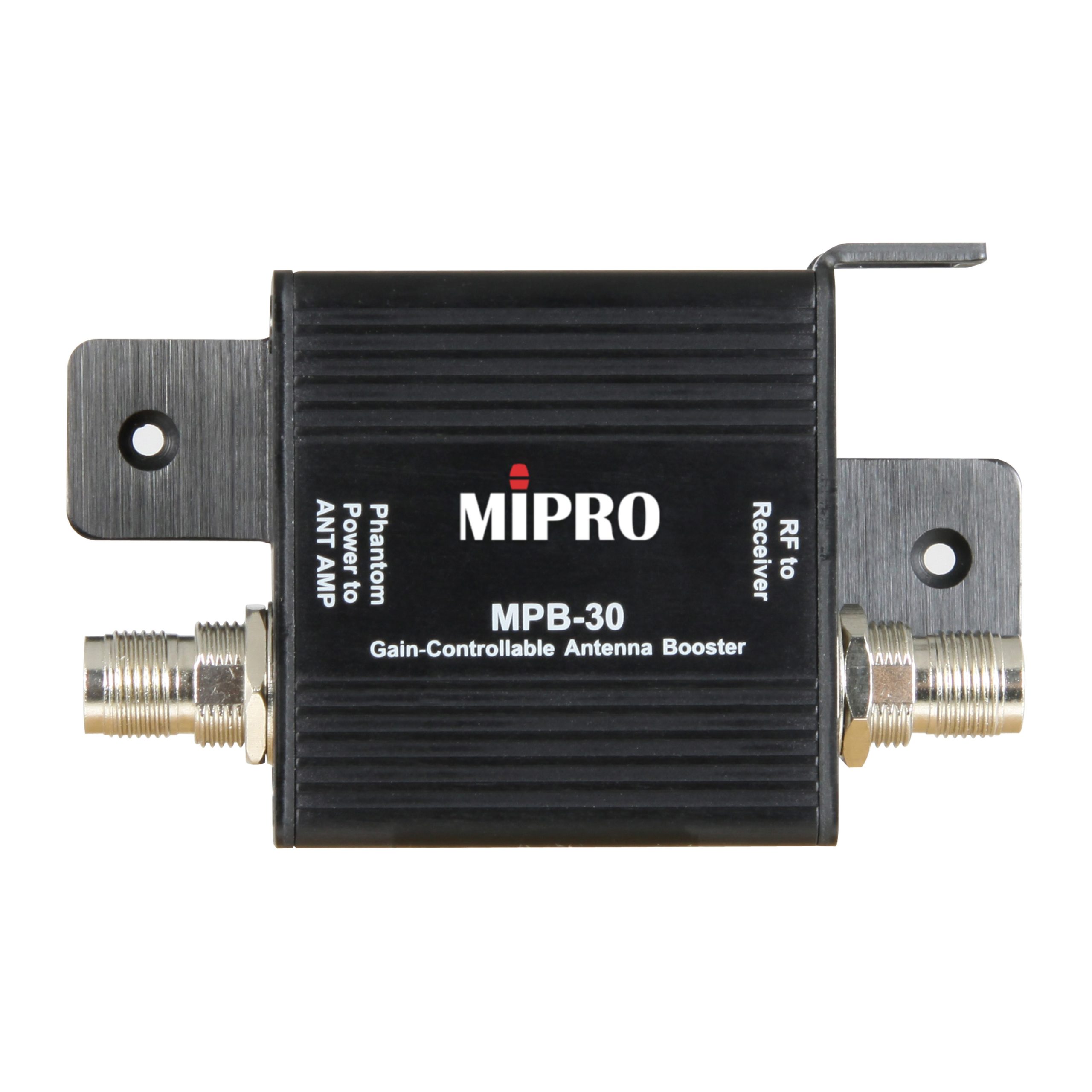

MPB-30
UHF Gain-Controllable Antenna Booster
- It is optimized in the 470 – 960 MHz frequency band to amplify the antenna signal. It is designed for pairing with the AD-708 antenna divider to detect the cable loss and automatically adjust the gain of the booster output between 0 – 14 dB to compensate precisely for the cable loss to obtain the optimal signal quality.
- The antenna booster can be powered by the bias of the receiver’s antenna connector or by an external power supply, allowing longer antenna cables can be connected with more boosters.
- With an aluminum casing, it features superb heat dissipation and is waterproof.
