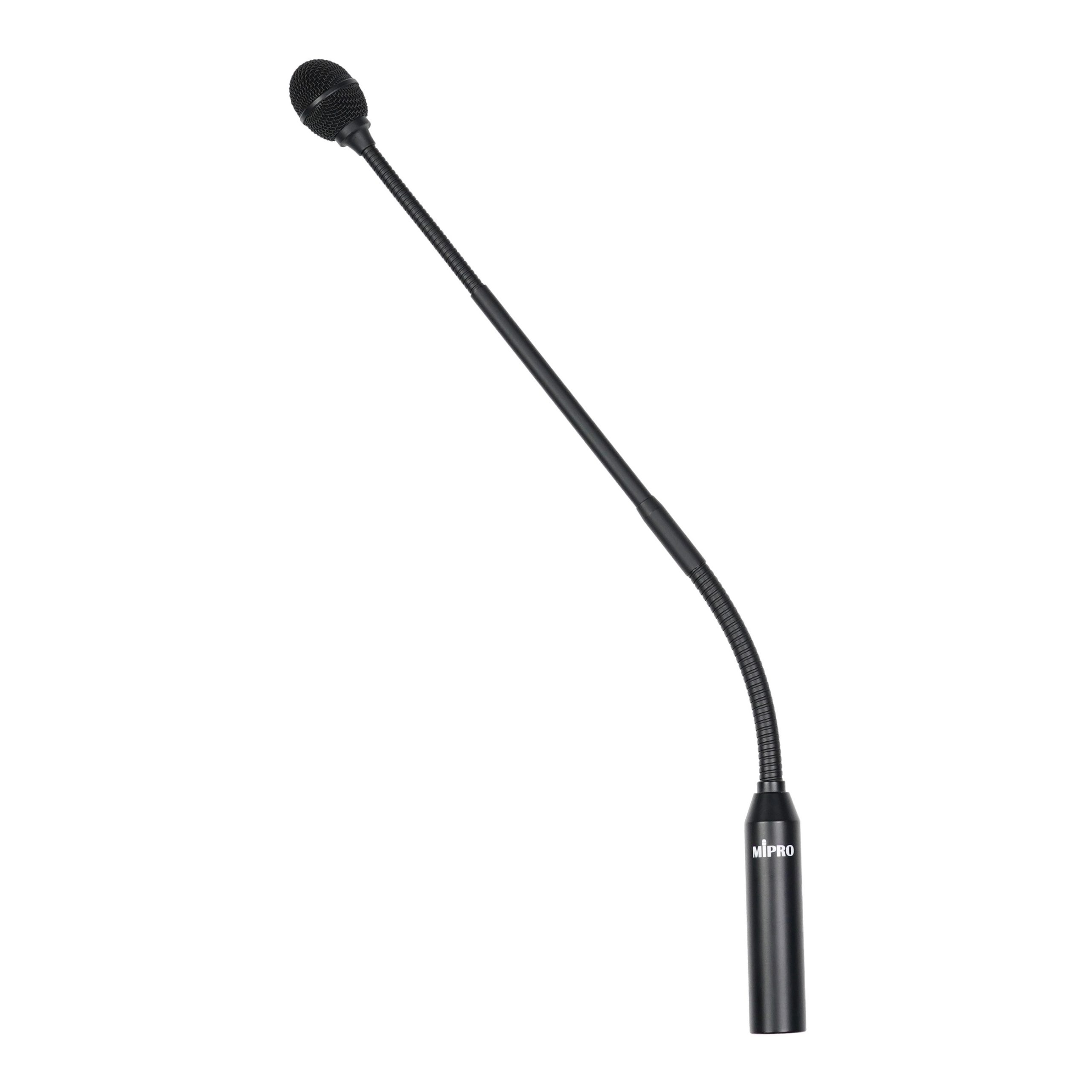

MM-202J
Gooseneck Microphone
Key Features
Ultra slim profile design for podiums, pulpit and lectern applications.
Proprietary microphone mount design allows 110° up/down and 300° left/right angle adjustments.
Shock isolation mount design minimizes handling and vibration noise.
Multi-layered microphone grill minimizes pop noise.
Unmatched high fidelity sound reproduction.
Description
Technical Specifications
Gooseneck Microphone, 3 pin connector, Capsule Module 10 mm uni-directional
condenser microphone, Frequency Response 50 Hz – 18 kHz, Sensitivity -46 dBV ± 3
dBV / Pa (0 dB = 1 V / Pa), Maximum SPL 142 dB (Typical, 1% T.H.D.) , Output
Connector 3 pin XLR male, Color Black , Length 585 mm / 23 ” 485 mm / 19 “, Weight
Approx. 162 g / 5.7 oz Approx. 153 g / 5.4 oz
