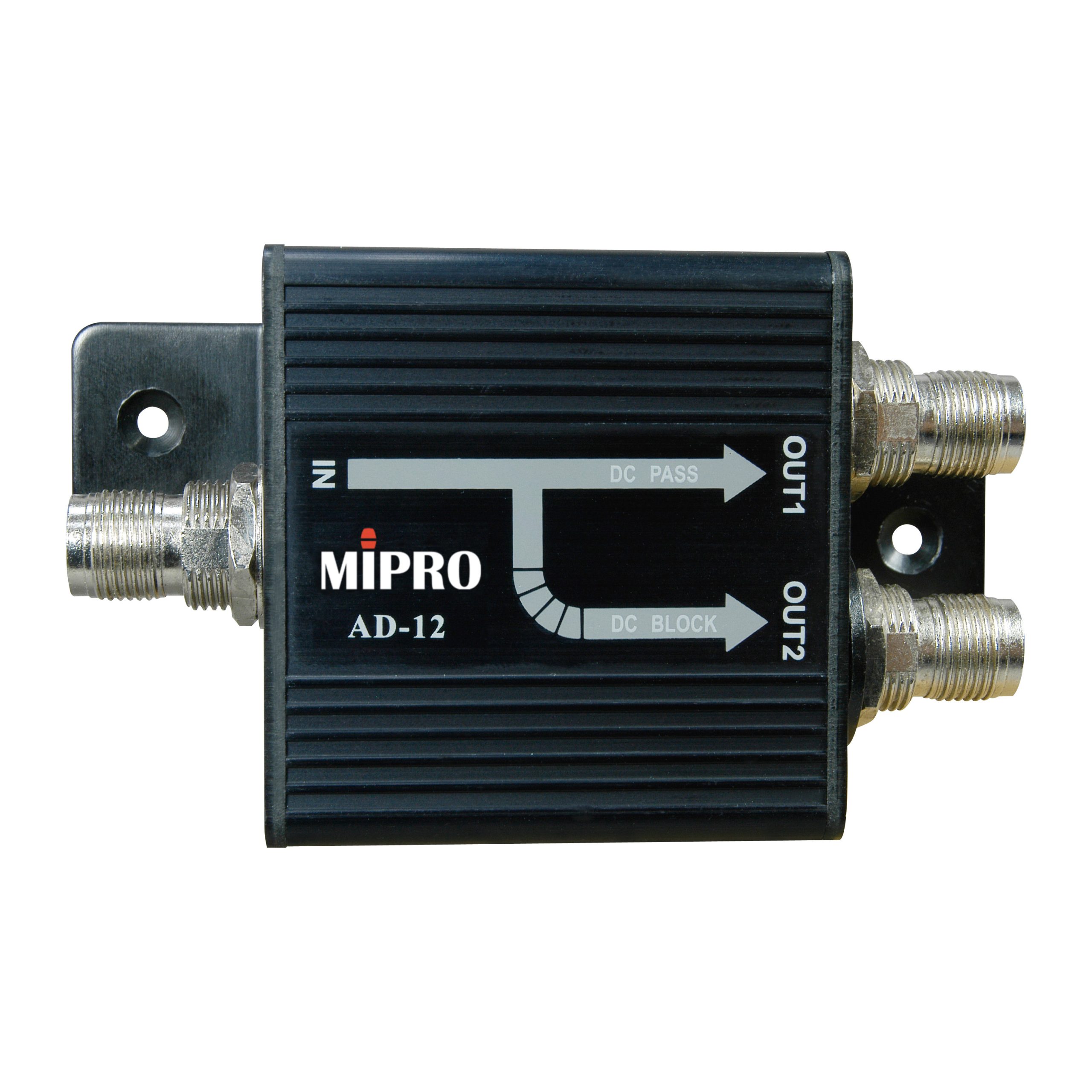

AD-12
UHF Passive Antenna Divider / Combiner
- Adapts an isolated grounding design to eliminate power noise from the multi-receiver operation.
- It can either divide an RF signal into 2 signal outputs or combine 2 signals into 1 signal output. Simultaneously, it links up bias voltage to external boosters. It is an essential device for antenna system installation.
- It is compatible with MPB-30 or MP-10.
Description
| Model | AD-12 |
|---|---|
| Name | UHF Passive Antenna Divider / Combiner |
| Frequency Band | UHF 470 – 1000 MHz |
| Gain | Attenuation 3.5 dB (typ.) |
| Max. RF Input Power | 30 dBm (1 W) |
| Input Connectors | 1 × TNC |
| Output Connectors | 2 × TNC |
| System Impedance | 50 Ω |
| Dimensions | 55 × 90 × 25 mm (W × H × D) |
| Weight | Approx. 110 g |
