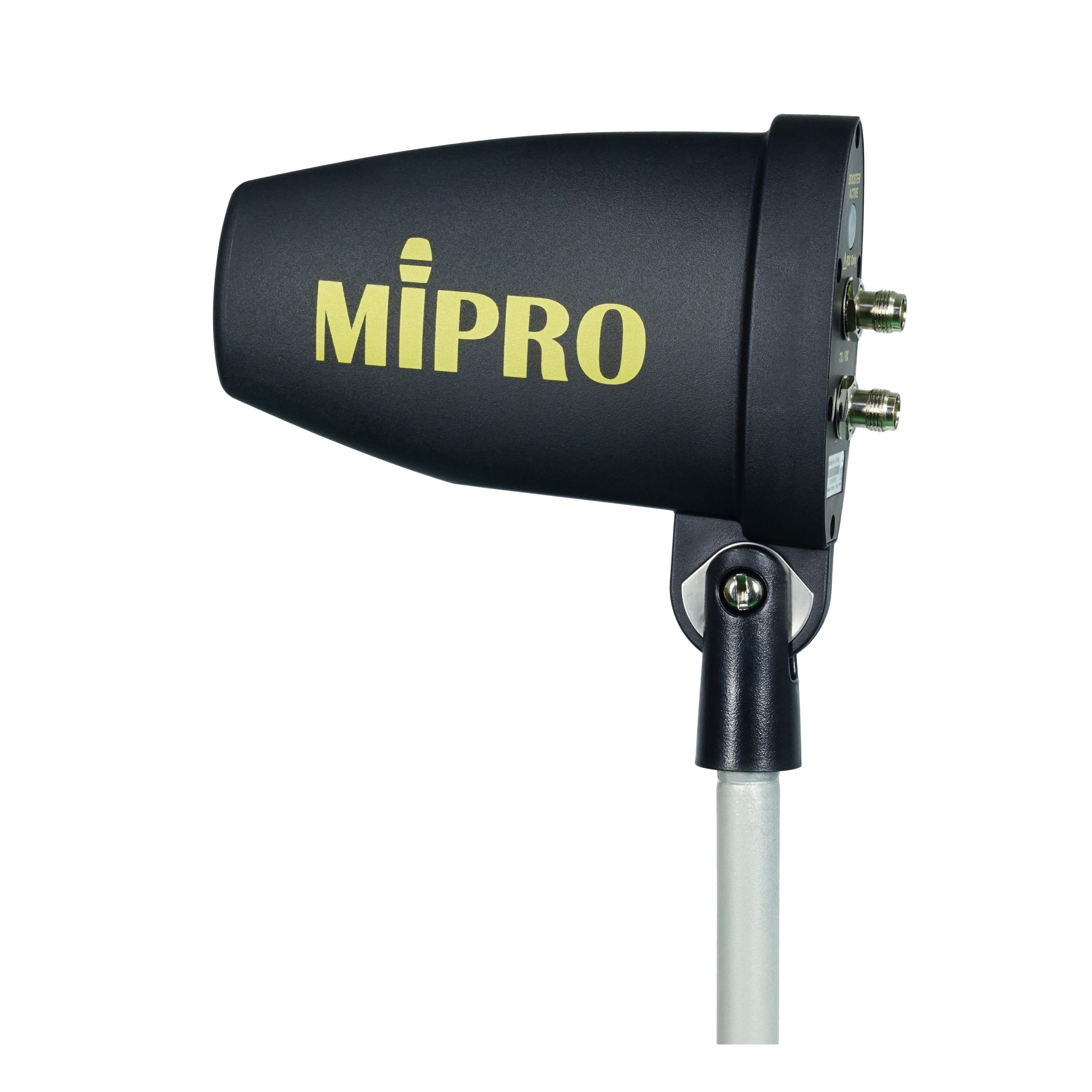

AT-58
5 GHz Multi-function Directional Log Antenna
- Its built-in booster can increase the antenna gain levels to effectively compensate for the signal loss of the coaxial cable.
- AT-58 provides an optimized signal transmission in long-distance for the ISM 5 GHz frequency band.
Description
| Model | AT-58 | |
|---|---|---|
| Name | 5 GHz Multi-function Directional Log Antenna | |
| Frequency Band | ISM 5.8 GHz | |
| Antenna Gain | 10 dBi | |
| Built-in Booster | Built-in 20 dB booster | |
| Connectors | 2 × TNC | |
| Power Supply | DC 10 – 24 V | |
| Impedance | 50 Ω | |
| Dimensions | 162 × 138 × 40 mm (W × H × D) | |
| Weight | Approx. 270 g | |
| Note | Refer to the actual product in the event of product description discrepancy |
Reviews (0)
Shipping & Delivery
Related products
ACT-32T
UHF Analog Bodypack Transmitter
- An LCD on the panel displays the operating information.
- Powered by two AA alkaline batteries.
- In addition to the power switch and the mute button, functions such as input sensitivity, power output, and mute modes are also programmable.
- The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
- 5 switchable gain levels.
- Mute button and remote-control jack allow quick setting of MUTE function.
- Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
ACT-343
UHF Analog Quad-Channel Receiver
- EIA standard metal chassis equipped with a green backlit LCD screen and electronic buttons on the front panel. The LCD screen will automatically turn bright to identify “Working” or “Standby” mode.
- The most reliable 24 MHz narrowband high dynamic range receiving circuit greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose 8 working channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- All are designed and made in Taiwan to ensure high quality and value.
ACT-500T
UHF Analog Bodypack Transmitter
- Newly designed compact and lightweight housing for easy wearing.
- The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information, and a lockable power switch prevents the power switch from accidental operation.
- In addition to the power switch and the mute button, functions such as input sensitivity, power output, mute and button lock modes are also programmable.
- The world’s first ACT™ function provides precise and rapid frequency sync to the receiver
- 5 switchable gain levels.
- Mute button and remote-control jack allow quick setting of MUTE function.
- The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. The second-generation ACT-500T features charging contacts and can also be placed on an optional single-slot or dual-slot charging station for charging.
- A belt clip for easy wearing.
ACT-525
UHF Analog Dual-Channel Receiver
- EIA standard metal chassis, with a newly designed LCD, a rotary control knob and buttons equipped on the front panel. The LCD screen automatically shifts colors to identify “Working” or “Standby” mode. An optional Dante network interface is available.
- Inherited the most reliable 24 MHz narrowband true diversity receiving circuit from MIPRO typical professional ACT-7 Series, which ensures long-distance and stable reception without signal dropout, greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring up to 64 channels. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- Pairs with ACT-500H handheld and ACT-500T bodypack transmitter.
- All are designed and made in Taiwan to ensure high quality and value.
ACT-545
UHF Analog Quad-Channel Receiver
- EIA standard metal chassis, with a newly designed LCD, a rotary control knob and buttons equipped on the front panel. The LCD screen automatically shifts colors to identify “Working” or “Standby” mode. An optional Dante network interface is available.
- Inherited the most reliable 24 MHz narrowband true diversity receiving circuit from MIPRO typical professional ACT-7 Series, which ensures long-distance and stable reception without signal dropout, greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring up to 64 channels. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- Pairs with ACT-500H handheld and ACT-500T bodypack transmitter.
- All are designed and made in Taiwan to ensure high quality and value.
ACT-747
UHF Analog Wideband Quad-Channel Receiver
- EIA standard metal chassis, with a newly designed VFD screen, monitor headphone jack, a rotary control knob and buttons equipped on the front panel. The VFD screen will automatically turn bright to identify “Working” or “Standby” mode.
- Exclusive 72 MHz wideband circuit increases interference-free compatible channels.
- Advanced true diversity receiving circuit ensures long-distance and stable reception without signal dropout.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 224 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Optional Dante digital network interface for digital audio output.
- Optional MIPRO Wireless Console computer monitoring software offers frequency analysis and configuration, along with monitoring of all channels and interference signals in the environment.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- Pairs with ACT-700H handheld and ACT-700T bodypack transmitter.
- All are designed and made in Taiwan to ensure high quality and value.

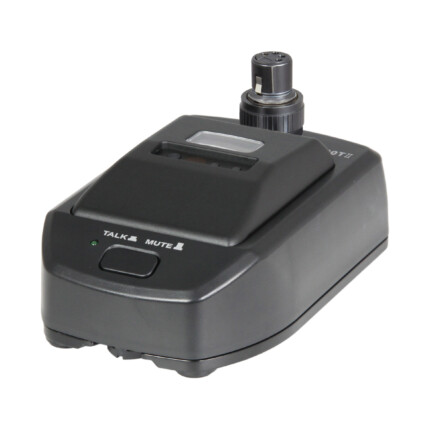

BC-100T
