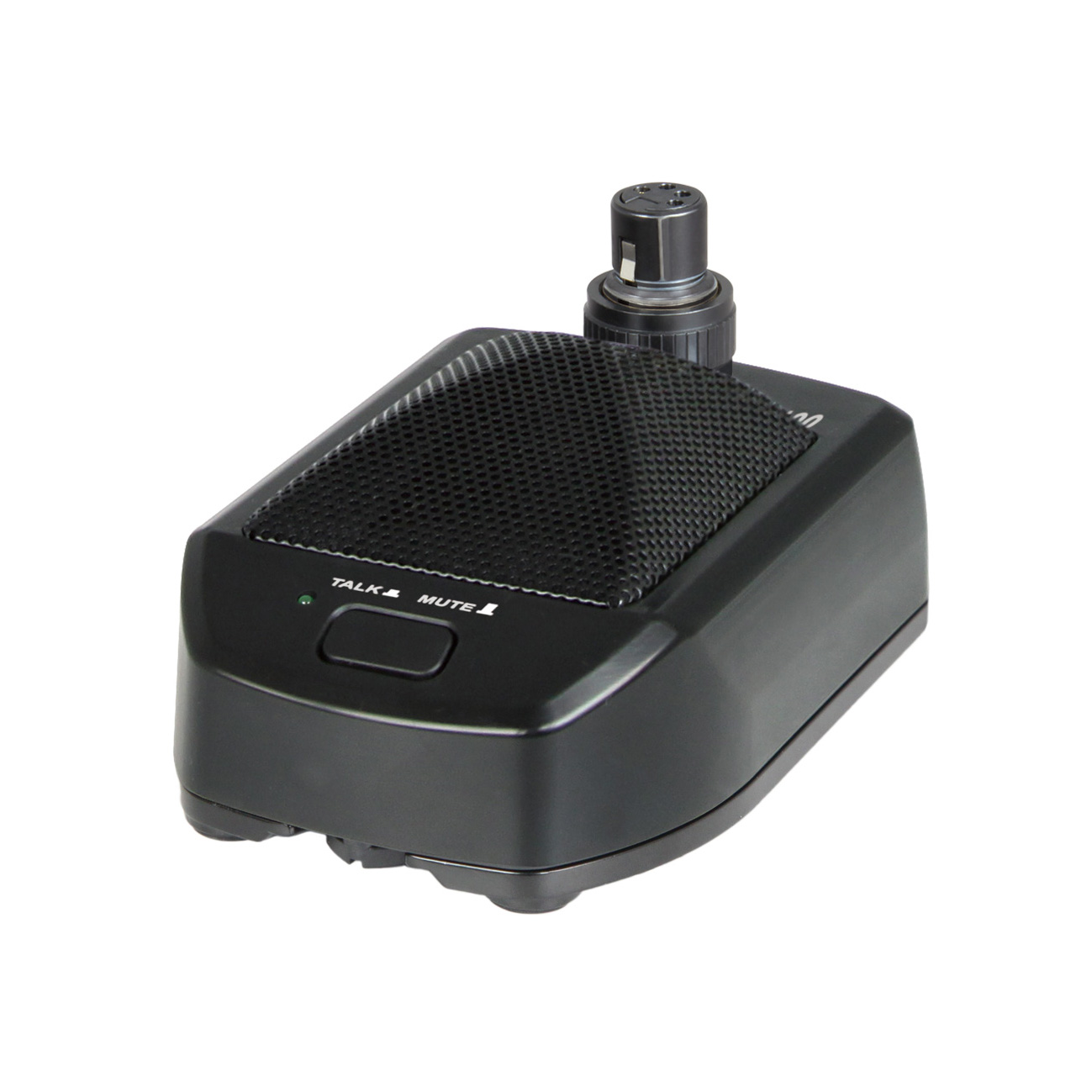

BC-100
Boundary Microphone Base
- BC-100 II has a built-in high-sensitivity condenser microphone capsule module that can be independently used as a boundary microphone.
- BC-100 II can connect with MM-series 4-Pin gooseneck microphone as a wired conference microphone.
- Accepts MIPRO ACT-TC series bodypack transmitter as a wireless conference microphone. It can be charged using the included adaptor, no need to remove the transmitter.
- A balanced XLR connector for any mixer supplying phantom power and a switch to select the audio source from either the inner boundary microphone or the optional gooseneck microphone.
- Press the button to TALK position, the green indicator on the base and LED ring indicator on the MM-206L / 205L / 204L will light up. Press it again to MUTE position, all indicators will turn off.
- The metal cover is equipped with anti-slip pads, ensuring the stability.
Description
| Model | BC-100 |
|---|---|
| Name | Boundary Microphone Base |
| Boundary Microphone | 10 mm cardioid condenser microphone capsule module |
| Output Jack | 3-Pin XLR |
| Input Jack | MIPRO 4-Pin XLR, compatible with MM-206L / MM-205L / MM-204L gooseneck microphone |
| Control Button | TALK / MUTE button with LED indicator |
| Expansion Function | Insert an ACT-TC series bodypack transmitter for wireless transmission |
| Power Supply | Wired: DC 24 – 48 V phantom power Wireless: one 18500 Li-ion battery |
| Charging Voltage | DC 5 V / 1 A |
| Color | Black |
| Dimensions | 100 × 78 × 150 mm (W × H × D) |
| Weight | Approx. 620 g |
