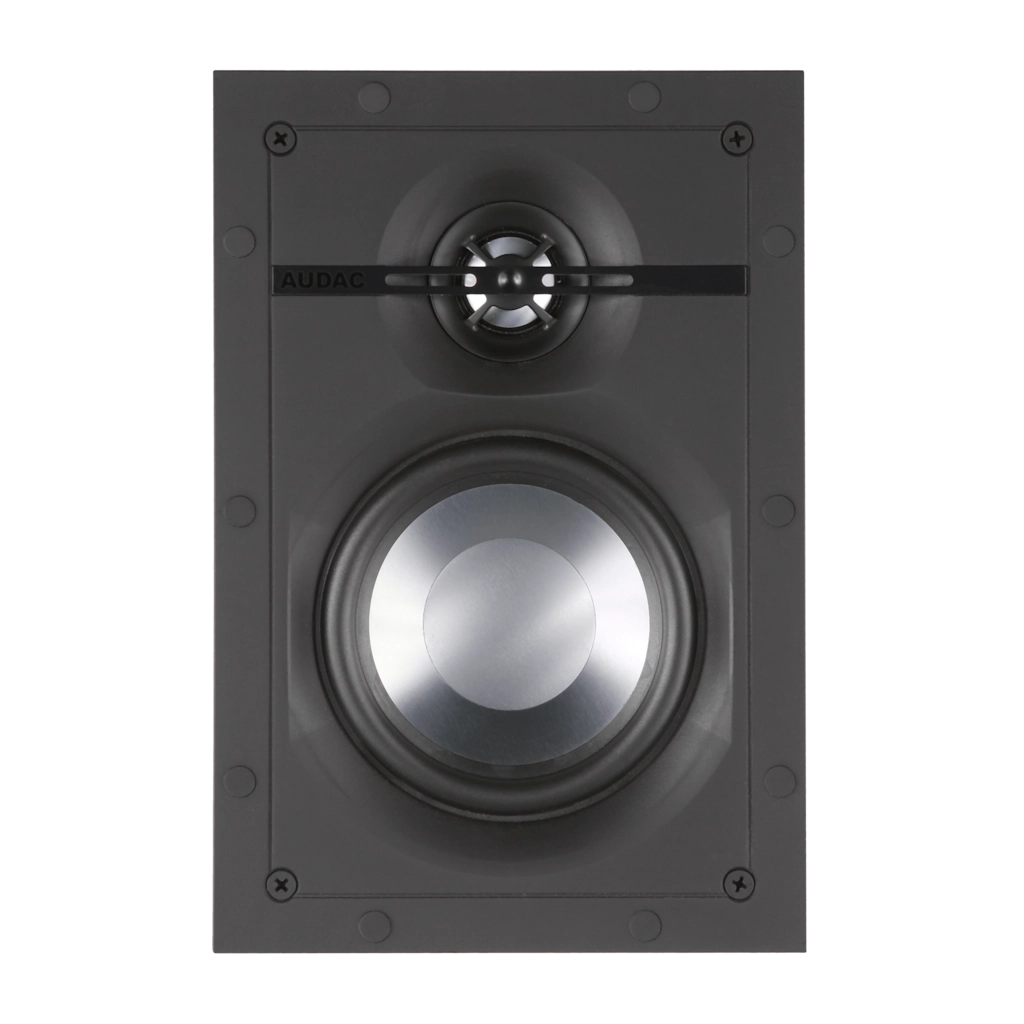

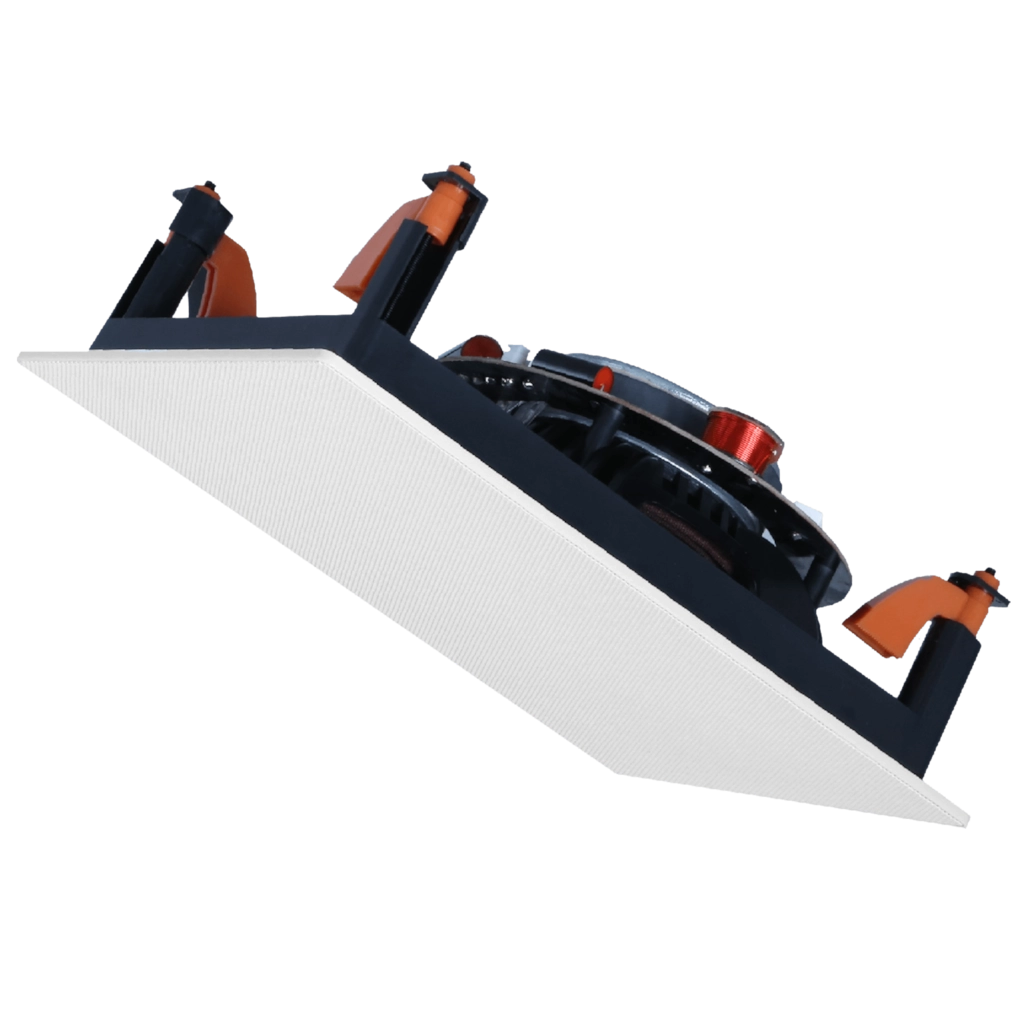

MERO5
High-end 2-way in-wall speaker 5″
- SlimLine™ grill with 1mm thin border
- Gold-Con™ spring clamps
- 1″ + 5″ Aluminum membrane drivers
- QuickFix installation system
Description
Available models
| MERO5 | White version – 8Ω |
| MERO5I/W | White version – 8Ω (RAL9016 + Logo) |
System specifications
| Speaker type | 2-way | ||
| Peak power handling | 200 W | ||
| Program power handling | 100 W | ||
| RMS/AES power handling | 50 W | ||
| Impedance | 8 Ω | ||
| Sensitivity (1W/1m) | 85 dB | ||
| Sound Pressure (Max. W/1m) | 102 dB | ||
| Frequency | Response (± 3 dB) | 70 Hz – 20 kHz | |
| Range (-10 dB) | 55 Hz – 20 kHz | ||
| Crossover | Frequency | 3 kHz | |
| Type | Passive built-in | ||
| Dispersion | Horizontal | 160° | |
| Vertical | 140° | ||
| Connectors | Gold-Con™ spring clamps | ||
| Drivers | HF | 1” Aluminium membrane | |
| Rotation angle | 7.5° | ||
| LF | 5” Aluminium membrane | ||
Product Features
| Dimensions | 161.5 x 236.5 x 74.1 mm (W x H x D) | |
| Weight | 1 kg | |
| Construction | ABS | |
| Front finish | Thin edged white grill (RAL9003) | |
| Cut-out measurement | 139 x 214 mm | |
| Built-in depth | 71 mm | |
| Mounting & handling | 4 Screw quick-fixing mechanism | |
| Operating temperature | -20 °C ~ 60 °C | |
| Colours | Black frame & white grill | |
| Accessories | Included | Cut-out template |
| Optional | WTR24 – 24W 100V line transformer | |
| GLM05/B – Black grill (RAL9005) | ||
| GLM05/P – Paintable grill | ||
| Included | GLM05/W – White grill (RAL9003) | |
Recommended applications
|
Hotels
|
|
Corporate
|
|
Residential
|
|
Bars & Restaurants
|
|
Retail
|
