System specifications
| RMS/AES power handling | @ 4 Ω Stereo | 2 x 500 W | |||
| @ 8 Ω Stereo | 2 x 300 W | ||||
| @ 8 Ω Bridge | 1000 W | ||||
| Frequency | Response (± 3 dB) | 20 Hz – 20 kHz | |||
| Signal / Noise | > 90 dB | ||||
| THD+N (@ 1 kHz) | < 0.1% | ||||
| Crosstalk (@ 1 kHz) | > 70 dB | ||||
| Technology | Class-D | ||||
| Power | Supply | Switching mode | |||
| AC Input: 100-120V/220-240V~ 50/60Hz | |||||
| Note: Standard voltage and frequency of electricity varies from country to country. Please contact your local distributor to ensure suitable product variant voltage and frequency compatibility. | |||||
| Consumption | 426 W | ||||
| Standby | 0.7 Watt (30 min standby time) | ||||
| Inputs | Sensitivity | 0 dB (1V RMS) | |||
| Impedance | 12 kΩ balanced | ||||
| Connector | XLR female with Male Linkthrough | ||||
| Protection | DC Short circuit | ||||
| Over heating | |||||
| Over load | |||||
| Signal limiting | |||||
| Cooling | Convection cooled | ||||
| Operating temperature | 0° ~ 40° @ 95% Humidity | ||||

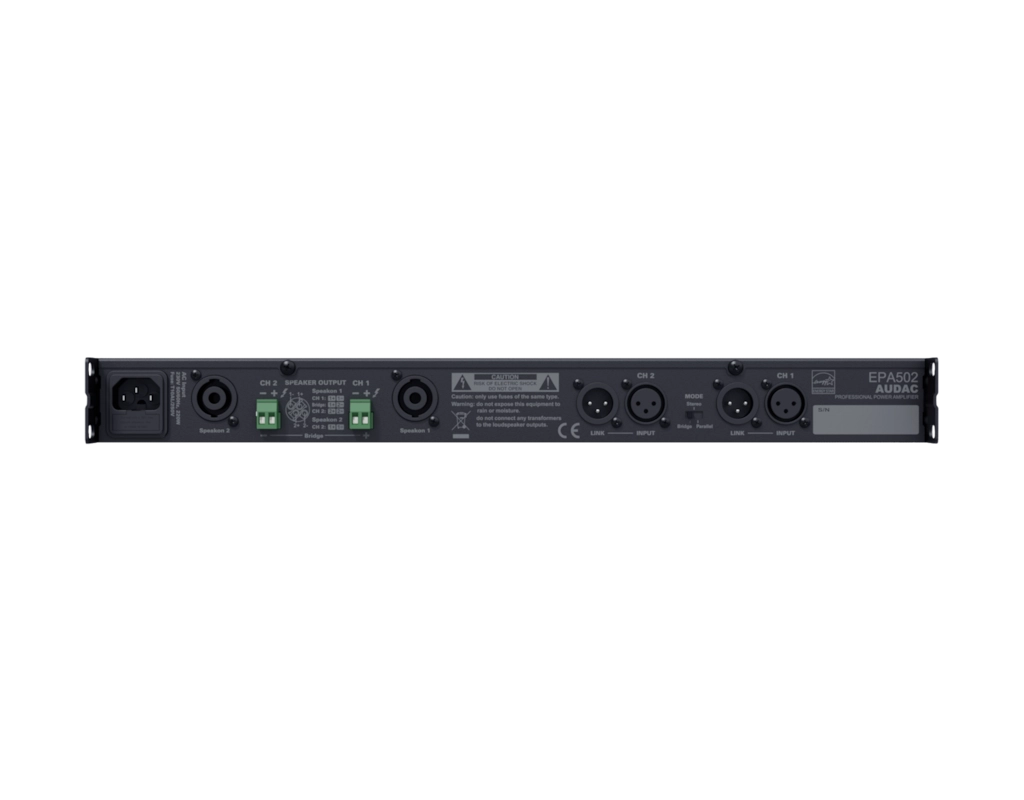

| Outputs | Connector | Speakon compatible & 2-pin Euro Terminal Block (5.08 mm) | |||
Product Features
| Dimensions | 482 x 44 x 330 mm (W x H x D) |
| Weight | 4.700 kg |
| Mounting | 19” |
| Unit height | 1 HE |
| Construction | Steel |
| Colours | Black |
Recommended applications
|
Bars & Restaurants
|
|
Education
|
|
Corporate
|
|
Clubs
|
|
Events
|
|
Retail
|
