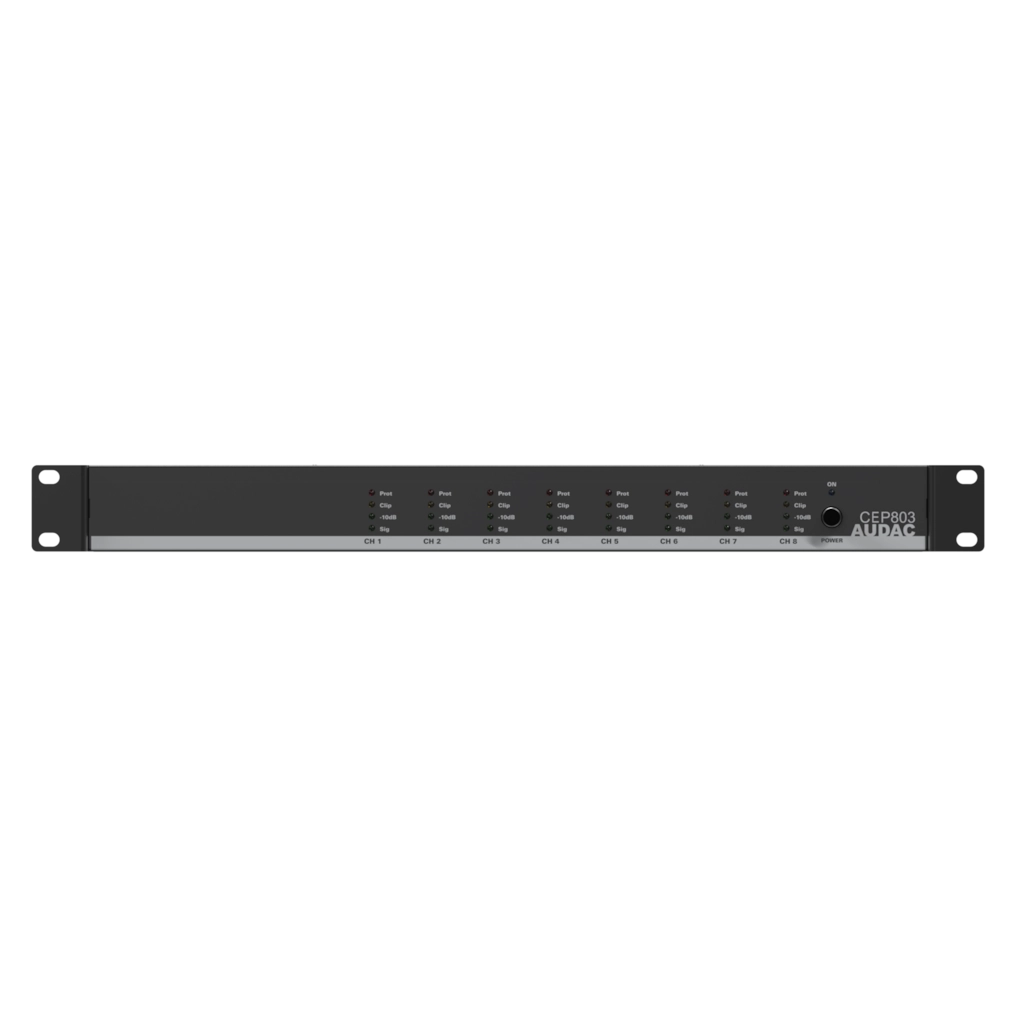

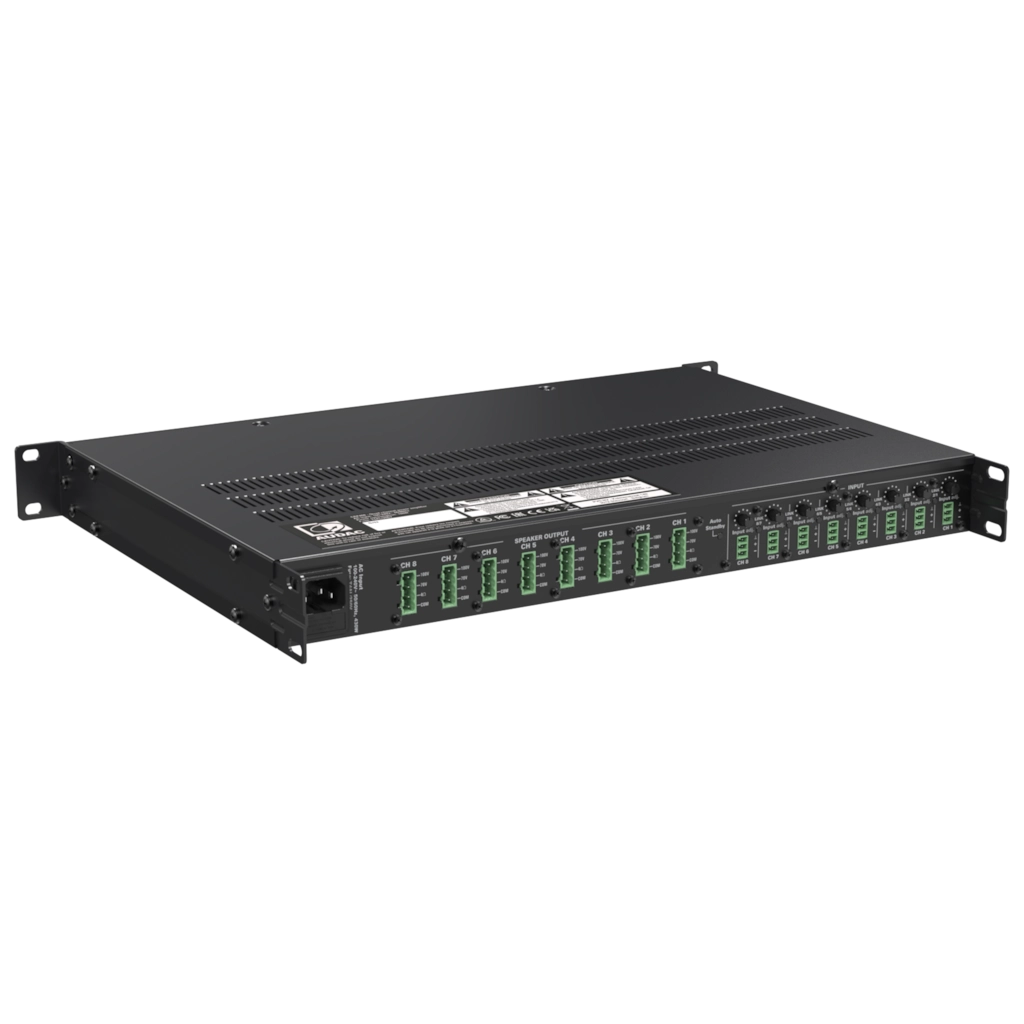

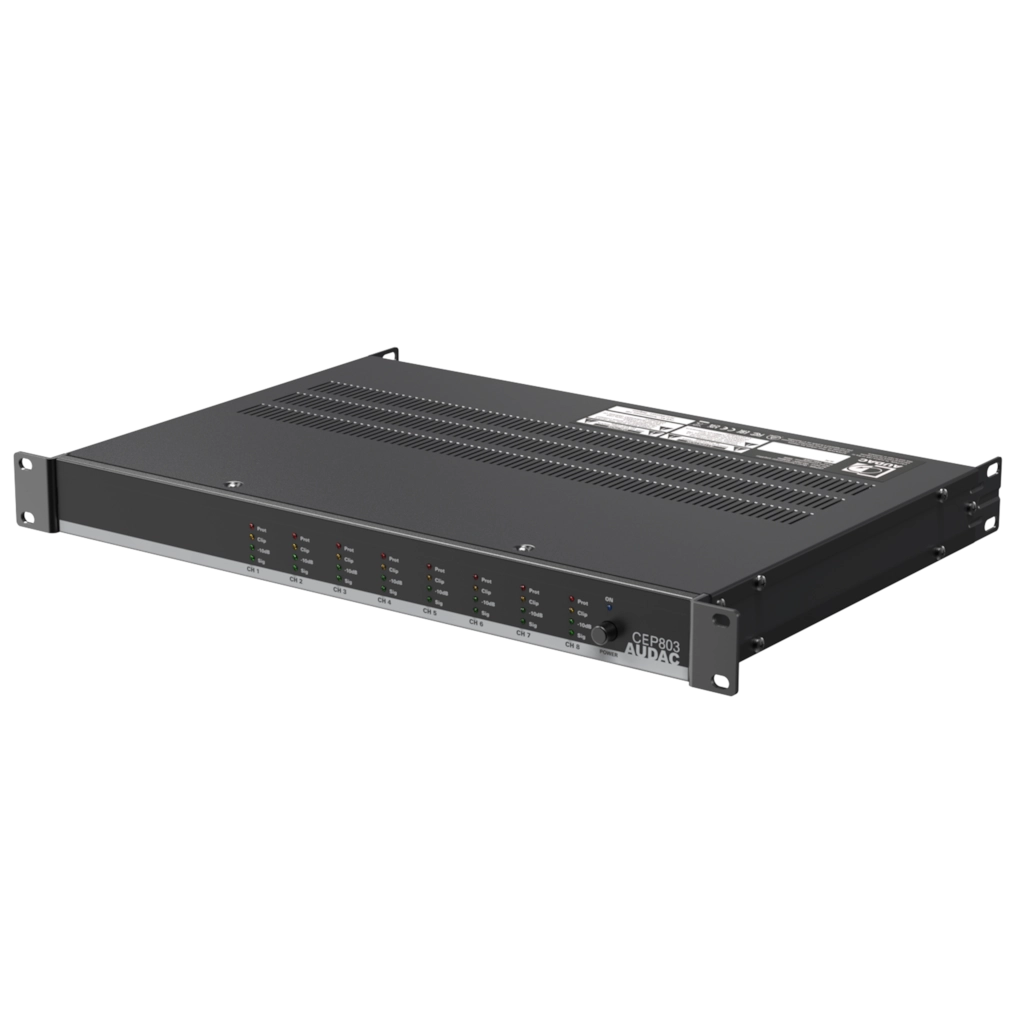

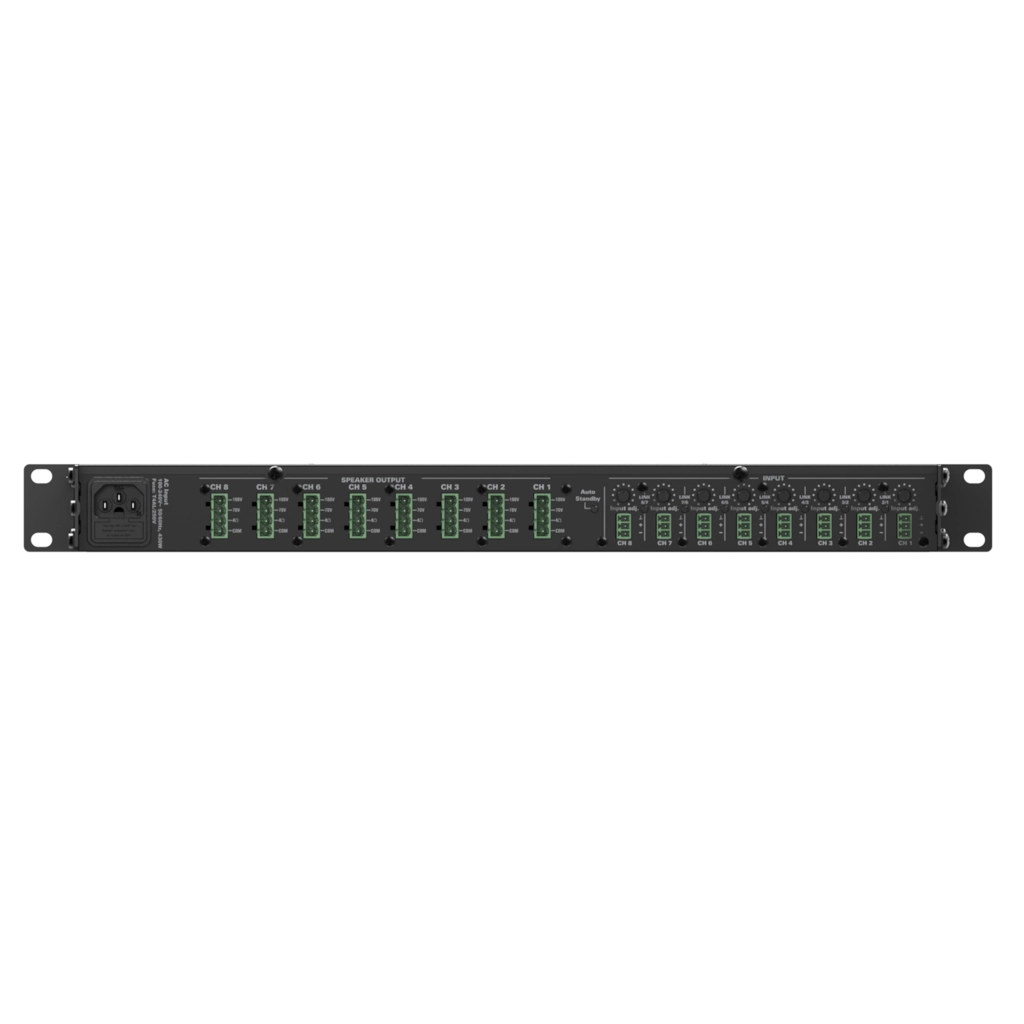

CEP803

Octo channel 4 Ohm energy-efficient amplifier – 8 x 30W – 70/100V

System specifications

RMS/AES power handling	@ 4 Ω		8 x 30 W
	@ 70 V		8 x 30 W
	@ 100 V		8 x 30 W
Signal / Noise			> 100 dB
THD+N (@ 1 kHz)			< 0.05% (1/8 rated Power)
Crosstalk (@ 1 kHz)			< 70 dB
Frequency	Response (± 3 dB)		110 Hz – 20 kHz
Technology			Class-D
Protection			DC Short circuit
			Over heating
			Over load
			Signal limiting
Cooling			Convection cooled
Operating temperature			0° ~ 40° @ 95% Humidity
Power	Supply		Switching mode
	Source		100 ~ 240 V AC / 50 ~ 60 Hz
	Consumption	Standby	0.6 W
		Idle	17.5 W
		Nominal (1/3 MUP)	150 W
		Nominal (1/8 MUP)	68 W
Inputs	Connector		IEC C14 Connector
			Input linking through miniature switches
	Connector		3-pin Euro Terminal Block (Pitch – 3.81 mm)
Outputs	Connector		4-pin Euro Terminal Block (Pitch – 5.08 mm)
Inputs	Sensitivity		-0.5 dB ~ 10.5 dB
Outputs	Voltage / Impedance		4 Ω
			70 V / 167 Ω
			100 V / 333 Ω
