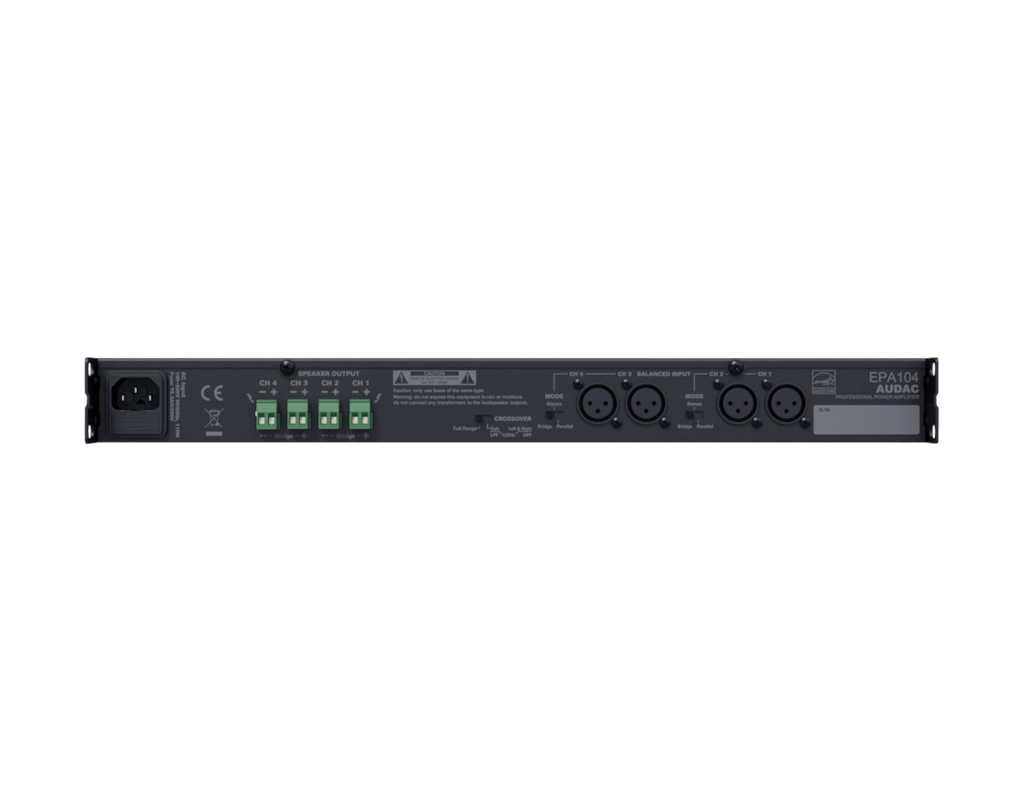

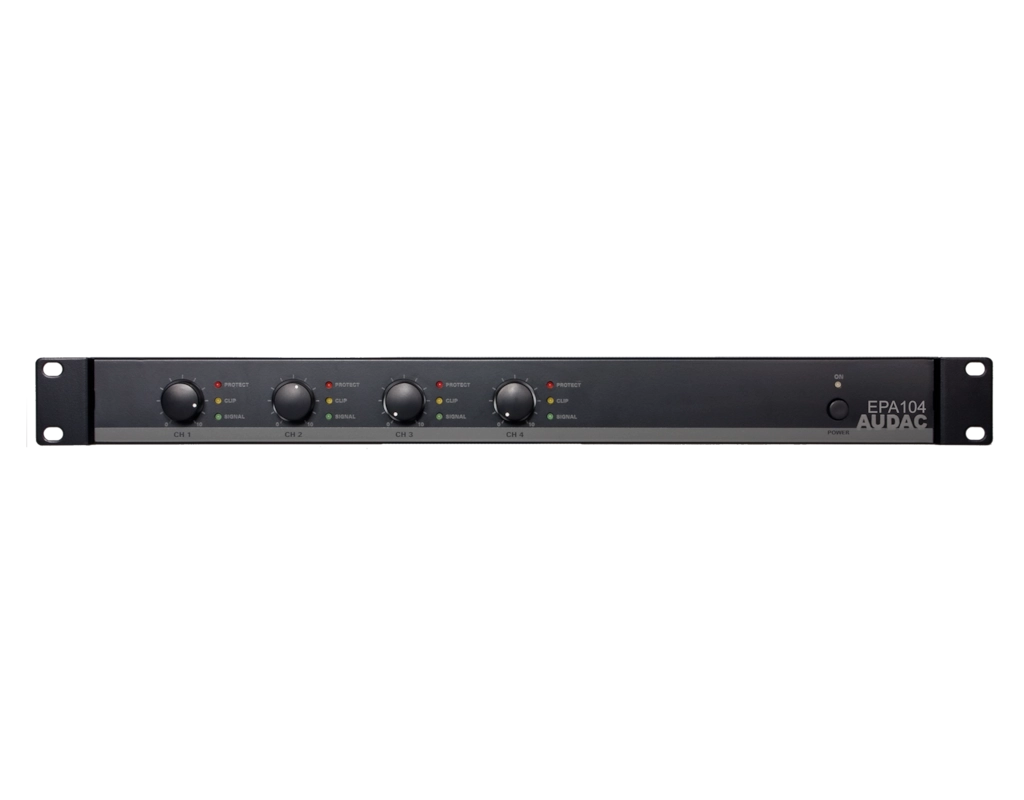

EPA104

Quad-channel Class-D amplifier 4 x 100W – crossover

System specifications

RMS/AES power handling	@ 4 Ω Stereo		4 x 100 W
	@ 8 Ω Stereo		4 x 50 W
	@ 8 Ω Bridge		2 x 200 W
Frequency	Response (± 3 dB)		20 Hz – 20 kHz
Signal / Noise			> 90 dB
THD+N (@ 1 kHz)			< 0.1% (1/2 Rated Power)
Crosstalk (@ 1 kHz)			> 70 dB
Technology			Class-D
Power	Supply		Switching mode
			100 ~ 240 V AC / 50 ~ 60 Hz
	Consumption		188 W
		Standby	0.8 Watt (30 min standby time)
Inputs	Sensitivity		0 dB (1V RMS)
	Impedance		12 kΩ balanced
	Connector		3-pin XLR female
Protection			DC Short circuit
			Over heating
			Over load
			Signal limiting
Cooling			Convection cooled
Operating temperature			0° ~ 40° @ 95% Humidity
Outputs	Connector		2-pin Euro Terminal Block (Pitch – 5.08 mm)
