System specifications
RMS/AES power handling | 2 x 480 W | |
Frequency | Response (± 3 dB) | 50 Hz – 22 kHz |
Signal / Noise | > 100 dB | |
THD+N (@ 1 kHz) | < 0.3% (1/2 Rated Power) | |
Crosstalk (@ 1 kHz) | < 80 dB | |
Technology | Class-D | |
Power | Supply | Switching mode |
Source | 230 ~ 240 V AC / 50 Hz | |
Inputs | Sensitivity | -0.5 dB ~ 10.5 dB |
Impedance | 10 kΩ balanced | |

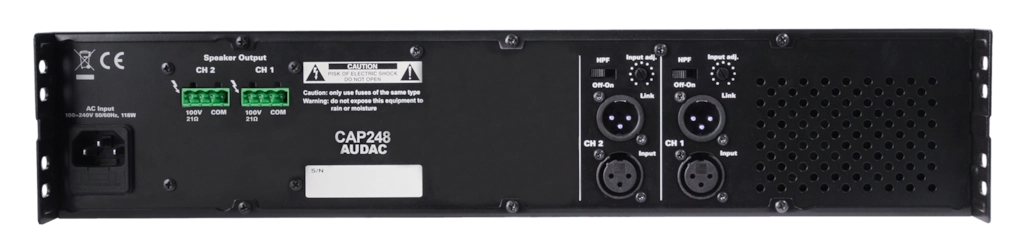

Connector | XLR female with Male Linkthrough | |
Outputs | Voltage / Impedance | 100 V / 21 Ω |
Connector | 4-pin Euro Terminal Block (Pitch – 5.08 mm) | |
Common mode rejection ratio | 70 dB | |
Protection | DC Short circuit | |
Over heating | ||
Over load | ||
Signal limiting | ||
Cooling | Temperature controlled fan | |
Operating temperature | 0° ~ 40° @ 95% Humidity |
Product Features
Dimensions | 482 x 88 x 420 mm (W x H x D) | |
Weight | 7.500 kg | |
Mounting | 19” | |
Unit height | 2 HE | |
Construction | Steel | |
Colours | Black | |
Accessories | Included | 2 x 4-pin Euro Terminal Block outputs connector |
Optional | CPE100 Rack mount handles |
Recommended applications
Bars & Restaurants
|
Education
|
Corporate
|
Clubs
|
Retail
|
