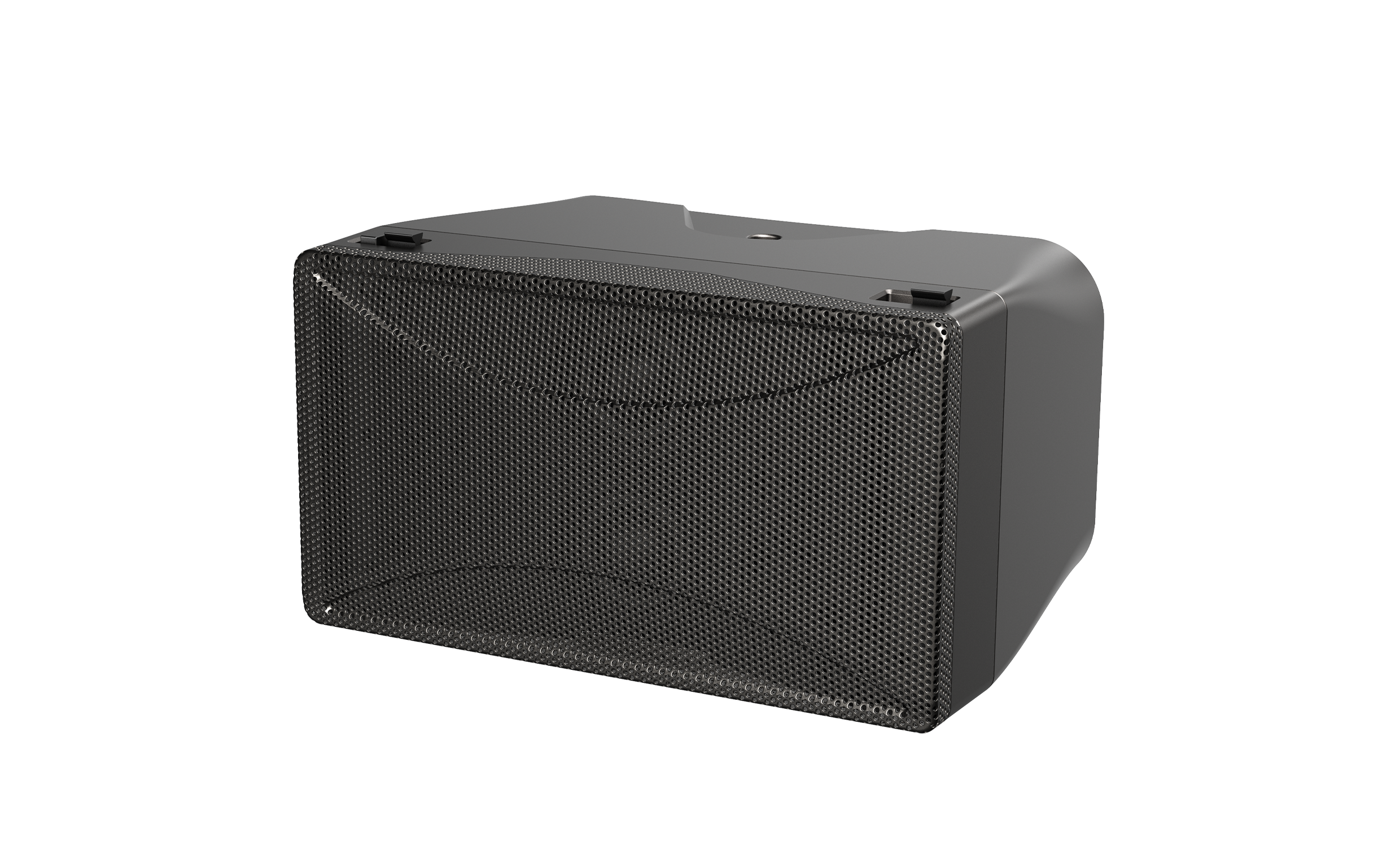

Butterfly 4pro
Line Array
Butterfly 4pro consists of 1 pc 4” LF driver and 2 pcs soft dome tweeters. The HF adopts a unique T-eyeTM design, and the array layout is assembled in the center front of the speaker.
Description
| Type | Multipurpose Micro-Line Array Loudspeaker |
| Power | 60W |
| Frequency Response(-10dB) | 100Hz-22kHz |
| Horizontal Coverage | 100° |
| Vertical Coverage | 20° |
| Maximum Calculated SPL/1M (Continuous/Peak) | 111dB/117dB |
| HF Driver | 2×1” driver |
| LF Driver | 4” driver,1” voice coil |
| Impedance | 16Ω |
| Crossover Mode | Passive Crossover |
| Input Connectors | Speakon 4pin |
| Cabinet Material | ABS plastic material |
| Angle adjustment | 0°,4° |
| Cabinet Color | Metal gray |
| Grille | Aluminium mesh |
| Mesh Color | Metal gray is standard and default color,
Contact Audiocenter for customization |
| Pole Mount | M10 |
| Optional accessories | Hanging Bracket, Wall Mount Bracket, Support Bracket |
| Speaker Dimensions(W×H×D) | 215×122×165mm |
| Carton Dimensions(W×H×D) | 253×160×247mm |
| Net Weight | 2.3kg |
| Shipping Weight | 2.7kg |
| Technical Support and After-sales Service | Global application support team,EASE GLL Files |
