Specifications

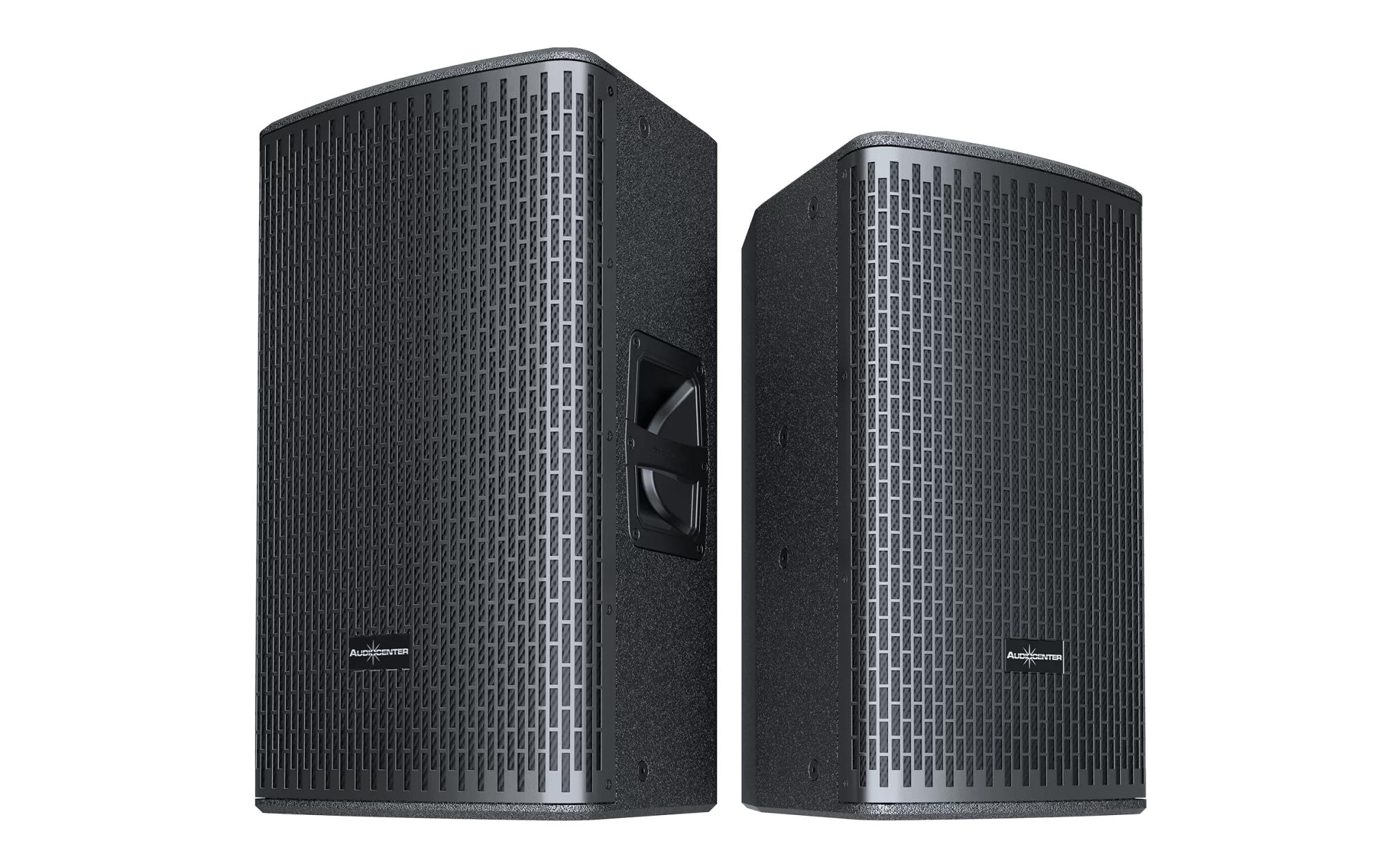

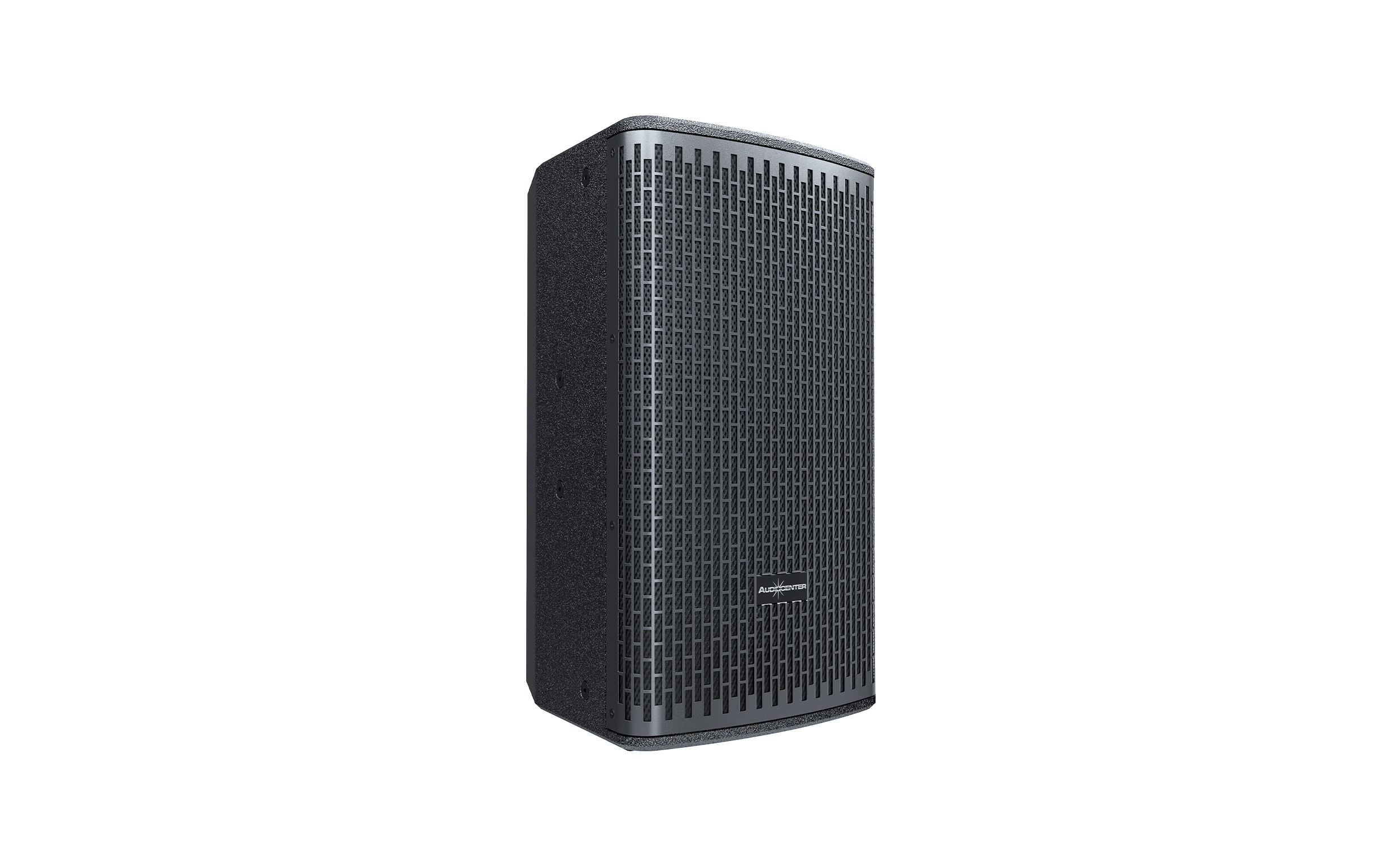

| Type | Active DSP-controlled full range loudspeaker |
| Frequency Response(-10dB) | 65Hz-20kHz |
| Horizontal Coverage | 90°/60° |
| Vertical Coverage | 60°/90° |
| Maximum Calculated SPL/1M (Continuous/Peak) | 119dB/125dB |

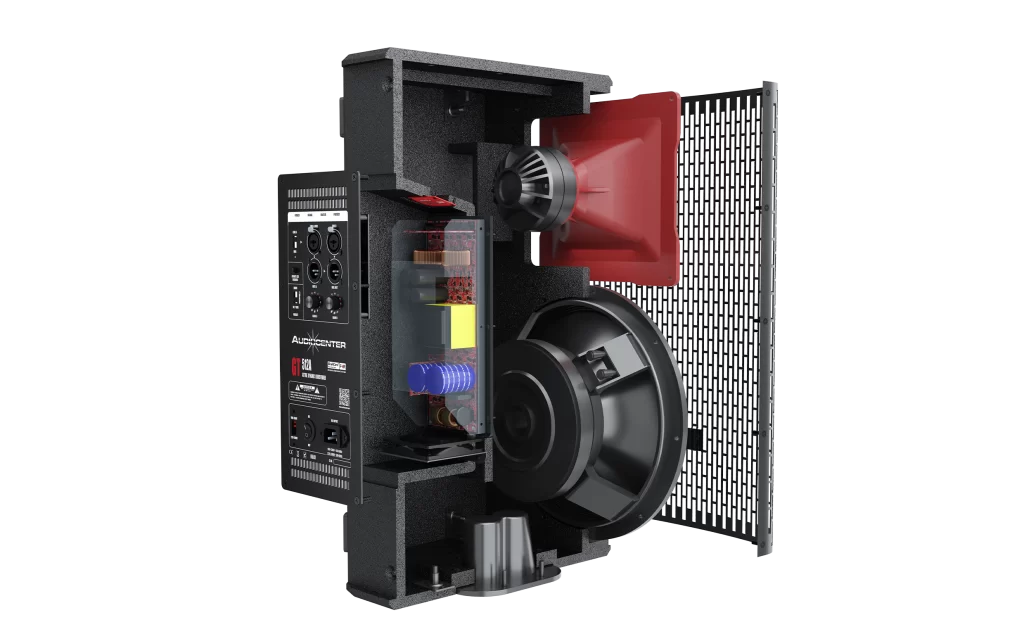

| HF Driver | Customized driver, 1.75” voice coil and 1.0”exit |
| LF Driver | Customized 8” driver, 2.0” voice coil |
| DSP | |
| Processor | 48kHz signal sampling frequency,FIR filtering |
| Presets | MAIN,SPEECH,W/SUB |

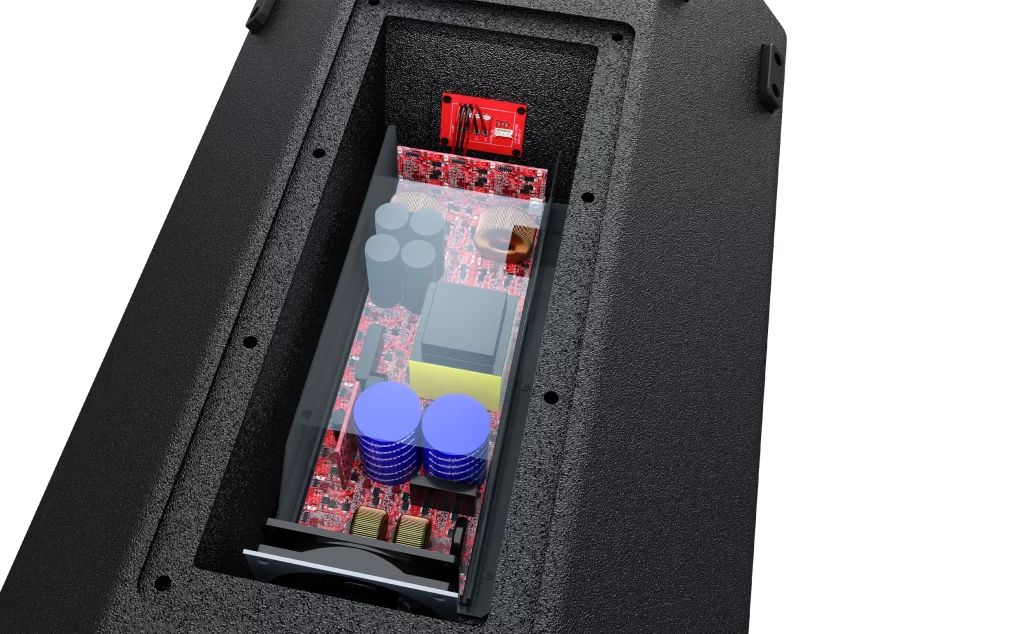

| AMPLIFIER | |
| Amplifier Circuitry | Class D |
| Power (RMS standards) | 1100W |
| Peak Power | 2200W |
| Frequency Response(1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% |
| Cooling System | Cooling with fans, air convection |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Signal Input | Female XLR(Mono jack 6.35) |
| Signal Output | Male XLR |
| Power Input | IEC power connector |
| Working Voltage | 100-130V~ or 220-240V~ (±10%,50/60Hz） |
| Power consumption (1/8 output power) | 50W |
| CABINET | |
| Cabinet Material | CNC machined plywood |
| Coating | Durable Polyurea Coating |
| Cabinet Color | Black is the default color. Contact Audiocenter for customization |
| Grille | Iron mesh |
| Handles | 1 top |
| Monitor Angle | / |
| Hanging Hardwares | M8 screw |
| Pole Mount | Base hole Φ35mm，0° or 10° options |
| Speaker Dimension (W×H×D) | 245x447x320mm |
| Carton Dimension (W×H×D) | 336×531×410mm |
| Net Weight | 13.0kg |
| Shipping Weight | 15.0kg |
