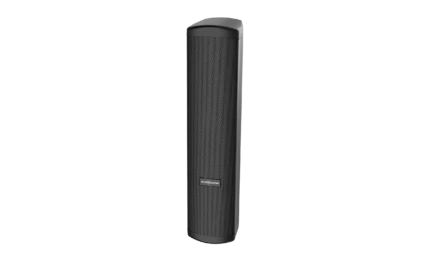

L65 MK2+L65S MK2
Compact multi-purpose active DSP column system
L65 MK2+L65S MK2 system is a compact multi-purpose active DSP column system consisting of a passive full-range column speaker L65 MK2 and an active DSP controlled compact single 18” subwoofer L65S MK2.
Description
| Type | Active DSP-controlled Column Speaker System |
| Frequency Response(-10dB) | 35Hz-20kHz |
| Horizontal Coverage | 110° |
| Vertical Coverage | 10° |
| Maximum Calculated SPL/1M (Continuous/Peak) | 131dB/137dB |
| HF Driver | Customized driver, 4pcs 1” drivers |
| LF Driver | Customized driver, 6pcs 5” drivers |
| Subwoofer | Customized driver, 1pcs 18” driver |
| DSP | |
| Processor | 96kHz signal sampling frequency |
| Presets | L65 MK2, L83 MK2, T8 |
| AMPLIFIER | |
| Amplifier Circuitry | Class D |
| Power (RMS standards) | 2000W |
| Peak Power | 4000W |
| Frequency Response(1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% |
| Cooling System | Cooling with fans, air convection |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Signal Input | Combo ( female XLR & Mono jack 6.35),Stereo Bluetooth |
| Signal Output | Male XLR |
| Amplifier Output Link L65 MK2 | Speakon 4pin |
| Column Input Link L65S MK2 | Speakon 4pin |
| Power Input | IEC power connector |
| Working Voltage | 100V-130V~ or 220V-240V~（±10%,50/60Hz） |
| Power consumption (1/8 output power) | 281W |
| CABINET | |
| Cabinet Material | CNC machined plywood |
| Cabinet Color | Black is the default color. Contact Audiocenter for customization |
| Grille | Iron mesh |
| Handles | L65S MK2,4 side; L65 MK2,1 back |

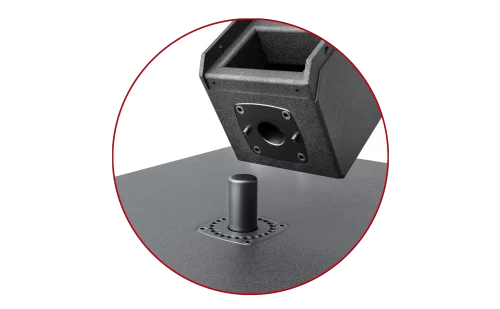

| L65S MK2 Pole Mount | Base hole Φ35mm |
| Speaker Dimension (W×H×D)
L65 MK2 L65S MK2 |
156×1400×180mm 590×600×815mm |
| Carton Dimension (W×H×D)
L65 MK2 L65S MK2 |
1502×252×240mm 676×700×900mm |
| Net Weight
L65 MK2 L65S MK2 |
21.0kg 54.0kg |
| Shipping Weight
L65 MK2 L65S MK2 |
25.0kg 58.0kg |
