Model | AT-90W | ||
---|---|---|---|
Name | UHF Wideband Multi-function Directional Log Antenna | ||
Frequency Band | UHF 470 – 1000 MHz | ||
Antenna Gain | 4 – 6 dBi | ||
Built-in Booster | Built-in 0 – 12 dB gain controllable booster | ||
Connectors | 2 × TNC | ||
Power Supply | DC 8 – 15 V bias supplied from the RX Only connector | ||
Impedance | 50 Ω | ||
Dimensions | 319 × 270 × 25 mm (W × H × D) | ||
Weight | Approx. 480 g |

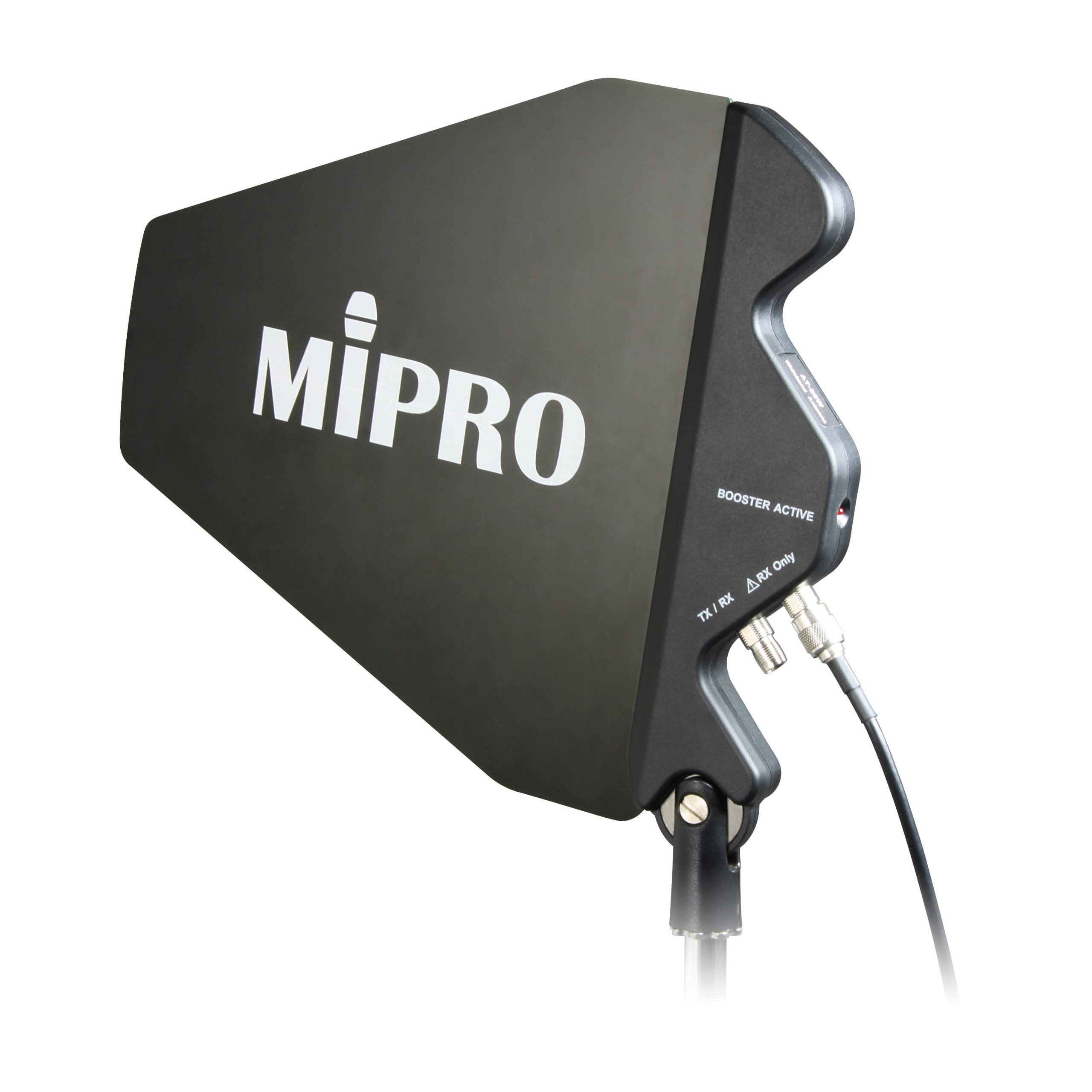

AT-90W
UHF Wideband Multi-function Directional Log Antenna
AT-90W
- A wideband multi-function directional antenna has a “TX/RX” connector and an “RX Only” connector.
- Provides directional high efficiency transmission and reception range.
Categories: MIPRO, ANTENNA SYSTEMS
