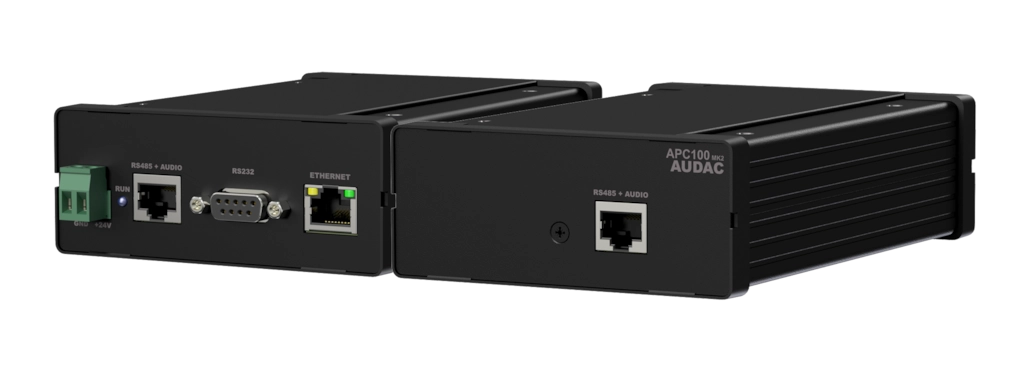

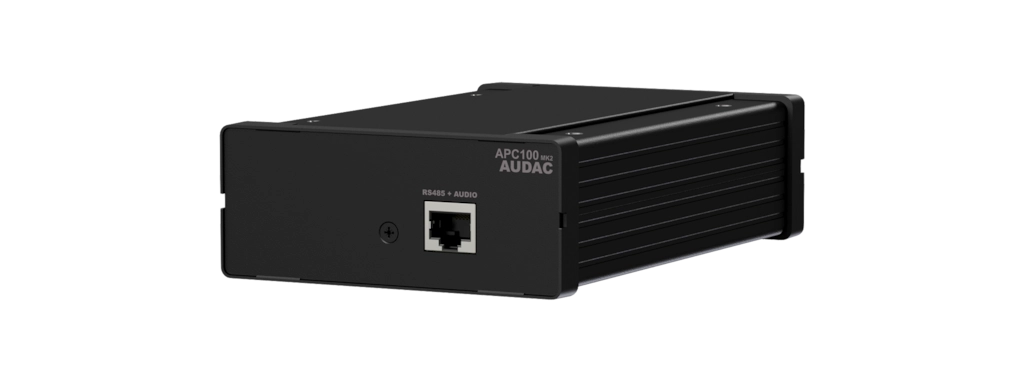

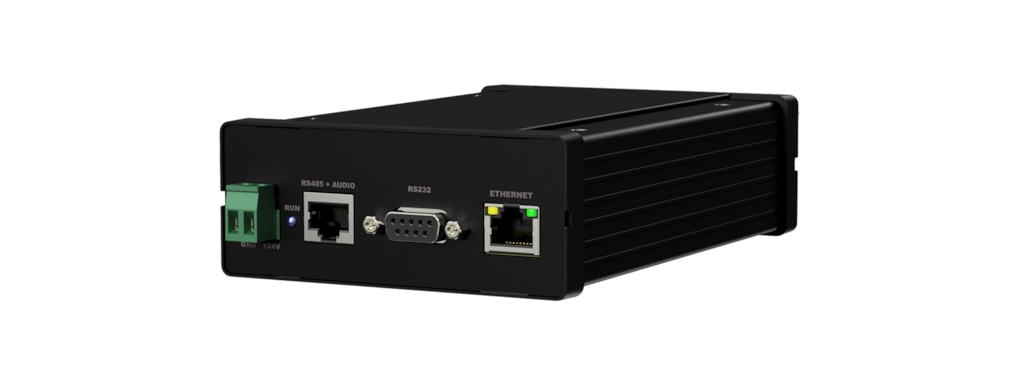

APC100
Universal configuration & control unit
- Compact construction
- RS232 & TCP/IP control port
- Digital communication bus (RS-485)
- S-box™ modular multifunctional enclosure
Description
Available models
| APC100MK2 | MK2 version |
System specifications
| Control | RS-485 | |
| RS-232 | ||
| TCP/IP | ||
| Connectors | RJ45 (Ethernet) | |
| 2 x RJ45 (RS-485 + Audio) | ||
| DB9 (RS-232) | ||
| Power | Consumption | < 1 W |
| Supply | 24V DC (PSD242 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz) | |
| Socket Connections (AUDAC Touch™) | 4 sockets | |
