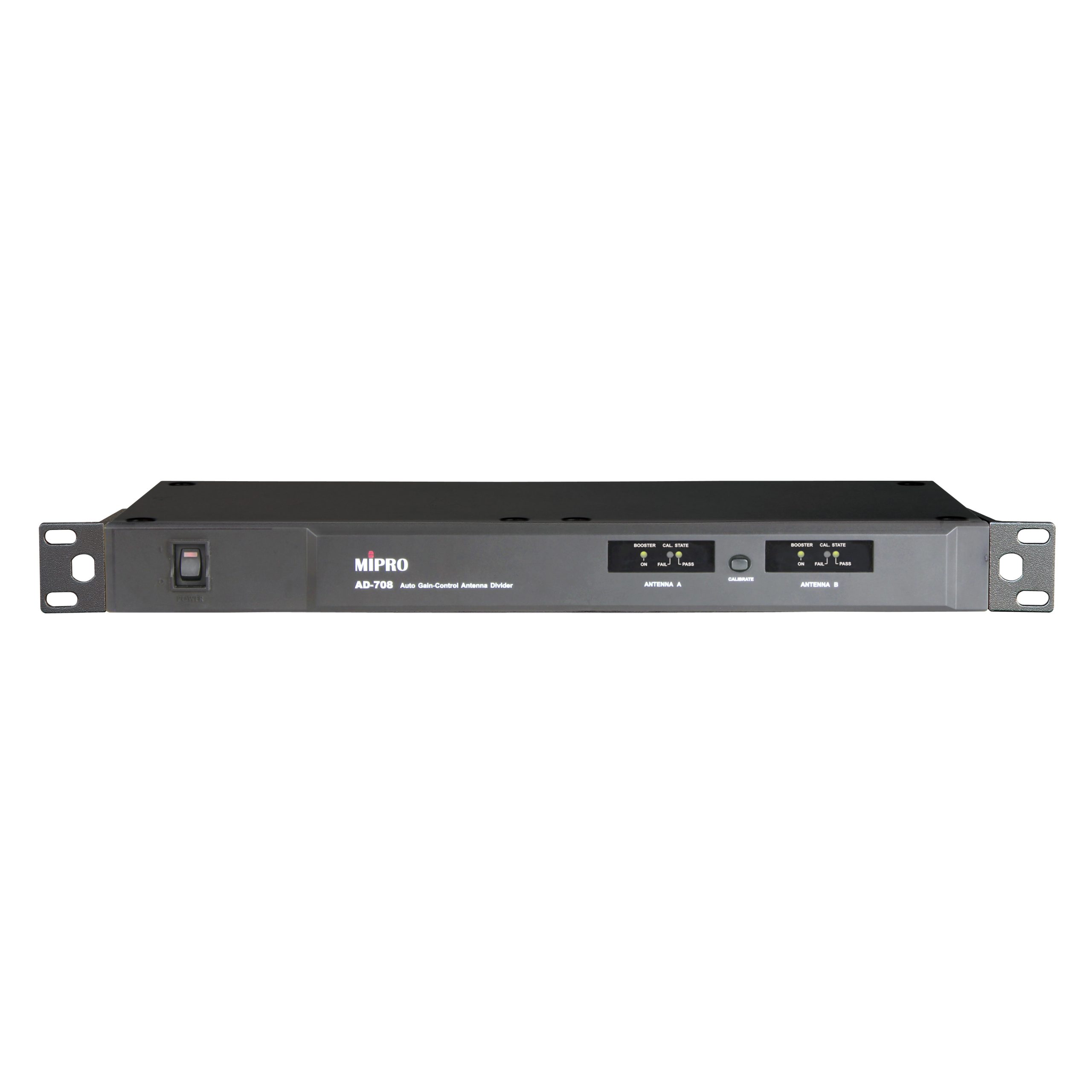

AD-708
UHF Wideband 4-channel Antenna Divider with Auto Gain Controller
- Optimized in the 470 – 850 MHz frequency range and complies with FCC and EU telecom regulations.
- Allows connecting with up to four receivers, and can be daisy-chained with another divider.
- Designed with high dynamic, low noise components and an ultra-wideband circuit, it features ultra-low intermodulation and insertion loss and can eliminate multi-channel spurious interference.
- Detects the cable loss and automatically adjusts the booster to precisely compensate for the loss.
- Pairs with an MPB-30 gain-controllable antenna booster to eliminate the intermodulation distortion.
Description
| Model | AD-708 |
|---|---|
| Name | UHF Wideband 4-channel Antenna Divider with Auto Gain Controller |
| Frequency Band | UHF 470 – 850 MHz |
| Signal Loss Detection | Detects the cable loss for automatic gain adjustment of antenna booster |
| Input / Output Gain | 1 dB ± 1 dB |
| Input Connectors | 2 × TNC |

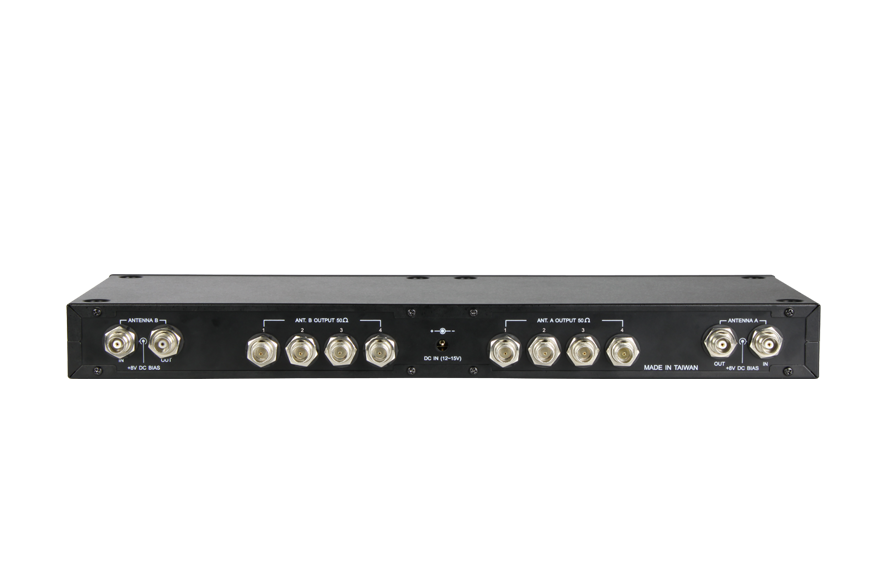

| Output Connectors | 4 pairs of TNC. 1 pair of TNC for daisy-chain multiple dividers |
| System Impedance | 50 Ω |
| Antenna Input Bias | DC 8.3 V, 230 mA |
| Power Supply | DC 12 – 15 V, AC 100 – 240 V |
| Dimensions | 420 × 44 × 164 mm (W × H × D) |
| Weight | Approx. 1.5 kg |
